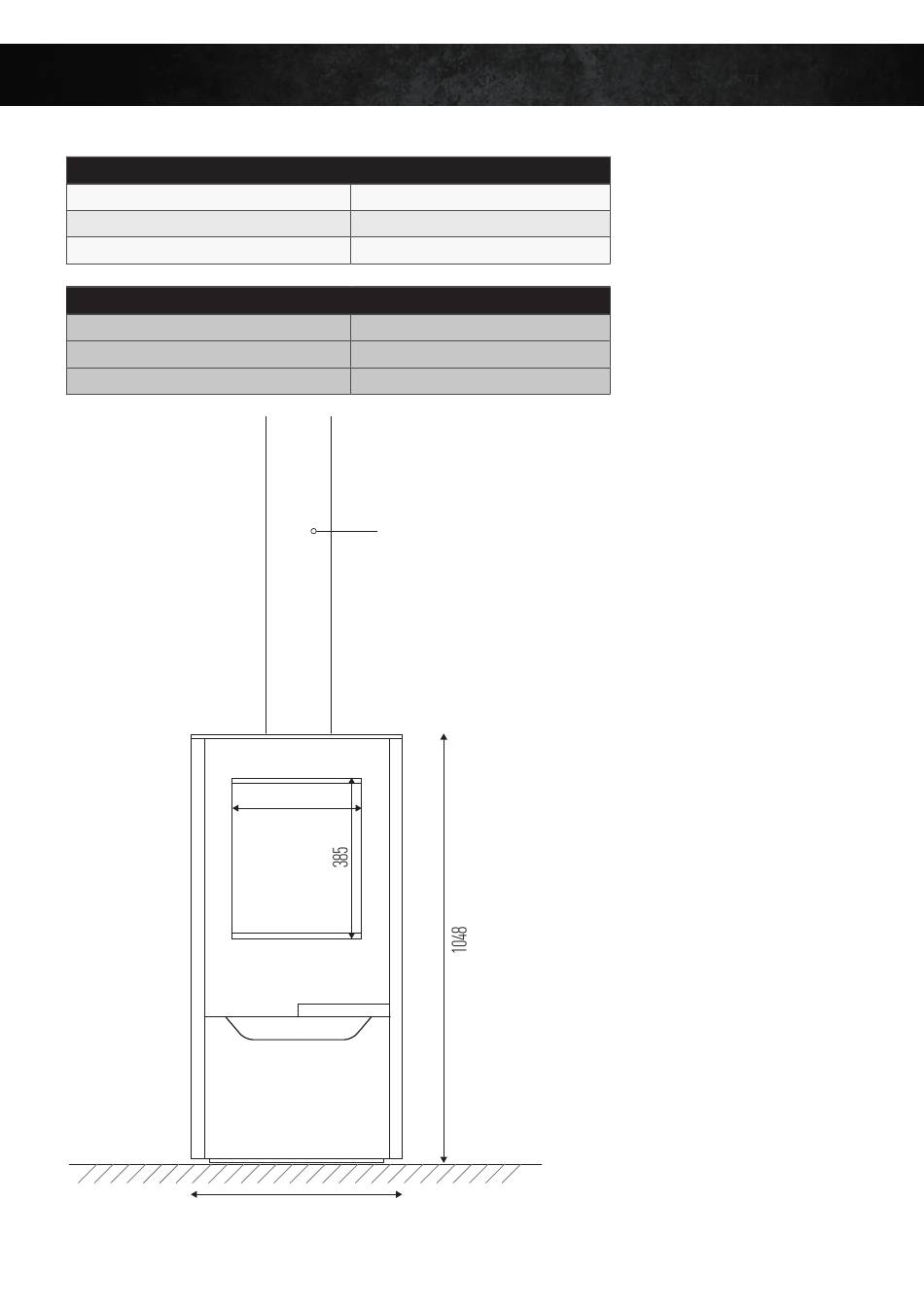

1. TECHNICAL DATA
WEIGHT AND DIMENSIONS:
Dimensions Firebox
Firebox weight
Flue kit
DETERMINED UNDER TEST CONDITIONS:
Nominal thermal output
Efficiency (Australian Test)
Emissions (Australian Test)
INVICTA ONSEN INSTALLATION AND USER MANUAL
W500 x H1048 x D518mm
Standard 6"/8"/10"
0.6g/kg
6 / 8" FLUE
309
500
126kg
6kW
61%
PAGE 2
Advertisement
Related Manuals for Invicta Onsen
Summary of Contents for Invicta Onsen
- Page 1 1. TECHNICAL DATA WEIGHT AND DIMENSIONS: Dimensions Firebox W500 x H1048 x D518mm Firebox weight 126kg Flue kit Standard 6”/8”/10” DETERMINED UNDER TEST CONDITIONS: Nominal thermal output Efficiency (Australian Test) Emissions (Australian Test) 0.6g/kg 6 / 8” FLUE INVICTA ONSEN INSTALLATION AND USER MANUAL PAGE 2...
-
Page 2: Pre-Installation
2. PRE-INSTALLATION Congratulations on your purchase of the Onsen. This appliance should be installed and checked by a qualified professional. Ensure you have read the operation guidelines thoroughly prior to first use. For any questions or concerns please contact Oblica on 03 9416 0400. - Page 3 Combustible 350mm 350mm 350mm 850mm IMPORTANT: 850mm 850mm Frames must also be considered. Timber window frames must be treated as combustible surfaces 850mm (see 2.3). Aluminium frames can be treated as non-combustible surfaces (see 2.2). INVICTA ONSEN INSTALLATION AND USER MANUAL INVICTA ELTON INSTALLATION AND USER MANUAL PAGE 4...
- Page 4 The sheet must be fixed with the 2000mm length fixed centrally behind the appliance and must extend to a height of 1200mm above the hearth. Configuration 3 – With Silicate board 30mm thick Combustible 2000mm 200mm INVICTA ONSEN INSTALLATION AND USER MANUAL INVICTA ELTON INSTALLATION AND USER MANUAL PAGE 5...
-
Page 5: Installation
3. INSTALLATION 3.1 Typical flue kit installation Cowl (Chinaman Hat) 8” Outer Case 10” Outer Case RUBBER DEKTITE FLASHING 6” Active Flue 8” Outer Case 10” Outer Case CEILING RING 6” Active Flue INVICTA ONSEN INSTALLATION AND USER MANUAL INVICTA ELTON INSTALLATION AND USER MANUAL PAGE 6... - Page 6 The top of the flue must be 1200mm above the roofline. Alternatively, there must be a minimum distance of 3 meters from any higher section of roof. > 8 m – > 120 cm – > 120 cm > 120 cm – – INVICTA ONSEN INSTALLATION AND USER MANUAL INVICTA ELTON INSTALLATION AND USER MANUAL PAGE 7...
- Page 7 Joist Concrete FLOOR PROTECTOR LAID ON JOIST Combustible 300mm Combustible Insulative board (8mm) 300mm Insulative board (8mm) floor (eg. timber) floor (eg. timber) + non combustible finish + non combustible finish 705mm 705mm Joist Joist INVICTA ONSEN INSTALLATION AND USER MANUAL INVICTA ELTON INSTALLATION AND USER MANUAL PAGE 8...
- Page 8 Non combustible finish floor (eg. timber) (eg.tiles) Combustible Non combustible finish floor (eg. timber) (eg.tiles) Concrete Concrete TOP VIEW Floor protector Combustible floor Floor protector (eg: Timber) 300mm Combustible floor (eg: Timber) 705mm 300mm 705mm INVICTA ONSEN INSTALLATION AND USER MANUAL INVICTA ELTON INSTALLATION AND USER MANUAL PAGE 9...
-
Page 9: Operation
• Misuse may lead to unhealthy and environmentally harmful emissions and will void any warranty or guarantee. • The maximum load capacity for the Onsen is 10kg of wood. • Burning only seasoned hardwood helps to protect the environment and lower emissions. - Page 10 TEST REPORT NO ASFT18079 TESTING LABORATORY: Australian Solid Fuel Testing MANUFACTURER: Invicta MODEL: Onsen fireplace WORK REQUESTED: Assessment of appliance to AS/NZS 4012:2014 for determination of Power Output and Efficiency and AS/NZS 4013:2014 for Flue Gas Emission using hardwood fuel.
