Page 1: Table Of Contents

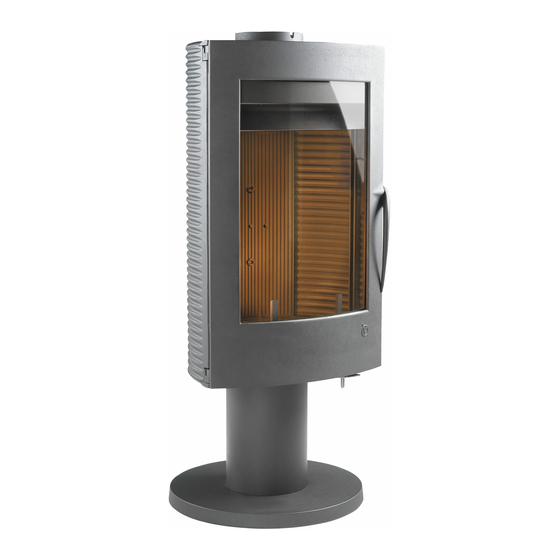

PHAROS: MODEL SPECIFICATIONS 1. TECHNICAL DATA 2. PRE-INSTALLATION 3. INSTALLATION 4. OPERATION 5. TESTING Keep for future use... -
Page 2: Technical Data
Dimensions Firebox W531 x H1250 x D530mm Firebox weight 167kg Flue kit Standard 7”/9”/11” DETERMINED UNDER TEST CONDITIONS: Nominal thermal output Efficiency (Australian Test) Emissions (Australian Test) 1.2g/kg 7 / 9” FLUE OBLICA | PHAROS INSTALLATION AND USER MANUAL PAGE 2... -
Page 3: Pre-Installation
2. PRE-INSTALLATION Congratulations on your purchase of the Pharos. This appliance should be installed and checked by a qualified professional. Ensure you have read the operation guidelines thoroughly prior to first use. For any questions or concerns please contact Oblica on 03 9416 0400. - Page 4 Configuration 2 – Corner installation 400mm Combustible IMPORTANT: Frames must also be considered. Timber window frames must be treated as combustible surfaces 750mm (see 2.3). Aluminium frames can be treated as non-combustible surfaces (see 2.2). OBLICA | PHAROS INSTALLATION AND USER MANUAL PAGE 4...
-
Page 5: Installation
3.1 Typical flue kit installation Cowl (Chinaman Hat) 9” Outer Case 11” Outer Case RUBBER DEKTITE FLASHING 7” Active Flue 9” Outer Case 11” Outer Case CEILING RING 7 / 9” Flue OBLICA | PHAROS INSTALLATION AND USER MANUAL PAGE 5... - Page 6 The top of the flue must be 1200mm above the roofline. Alternatively, there must be a minimum distance of 3 meters from any higher section of roof. > 3 m – > 120 cm – > 120 cm > 120 cm – – OBLICA | PHAROS INSTALLATION AND USER MANUAL PAGE 6...
- Page 7 FLOOR PROTECTOR LAID ON TIMBER FLOOR Insulative board (6mm) Combustible + non combustible finish floor (eg. timber) Joist FLOOR PROTECTOR LAID ON JOIST Combustible Insulative board (6mm) floor (eg. timber) + non combustible finish Joist OBLICA | PHAROS INSTALLATION AND USER MANUAL PAGE 7...
- Page 8 3. INSTALLATION (CONTINUED) FLOOR PROTECTOR LAID ON CONCRETE Combustible Non combustible finish floor (eg. timber) (eg.tiles) Concrete TOP VIEW Floor protector Combustible floor (eg: Timber) 300mm 810mm OBLICA | PHAROS INSTALLATION AND USER MANUAL PAGE 8...
-
Page 9: Operation
• Misuse may lead to unhealthy and environmentally harmful emissions and will void any warranty or guarantee. • The maximum load capacity for the Pharos is 10kg of wood. • Burning only seasoned hardwood helps to protect the environment and lower emissions. -
Page 10: Testing
AS/NZS 4014.1, when tested according to joint AS/NZS 4012, AS/NZS 4013 (2014). CONCLUSION: The Pharos solid fuel burning appliance complies with the requirement of a combined efficiency of not less than 55% and a particulate emissions factor of not greater than 2.5g/kg of hardwood that complies to AS/NZS 4014.1 in...
