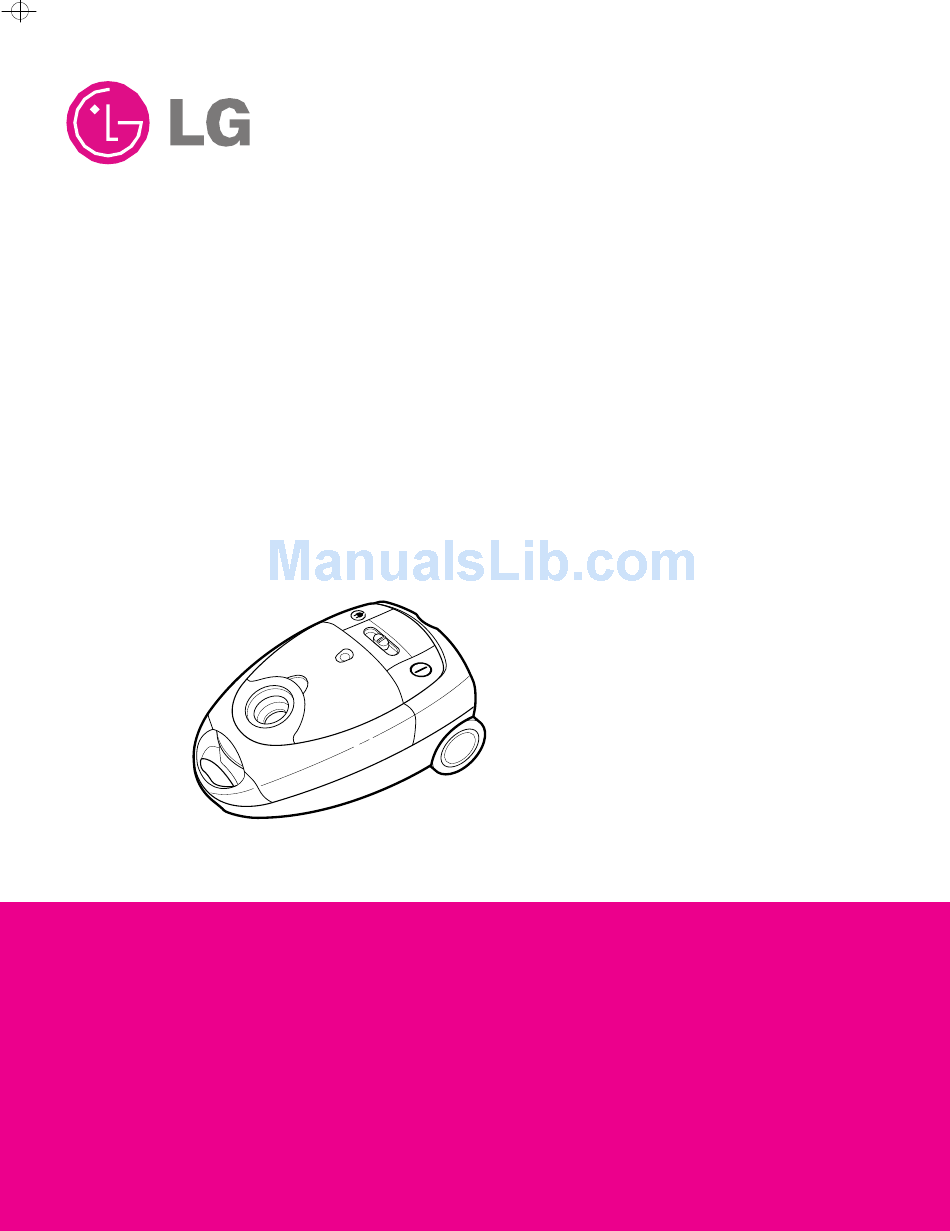

- Page 1 삼 흥 정 판 Website http://biz.lgservice.com VACUUM CLEANER SERVICE MANUAL MODEL : V-4800HTV CAUTION BEFORE SERVICING THE UNIT, READ THE "SAFETY PRECAUTIONS" IN THIS MANUAL. January, 2009 P/NO : 3828Fi5719N Printed in Korea...
-
Page 2: Table Of Contents
CONTENTS SAFETY PRECAUTIONS..........................3 CAUTIONS ..............................3 DESCRIPTION..............................4 SPECIFICATIONS ............................4 DISASSEMBLY ............................5~6 TROUBLE SHOOTING ..........................7~9 SCHEMATIC DIAGRAM..........................10 PRINTED CIRCUIT BOARD ........................10 EXPLODED VIEW ..........................11~13 REPLACEMENT PARTS LIST......................14~15... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS BEFORE OPERATING THIS VACUUM CLEANER, READ THIS SERVICE MANUAL THOROUGHLY, AND OBSERVE EACH POINT CAREFULLY. 1. Filter 4. Attachments 1) The filter is composed of a motor safety filter, a exhaust • Nozzle : for cleaning wooden floor, the room floor and filter and a paper bag or a cloth bag.. -
Page 4: Description
DESCRIPTION Flexible Hose Assembly Dust Indicator Cord Reel Telescopic Pipe Button Assembly Power Cord Switch Button (ON/OFF) Wheel Filter cover Nozzle Assembly,Floor Nozzle Assembly,Quilt CANISTER ATTACHMENT S Nozzle,Crevice Nozzle Assembly,Upholstery Filter Assembly,Cloth SPECIFICATIONS • MODEL : REFER TO THE COVER PAGE •... -
Page 5: Disassembly
DISASSEMBLY NOTE : Before attempting to service or adjust any part of the vacuum cleaner, disconnect the electrical power supply cord from the wall outlet. • Almost all the parts of this vacuum cleaner can be 3) Lift body cover in the direction of the arrow. assembled with a screw driver and each connecting component easily fits each other. - Page 6 3. Push Switch Assembly Replacement 2) When reassembling, assemble after sliding the lever of PWB Assembly and control knob to the left side. 1) Push the s/w button hook in the direction of the arrow. Control Knob Lever 5. Motor Assembly Replacement •...
-
Page 7: Trouble Shooting
TROUBLE SHOOTING GUIDE 1. SWITCH ON BUT MOTOR DOES NOT TURN CHECKING CAUSE SOLUTION Abnormal Check the power The fuse is melt down in the Exchange the fuse source coverknife switch Poor plug insertion Insert again Power cord cut Repair or exchange Interior lead wire cut Exchange the lead wire Normal... - Page 8 3. SWITCH OFF BUT MOTOR TURNS Poor connection Repair Poor switch Exchange the switch 4. WEAK SUCTION POWER Carbon brush defaced Exchange the motor Motor armature cut Exchange the motor Low rotation speed Foreign matters attached to Remove the foreign the impeller matters Inquire to the Power utility...
- Page 9 5. VIBRATION NOISES Loose parts Secure firmly Unbalanced motor assembly Exchange or repair the motor Foreign matters are attached Remove the foreign matters to the impeller Poor rectification of carbon Exchange the motor brush Armature is cut or foreign Exchange motor matters Remove foreign matters 6.
-
Page 10: Schematic Diagram
SCHEMATIC DIAGRAM PRINTED CIRCUIT BOARD -10-... -
Page 11: Exploded View
#EV# EXPLODED VIEW BASE ASSEMBLY, BODY V-4800HTV(V-C4380HTV.ACVPDEI) MDSBA1 AHDBR1 MCQBA1 MDSBA2 EAUBA1 MCQBM1 ACQBM1 MEGBC1 MEGBC2 MCKBH1 MDJBM1 AJWBA1 MAMBB1 AHJBA1 -11-... - Page 12 #EV# COVER ASSEMBLY, BODY MCKCC1 EBRBM1 MCKCE1 MCKCG1 ADQBE1 MBGCR1 MBGCC1 AESCA1 MCKCW1 MDSCA2 MCKCB1 EBFCP1 MCKCF1 MDSCA1 MFGCA1 -12-...
- Page 13 #EV# ACCESSORIES AGBN44 AGRPT1 AGBN58 AEMAF1 ADQBH1 AGBCN1 MFVAC1 -13-...
-
