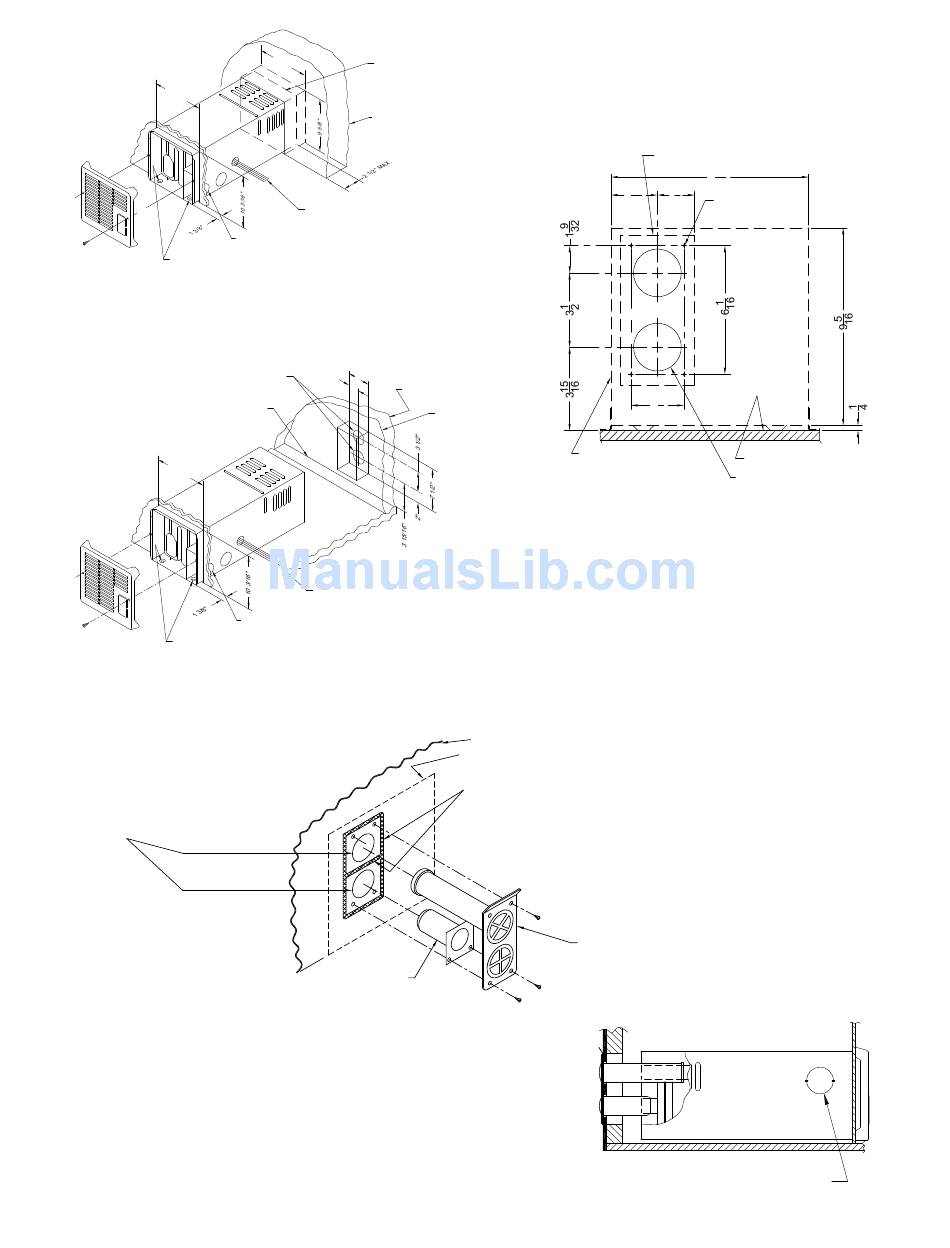

Installing Vent Cap; Back View Of Furnace; Knockout For Connector; Left Side - Suburban NT-16SEQ Installation Manual

1 0
9 / 1
6 "
GAS INLET FOR ELECTRIC IGNITION MODELS
SECURE UNIT IN PLACE
WITH (2) SCREWS
Figure 2
2 1/4" DIA. TWO HOLES THROUGH TRAILER
SKIN
MOUNTING SURFACE
1 0
9 / 1
6 "
GAS INLET FOR ELECTRIC IGNITION MODELS
SECURE UNIT IN PLACE
WITH (2) SCREWS
Figure 3
HOLE DIA. IN OUTER SKIN MAY BE 2 1/4"
IF OPENING CUT IN COMBUSTIBLE WALL
IS CUT AS ILLUSTRATED IN FIGURES 3
OR 4. HOLE DIA. MUST BE 2 3/4" IF THE
4 X 7 1/2" OPENING AS SHOWN IN FIGURE
4 IS NOT CUT THROUGH COMBUSTIBLE
WALL.
9 3
/ 8 " BACK OF FURNACE CABINET
TRAILER SKIN
POWER SUPPLY & THERMOSTAT WIRES
2 " 4 "
TRAILER SKIN
INSIDE WALL
POWER SUPPLY & THERMOSTAT WIRES
INTAKE TUBE

INSTALLING VENT CAP

Figure 6
2 3 16
FURNACE CABINET

BACK VIEW OF FURNACE

IMPORTANT:
VENT CAP AND TUBE ASSY.
MUST BE INSTALLED FROM
OUTSIDE OF COACH.
TRAILER SKIN
OUTLINE OF FURNACE
CAULK BEHIND VENT CAP AS SHOWN TO SEAL
BETWEEN EXHAUST AND INTAKE AND TO PREVENT
MOISTURE INSIDE FURNACE COMPARTMENT.
APPLY CAULKING GENEROUSLY AROUND
PERIMETER OF VENT CAP AND ACROSS CENTER
AS SHOWN. CENTER PUTTY STRIP IS ESSENTIAL.
VENT CAP &
EXHAUST TUBE
ASSEMBLY

KNOCKOUT FOR CONNECTOR

3
VENT CAP OUTLINE
9 5 16
1 3 4
7/64 DIA.
(4) HOLES
2 1 2
MOUNTING SURFACE
2 1/4 DIA. (2) HOLES
THRU TRAILOR SKIN
Figure 4

LEFT SIDE

Figure 6A
