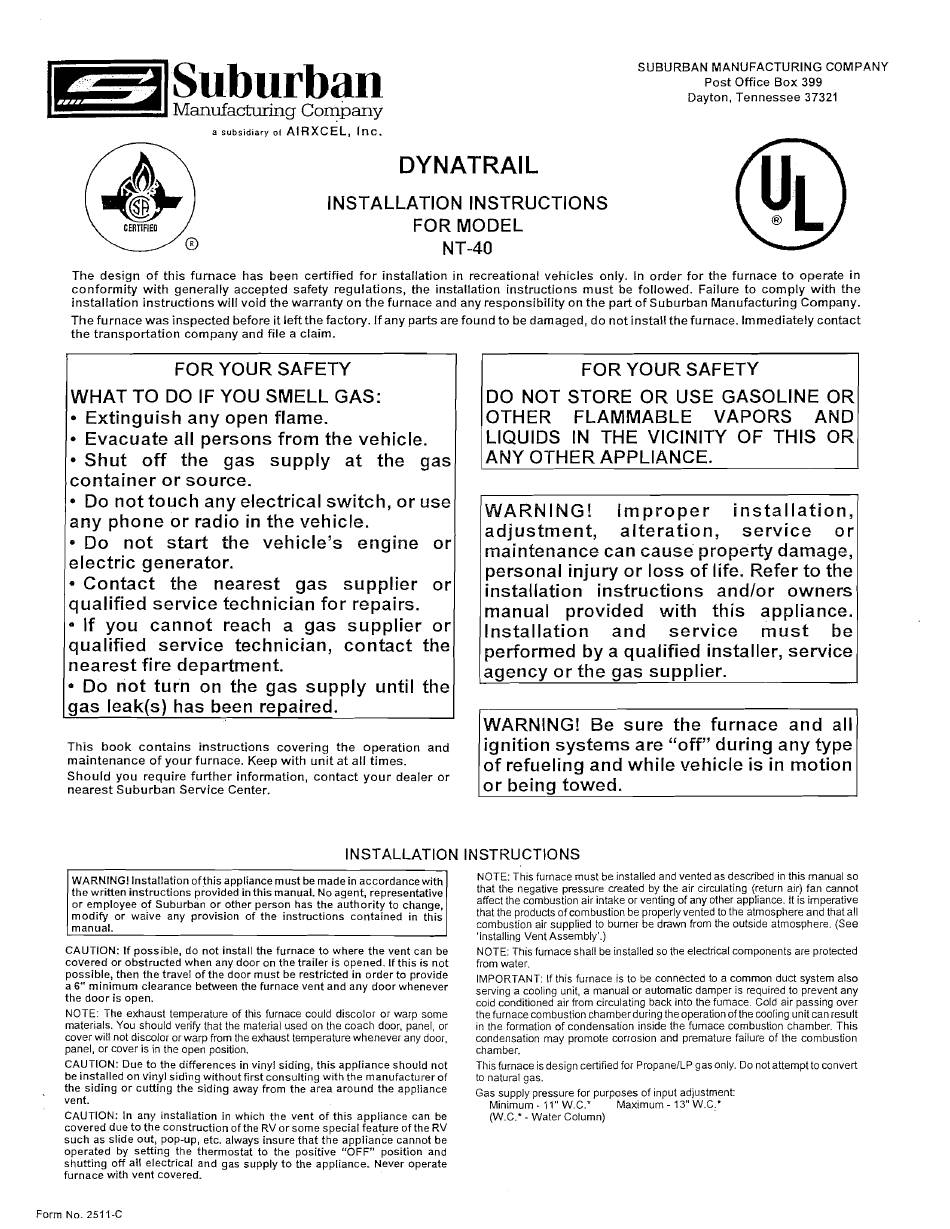

DY NATRAI L
INSTALLATION INSTRUCTIONS
FOR MODEL
S U B U R B A N M A N U F A C T U R I N G C O M P A N Y
P o s t O f f i c e B o x 3 9 9
Dayton, T e n n e s s e e 37321
T h e d e s i g n o f t h i s f u r n a c e h a s b e e n c e r t i f i e d f o r i n s t a l l a t i o n i n r e c r e a t i o n a l v e h i c l e s only. I n o r d e r f o r t h e f u r n a c e t o o p e r a t e i n
c o n f o r m i t y w i t h g e n e r a l l y a c c e p t e d s a f e t y r e g u l a t i o n s , t h e i n s t a l l a t i o n i n s t r u c t i o n s m u s t b e f o l l o w e d . F a i l u r e t o c o m p l y w i t h t h e
i n s t a l l a t i o n i n s t r u c t i o n s w i l l v o i d t h e w a r r a n t y o n t h e f u r n a c e a n d a n y r e s p o n s i b i l i t y o n t h e p a r t o f S u b u r b a n M a n u f a c t u r i n g C o m p a n y .
T h e f u r n a c e w a s i n s p e c t e d b e f o r e
it
l e f t t h e factory. I f a n y p a r t s a r e f o u n d t o b e d a m a g e d , d o n o t i n s t a l l t h e furnace. I m m e d i a t e l y c o n t a c t
t h e t r a n s p o r t a t i o n c o m p a n y a n d f i l e a c l a i m .
FOR YOUR SAFETY
WHAT TO DO IF YOU SMELL GAS:
Extinguish any open flame.
Evacuate all persons from the vehicle.
Shut off the gas supply at the gas
container or source.
Do not touch any electrical switch, or use
any phone or radio in the vehicle.
Do not start the vehicle's engine or
electric generator.
Contact the nearest gas supplier or
qualified service technician for repairs.
If you cannot reach a gas supplier or
qualified service technician, contact the
nearest fire department.
Do not turn on the gas supply until the
gas leak(s) has been repaired.
T h i s b o o k c o n t a i n s i n s t r u c t i o n s c o v e r i n g t h e o p e r a t i o n a n d
m a i n t e n a n c e o f y o u r f u r n a c e . K e e p w i t h u n i t a t a l l t i m e s .
S h o u l d y o u r e q u i r e f u r t h e r i n f o r m a t i o n , c o n t a c t y o u r d e a l e r o r
n e a r e s t S u b u r b a n S e r v i c e Center.
FOR YOUR SAFETY
DO NOT STORE OR USE GASOLINE OR
OTHER
FLAMMABLE
VAPORS
AND
LIQUIDS IN THE VICINITY OF THIS OR
ANY OTHER APPLIANCE.
W A R N I N G !
I m p r o p e r
i n s t a l l a t i o n ,
adjustment,
alteration,
service
or
maintenance can cause property damage,
personal injury or loss of life. Refer to the
installation instructions and/or owners
manual provided with this appliance.
Installation
and
service
m u s t
be
performed by a qualified installer, service
agency or the gas supplier.
WARNING! Be sure the furnace and all
ignition systems are "off" during any type
of refueling and while vehicle is in motion
or beina towed.
INSTALLATION INSTRUCTIONS
WARNING! Installation ofthis appliance must be made in accordancewith
the written instructions provided in this manual. No agent, representative
or employee of Suburban or other person has the authority to change,
modify or waive any provision of the instructions contained i n this
manual.
NOTE: This furnace must be installed and vented as described in this manual so
that the negative pressure created by the air circulating (return air) fan cannot
affect the combustion air intake or venting of any other appliance. It is imperative
that the products of combustion be properly vented to the atmosphere and that all
combustion air supplied to burner be drawn from the outside atmosphere. (See
'Installing Vent Assembly'.)
CAUTION: I f possible, do not install the furnace to where the vent can be
NOTE: This furnace shall be installed so the electrical components are protected
covered or obstructed when any door on the trailer is opened. If this i s not
from water.
possible, then the travel of the door must be restricted i n order to provide
a 6" minimum clearance between the furnace vent and any door whenever
the door i s open.
NOTE: The exhaust temperature of this furnace could discolor or warp some
materials. You should verify that the material used on the coach door, panel, or
cover will not discolor or warp from the exhaust temperature whenever any door,
panel, or cover is in the open position.
CAUTION: Due to the differences in vinyl siding, this appliance should not
be installed on vinyl siding without first consulting with the manufacturer of
the siding or cutting the siding away from the area around the appliance
vent.
CAUTION: In any installation in which the vent of this appliance can be
covered due t o the construction of the RV or some special feature of the RV
such as slide out, pop-up, etc. always insure that the appliance cannot be
operated by setting the thermostat to the positive "OFF" position and
shutting off all electrical and gas supply t o the appliance. Never operate
furnace with vent covered.
IMPORTANT: If this furnace is to be connected to a common duct system also
serving a cooling unit, a manual or automatic damper is required to prevent any
cold conditioned air from circulating back into the fumace. Cold air passing over
the furnace combustion chamberduring the operation of the cooling unit can result
in the formation of condensation inside the fumace combustion chamber. This
condensation may promote corrosion and premature failure of the combustion
chamber.
This furnace is design certified for PropanelLP gas only. Do not attempt to convert
to natural gas.
Gas supply pressure for purposes of input adjustment:
Minimum
-
I l "
W.C.^
Maximum
-
13" W.C,'
(W.C.'
-
Water Column)
Form No. 2511-C
