IDEAL 61-732 Instruction Manual

400 aac clamp meter
Hide thumbs Also See for 61-732:

Advertisement

Table of Contents

See also: Instruction Manual

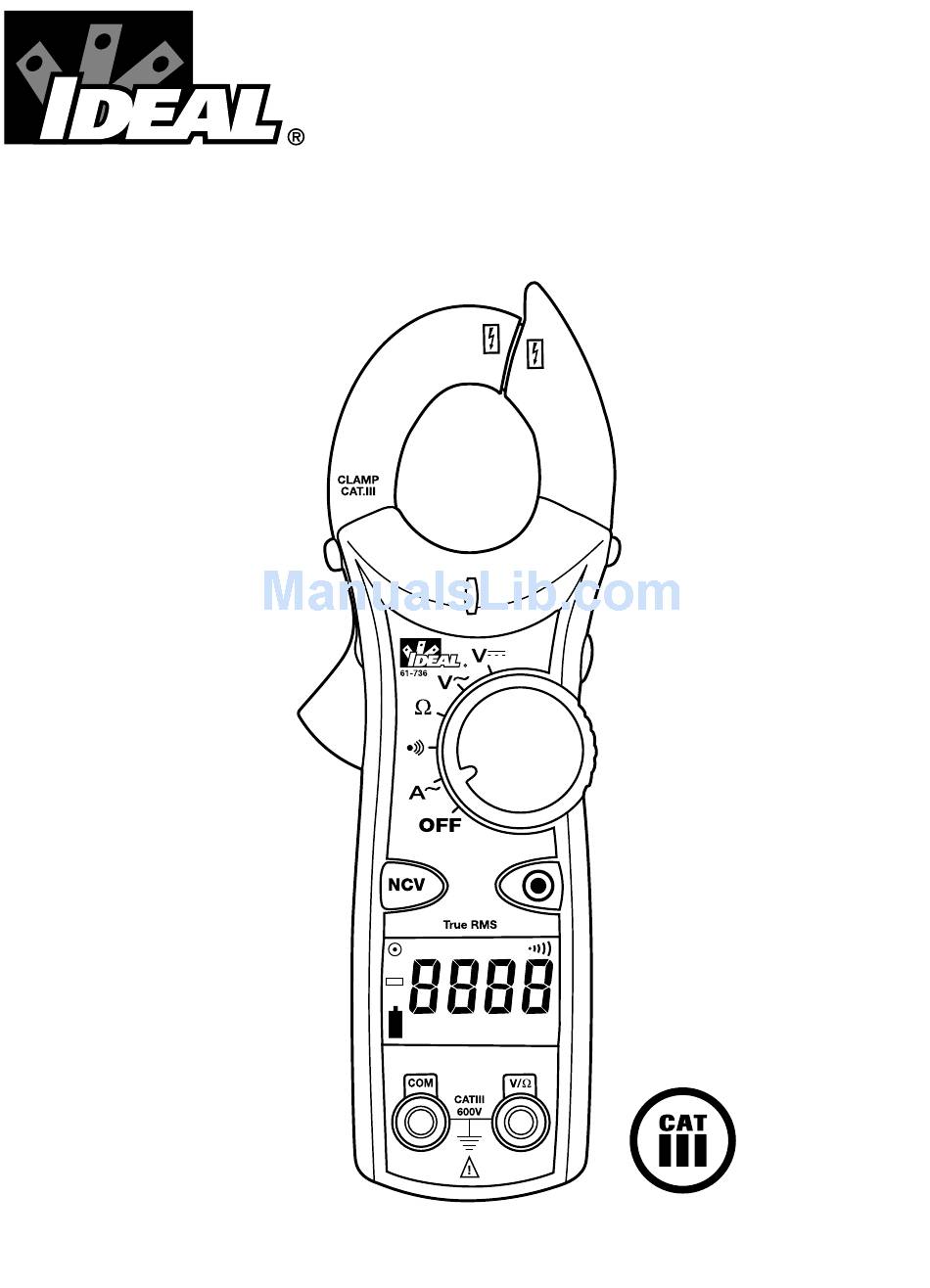

400 AAC Clamp Meter
Instruction Manual
HOLD
APO
AC
DC
K M Ω m V A
#61-732
#61-736

Advertisement

Table of Contents
loading

Related Manuals for IDEAL 61-732

Summary of Contents for IDEAL 61-732

  • Page 1 #61-732 #61-736 400 AAC Clamp Meter Instruction Manual HOLD K M Ω m V A...

  • Page 2: Read First: Safety Information

    WARNING Read First: Safety Information Understand and follow operating instructions carefully. Use the meter only as specified in this manual; otherwise, the protection provided by the meter may be impaired. WARNING To avoid possible electric shock, personal injury or death, follow these guidelines: •...
  • Page 3 • Auto Power Off • Low Battery Indicator • Compact jaws for reaching into tight spaces • Electronic overload protection on all ranges • 61-732 model is averaging sensing, rms calibrated • 61-736 model is true rms sensing. Page 3...

  • Page 4: Display Icons

    Features 1. Jaw Clamp 2. Lever 3. Function Dial 4. Display (LCD) 5. Volts and resistance (V-Ω) input terminal 6. Common (COM) input terminal 7. Non-Contact Voltage (NCV) 8. Range ( 9. Data Hold 10. Measuring Functions Display Icons 11. 4000 count display 12.
  • Page 5 OPERATION: Non-contact voltage (NCV) With the NCV tab on the tip of the clamp close to an AC voltage, press the NCV but- ton. The NCV LED will light and the beeper will sound. The closer the NCV tab is to AC voltage, the louder the beep.

  • Page 6: Measuring Voltage

    Measuring AC Current (Amps): CORRECT INCORRECT CORRECT Single Currents Use with Conductor cancel line splitter only Measuring Voltage: AC Voltage DC Voltage Page 6...
  • Page 7 Measuring Resistance (Ohms): • Verify the circuit is de-energized to obtain accurate measurements. Verifying Continuity ( • Verify the circuit is de-energized. • The meter will sense the level of resistance and beep if the resistance is less than 25 Ω to confirm that continuity is present.

  • Page 8: Battery Replacement

    • Clean the case with a damp cloth and mild detergent. Do not use abrasives or solvents. Service and Replacement Parts: This unit has no user-serviceable parts. For replacement parts or to inquire about service information contact IDEAL INDUSTRIES, INC. at 1-877-201-9005 or visit our website www.testersandmeters.com. Page 8...

  • Page 9: Specifications

    Samples 2 times per second, nominal. Auto Power Off: Approximately after 10 minutes of non-use. Battery Life: 400 hours continuous with Alkaline (61-732) 250 hours continuous with Alkaline (61-736) Low Battery Indication: The " " is displayed when battery voltage drops below operating level.
  • Page 10 Ranges & Accuracies: AC Converter: 61-732 model is averaging sensing, rms calibrated 61-736 model is true rms sensing. Accuracy: Accuracy is specified as +/-(a percentage of the reading + a fixed amount) at 23°C±5°C (73.4°F ± 9°F), less than 75% relative humidity.

  • Page 11: Warranty Statement

    Any implied warranties arising out of the sale of an IDEAL product, including but not limited to implied warranties of merchantability and fitness for a particular purpose, are limited to the above.

This manual is also suitable for:

61-736
