Summary of Contents for SONIQ E23Z15A-AU
-

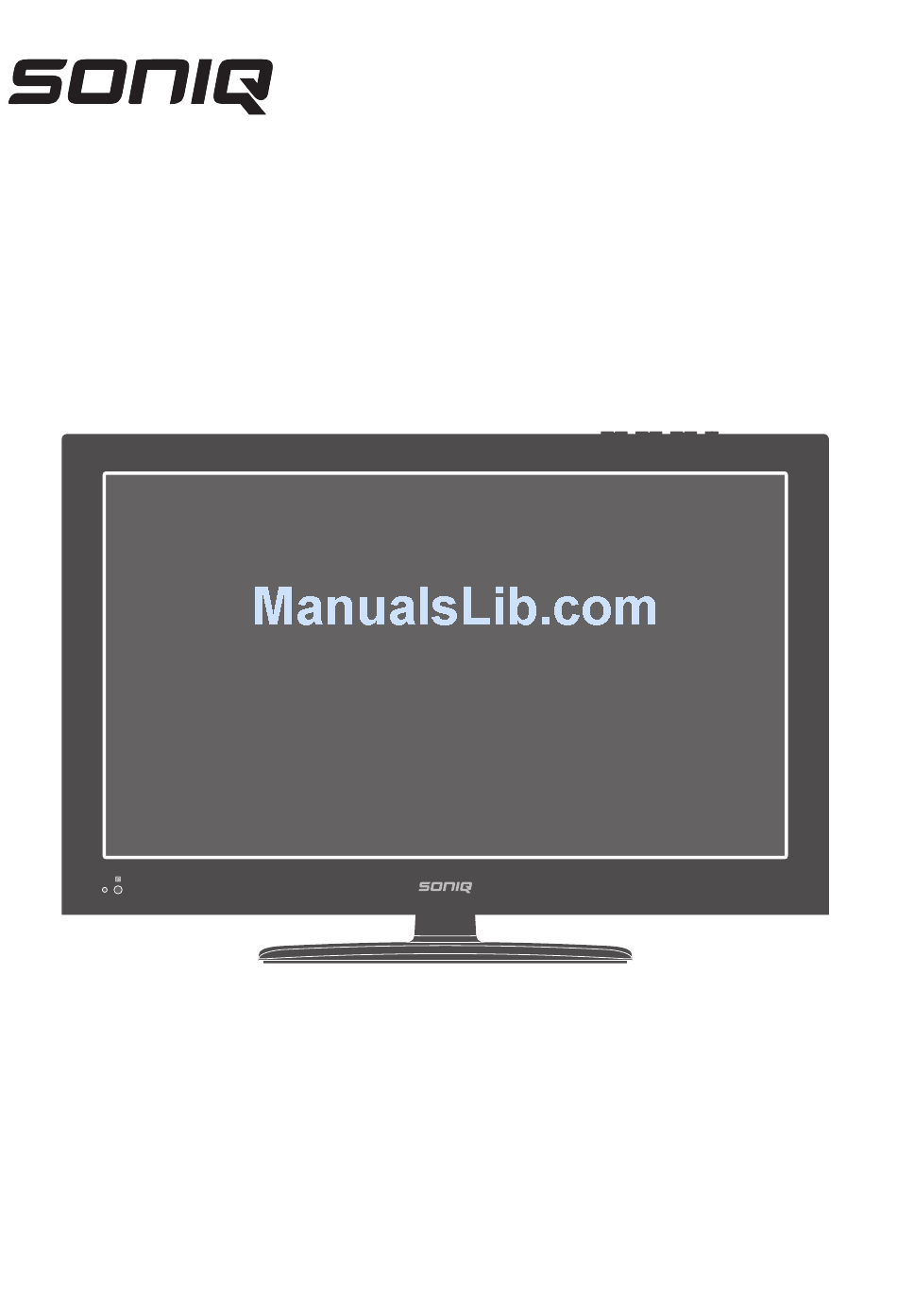

Page 1: Instruction Manual
Instruction Manual 23" HD LED LCDTV E 23Z 15A -A U www.soniq.com Printed in China... -
Page 2: Safety Instruction
Safety Instruction 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed W arnings - All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 3: Package Contents
• SONIQ is not liable for any damage caused by neglect of the instructions described in the owner’s manual. • SONIQ is not liable for any damage caused by misuse or malfunction through simultaneous use of this product and the connected equipment. -
Page 4: Stand Installation
Stand Installation Before performing work please lay the TV on the platform to prevent it from being damaged. Assemble the stand and unit with (3) screws. To remove the stand, reverse instruction as above. Black Screws: 4x10 BM(X3) Connecting the Power Cord Connect the power cord directly to the wall outlet. -
Page 5: Connection And Setup
Connection and Setup Connecting the USB Device Insert USB device directly to unit. 1. Please do not turn off the TV or unplug the USB device when connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged. 2. -
Page 6: Remote Control
Remote Control Remote Control Key Functions Power button MUTE button Toggles the unit between standby and on. Press to mute the sound. Press again or press VOL+/- to resume. Numerical buttons Press 0-9 to select a TV channel directly when P.MODE button watching TV. -
Page 7: Auto Tuning
Your unit has integrated HD digital and analog tuner in the same unit. You can enjoy both digital and analog broadcasting under following set-up easily. The latest news, software, utility, driver, product, manual and Q&A will be found at SONIQ website http://www.soniq.com TV Auto Scan There are two methods for perfoming an automatic digital TV channel search. - Page 8 Supported PC Input Signal Your unit can use as PC monitor, it supports below RGB-PC, HDMI mode INPUT. SpeciLcation DIGTAL AUDIO OUT OPTICAL DIGTAL AUDIO OUT OPTICAL X 1 DC IN DC IN X 1 EARPHONE output EARPHONE X 1 575(L) x 150(W) x 396(H)mm Design and specifications are subject to change without prior notice.
