Page 1: Instruction Manual

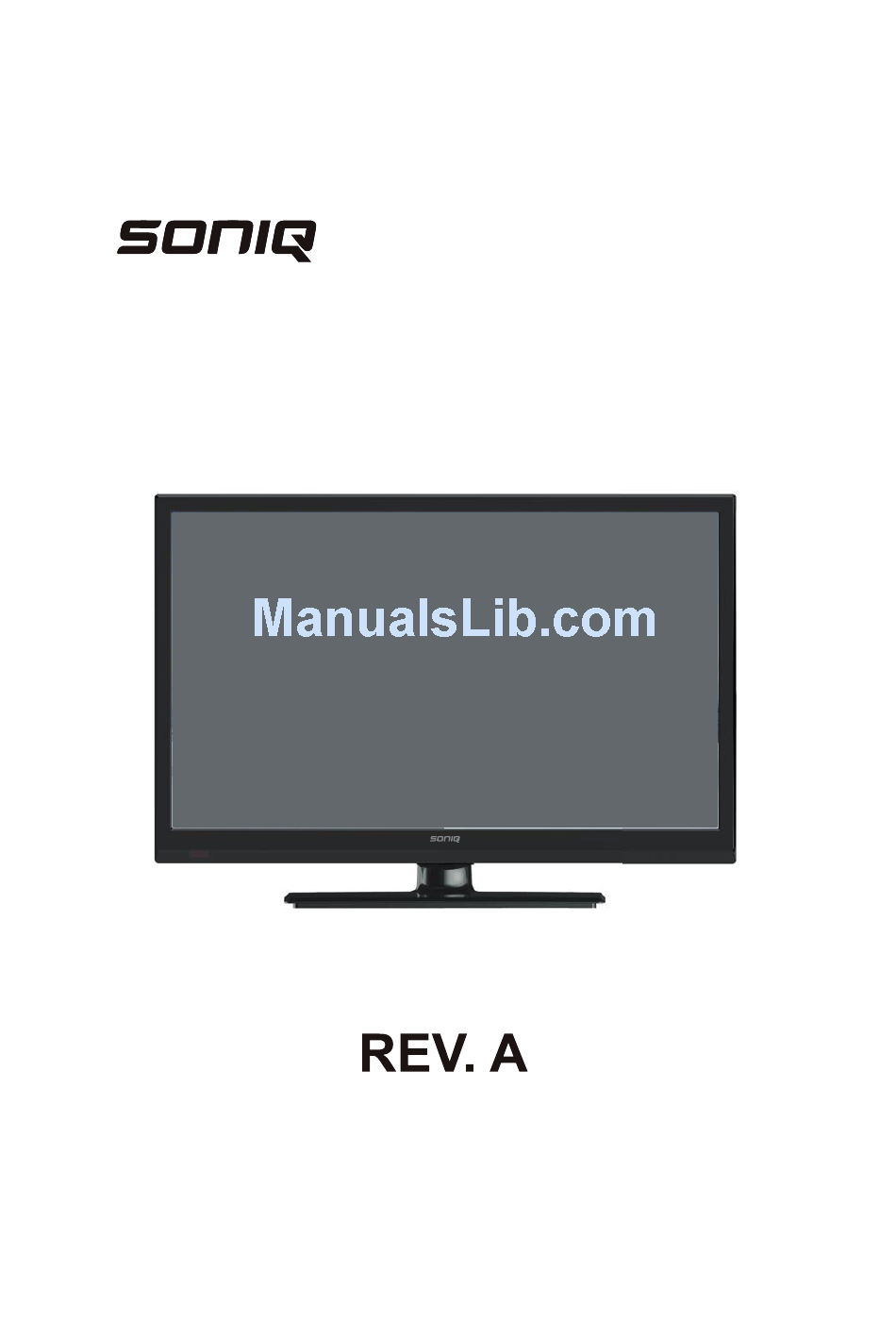

Instruction Manual 24" HD LED LCD TV COMBO E24Z 15B-AU www.soniq.com Printed in China... -
Page 2: Safety Instruction
Safety Instruction 1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated. 2. Retain Instructions - The safety and operating instructions should be retained for future reference. 3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to. 4. -
Page 3: Package Contents
Caution Caution Caution Avoid exposing the main unit to direct When the product is not used for an The panel used in this product is made of glass. It can break if the product is dropped extended period of time, it is advisable to sunlight and other sources of heat. -
Page 4: Stand Installation
Stand Installation 1. Take out the main unit, the stand support and the table-top stand from the carton, and place the main unit with display side down on a table (flat surface). 2. Connect the main unit and the stand support. Then fix them with 4 screws (ST4X12) included. -
Page 5: Connection And Setup
Audio cable D-SUB 15-pin cable (VGA cable) DVD Player Component Video Cable Audio (AV) Cable USB Device Composite (AV) Video Cable Blu-ray DVD Player Video Game Connection and Setup Connecting the USB Device Insert USB device directly to unit. 1. Please do not turn off the TV or unplug the USB device when connected USB storage device is working. When such device is suddenly separated or unplugged, the stored files or the USB storage device may be damaged. - Page 6 Note: USB/SD/3D/DVD are invalid.
-
Page 7: Auto Scan
Your unit has integrated HD digital and analog tuner in the same unit. You can enjoy both digital and analog broadcasting under following set-up easily. The latest news, software, utility, driver http://www.soniq.com TV Auto Scan There are two methods for perfoming an automatic digital TV channel search. - Page 8 RGB-PC, HDMI mode INPUT SPEC VGA / HDMI Input Resolution Horizontal frequency(KHz) Standard Vertical frequency(Hz) 640 x 480 31.5 640 x 480 37.861 VESA 72.809 640 x 480 37.5 VESA 720 x 400 31.5 VGA-T 800 x 600 VESA Guidelines 37.9 800 x 600 48.077...
