INSTALL OVERVIEW

Follow manufacturers instructions for installation
of automatic control panel, motorized valve and
sensors, and automatic controls.

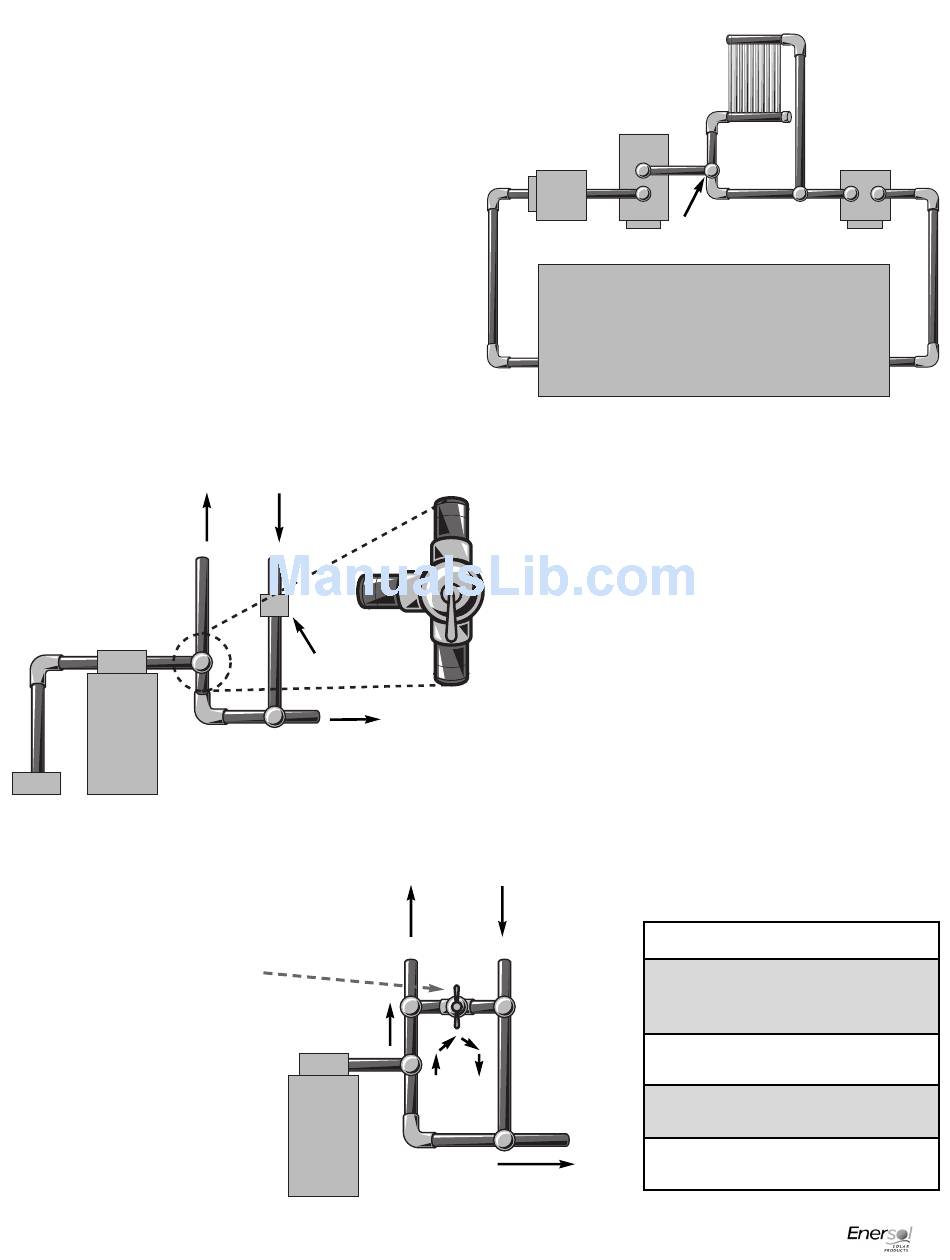

PLUMBING
3-WAY CONTROL VALVE
TO
SOLAR
FROM
POOL
PUMP FILTER
BY-PASS
If pressure is too great through
system, install a BALL VALVE
between the feed and return
lines.
Open the ball valve gradually
to reduce flow or pressure to
panels.
FROM
SOLAR
OPTIONAL
CHECK VALUE
TO POOL
TO
SOLAR
FILTER
FILTER
FILTER PUMP
S W I M M I N G
SUCTION
(COOL WATER)
SOLAR
ON
SOLAR
OFF
FROM
SOLAR
BACK TO POOL
SOLAR VALVE
P O O L
RETURN
(WARM WATER)

FLOW RATES

RECOMMENDED PUMP SIZE: 3/4 – 1 HP
IF SOLAR SYSTEM IS UNDERSIZED,
OR PUMP SIZE IS LARGER,
FOLLOW BY-PASS INSTRUCTIONS
RECOMMENDED OPERATING PRESSURE
15 PSI @120° F
MAXIMUM FLUID PRESSURE
20 PSI @ 120° F
RECOMMENDED FLOW RATE
4 – 10 G PM PER 4' WIDTH
HEATER
