ASSEMBLY INSTRUCTIONS
Remove from box carefully and unroll panels.
If panels become tangled, lay flat and untwist
strips from one end to the other.

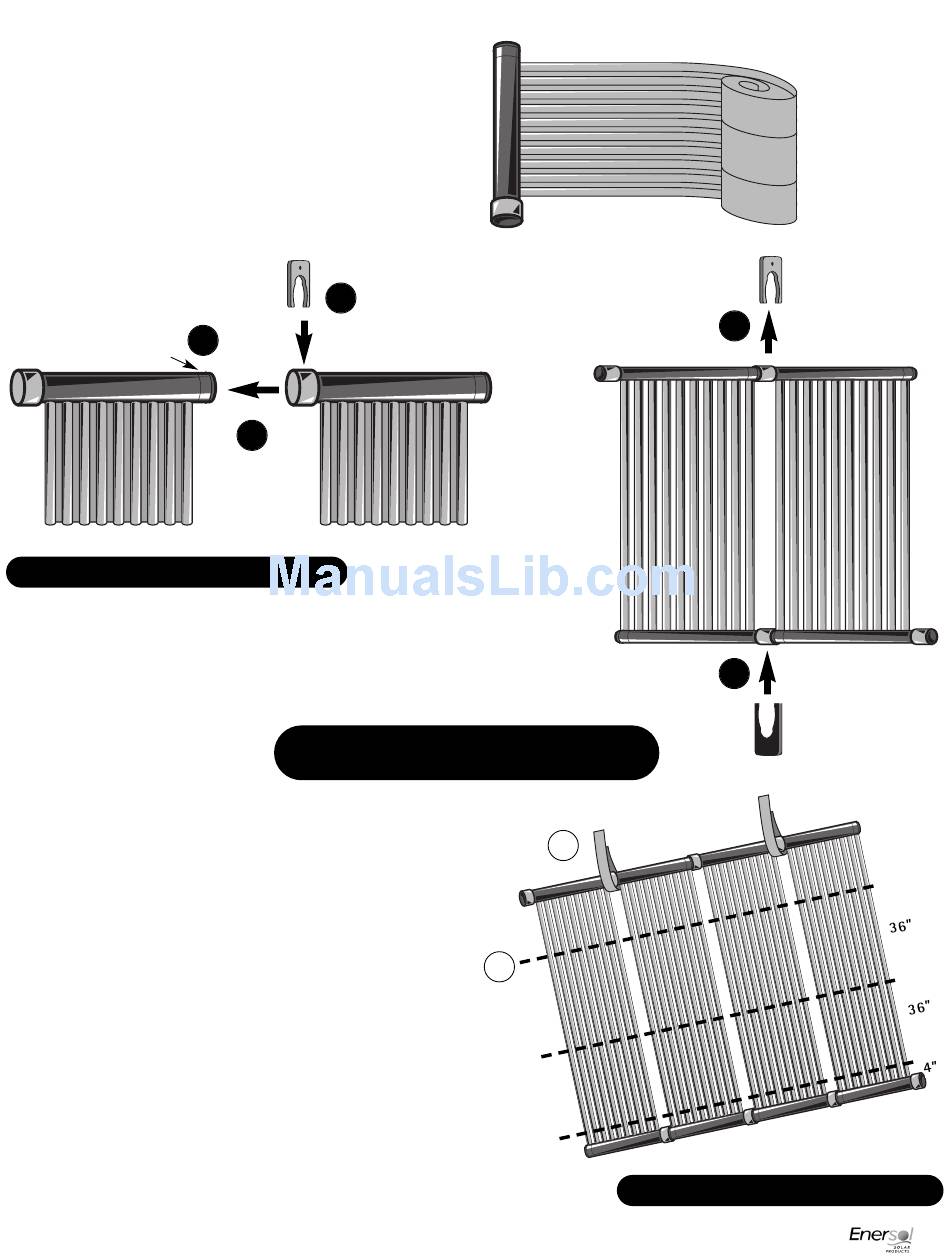

CONNECT HEADERS
O RING
MUST USE ORANGE INSTALLATION TOOL
1
Lubricate "O" ring.
2
Push orange installation tool into header clip slot.
3
Push header together.
4
Remove installation tool.
5
Insert black clip.
ATTACH TO ROOF
1
TOP STRAP:
Top strap every other section across top only.
Use top strap across the top row every 2 ft.
For very steep roofs, order more straps and
attach every section.
2
CROSS STRAP:
Cross strapping 4 inches from bottom, and every
3 ft. up thereafter.
Do not tighten cross strapping too tight, to allow
for expansion.
Apply generous amount of roofing cement.
Screw lag bolts through roofing cement into roof.
Use roof sealant liberally with all lag bolts into roof.
2
1
3
WHEN CONNECTING DIFFERENT VERSIONS
OF HEADERS, CUT OFF LOCATOR TAB
1
2
NEVER USE TOP STRAPS ON BOTTOM
4
5
5
