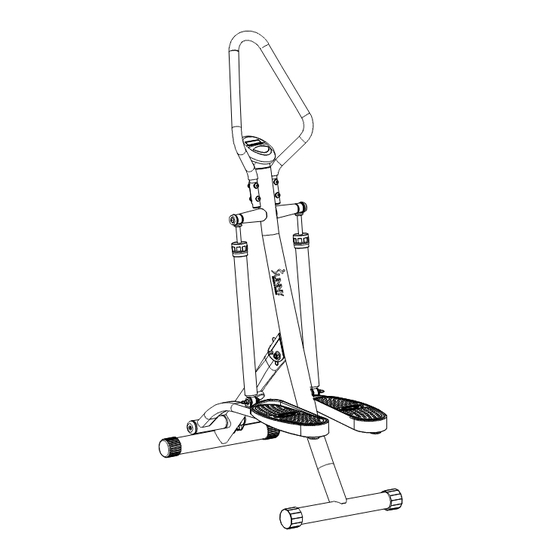

Folding climbing stepper

Advertisement

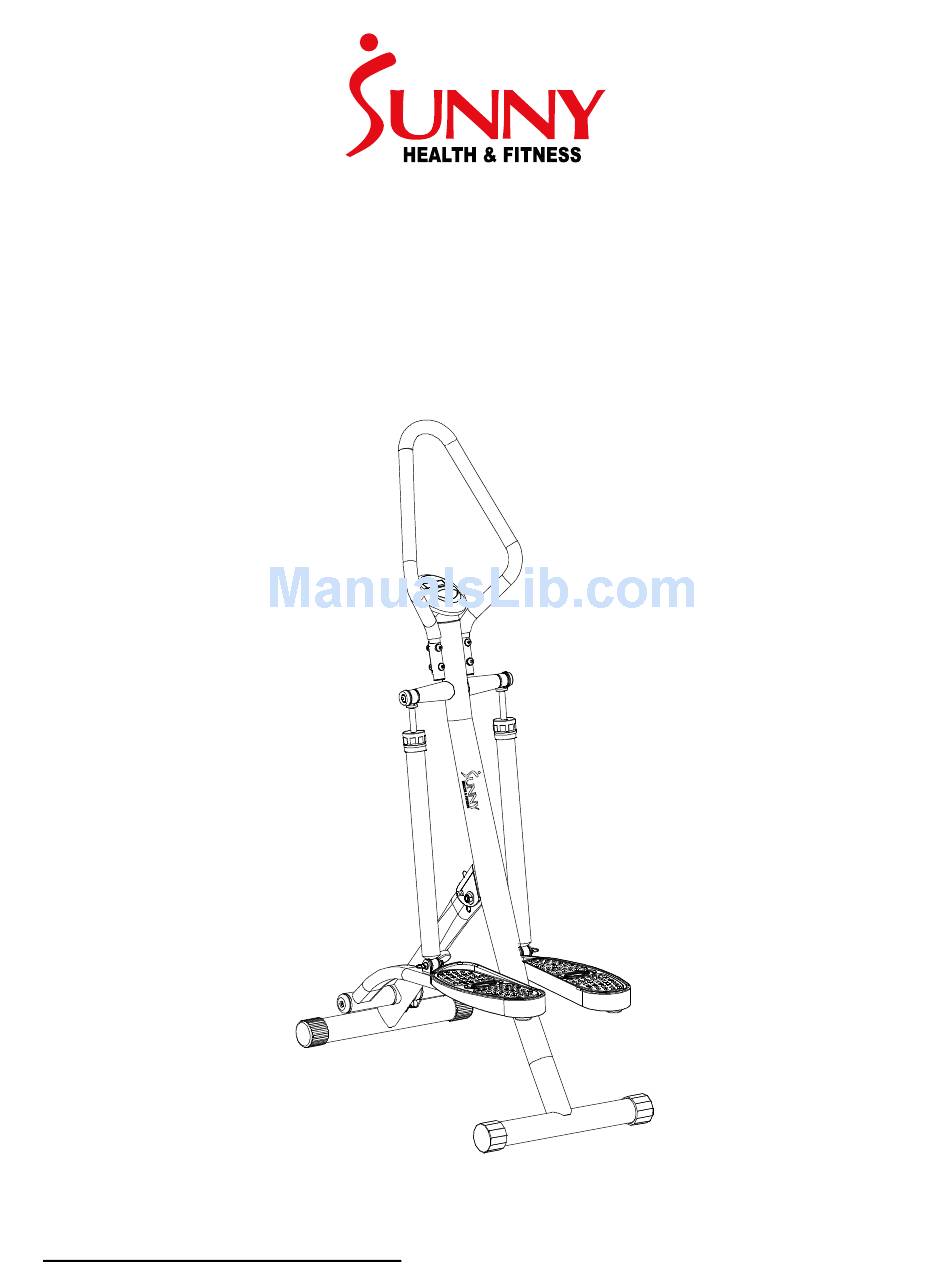

FOLDING CLIMBING STEPPER
SF-1115
USER MANUAL
IMPORTANT: Read all instructions carefully before using this product. Retain
owner's manual for future reference. For customer service, please contact:
support@sunnyhealthfitness.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SF-1115 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sunny SF-1115

  • Page 1 FOLDING CLIMBING STEPPER SF-1115 USER MANUAL IMPORTANT: Read all instructions carefully before using this product. Retain owner’s manual for future reference. For customer service, please contact: support@sunnyhealthfitness.com...
  • Page 2: Important Safety Information

    IMPORTANT SAFETY INFORMATION We thank you for choosing our product. To ensure your safety and health, please use this equipment correctly. It is important to read this entire manual before assembling and using the equipment. Safe and effective use can only be assured if the equipment is assembled, maintained, and used properly.
  • Page 3: Exploded Drawing

    EXPLODED DRAWING...
  • Page 4: Parts List

    PARTS LIST PART NO. PART DESCRIPTION Handle Bar Display Console Nylon Nut Washer Hex Screw Main Frame Pop-Pin Hex Screw Allen Wrench Spanner...
  • Page 5: Assembly Instructions

    ASSEMBLY INSTRUCTIONS STEP 1: Open the box and remove the Main Frame (No. 6). Unfold the Main Frame (No. 6) to the standing position shown in the middle drawing below. Insert the Pop-Pin (No. 7) to secure the Main Frame (No. 6) in place. STEP 2: Remove the pre-installed Hex Screw (No.
  • Page 6 STEP 3: Attach the Handle Bar (No. 1) to the Main Frame (No. 6) using 4 Hex Screws (No. 5), 4 Washers (No. 4) and 4 Nylon Nuts (No. 3). Tighten and secure with Allen Wrench (A) and Spanner (B). STEP 4: Remove the sensor wire from the tube post of the Main Frame (No.
  • Page 7: Adjusting The Balance

    STEP 5: The assembly is complete! ADJUSTING THE BALANCE: Before putting your stepper into use, it is recommended that you check the balance of the stepper to ensure that it is safe for use. Putting the stepper on a flat, even surface is ideal. If you find that the stepper is slightly uneven, you may adjust the stepper to compensate for uneven ground.
  • Page 8: Display Console

    DISPLAY CONSOLE Our computerized display console on the Sunny Folding Climbing Stepper allows the user to tailor a personalized workout by monitoring their progress. During a workout, the display console will alternately and repeatedly display your Time, Count, Calories, and Total Count. With our easy-to-use console, the user can efficiently track their fitness improvements from one workout to the next.
  • Page 9: Folding Instructions

    FOLDING INSTRUCTIONS FOLDING THE STEPPER: Remove the Pop Pin (No. 7) from the middle of the Main Frame (No. 6). Hold the front support tube in place with one hand and with the other hand pull the rear support tube inward until it rests against the front support tube.
  • Page 10: Exercise Instructions

    EXERCISE INSTRUCTIONS 1. Stand behind your Climbing Stepper with both hands on the handlebar. Place your right foot onto the right pedal and place your left foot on the left pedal. While holding the handlebar, begin stepping up and down in smooth controlled movements. 2.
