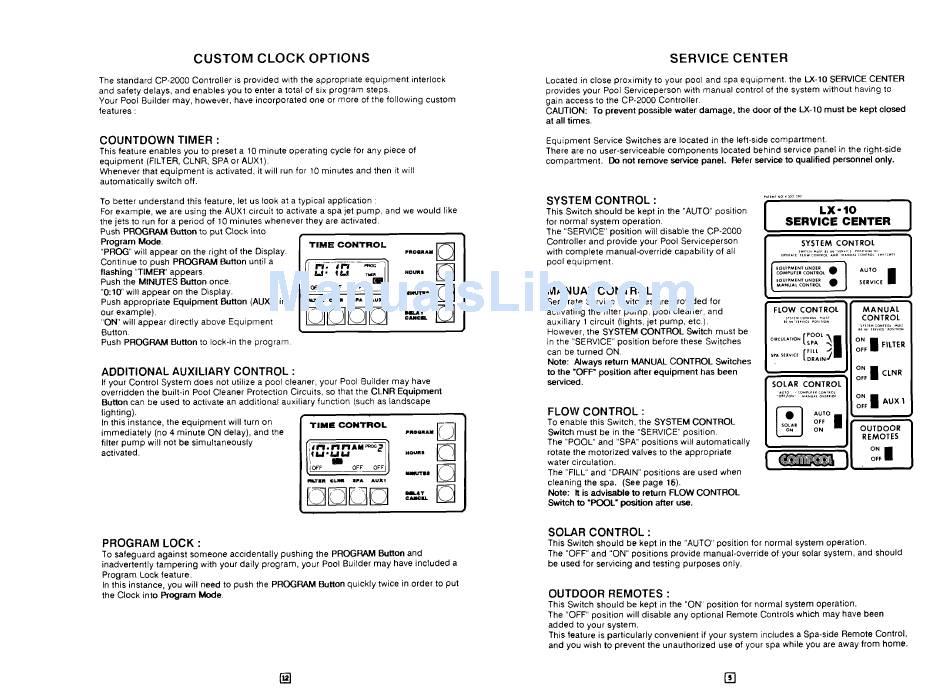

CUSTOM CLOCK OPTIONS
SERVICE CENTER
The standard CP-2000 Controller is provided with the appropr~ate equipment interlock
and safety delays, and enables you to enter a total of six program steps.
Your Pool Builder may, however, have incorporated one or more of the following custom
features :
COUNTDOWN TIMER :
This feature enables you to preset a 10 minute operating cycle for any piece of
equipment (FILTER, CLNR, SPA or AUX1).
Whenever that equipment is activated, it will run for 10 minutes and then it will
automatically switch off.
To better understand this feature, let us look at a typical application
:
For example, we are using the AUXl circuit to activate a spa jet pump, and we would like
the jets to run for a period of 10 minutes whenever they are activated.
Push PROGRAM Button to put Clock into
Program Mode.
"PROG will appear on the right of the Display.
Continue to push PROGRAM E3utton until a
flashing "TIMER' appears.
Push the MINUTES h t t o n once.
"0:10' will appear on the Display.
Push appropriate Equipment h t t o n (AUX 1 in
our example).
"ON" will appear directly above Equipment
Button
Push PROGRAM Button to lock-in the program
I
.
T I M E C O N T R O L
OFF OFF
OFF
W E l C U SPA AUXI
ADDITIONAL AUXILIARY CONTROL :
If your Control System does not utilize a pool cleaner, your Pool Builder may have
overridden the built-in Pool Cleaner Protection Circuits, so that the CLNR Equipment
Button can be used to activate an additional auxiliary function (such as landscape
lighting).
In this instance, the equipment will turn on
immediately (no 4 minute ON delay), and the
filter pump will not be simultaneously
activated.
I
*
T l M E CONTROL
C T r 1 . n C L M SPA AUX1
\
PROGRAM LOCK :
To safeguard against someone accidentally pushing the PROGRAM h t t o n and
inadvertently tampering with your daily program, your Pool Builder may have included a
Program Lock feature.
In this instance, you will need to push the PROGRAM Button quickly twice in order to put
the Clock into Program Mode.
Located in close proximity to your pool and spa equipment. the LX-10 SERVICE CENTER
provides your Pool Serviceperson with manual control of the system without having to
gain access to the CP-2000 Controller.
CAUTION: To prevent possible water damage, the door of the U(-10 must be kept closed
at all times.
Equipment Service Switches are located in the left-side compartment.
There are no user-serviceable components located behind service panel in the right-side
compartment. Do not remove service panel. Refer service to qualified personnel only.
SYSTEM CONTROL :
..,I",
"0
1 1 1 1
, P I
This Switch should be kept in the "AUTO" position
for normal system operation.
The "SERVICE" position will disable the CP-2000
Controller and provide your Pool Serviceperson
with complete manual-override capability of all
pool equipment.
MANUAL CONTROL :
Separate Service Switches are provided for
activating the filter pump, pool cleaner, and
auxiliary 1 circuit (lights, jet pump, etc.).
However, the SYSTEM CONTROL Switch must be
in the "SERVICE" position before these Switches
can be turned ON.
Note: Always return MANUAL CONTROL Switches
to the 'OFF position after equipment has been
serviced.
FLOW CONTROL :
To enable this Switch, the SYSTEM CONTROL
Switch must be in the "SERVICE" position.
The "POOL and "SPA positions will automatically
rotate the motorized valves to the appropriate
water circulation.
The "FILL and "DRAIN" positions are used when
cleaning the spa. (See page 16).
Note: It is advisable to return FLOW CONTROL
Switch to 'POOL' position after use.
S Y S T E M CONTROL
I W I I C " M Y I S I/ I" I I R " C l .OII1I"* 3"
0 , l S A l l
,,o1co*,.01 .*D
* . I " . , L"*IIDL
l.
I l l t 5
tOUlPMEN1 UNDER
COMPUTER CONTROL
EOUIPMENT UNDER
M A N U A L C O N l P O l
I,,,,,,
< O * I S Y L *",I
B,
8"
,,.",<,
PO, I,*"
SOLAR CONTROL :
This Switch should be kept in the "AUTO" position for normal system operation.
The "OFF and "ON" positions provide manual-override of your solar system, and should
be used for servicing and testing purposes only.
OUTDOOR REMOTES :
This Switch should be kept in the "ON' position for normal system operation.
The "OFF" position will disable any optional Remote Controls which may have been
added to your system.
This feature is particularly convenient if your system includes a Spa-side Remote Control,
and you wish to prevent the unauthorized use of your spa while you are away from home.
