2.2.17. Transfer Guide (601) Assembly, Feed Roller (526)
(5)
(7)
White
Edition 1.0
(2) (2) (2)
(3)
(4)
(6)
(8)
Black

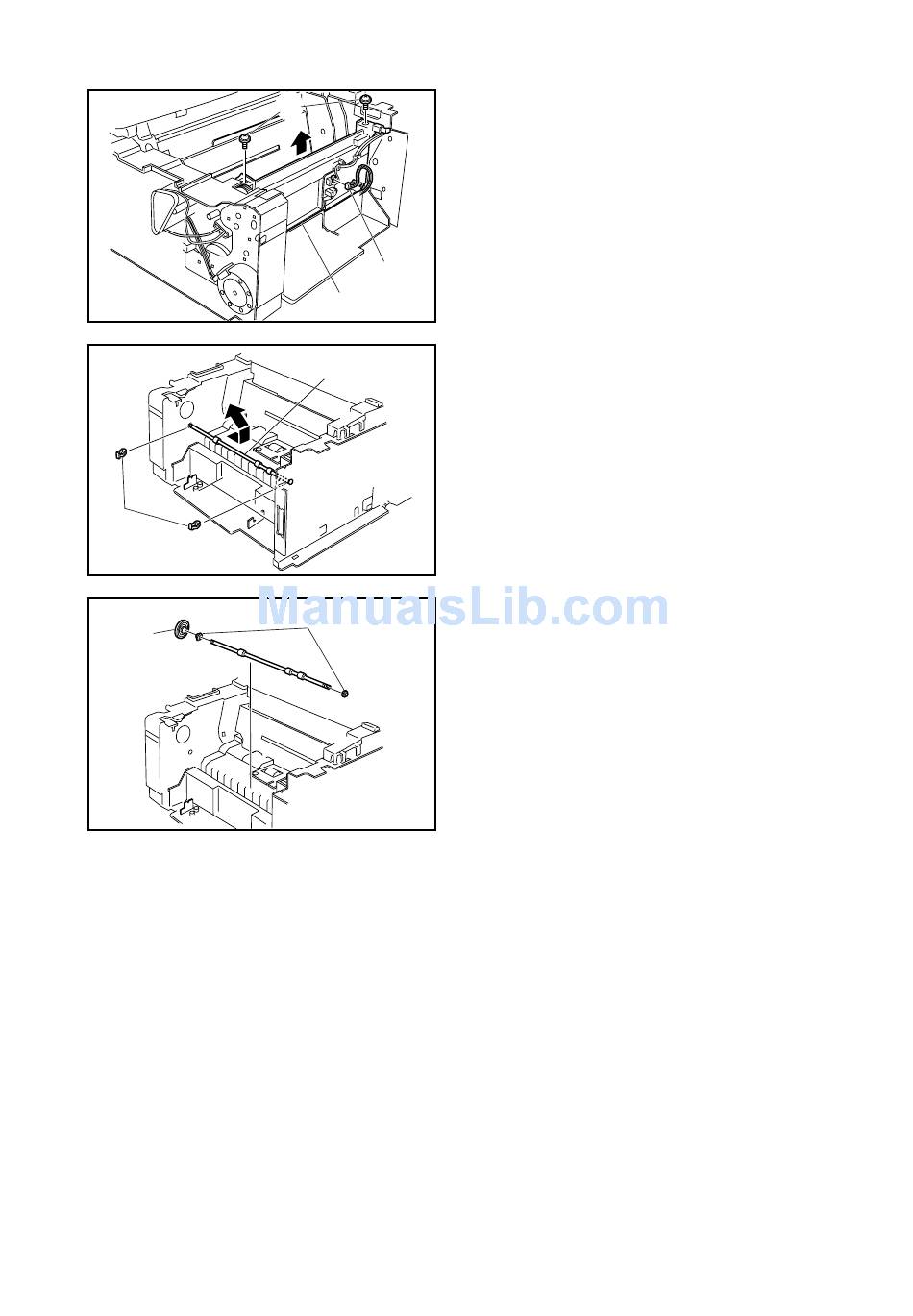

(1) Remove the Rear Chassis (Refer to 2.2.16.).
(2) Remove 2 Screws (C8).
(3) Disconnect Connector CN80 on the SNS1 PC
Board (1008).
(4) Remove the Transfer Guide (601) Assembly.
(5) Remove the 2 Snap Rings. (B9).
(6) Remove the Feed Roller (526).
(7) Remove the Roller Gear (529).
(8) Remove 2 P6L5 Bushings (527, 528).
