- Page 1 XT423 Portable Printer User Manual...
-
Page 3: Table Of Contents
C O N T E N T S Introduction..........2 5.4 AutoSleep/Wakeup ....... 15 About Manual ............2 6、 Configuration ........16 Related Document ..........3 6.1 Configuration .......... 16 Attentions ............. 3 6.2 Self-Test ............ 18 Safety Instruction ........4 7、... -
Page 4: Introduction
Introduction About Manual XT423 Portable Thermal Printer. Thanks for selecting This manual will help you to use the XT423 printer. Please read this manual before using the printer Icons This manual used the following icons: This icon means alarm. Invalid operation may hurt people or damage the printer. -
Page 5: Related Document
• If there have some error informations or lost informations you find the information had error oplease contact us or your dealer. • All the right belong to Zicox technology,.Ltd. This manual can't be copied, spread and translated without formal permission. -
Page 6: Safety Instruction
Sa fe t y I n st ru ct io n • Don't disassemble the printer yourself. Please read the manual before using it. Attent • Switch off the printer when there is malfunction, unplug the charger and remove Alarm the battery if the printer's abnormal or have peculiar smell. - Page 7 be affected in limited ambient condition. (higher than 45℃ or lower than -5℃ ) • Selecting the long-term thermal paper if you need store the printed bill for a long Attent time. Reading before using battery: • Reading this manual and label on battery before using the battery. Attent •...
- Page 8 where have too much dust or smoke. Don't use the battery in high humidity space just like the bathroom. • Change a new battery while the battery power become too week. Attent • Keep the battery away from the children. Alarm •...
-
Page 9: Package
1.Package If any parts losted or damaged please contact your dealer. Standard accessories XT423(1 pcs） Battery (1 pcs) Adaptor (1 pcs) Optional accessories USB wire Leather bag Car adaptor Manual, Warranty card and qualified card... -

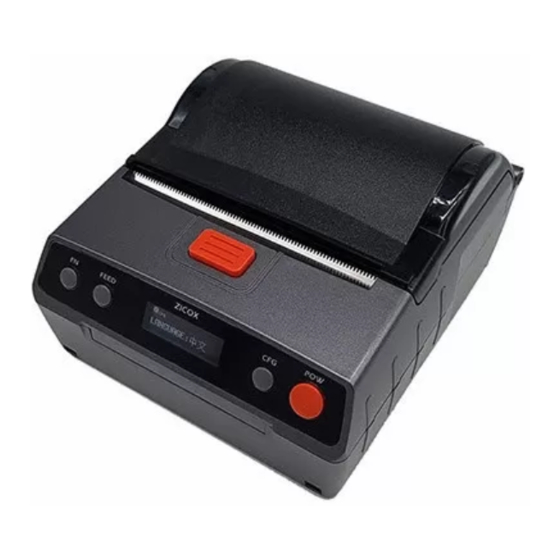

Page 10: Printer Parts
2. Printer parts Face side Paper Cover Paper Cutter Open Cover Button OLED Function Key Power Key Feed Key Config Key IC Card Slot... - Page 11 Inside Back side Rubber cover roller wheel Rubber cover roller Nameplate Label sensor Left &right mark sensor Screw hole Thermal printer head for belt Rubber cover USB interface Rope hole Adaptor interface...
-
Page 12: Display
3. Display Config mode/ Paper out Cover opened 3.3 Paper out Com module Printing Battery level This icon means printer paper out. 3.4 Cover open This icon means the printer cover opened. Logo area PRINT SELFTEST Text area 3.5 Battery level This icon points out the battery level. -
Page 13: Assembling
4. Assembling This charpter introduces the operation steps before using the printer. Including install battery, charge & load paper. 4.1 Install battery T h e b a t te r y & t h e p r i n te r s to re d i n respective space after shipments. -
Page 14: Charging
4.2 Charging Inser t the adaptor connector into the printer charge interface. AC:100V ～ 240V Charging ： The battery level icon blinks. （50-60Hz) Charging completed: The full battery level icon display on the screen and the plug icon blinks. Attent Please using the certificated adaptor. -
Page 15: Loading Paper
store size then screw down them. 4.3 Loading paper 4. Load paper 1. Remove the seal on the paper. 5. Close the cover & releaving a section 2. Press the button to open the cover. of paper out of the printer. 3. -
Page 16: Operation
5. Operation 5.1 Power on Press the power key continue to Function key 2s the printer will turn on. Feed key 5.2 Power off Open cover button Press the power key continue to Config key 3s the printer will turn off. Power key... -
Page 17: Feed Paper
5.3 Feed paper Wakeup: Short press Feed key: feed paper 5mm. Pressing the power key or receiving the Long press Feed key: feed paper to the print data the printer will wakeup from black mark or label gap. If there is no sleep mode. -
Page 18: Configuration
6. Configuration 6.1 Configuration Enter config mode： Change the darkness Darkness Long press config key(in wakeup DARKNESS: 2 for different paper. mode) to enter config mode. In config mode: Config key: change items. I normal Feed key: Modify content. Change the print Speed PRINT SPEED: I speed... - Page 19 XT423 printer bluetooth info(Wi-Fi info)： BT ［Wi-Fi］ Info： Press Feed key [BT info] enter info page Auto Feed： X ： Disable AutoFeed: / ／ ： Printer feed paper 10cm after cover closed Notice There are some difference between BT info page and...
-
Page 20: Self-Test
6.2 Self-Test Serial Number Title serial number I t w i l l p r i n t t h e 12345678 >> SYSYEN printer information Model : XT423 Firmware: 2.1 on the paper. >> USB Mode:Printer Model >> RS232 Baudrate:115200... -
Page 21: Communication
7. Communication 7.1 USB XT423 has a Mini USB interface. The user can control the printer through it. Notice The USB port is a RS232 port also. -
Page 22: Wireless
7.2 Wireless XT423 printer supports both Bluetooth 4.0 and Bluetooth 2.0 protocol. It also supports the Wi-Fi communication. WiFi: Support both STA and AP Bluetooth: distance ≤ 10M Default pin code: 0000... -
Page 23: Maintain
8. Maintain 8.1 Daily maintain 1. Regularly clean the printer head with absolute alcohol. 2. If the water enter into the printer inside please remove the battery. 3. If won't use the printer for a long time please remove the battery. 4. -
Page 24: Diagnostic
9.Diagnostic Fault Reason Solution Page di..., di..., di... Paper out Load paper Buzzer beep: 3 long di, di Battery low Charging Buzzer beep: 2 short Just print white Load paper error Change paper direction paper The storage store the bill in suitable The bill becomes temperature too high temperature(about 20℃... -
Page 25: Appendixes
10. Appendixes 10.1 Printer parameters Printer parameters Printer mode Thermal printer Resolution 203DPI (8 dots/mm) Print width 72mm Print contents ASCII code、 Chinese 、 Image 、 Barcode 、 Curve、 Symbol and so on Fonts CII(12x24) ASCII(8x16) GBK(24x24) GBK(16x16) support multi-country language Instruction ESC instruction set、... -
Page 26: Battery Recyle
Power parameters Power Battery Parameters 7.4V/2600mAH Li-on Battery Charging On-line charging Charging time 2.5 ～ 3 hours Physical parameters Size 115mm x 103mm x 61mm Weight 372 g (Without paper) Paper Type Thermal paper, Thermal label Paper width 30 ～ 80mm Paper roll diameter 50mm Paper thinkness... -
Page 27: Rohs
11. RoHS Hazardous Substance Warranty Parts Cr VI PBDE Shell ○ ○ ○ ○ ○ ○ Electronic components ○ ○ ○ ○ ○ ○ Mechanic components ○ ○ ○ ○ ○ ○ Adaptor, wire ○ ○ ○ ○ ○ ○ Li-on Battery ○... - Page 28 w w w . z i c o x . c o m China service call：+86 400 001 5890 China sales call ：+86 400 886 1061 58573021...
Need help?
Do you have a question about the XT423 and is the answer not in the manual?
Questions and answers

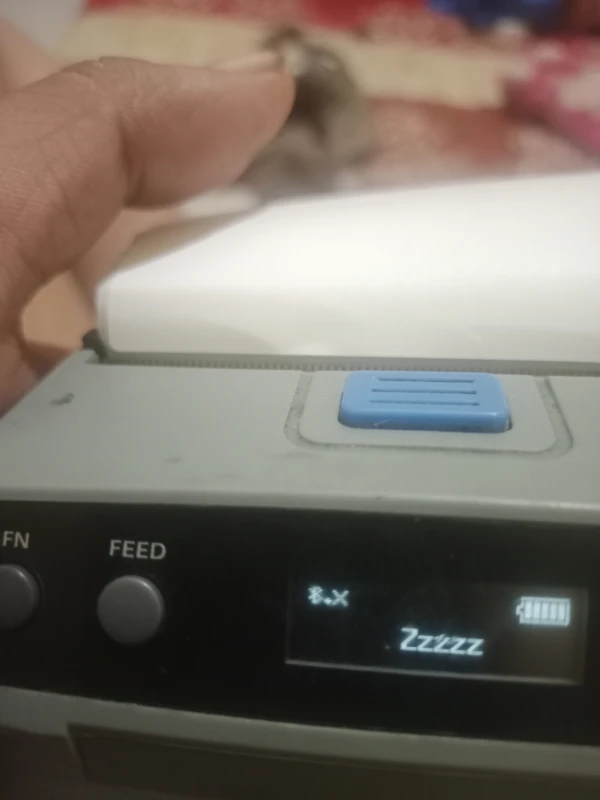

Signal bluetooth ada tanda X, Bagaimana cara mengatasinya?
