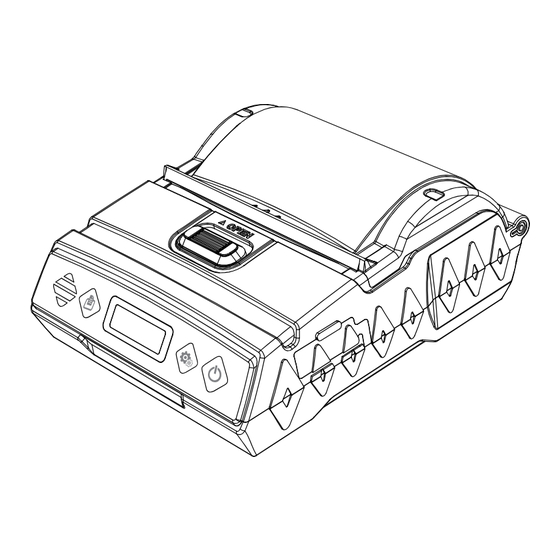

- Page 1 XT4131A P o r t a b l e P r i n t e r USER'S MANUAL Before using the printer,read the manual...
- Page 2 Shanghai ZICOX Print Technology CO.,LTD Shanghai ZICOX Print Technology CO.,LTD...
-
Page 3: Table Of Contents
Catalogue 5.4 Automatic Sleep/Wakeup......9 Preface ........... I 6. Setting ............10 About manual........I 6.1 Basic Setting..........11 Manual information ....... II 6.2 Selftest ............11 Notice and Statement ......II 6.3 Selftest Info..........12 Safety instruction........III 7. -
Page 4: Preface
Preface About manual for your choosing our XT4131A series printers. Before using printers ,please read the instruction in the chapter carefully. Symbols & Conventions Symbols below： Warning Misuse may cause damage to property human hurt or even death. Notice Misuse may cause damage to product or human hurt Information for protecting the printer &... -
Page 5: Manual Information
Manual information Please download the manual from www.zicox.com or get it from your supplier,Technical details below: 1. <XT4131A specification>Provide hardware/physics/technology parameter about the printer. 2. <ESC/POS instruction set>Provide second development of esc/pos command. 3. <SDK Instruction>Provide second development of SDK command. -
Page 6: Safety Instruction
Safety instruction Follow below notes before use Notice Do not disassemble printer yourself,please read the manual carefully before using. Warning Switch off when there’s malfunction,unplug the charger and remove the battery if printer’s abnormal or have peculiar smell. Warning Do not use printer nearby gas station ,fuel warehouse or other combustible material Warning When charging ,make sure the ambient temperature between -5℃~40℃,using our original battery and power adapter.Using others’... - Page 7 Notice Remove the battery when it becomes weak or when the unites is not in use for extended period. Notice This will prevent damage to the unit from battery leakage at such timesTurn off the printer before replacing the battery, when replacing if using battery cut off the power. Notice Using the printer between -10℃~50℃,The printing quality may be lower if out of compass.
- Page 8 Follow below notes to use battery Notice Before using please read this manual and details on battery. Notice Charge battery in proper ambient temperature,if temperature too high ,battery may be heated,unshaped or even fired. Notice Protect circuit units or others in the battery ,do not diassemble the battery ,otherwise short-circuit may occur &...
- Page 9 Follow below notes to use charger Before using read the manual and details on charger carefully Notice Warning Do not disaseemble or change charger ,do not use charger if wire damaged,otherwise electric may shock ,fir or charger damage may occur. Warning Do not touch charger with wet hands ,please cut off the power supply if charger’s in contact with water or other liquid.
-
Page 10: Standard Equipments
1.Standard equipments Standard accessories XT4131A printer(1) Charger(1) Notice Please contact your supplier if parts lost or Battery(1) broken Printing paper(1) Belt clip（1） User’s manual（1）、Warranty card（1）、Certification（1） Notice Please contact your Optional supplier if you need parts information USB data wire Car charger... -
Page 11: Printer Part Name
2.Printer Part Name Face Back open cover button rubber plug display power switch USB port paper cover feeding button battery cover power adapter set button belt clip paper outlet... -
Page 12: Display Instruction
3.Display Instruction paper feeding cover open power level paper lacking external power Wireless communication/set mode Symbol Description 3.1 Wireless Communication/Set mode The wireless communication or set mode&bluetooth mode below: bluetooth mode set mode Bluetooth paired,there’s a locking How to set,please read the sixth part sign. -
Page 13: Out Of Paper
3.2 Printing/feeding When printing or feeding ,the symbol will display。 3.3 Out of paper When paper loading is incorrect or lack of paper ,the symbol will display 3.4 Cover open When cover isn’t closed,the symbol will display 3.5 External power This icon indicates that the charger is plugged in 3.6 Power level When charging, the symbol will display . -
Page 14: Before Using
4.Before Using Battery installation,charging and paper loading Battery Printing paper 4.1 Battery installation and notes Remark The new battery without battery installation Keep battery fully charged. When using the battery for the first time or when it needs long-term storage . put the battery into Put the cover on . -
Page 15: Battery Charging
4.2 Charging battery Plug the power adapter inoto a power supply socket and the DC into the charging port of the printer AC:100V～240V（50-60Hz) Charging port Warning Please use our special designed power adapters , use others’ may result in damage to printers Notice Do not remove the battery when charging... -
Page 16: Paper Loading
4.3 Paper Loading XT4131A uses diameter 39mm，width 80mm thermal printing paper/label Remove the seal on paper roll Upward pushing the button to open the paper compartment Remark Notice paper roll direction ,it may not print when opposite position Pull a strip of paper out of... -
Page 17: Basic Function
5.Basic function 5.1 turn on Press the power switch for 2 s to open printer 5.2 turn off When printer turned on ,press the power switch 3 s to turn off the printer. Powerswitch Set button feeding button ... -
Page 18: Paper Feeding
5.3 Paper Feeding Press feeding button： feeding10cm 5.4 automatic sleep/wakeup Automatic sleep After turn on the printer,within 6 s if no data transmission, it will be enter antomatic sleep state. Remark Automatic wakeup Under sleep mode, Z numbers When sleeping ,press button or if there’s data transmission mean power levels printer will wakeup. -
Page 19: Setting
6.Setting After turn on printer, normal According the demands to Print quality： Press set button quality:normal 打印质量 高 high set printing quality (No sleep mode) Set button change option different types of paper adjust in different printing blackness： blackness: 4 Feeding change option content blackness... -
Page 20: Basic Setting
selftest： press feeding button Printer will do selftest selftest printing Bluetooth Clear Bind BT Clear Bind ： set automatic shutdown time in 30m/60m/120m/240m Autoofftime Autoofftime 30m ENGLISH You can switch interface languages Language: language：中文 中文 ... -
Page 21: Selftest Info
4.10 selftest page information * Symbol the head ********** unique serial number >> System Model Name:XT4131A ********** Firmware :4.15 >> USB USB Mode:USBPRINTER >> Bluetooth Device Name:XT4131A Service :SPP,HCRP BDRddress... -
Page 22: Communication
7.1 WiFi communication （Wireless Ethernet server) XT4131A printers can provide a 802.11b/g standard Wi-Fi wireless communications, Wi-Fi communication interface using the IChip CO2144 Network to control chips & Marvell88W8686 WiFi chipsets. More than 50 meters distance network using ,which makes your work more flexible... -
Page 23: Bluetooth Communication
7.2 Bluetooth communication XT4131A supports Bluetooth 2.0/CLASS 2（10 meters）bluetooth communication Bluetooth：distance≤10M Default pin password：0000 7.3 IC Card and PSAM Card IC card operation: when you need to use IC cards, IC metal face upward inserting the IC card slot, when printer screen prompts: IC card has been inserted, IC card read/write operations can be made. -
Page 24: Maintenance
8.Maintenance 8.1 Daily Maintenance 1 Use the dry cloth to clean the printer . 2 Keep the printhead clean. 3 Remove the battery and dry the printer if inner part of print have water . 4 Please remove the battery if won’t use the printer for long time. 8.2 Printing paper use &... -
Page 25: Fault Diagnosis
9.Fault Diagnosis Page Trouble status Trouble cause Solution Short Buzz 4 times Please check the paper roll Out of paper Short Buzz 2 times Low battery voltage Please charge it in time Only paper feeding nstall paper again with opposite Paper installation is wrong without printing direction... -
Page 26: Appendices
10.Appendices 10.1 Printer Parameter Parameter print head 100KM,SEIKO original, one year warranty paper width 80mm product size 126mm*104mm*51mm Yes,support english and chinese LCD display screen Office Support Word,EXCEL,PPT ,etc printings label printing Support Bartender,magic,labelcool,etc picture printing suppot JPG,BMP,TIF,JPEG,etc.Driver printing ,no need development barcode printing Suppot 1D&2D printing Rotary printing... - Page 27 anti-dropping pass 1.2 meter anti-dropping test waterproof dustproof Windows XP/7(PC) driver printing Windows CE/Mobile suppot，Microsoft standard SDK package、ApI i(support CE5.0 and above ，Mobile5.0 and above) Android suppot，Google standard SDK package、API（support 2.0 and above） printing material Thermal paper /Thermal label printing thickness 50∽150um Personalized interface functions by setting different parameters parameter setting...
-
Page 28: Battery Recycle
10.2 Battery Recycle Printers use rechargeable lithium polymer batteries ,please recycle after using. ... -
Page 29: Hazardous Substances Declaration
hazards products and elements usage part name time (Pb) (Hg) (Cd) (Cr(VI)) (PBB) (PBDE) case ○ ○ ○ ○ ○ ○ electronic assembly components × ○ ○ ○ ○ ○ (including electronic components) ○ ○ ○ ○ ○ ○ adapter ,data wire ① ×... - Page 30 China service:86-400-001-5890 China Sales: 86-400-886-1061 5 9 0 7 3 0 2 2...
