Mocet IG7600 Quick Installation Manual

Smartphone business communication system
Hide thumbs Also See for IG7600:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Administration Manual
IG7600
Smartphone Business
Communication System
Copyright © 2015, All Rights Reserved.
Ver16141105

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IG7600 and is the answer not in the manual?

Questions and answers

Related Manuals for Mocet IG7600

Summary of Contents for Mocet IG7600

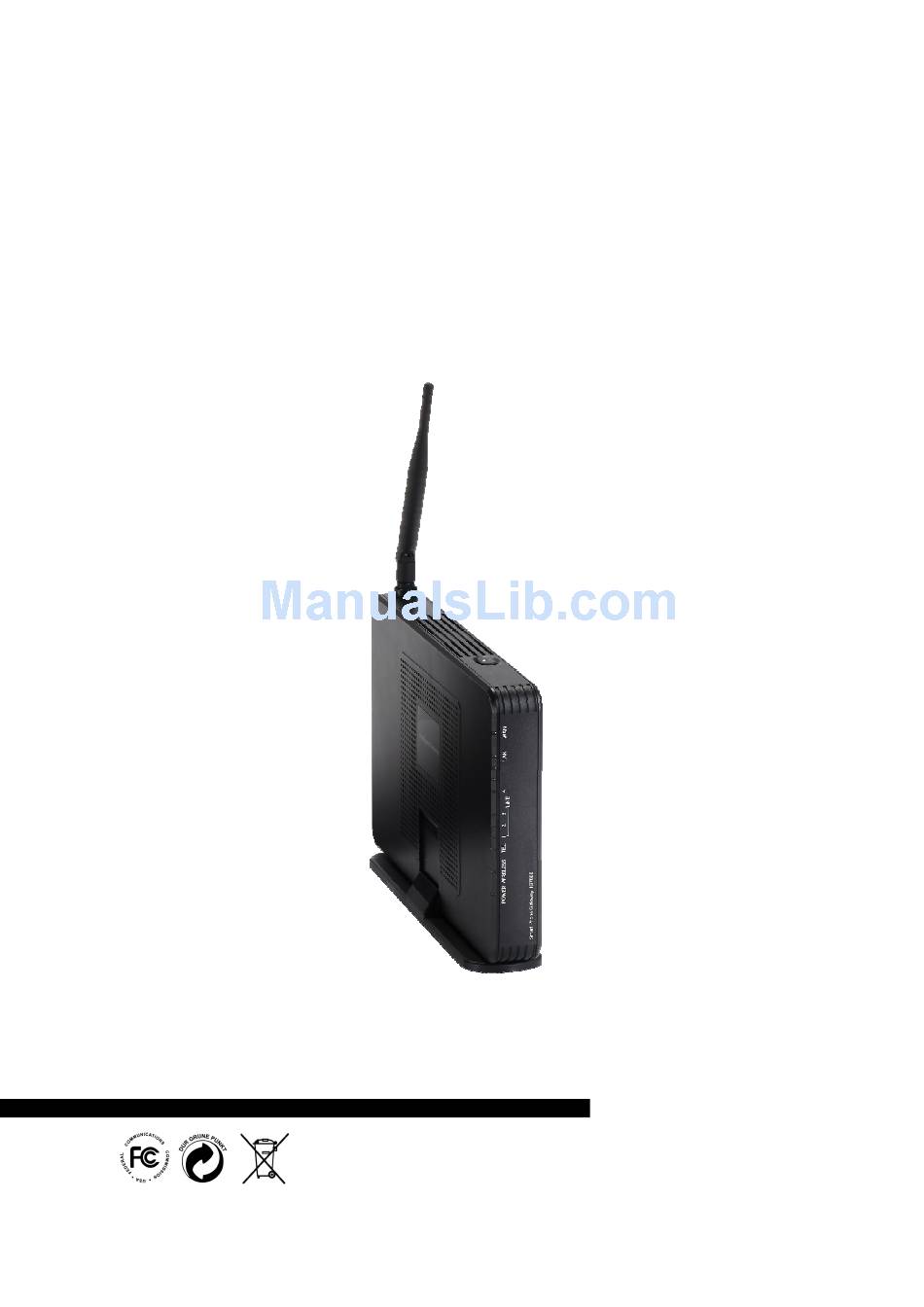

  • Page 1 IG7600 Smartphone Business Communication System Copyright © 2015, All Rights Reserved. Ver16141105...

  • Page 2: Installation Components

    IG7600 Smartphone Business Communication System Quick Installation Guide Installation Components - 1 -...

  • Page 3: System Installation

    IG7600 Smartphone Business Communication System Quick Installation Guide System Installation Follow the flowchart to install IG7600 system. The red number (1) ~ (8) is marked at upper left corner of each process block. You can find the detail explanation by these numbers in the following pages.
  • Page 4 IG7600 Smartphone Business Communication System Quick Installation Guide (1) PSTN Lines Connection You can connect up to four (4) analog (standard or PSTN) telephone lines to your IG7600. Connect one line to each port, in the order that you want them to ring 1 – 4.
  • Page 5 IG7600 Smartphone Business Communication System Quick Installation Guide Powering up Plug the IG7600 in and allow it to power up without connecting any telephones. When the power LED stops flashing the IG7600 will be fully powered up and operational. Login Web page of IG7600 Use an Ethernet cable to connect your Personal Computer, Laptop or Desktop running Windows XP, Vista or Windows7/8, to the LAN port of the IG7600.
  • Page 6 IG7600 Smartphone Business Communication System Quick Installation Guide Management --> Access Control --> Password Default Login and Passwords: Default Level/Rights Login New Password Password Administrator admin1234 adminxxxxxx Administrator support supportxxxxxx User (Limited) user userxxxxxx xxxxxx = The last 6 alphanumeric characters of the system’s WAN MAC Address...

  • Page 7: System Configuration

    2. Set router’s Port Forwarding to IG7600 or DMZ Setting in router 1. Set IG7600 WAN to Static IP address The existing network (Router) will assign an IP address to IG7600 WAN, set the IP address to static IP in WAN page in IG7600.
  • Page 8 IG7600 Smartphone Business Communication System Quick Installation Guide 2. Set router’s Port Forwarding to IG7600 or DMZ Setting in router The tablet lists these ports which are used by IG7600. These ports must be opened for IG7600. Port Range Need port forwarding...
  • Page 9 IG7600 Smartphone Business Communication System Quick Installation Guide TFTP server from remote) Telnet (Only when you need accessing Telnet from remote) 8822 (Only when you need accessing SSH from remote) 49003~49006 (Only when you need to access Door Phone (reserved)
  • Page 10 1. Setup DDNS When the router’s WAN is assigned a dynamic IP from ISP (Internet Service Provider), You need to configure DDNS (Dynamic DNS) in IG7600. (If you don’t know what the network type is, please check with your ISP) Step 1: Go to Advanced Setup -->...
  • Page 11 IG7600 Smartphone Business Communication System Quick Installation Guide Step 4: Edit the DDNS information, and then click “Apply/Save” button. 2. Assign DDNS Host Name to NAT Traversal Step 1: Go to Voice --> NAT Traversal Step 2: Setup the Router External Address to DDNS host name Step 3: Uncheck UPNP Port-Mapping Enable Step 4: Click “Save Settings”...
  • Page 12 IG7600 Smartphone Business Communication System Quick Installation Guide (6) IG7600 Installation Finish The IG7600 network configuration is complete after you finish above steps. In next steps, you will connect your Smartphone and IP phone to IG7600 system. (7) M54 App Installation and Registration 1.
  • Page 13 IG7600 Smartphone Business Communication System Quick Installation Guide M54 App Quick Installation for ios Main interface of M54 Step 1 Connect your phone to IG7600’s Wi-Fi AP. Using Wi-Fi settings of your phone. (Search for IG7600-XXXXXX SSID). Step 2 Download M54 from App Store and install application on your phone.
  • Page 14 IG7600 Smartphone Business Communication System Quick Installation Guide Setup M54 1. Check IG7600 SSID 2. Enter your data 3. Press on on IG7600 1-1. Tap “Next” 2-1. Tap “Next” 3-1. Tap “Start Registration” 4. Check Registration Successful Msg. - 13 -...

  • Page 15: Making Calls

    IG7600 Smartphone Business Communication System Quick Installation Guide Making Calls 7. Using keypad 5. Using green contact list 6. Using Call Log 7-1. Key in number 5-1. Tap to dial 6-1. Tap to dial 7-2. Tap “Dial” Managing calls Turn on/off mute mode...

  • Page 16: Establishing A Conference Call

    IG7600 Smartphone Business Communication System Quick Installation Guide Establishing a conference call 1. Tap New Call when on 2. Tap green Or key in the number Tap “Dial” active call 3. Tap conference to 3-Way conference is established establish the conference Conference call function is not available at the free version.

  • Page 17: Other Functions

    IG7600 Smartphone Business Communication System Quick Installation Guide Other functions Tap to see the IP Cam list and choose camera to monitor Tap to initiate a paging call Tap to access voice message Tap to access app’s settings Tap to access outdoor phone settings...
  • Page 18 IG7600 Smartphone Business Communication System Quick Installation Guide M54 App Quick Installation for Android Phone Main interface of M54 Step 1 Connect your phone to IG7600’s Wi-Fi AP. Using Wi-Fi settings of your phone. (Search for IG7600-XXXXXX SSID). Step 2 Download M54 from Google Play and install application on your phone.
  • Page 19 IG7600 Smartphone Business Communication System Quick Installation Guide Setup M54 3. Press on on IG7600 1. Check IG7600 SSID 2. Enter your data 1-1. Tap OK 2-1. Tap Continue 4. Check Registration Successful Msg. 3-1. Tap Starting - 18 -...
  • Page 20 IG7600 Smartphone Business Communication System Quick Installation Guide Making Calls 7. Using keypad 5. Using green contact list 6. Using Call Log 7-1. Key in number 5-1. Tap to dial 6-1. Tap to dial 7.2 Tap “Dial” Managing calls Turn on/off mute mode...
  • Page 21 IG7600 Smartphone Business Communication System Quick Installation Guide Establishing a conference call 1. Tap New Call when on 2. Tap green contact list Or key in the number Tap “Dial” active call 3. Tap conference 3-Way conference is established to establish the Conference call function is not available at the free version.
  • Page 22 IG7600 Smartphone Business Communication System Quick Installation Guide Other functions Tap to see the IP Cam list and choose camera to monitor Tap to initiate a paging call Tap to access voice message Tap to access app’s settings Tap to access outdoor phone settings...
  • Page 23 IG7600 Smartphone Business Communication System Quick Installation Guide (8) IP Phone Connection Plug and play When the M22 IP phone connected to the same switch as IG7600’s WAN, M22 will auto register to IG7600. IP phone connected to same network switch as IG7600’s WAN.
  • Page 24 IG7600 Smartphone Business Communication System Quick Installation Guide Configuration 1. Add new phone number and password in “Phone Extension” page of IG7600. 2. Configure the SIP register information in “SIP” page of M22. 1. Add new phone number and password in “Phone Extension” page of IG7600 Step 1: Go to Voice -->...
  • Page 25 IG7600 Smartphone Business Communication System Quick Installation Guide 2. Configure the SIP register information in “SIP” page of M22 Step 1: Login M22 web page Step 2: Select “SIP” tag Step 3: Edit the SIP Proxy Server, Registrar Server, phone number and password Step 4: Click “Save Settings”...
