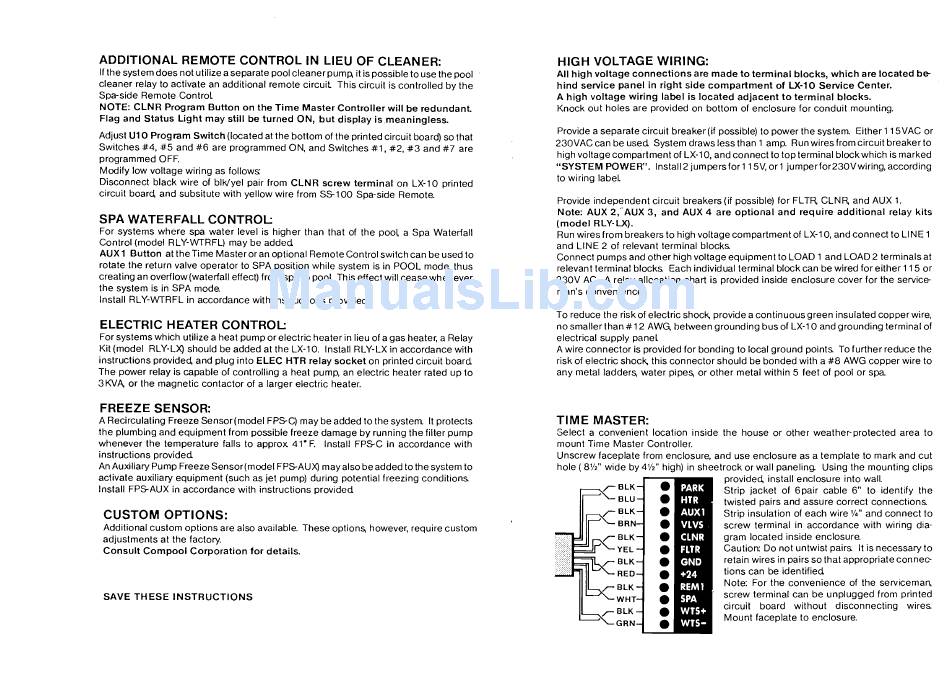

Compool Pool-Spa Control System Time Master Installation Instructions Manual page 6

ADDITIONAL REMOTE CONTROL IN LIEU OF CLEANER:
If the system does not utilize aseparate pool c l e a n e r p u m ~ it is possible to use the pool
cleaner relay to activate an additional remote circuit This circuit is controlled by the
Spa-side Remote Control
NOTE: CLNR Program Button o n the Time Master Controller will be redundant.
Flag and Status Light may still be turned ON, but display i s meaningless.
Adjust U1O Program Switch (located at the bottom of the printed circuit board) so that
Switches #4, # 5 and # 6 are programmed ON, and Switches #1, #2, # 3 and #7 are
programmed OFF.
Modify low voltage wiring as follows
Disconnect black wire of blklyel pair from CLNR screw terminal on LX-10 printed
circuit board, and subsitute with yellow wire from SS-100 Spa-side Remote
SPA WATERFALL CONTROL:
For systems where spa water level is higher than that of the pooh a Spa Waterfall
Control (model RLY-WRFL) may be added
AUXl Button at theTime Master or an optional Remote Control switch can be used to
rotate the return valve operator to SPA position while system is in POOL mode, thus
creating an overflow(waterfall effect) from spa to pool This effect will ceasewhenever
the system is in SPA mode.
Install RLY-WRFL in accordance with instructions provided.
ELECTRIC HEATER CONTROL:
For systems which utilize a heat pump or electric heater in lieu of a gas heater, a Relay
Kit (model RLY-LX) should be added at the LX-10. Install RLY-LX in accordance with
instructions provided, and plug into ELEC HTR relay socket on printed circuit board
The power relay is capable of controlling a heat pump, an electric heater rated up to
3KV4 or the magnetic contactor of a larger electric heater.
FREEZE SENSOR:
A Recirculating Freeze Sensor(mode1 FPS-C) may be added to the system It protects
the plumbing and equipment from possible freeze damage by running the filter pump
whenever the temperature falls to approx 41'F. Install FPS-C in accordance with
instructions provided
An Auxiliary Pump Freeze Sensor(mode1 FPS-AUX) may also beadded to the system to
activate auxiliary equipment (such as jet pump) during potential freezing conditions
Install FPS-AUX in accordance with instructions provided
CUSTOM OPTIONS:
Additional custom options are also available. These options, however, require custom
adjustments at the factory.
Consult Compool Corporation for details.
SAVE THESE INSTRUCTIONS
HIGH VOLTAGE WIRING:
All high voltage connections are made t o terminal blocks, which are located b e
hind service panel in right side compartment of LX-10 Service Center.
A high voltage wiring label is located adjacent t o terminal blocks.
Knock out holes are provided on bottom of enclosure for conduit mounting.
Provide a separate circuit breaker (if possible) to power the system. Either 1 15VAC or
230VAC can be used System draws less than 1 amp. Run wires from circuit breaker to
high voltage compartment of LX-10, and connect to top terminal blockwhich is marked
"SYSTEM POWER". Install2 jumpersfor1 15V, or1 jumperfor230Vwiring, according
to wiring label.
Provide independent circuit breakers(if possible) for FLTR, CLNR, and AUX
1.
Note: AUX 2,"AUX
3,
and AUX
4
are optional and require additional relay kits
(model RLY-LX).
Run wires from breakers to high voltage compartment of LX-10, and connect to LlNE 1
and LlNE 2 of relevant terminal blocks
Connect pumps and other high voltage equipment to LOAD 1 and LOAD 2 terminals at
relevant terminal blocks Each individual terminal blockcan be wired for either 11 5 or
230V AC. A relay allocation chart is provided inside enclosure cover for the service
man's convenience
To reduce the risk of electric shock provide a continuous green insulated copper wire,
no smaller than # 1 2 AWG between grounding bus of LX-10 and grounding terminal of
electrical supply panel
A wire connector is provided for bonding to local ground points To further reduce the
risk of electric shock this connector should be bonded with a #8 AWG copper wire to
any metal ladders, water pipes, or other metal within 5 feet of pool or spa
TIME MASTER:
Select a convenient location inside the house or other weather-protected area to
mount Time Master Controller.
Unscrew faceplate from enclosure, and use enclosure as a template to mark and cut
hole ( 8%" wide by 4%" high) in sheetrock or wall panel in^ Using the mounting clips
provided, install enclosure into wall.
Strip jacket of 6pair cable 6" to identify the
twisted pairs and assure correct connections
Strip insulation of each wire
l/4"
and connect to
screw terminal in accordance with wiring dia-
gram located inside enclosure.
Caution: Do not untwist pairs It is necessary to
retain wires in pairs so that appropriate connec-
tions can be identified
Note: For the convenience of the sewiceman
'
screw terminal can be unplugged from printed
circuit board without disconnecting wires
Mount faceplate to enclosure.
