AMG1202-T10B/AMG1302-T10B
Support Notes

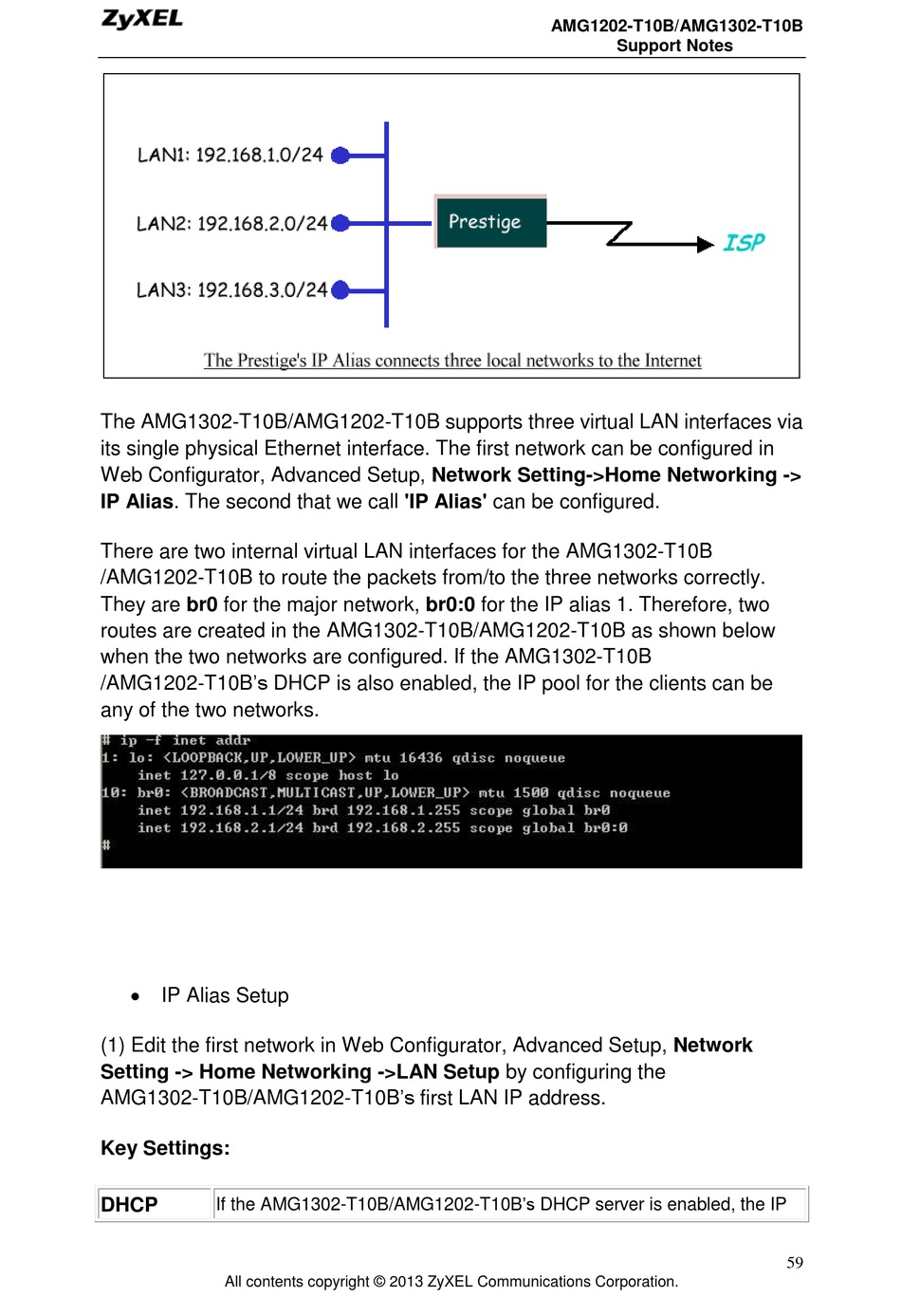

The AMG1302-T10B/AMG1202-T10B supports three virtual LAN interfaces via
its single physical Ethernet interface. The first network can be configured in
Web Configurator, Advanced Setup, Network Setting->Home Networking ->
IP Alias. The second that we call 'IP Alias' can be configured.
There are two internal virtual LAN interfaces for the AMG1302-T10B
/AMG1202-T10B to route the packets from/to the three networks correctly.
They are br0 for the major network, br0:0 for the IP alias 1. Therefore, two
routes are created in the AMG1302-T10B/AMG1202-T10B as shown below
when the two networks are configured. If the AMG1302-T10B
/AMG1202-T10B's DHCP is also enabled, the IP pool for the clients can be
any of the two networks.
 IP Alias Setup
(1) Edit the first network in Web Configurator, Advanced Setup, Network
Setting -> Home Networking ->LAN Setup by configuring the
AMG1302-T10B/AMG1202-T10B's first LAN IP address.
Key Settings:
DHCP
If the AMG1302-T10B/AMG1202-T10B's DHCP server is enabled, the IP
59
