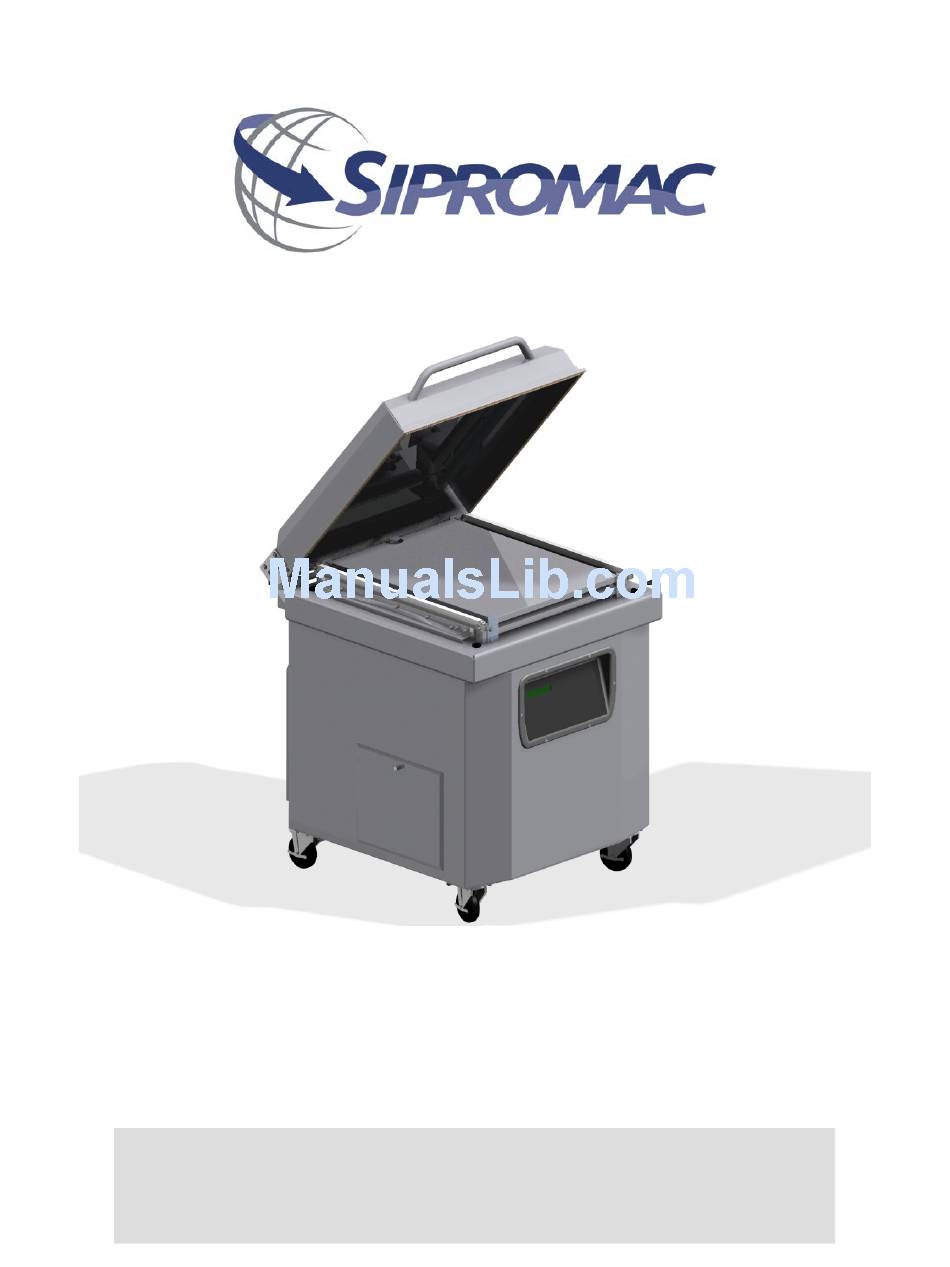

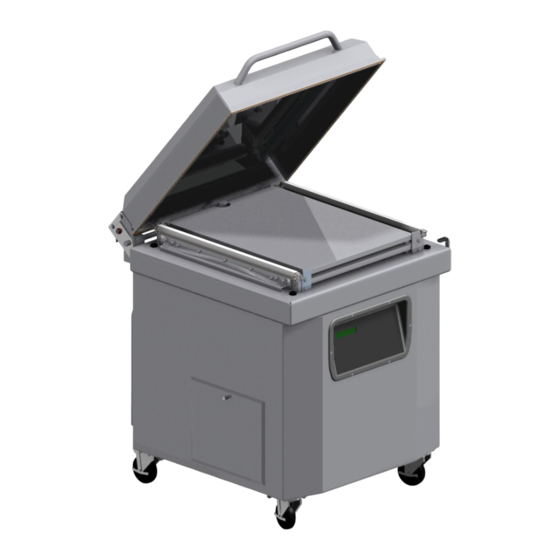

  • Page 1 OWNER’S MANUAL VACCUM MACHINE 550A...
  • Page 3 IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate your machine. Failure to comply with these instructions may result in personal injury.
  • Page 4 Service • Use proper containers when draining the oil. Do not use food or beverage containers that may mislead someone into drinking from them. Properly dispose of the containers, or store in a safe place immediately following the draining of the oil. •...
  • Page 5 MODEL 550A (MC-40 SIPROMAC) GENERAL TABLE OF CONTENTS OPERATION INSTRUCTIONS II MECHANICAL A- 550A Front view assembly drawing B- 550A Rear view assembly drawing C- P.C. board support drawing D- 550A Structure assembly drawing E- Seal bar assembly drawings (twin seal)

  • Page 6: Table Of Contents

    VACUUM PACKAGING MACHINES-OPERATION INSTRUCTIONS TABLE OF CONTENTS 1. Setting up the machine 2. Electrical connection 3. Operation 3.1 Working principles 3.2 Special packaging 3.2.1 Gas flushing 3.2.2 Electrical bag cut (optional) 3.3 Vacuum packaging operation 3.3.1 Basics 3.3.2 Functions menu 3.3.2.1 Create a program 3.3.2.2 Delete a program 3.3.2.3 Select operating mode...

  • Page 7: Setting Up The Machine

    SIPROMAC INC. VACUUM PACKAGING MACHINES 1. SETTING UP THE MACHINE: Before choosing the site for the machine, please consider that you will also need room for packaged and non-packaged products apart from the space needed for the machine itself. Keep in mind that the machine must not be set up upon uneven ground. Especially with mobile models, the weight of the pump might then cause warping of the machine.

  • Page 8: Special Packaging

    Finally, a mechanism pushes the sealing bar to the rubber support to seal the bag. To obtain nice packages, the products and the bags have to be of proportional sizes. The bag's opening should never exceed 50 cm(2") past the seal bars. The product should be centered in height in relation to the seal bar by adjusting the spacers provided.

  • Page 9: Electrical Bag Cut (Optional)

    The necessary gas tank and pressure valve mounted on tank is not supplied, The pressure of the gas regulator should be set at approximately 1/3 kg/sq. cm ( 5 lbs/sq.inch.). Each machine has an adaptor for gas connection when gas flush option is ordered.

  • Page 10: Delete A Program

    3.3.2.2 Delete a program: When executing the "delete a program" function, the programs menu is acceded and the number of the first program in memory is blinking to point out the deletion mode. Use key "SELECT" to select a program and key "ENTER" to accede and confirm deletion of the selection.

  • Page 11: Vacuum Level Setting (Sensor Enabled)

    Examples: 1s  keys 0, 1 or 1, ENTER 15s  keys 1, 5 3.3.3.3 Vacuum level setting (sensor enabled) For a selected program set the vacuum level, starting with the values; the decimal point is automatically inserted following the second digit entry and the validation is automatically performed following the third digit entry (the new vacuum level is blinking).

  • Page 12: Vacuum Cycle Execution

    automatically inserted following the first digit entry and the validation is automatically performed following the third digit entry (the new sealing time is blinking). The sealing time is truncated to the nearest half hundredth. In a middle of an acquisition, use key "ENTER"...

  • Page 13: System Monitor

    "D3 MODEL SELECT" "D4 GAS OPTION" "D5 SEALING TIME" "D6 COOLING TIME" "D7 OFFSET CALIB.” "D8 VACUUM SENSOR” "D9 SIPROMAC PUB” "D10 LOADING TIME" (automatic units only) "D11 UNLOADNG TIME" (automatic units only) "SYSTEM MONITOR" (no access code required) "SOFTWARE: R x.xx"...
  • Page 14 -KEYBOARD DETAILS- MC-40 CONTROLS...

  • Page 16: Daily Cleaning

    WARNING: All electrical work described in this brochure should be done by a QUALIFIED and AUTHORIZED technician. 3.4 Daily cleaning: For hygenic cleanliness, it is imperative to clean chamber and spacers daily. Also clean the lid rubber to assure tight seat of the lid. Cleaning instructions for gas injection nozzles: Periodically on a regular basis the gas injection nozzles must be removed with the connection tube and soaked in a food grade soap and water solution, then dried and re-installed.

  • Page 17: Insufficient Vacuum

    4.2 Insufficient vacuum: 4.2.1 Leakage in the bag: Most frequently, insufficient vacuum in bags is due to leakage in bag and not due to any fault of the machine. Pin-hole leak for which there is no obvious explanation is due to faulty bag material. Pin-hole leak caused by sharp edge of the product (bone, etc.).Use bone-guard or thicker film.

  • Page 18: Faulty Seal

    4.3 Faulty seal: 4.3.1 Insufficient seal: Damaged teflon or silicone rubber. Sealing pressure too low, bellows leaking or pressure bar jammed. Leakers in seal: heating wire mechanically damaged (knicked) or silicone rubber uneven. 4.3.2 No seal: Sealing wire burnt. Faulty contact in sealing circuit. Sealing transformer burnt through.

  • Page 19: Control Board Failure

    4.5 MC40 Control board failure NOTE:Refer to menu structure on page 13. This board software is allowing access to a "Diagnostics Menu". Only qualified service technicians are authorized to access this menu by entering a security password. By acceding either the "D1 input test" feature or the "D2 output test" feature,a trained technician will be able to quickly know the origin of the problem: pump, sealing system, pneumatic problem, security switches problem, etc...
  • Page 20 MECHANICAL DRAWING...
  • Page 21 127-0041 STICKER ''GAS'' YELLOW/BLACK 1'' X 2'' 010B0062 RA-0063 PUMP ASSEMBLY 130-4PHB 4'' PL.CASTER SWIVEL W/BRAKE 010B0063 RA-0100 PUMP ASSEMBLY 033-0013 MC-40 KEYBOARD "CPI/GUARDIAN" 033-0014 MC-40 KEYBOARD "FOODPAK" 033-0015 MC-40 KEYBOARD "SIPROMAC" 033-0016 MC-40 KEYBOARD "HOLLYMATIC" MACHINE DEPT. TOL. METRIC INCH...
  • Page 22 9 GAS OPTION 24 SEAL BAR (ECO) DETAIL B 20 MC-40 DETAIL A GAS OPTION GAS OPTION (4 NOZZLE) MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 23 55 MUFLER OPTION 51 MUFLER OPTION DETAIL H 22 KB-0020 OPTION RA-0063 OPTION RA-0100 OPTION MUFLER OPTION MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" DETAIL I SOUDAGE ± 0. 5 ±...
  • Page 24 17 8" COVER OPTION 37 HEATED BOX OPTION 52 AIR REGULATOR OPTION 16 AIR REGULATOR OPTION 38 HEATED BOX OPTION MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 25 005B0605 23 UPPER SEAL (BAR T&B) 4 UPPER SEAL (ECO & TWIN) MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM PART QUEBEC CANADA MACHINE ASSEMBLY N.T.S.
  • Page 26 051-0715 WASHER #4 LOCK SS 051-0740 WASHER 1/4" FLAT S/S 051-0780 WASHER 3/8" FLAT S/S 051-0783 WASHER 3/8" FLAT THICK S/S DETAIL A MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ±...
  • Page 27 SEAL WITH SILICONE SELLER AVEC DU SILICONE DETAIL A CAN BE INVERTED IF NEEDED PEUT ÊTRE INVERSÉ AU BESOIN DETAIL B MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 28 125-0060 BUSCH RA-0100 230-460V/3PH/60HZ 125-0062 BUSCH RA-0100 575V/3PH/60HZ 125-0064 BUSCH RA-0100 220V/1PH/60HZ DETAIL B DETAIL A RA-0100 OPTION MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 29 125-0044 PUMP 63M³ / 3PH/220V/1PH/60HZ 125-0046 PUMP 63M³/3PH /220V/1PH/50HZ DETAIL B 13 14 15 DETAIL A RA-0063 OPTION MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 30 105-0250 EAR CLAMP 1-1/2" S/S 125-1020 BUSCH KB-0020 115V/1PH/60HZ 125-1021 BUSCH KB-0020 220-240V/1PH/50-60HZ DETAIL B DETAIL A KB-0020 OPTION MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 31 106-00201 VALVE 2WAY 24V 1/2'' NPT 106-00621 VALVE 2WAY 120V 1/2'' NPT 106-00631 VALVE 2WAY 240V 1/2'' NPT KB-0020 OPTION MACHINE DEPT. TOL. METRIC INCH SINGLE CHAMBER VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 32 100-1230 STRAIGHT 1-1/2"MNPT x1-1/2" HOSE BARB 100-0555 RED.BUSH.1-1/2" x 1-1/4" NPT S/S -OPTION - 40M³, 63M³ & 100M³ PUMP MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 33 171-0180 TAPE CLEAR SUPER BOND 3/4" (0.024) 675MM 176-0200 TEFLON TAPE,PRESS.SENSITIVE 2" 675mm (0.08) -BAG CUT OPTION & TWIN- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 550A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 34 ALLOW TO MOVE FREELY -DÉTAIL A- VOIR DÉTAIL A DETAIL B -TOP & BOTTOM SEALING OPTION- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 35 31.5 VUE A REF. THIS SIDE OF SEAL BAR TO FIT FLUSH W/SUPPORT -TWIN SEAL OPTION- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 36 ALLOW TO MOVE FREELY INSTALLER CONTRE L'ENCOCHE DE L'ITEM #9 4 INSTALL AGAINST NOTCH OF ITEM #9 -TWIN SEAL OPTION- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ±...
  • Page 37 051-0581 NUT 1/4"-20 NYLON LOCK S/S 051-0740 WASHER 1/4" FLAT S/S 620A -BAG CUT OPTION- 600A -END VIEW- MACHINE MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 38 PERMETTRE DE BOUGER LIBREMENT 3 ALLOW TO MOVE FREELY 620A -BAG CUT (ECO) - 600A MACHINE MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 39 176-0203 TEFLON TAPE, UNCOATED ZONE 5 MIL 617mm (0.07) 176-0220 TEFLON TAPE,PRESS.SENSITIVE 2" 617mm (0.07) 179-0003 SILICONE 2mm x 15mm ADHESIVE 617mm (0.62) MACHINE DEPT. TOL. METRIC INCH 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 40 31.5 REF. THIS SIDE OF SEAL BAR TO FIT FLUSH W/SUPPORT -TOP & BOTTOM SEALING OPTION- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 41 FOR TOP & BOTTOM SEALING ONLY POSITION JOINT HERE POUR SCELLAGE "TOP & BOTTOM" SEULEMENT POSITIONNER LE JOINT ICI -12" COVER OPTION- MACHINE DEPT. TOL. METRIC INCH 550A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 42 2 UTILISER PERMATEX RUBBER ADHESIVE 169-0010 POUR COLLER POSITION JOINT HERE POSITIONNER LE JOINT ICI FOR TOP & BOTTOM SEALING ONLY POUR SCELLAGE "TOP & BOTTOM" SEULEMENT MACHINE DEPT. TOL. METRIC INCH 550A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 43 114-0145 PRESSURE REGUL. 0-30 PSI 1/4'' NPT 114-0235 PRESSURE GAUGE 0-30 PSI 1/8 NPT AIR REGULATOR OPTION MACHINE DEPT. TOL. METRIC INCH SINGLE CHAMBER VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 44 106-00661 VALVE 3 WAY 1/4'' NPT 240V 106-00701 VALVE 3 WAY 1/4'' NPT 24VAC TO BELLOW VACUUM INLET TO BELLOW MACHINE DEPT. TOL. METRIC INCH SINGLE CHAMBER VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 45 102-0361 Y BRANCH 1/4'' MNPT X 3/8'' T. QUICK -OPTION - GAS DOUBLE CHAMBER SINGLE CHAMBER MACHINE MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 46 051-0581 NUT 1/4"-20 NYLON LOCK S/S 300 @ 350D MACHINE DEPT. TOL. METRIC INCH SIPROMAC USINAGE ± 0.1 ± 0.004" 450T ,550A & 580A TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM PART QUEBEC CANADA COVER HOLD DOWN ASS'Y N.T.S.
  • Page 47 PART # DESCRIPTION 004A4229 REAR ACCESS DOOR PRE-ASSY (KB-0020) 056-2612 CAM LOCK QUARTER TURN SS304 -KB-20 OPTION (400, 450A)- MACHINE DEPT. TOL. METRIC INCH 400, 450A & 550A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ±...
  • Page 48 DETAIL A NOTE: - 026-3161 - DISCONNECT SWITCH SHAFT: COUPER À 94 MM DE LONG. MACHINE DEPT. TOL. METRIC INCH VACUUM SINGLE CHAMBER SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 49 DESCRIPTION 004A4139 VACUUM SENSOR FILTER SUPPORT 114-2020 FILTER / DRYER ¼"mnpt. X 1/4"t.p. COMP. 102-0410 MALE CONN.1/4"MNPTx3/8"T.QUICK MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020"...
  • Page 50 026-3160 HANDLE RED/YELLOW NEMA 4X, COMPACT, PADLOCKABLE 127-0100 STICKER ELEC.HAZARD ISO 2-1/2'' TRIANGLE 5 CENTER WITH HANDLE 16.4 MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM...
  • Page 51 056-2600 SPRING PAWL LATCHE SS KNOB 051-0071 SCREW 4-40 x 1/4" RND SLOT S/S 051-0541 NUT # 4-40 NYLON LOCK SS MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
  • Page 52 ELECTRICAL DRAWING...
  • Page 53 006-1030 1 de 1 FULL FILENAME H:\PRODUITS\500-SIPROVAC\550A\ELECTRIQUE-PNEUMATIQUE\006-1030 POW. 3PH,60HZ.VSD PAGE L2 L3 TOP & BOTTOM OPTION (20 yel) (20 brn) (20 pur) (20 gry) category model volt. VACUUM PACK 3Ph 60Hz 550A SIPROMAC system month circuit year block power MC-40...
  • Page 54 006-1037 1 de 2 PAGE FULL FILENAME H:\PRODUITS\500-SIPROVAC\550A\ELECTRIQUE-PNEUMATIQUE\006-1037 CONT..VSD TRANSF.CONT. W001 MC40 GREY JP3/1 PURPLE JP3/1 BROWN JP3/1 YELLOW JP3/1 Atmosphere BLUE JP3/1 ORANGE JP3/1 Sealing GREEN JP3/1 Bellows JP3/1 WHITE TD BLOCK Gas option JP3/1 TO 96 OF OL1...
  • Page 55 006-1037 2 de 2 PAGE FULL FILENAME H:\PRODUITS\500-SIPROVAC\550A\ELECTRIQUE-PNEUMATIQUE\006-1037 CONT..VSD MC40 BLACK WHITE N/A RED N/A GREEN shield ooooooo PC BOARD category VACUUM PACK model volt. 550A SIPROMAC month system circuit year block control MC-40 St-Germain de Grantham QUEBEC ,CANADA usual...
  • Page 56 PNEUMATIC DRAWING...
  • Page 57 NOTES...
