IMPORTANT SAFETY INSTRUCTIONS SAVE THESE INSTRUCTIONS This symbol points out important safety instructions which, if not followed, could endanger the personal safety and/or property of yourself and others. Read and follow all instructions in this manual before attempting to operate your machine. Failure to comply with these instructions may result in personal injury.
Page 4
Service • Use proper containers when draining the oil. Do not use food or beverage containers that may mislead someone into drinking from them. Properly dispose of the containers, or store in a safe place immediately following the draining of the oil. •...
Page 5

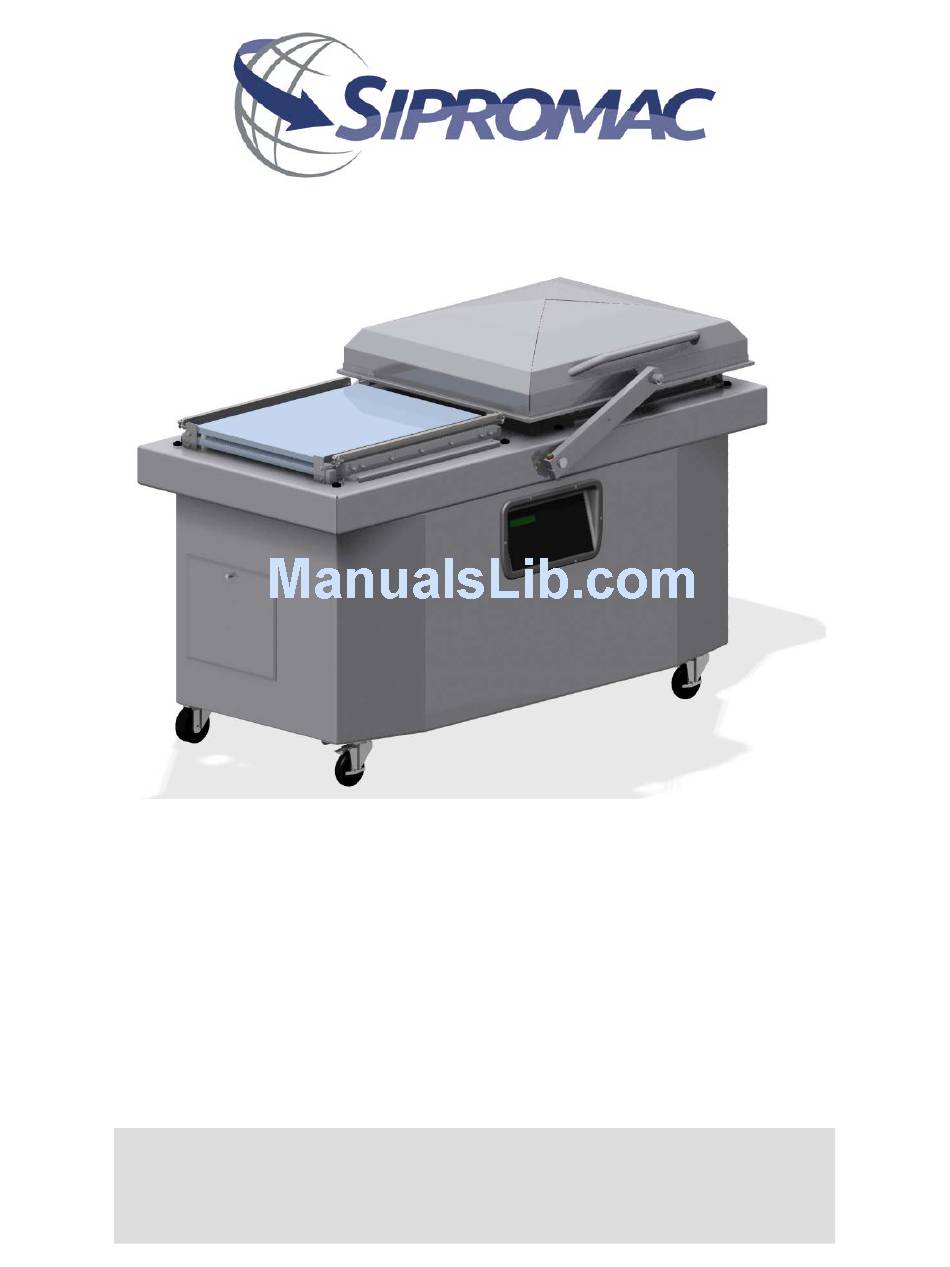

VACUUM PACKAGING MACHINE MODEL 600A (MC-40 SIPROMAC) GENERAL TABLE OF CONTENTS OPERATION INSTRUCTIONS II MECHANICAL A- Front view general assembly drawing B- Rear view general assembly drawing C- Cover adjustment procedure D- Central shaft assembly drawing E- Seal bar assembly drawings...
VACUUM PACKAGING MACHINES OPERATION INSTRUCTIONS TABLE OF CONTENTS 1. Setting up the machine 2. Electrical connection 3. Operation 3.1 Working principles 3.2 Special packaging 3.2.1 Gas flushing 3.2.2 Top and bottom sealing (bi-active) 3.2.2 3.2.3 Electrical bag cut 3.3 Setting of digital controls 3.4 Daily cleaning 4.
SIPROMAC INC. VACUUM PACKAGING MACHINES 1. SETTING UP THE MACHINE: Before choosing the site for the machine, please consider that you will also need room for packaged and non-packaged products apart from the space needed for the machine itself. Keep in mind that the machine must not be set up upon uneven ground. Especially with mobile models, the weight of the pump might then cause warping of the machine.
To obtain nice packages, the products and the bags have to be of proportional sizes. The bag's opening should never exceed 50 cm(2") past the seal bars. The product should be centered in height in relation to the seal bar by adjusting the spacers provided. To obtain a good seal, make sure that no residue of fat is left between the bag's inner sides where sealing is done.
Page 9
3.3 Vacuum packaging operation: 3.3 Vacuum packaging operation: Note: Refer to the menus structure on page 14 and the keyboard detail on page 15. 3.3.1 Basics: Use key "POWER" to power ON / OFF the vacuum packaging machine. When the unit is energized, the identification of the last executed program is displayed on LCD screen.
Page 10
3.3.3 Programs menu: 3.3.3.1 Program identification: For a selected program, set the identification, using the numeric keyboard characters chart; press numeric key untill the desired character is selected (4 times for the numeric value). Use key "ENTER" to validate the character and to validate the characters string at the end(the new characters string is blinking).
Page 11
3.3.3.4 Gas flush level setting: For a selected program set the gas flush level following the same procedure as for the vacuum level; the maximum gas flush level setting is 10% below the vacuum setting. 3.3.3.5 Sealing time setting: For a selected program set the sealing time, starting with the seconds; the decimal point is automatically inserted following the first digit entry and the validation is automatically performed following the third digit entry (the new sealing time is blinking).
Page 12
"D3 MODEL SELECT" "D4 GAS OPTION" "D5 SEALING TIME" "D6 COOLING TIME" "D7 OFFSET CALIB.” "D8 VACUUM SENSOR” "D9 SIPROMAC PUB” "D10 LOADING TIME" (automatic units only) "D11 UNLOADNG TIME" (automatic units only) "SYSTEM MONITOR" (no access code required) "SOFTWARE: R x.xx"...
WARNING: All electrical work described in this brochure should be done by a QUALIFIED and AUTHORIZED technician. 3.4 Daily cleaning: For hygenic cleanliness, it is imperative to clean chamber and spacers daily. Also clean the lid rubber to assure tight seat of the lid. Cleaning instructions for gas injection nozzles: Periodically on a regular basis the gas injection nozzles must be removed with the connection tube and soaked in a food grade soap and water solution, then dried and re-installed.
4.2 Insufficient vacuum: 4.2.1 Leakage in the bag: Most frequently, insufficient vacuum in bags is due to leakage in bag and not due to any fault of the machine. Pin-hole leak for which there is no obvious explanation is due to faulty bag material. Pin-hole leak caused by sharp edge of the product (bone, etc.).Use bone-guard or thicker film.
4.5 MC40 Control board failure NOTE:Refer to menu structure on page 13. This board software is allowing access to a "Diagnostics Menu". Only qualified service technicians are authorized to access this menu by entering a security password. By acceding either the "D1 input test" feature or the "D2 output test" feature,a trained technician will be able to quickly know the origin of the problem: pump, sealing system, pneumatic problem, security switches problem, etc...
Page 18
MODEL 600A COVER ADJUSTMENT PROCEDURE Reference Drawing:# 005C0324 # 004C0122 PROBLEM: MACHINE TABLE AND COVER SEEMS TO BE STRAIGHT, LID GASKET IS GOOD BUT COVER DOES NOT SIT PROPERLY ON BOTH SIDES OF TABLE. 1. Floor should be flat (within 1/8" approx.).
Page 35
- INSTALL THEM LOOSELLY BY THIGHTENING THE NUT BY HAND - TENSION SPRING EQUALLY. THE STRECHTED LENGTH MINUS THE INITIAL LENGTH MUST BE THE MACHINE DEPT. TOL. METRIC INCH SAME ON EACH SPRING. 600A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ±...
Page 36
AJUSTEMENT DE L'ARBRE / SHAFT ADJUSTMENT: - UTILISER LES CALES POUR POSITIONNER L'ARBRE ----------- - USE BLOC TO SPACE THE SHAFT ACCORDINGLY MACHINE DEPT. TOL. METRIC INCH 600A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ±...
Page 37
PART # DESCRIPTION 002B4058 SPRING BLOCK 075-0015 BUSHING PL.5/16" x 1/2" x 1/2" 002B3939 UPPER SPRING BLOCK 051-0312 S/S BOLT 5/16" - 18NC. 2 1/4" SERRAGE 2 PRESS FIT 620A 600A MACHINE MACHINE DEPT. TOL. METRIC INCH VACCUM SIPROMAC USINAGE ±...
Page 40
MC-40 DETAIL A NOTE: - 026-3161 - DISCONNECT SWITCH SHAFT: COUPER À 134 MM DE LONG. MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM...
Page 41
026-3160 HANDLE RED/YELLOW NEMA 4X, COMPACT, PADLOCKABLE 127-0100 STICKER ELEC.HAZARD ISO 2-1/2'' TRIANGLE 5 CENTER WITH HANDLE 16.4 MACHINE DEPT. TOL. METRIC INCH VACUUM SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ± 0.020" ST-GERMAIN DE GRANTHAM...
Page 42
056-2600 SPRING PAWL LATCHE SS KNOB 051-0071 SCREW 4-40 x 1/4" RND SLOT S/S 051-0541 NUT # 4-40 NYLON LOCK SS DETAIL A MACHINE DEPT. TOL. METRIC INCH 600A & 620A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020"...
Page 43
± 0.020" ST-GERMAIN DE GRANTHAM PART 25.5 QUEBEC CANADA SEAL BAR ASS'Y W/SUPPORT N.T.S. REF. DEPT. QTY. ITEM M-(M)-I 600A ADDED, 002A4162 WAS 002-0510 14-05-27 SBU REDRAWN DWG BY DATE 05-09-12 M.A. MAT. M.A.L. 05-09-12 005A0560 DATE LET. DATE INT.
Page 44
ALLOW TO MOVE FREELY INSTALLER CONTRE L'ENCOCHE DE L'ITEM #9 4 INSTALL AGAINST NOTCH OF ITEM #9 -TWIN SEAL OPTION- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 47
± 0.020" 25.5 ST-GERMAIN DE GRANTHAM PART QUEBEC CANADA SEAL BAR ASS'Y W/SUPPORT (T&B) N.T.S. REF. DEPT. QTY. ITEM 600A ADDED, 002A4162 WAS 002-0510 14-05-27 SBU 005B0420 WAS 005A0420 DWG BY DATE 13-09-25 SBU MAT. 13-09-25 005B0562 DATE LET. DATE INT.
Page 49
13 INSTALL AGAINST NOTCH OF ITM #4 PERMETTRE DE BOUGER LIBREMENT 4 ALLOW TO MOVE FREELY -TOP & BOTTOM SEALING OPTION- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 50
051-0740 WASHER 1/4" FLAT S/S COSSE DE CE CÔTÉ CONNECTOR ON THIS SIDE OPTION - TWIN SEAL / STAINLESS BAR MACHINE DEPT. TOL. METRIC INCH 600A & 620A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ±...
Page 51
008-0402 UPPER SEAL BAR RUBBER 171-0180 TAPE CLEAR SUPER BOND 3/4" (0.024) 176-0200 TEFLON TAPE,PRESS.SENSITIVE 2" 683mm (0.08) -TWIN SEAL- MACHINE DEPT. TOL. METRIC INCH SIPROMAC 600A & 620A USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 52
VACUUM INLET 13 OR 22° -OPTION - 255M³ PUMP SMALL HOLES MUST BE ON OIL RESERVOIR SIDE MACHINE DEPT. TOL. METRIC INCH 600A & 620A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 53
VACUUM INLET 13 OR 15° SMALL HOLES MUST BE ON OIL RESERVOIR SIDE -OPTION - 165M³ PUMP MACHINE DEPT. TOL. METRIC INCH 600A & 620A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 54
004B1404 VACUUM / ATMOSPHERE VALVE ASSY. 10 OR 11 OR 15° -OPTION - 100M³ PUMP MACHINE DEPT. TOL. METRIC INCH 600A & 620A SIPROMAC USINAGE ± 0.1 ± 0.004" SMALL HOLE MUST BE TOLERIE ± 0.5 ± 0.020" 3 USE BLUE LOCTITE SOUDAGE ±...
Page 55
VACUUM INLET 13 OR 22° -OPTION - 305M³ PUMP SMALL HOLES MUST BE ON OIL RESERVOIR SIDE MACHINE DEPT. TOL. METRIC INCH 600A & 620A SIPROMAC USINAGE ± 0.1 ± 0.004" TOLERIE ± 0.5 ± 0.020" SOUDAGE ± 0. 5 ±...
Page 69
006-1330 1 de 1 FULL FILENAME H:\PRODUITS\500-SIPROVAC\600A\ELECTRIQUE-PNEUMATIQUE\006-1330 600A POW, 3 PH.,60 HZ.VSD PAGE L2 L3 W M1 W EL ( T / B OPTION ) W TB 14 (blk) 20 (blk) (20 yel) 20 (blk) (20 brn) (20 pur) (20 gry)
Page 70
006-1320 1 de 1 FULL FILENAME H:\PRODUITS\500-SIPROVAC\600A\ELECTRIQUE-PNEUMATIQUE\006-1320 600A POW.1 PH.,60 HZ.VSD PAGE W M1 W EL ( T / B OPTION ) W TB 14 (blk) 20 (blk) (20 yel) 20 (blk) (20 brn) (20 pur) (20 gry) category model volt.
Page 71
ORANGE Atmosphere JP3/1 BLUE JP3/1 PC BOARD category VACUUM PACK model volt. 600A & 620A SIPROMAC system circuit year month block St-Germain de Grantham RC filters must be connected on QUEBEC ,CANADA usual each AC coil (not shown on diagram)
Page 72
WCV1 BLACK BLACK ooooooo GREEN SHIELD PC BOARD category VACUUM PACK model volt. 600A & 620A SIPROMAC system month circuit year block St-Germain de Grantham RC filters must be connected on QUEBEC ,CANADA usual each AC coil (not shown on diagram)
Page 73
FULL FILENAME H:\PRODUITS\500-SIPROVAC\620A\ELECTRIQUE-PNEUMATIQUE\006-1437 620A CONT.VSD TRANSF.CONT.(yel 25) MC40 WCV2 ooooooo PC BOARD volt. category VACUUM PACK model 600A & 620A SIPROMAC system month circuit year block St-Germain de Grantham RC filters must be connected on QUEBEC ,CANADA usual each AC coil (not shown on diagram)
