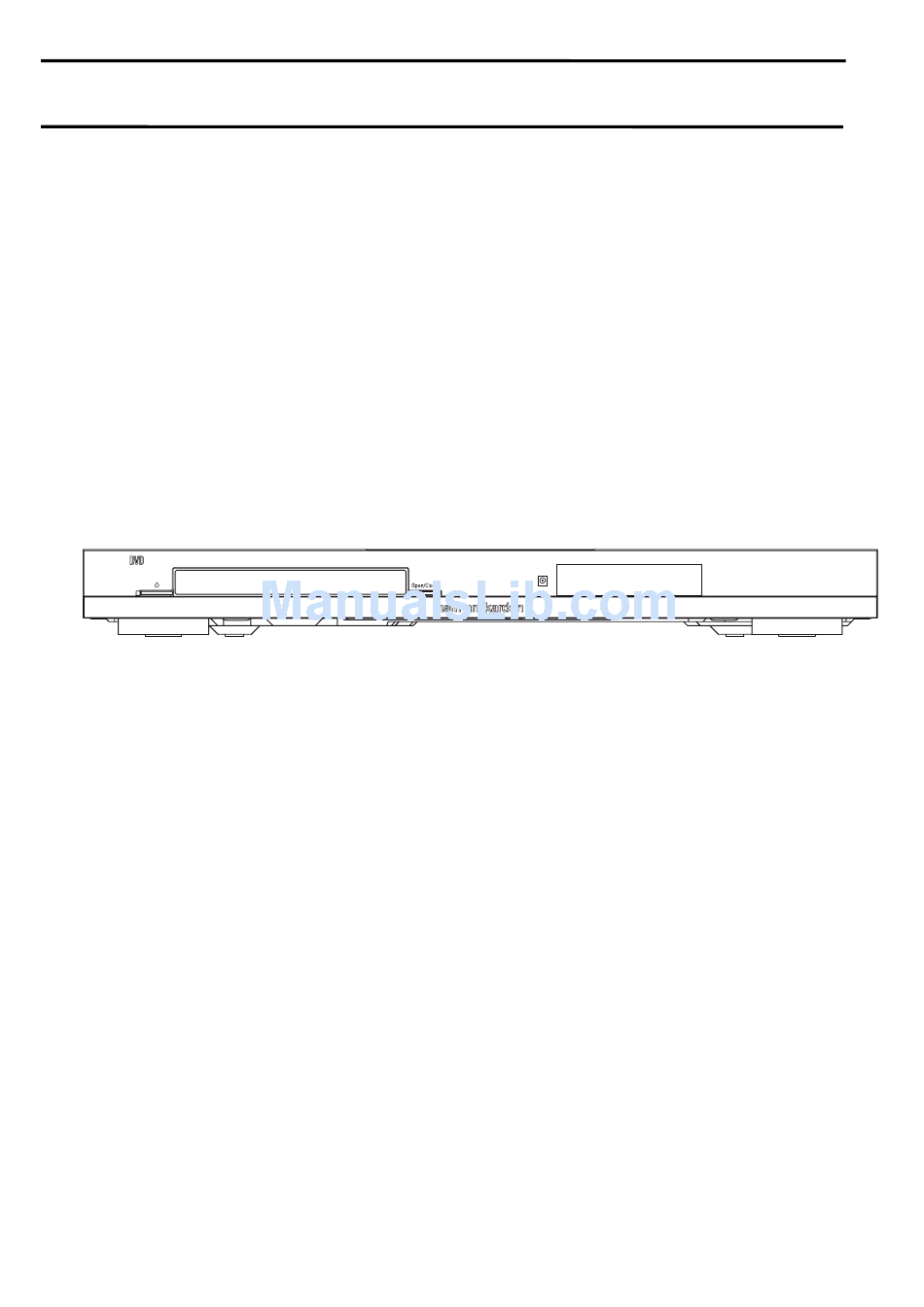

harman/kardon
harman/kardon
DVD 16/230
DVD 18/230

DVD players

Only sold with AVR 139 and AVR 141 as AVR/DVD combos 13916, 13918, 14116, 14118..
Released EU2010
CONTENTS
2
3
6
7
12
13
14
15
Harman Consumer Group, Inc.
8500 Balboa Boulevard.
Northridge, California 91329
DVD 16 and 18 /230V Service Manual
Service Manual
Rev 0, 09/2010
16
17
19
24
25
26
27
31
32-39
Page 1 of 39

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DVD 16/230 and is the answer not in the manual?

Questions and answers

Related Manuals for Harman Kardon DVD 16/230

Summary of Contents for Harman Kardon DVD 16/230

  • Page 1: Table Of Contents

    DVD 16 and 18 /230V Service Manual harman/kardon Service Manual DVD 16/230 DVD 18/230 DVD players Only sold with AVR 139 and AVR 141 as AVR/DVD combos 13916, 13918, 14116, 14118.. CONTENTS TROUBLESHOOTING GUIDE ESD PRECAUTIONS TECHNICAL SPECIFICATIONS SERVICING PRECAUTIONS SOFTWARE CHECK + UPGRADE 18 OWNER’S MANUAL FRONT PAGE 5...

  • Page 2: Esd Precautions

    harman/kardon DVD 16 and 18 /230V Service Manual ESD PRECAUTIONS Electrostatically Sensitive Devices (ESD) Some semiconductor (solid state) devices can be damaged easily by static electricity . Such components com- monly are called Electrostatically Sensitive Devices (ESD). Examples of typical ESD devices are integrated cir - cuits and some field-effect transistors and semiconductor chip components.

  • Page 3: Servicing Precautions

    harman/kardon DVD 16 and 18 /230V Service Manual SERVICING PRECAUTIONS NOTES REGARDING HANDLING OF THE PICK-UP 1. Notes for transport and storage 1) The pick-up should always be left in its conductive bag until immediately prior to use. 2) The pick-up should never be subjected to external pressure or impact. Drop impact Storage in conductive bag 2.
  • Page 4 harman/kardon DVD 16 and 18 /230V Service Manual NOTES REGARDING COMPACT DISC PLAYER REPAIRS 1. Preparations 1) Compact disc players incorporate a great many ICs as well as the pick-up (laser diode). These compo- nents are sensitive to, and easily af fected by, static electricity. If such static electricity is high voltage, components can be damaged, and for that reason components should be handled with care.

  • Page 5: Owner's Manual Front

    harman/kardon DVD 16 and 18 /230V Service Manual Artwork number: 080-1437 AVR/DVD System This owner's manual covers any combination AVR Audio/Video Receiver of AVR 139, AVR 141, DVD Digital Versatile Disc Player DVD 16 and DVD 18. OwneR’s MAnuAl Page 5 of 39 0220CSK - HK AVR-DVD System OM, WORK R2 01.indd 1 12/07/10 14:11:23...

  • Page 6: Om Table Of Contents

    harman/kardon DVD 16 and 18 /230V Service Manual Table of Contents Safety Information Operation Unpacking Basic Operation Terminology Remote Control Functions Turning the AVR On and Off Features, Packing List Using the Sleep Timer Front Panel Controls Front Panel Controls Source Selection Rear Panel Connections Rear Panel Connections...

  • Page 7: Remote Control Functions

    harman/kardon DVD 16 and 18 /230V Service Manual Remote Control Functions for Receiver and DVD Player System 0 Power On Button 1 Not active 2 IR Transmitter Window 3 Power Off Button 4 Mute 5 Input Selectors 6 6-Channel Direct Input 7 Volume Up/Down 8 HD Mode Selector 9 Speaker Select/Setup...
  • Page 8 harman/kardon Artwork number: 080-1437 DVD 16 and 18 /230V Service Manual Remote Control Functions, common for AVR and DVD IMPORTANT NOTE: The combined AVR and DVD 8 HD Mode Selector (DVD): When the DVD C Memory/Angle Button: Press this button to remote has some buttons that perform different player is connected to a video display using the HDMI enter a radio station into the AVR’s preset memory.
  • Page 9 harman/kardon DVD 16 and 18 /230V Service Manual Remote Control Functions, common for AVR and DVD J Stereo Mode Selector: Press this button to P DTS Digital Mode Selector: When a DTS W Tuner Mode: Press this button when the tuner is select a stereo playback mode.
  • Page 10 harman/kardon Artwork number: 080-1437 DVD 16 and 18 /230V Service Manual Remote Control Functions, common for AVR and DVD Function List c Surround Mode Selector/Subtitle Button: Press this button repeatedly to select an available HK AVR Remote Command HK DVD Remote Command surround mode.

  • Page 11: Avr/Dvd System Connections

    harman/kardon Artwork number: 080-1437 DVD 16 and 18 /230V Service Manual Rear Panel Connections B Video Monitor Output: Connect these jacks to G AC Power Cord: Connect the AC plug to an N 6-Channel Direct Inputs: These jacks are used the composite input of a TV monitor or video projector unswitched AC wall output.

  • Page 12: Features

    DTS soundtracks, but the number and types of • Coaxial digital audio output. tracks available will vary from disc to disc. To make 1 Harman Kardon DVD Player Many convenient features certain that a specific feature or soundtrack option is 1 Coaxial digital audio cable available, please check the options noted on the disc •...

  • Page 13: Front Panel Controls

    harman/kardon DVD 16 and 18 /230V Service Manual Front Panel Controls � 0 Power Button 3 IR Remote Receiver Power Button IR Remote Receiver 1 Disc Drawer 4 Information Display Disc Drawer Information Display 2 Open/Close Button Open/Close button 0 Power Button: Press the button once to turn 2 Open/Close Button: Press this button to open 4 Information Display: This 7-character the DVD player on, press it again to put the...

  • Page 14: Rear Panel Connections

    harman/kardon Artwork number: 080-1437 DVD 16 and 18 /230V Service Manual Rear Panel Connections � � � 0 HDMI Output HDMI Output 1 Coaxial Digital Output Coaxial Digital Output 2 AC Power Cord AC Power Cord 0 HDMI Output: Connect this output to an HDMI 1 Coaxial Digital Output: Connect this jack to 2 AC Power Cord: Connect this plug to an AC input on the receiver or video display for the...

  • Page 15: Setup And Connections

    harman/kardon DVD 16 and 18 /230V Service Manual Setup and Connections Before connecting your DVD player, With a single cable connection between components, If you're connecting to a different audio/video receiver please: HDMI is able to deliver uncompressed high-definition that processes audio through HDMI, connect the DVD digital video and digital audio programming.

  • Page 16: Troubleshooting Guide

    harman/kardon DVD 16 and 18 /230V Service Manual Troubleshooting Guide SYMPTOM CAUSE SOLUTION Unit does not turn on • No AC Power • Check AC power plug and make certain any switched outlet is turned on. • • Disc does not play Disc loaded improperly Load disc label-side up;...

  • Page 17: Technical Specifications

    © 2010 Harman International Industries, Incorporated. All rights reserved. Harman Kardon is a registered trademark of Harman International Industries, Incorporated, registered in the United States and/or other countries. Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are registered trademarks of Dolby Laboratories.

  • Page 18: Software Check + Upgrade

    harman/kardon DVD 16 and 18 /230V Service Manual Software check and upgrade Preparation to upgrade software 1. Start the CD burning software; B. Read out the software versions to confirm upgrading 2. Then copy the Bin file (HM_EU16bin) into it; 3.

  • Page 19: Troubleshooting Charts

    harman/kardon DVD 16 and 18 /230V Service Manual Trouble shooting chart No display on VFD, and buttons do not work No display on VFD, and buttons do not work Check every supply voltage on main board is Refer to Power supply board part normal Check5V,+12V,-24V Fix the connection XS2 on front board...
  • Page 20 harman/kardon DVD 16 and 18 /230V Service Manual Trouble shooting chart Remote control does not work Remote control does not work Check whether the remote Replace the battery for remote controller’s battery controller exhausted or not. Check REM301 power supply is OK, Check the VCC net on front board REM301.3 is about 5V Check the IR signal...
  • Page 21 harman/kardon DVD 16 and 18 /230V Service Manual Trouble shooting chart Can’t read disc or can’t open the disk door Can’t read disc or can’t open the disk door Check whether Check the connection of the 5PIN cable DVD loader running is from XP5 on the main Board.
  • Page 22 harman/kardon DVD 16 and 18 /230V Service Manual Trouble shooting chart No VFD display No VFD display Check whether the voltage Fix the connection main board +5V,+12V ,-24V on the front XP12 & front board XS2 board is normal work or not. Check whether Check DC5V to AC 24V switch circuit...
  • Page 23 harman/kardon DVD 16 and 18 /230V Service Manual Trouble shooting chart No HDMI signal output No HDMI output Check whether the HDMI signal is right from the U1 pin 80, 81, Check the U1 power supply 83, 84, 86, 87, 89, 90 Replace the U1 Check whether the HDMI Check the p4 power supply (P4 pin18...

  • Page 24: Exploded View

    harman/kardon DVD 16 and 18 /230V Service Manual Exploded view for DVD16/DVD18: It is exploded view for DVD16/DVD18, pls refer to the model set for detailed information. Assy1 includes componets:1.2.3.19.21.22 Page 24 of 39...

  • Page 25: Dvd16 Service Parts

    harman/kardon DVD 16 and 18 /230V Service Manual DVD16 SERVICE PARTS Location No. TCL P/N. Description Q'ty ASSY-MAIN BOARD 08-D03RXX-U2EX0 ASSY-FRONT CONTROL BOARD 08-DVD016-FEY ASSY-POWER BOARD 08-DVD016-PWY ASSY-SWITCH BOARD 08-DVD016-SWY ASSY-LOADER 08-L31808-S313D OPU IM S76RFS3 05-000CMS-SRFS3 ASSY-FRONT PANEL ASSY1 08-DV16F1-XX0B1 FLOGO 67-995950-0A0 FRONT PANEL LOGO...

  • Page 26: Dvd18 Service Parts

    harman/kardon DVD 16 and 18 /230V Service Manual DVD18 SERVICE PARTS Location No. TCL P/N. Description Q'ty ASSY-MAIN BOARD 08-D03RXX-U2EX0 ASSY-FRONT CONTROL BOARD 08-DVD016-FEY ASSY-POWER BOARD 08-DVD016-PWY ASSY-SWITCH BOARD 08-DVD016-SWY ASSY-LOADER 08-L31808-S313D OPU IM S76RFS3 05-000CMS-SRFS3 ASSY-FRONT PANEL ASSY1 08-DV16F1-XX0B2 FLOGO 67-995950-0A0-M FRONT PANEL LOGO...

  • Page 27: Pcb Drawings

    harman/kardon DVD 16 and 18 /230V Service Manual Front Control Board Print-layout (Top & Bottom side): Page 27 of 39...
  • Page 28 harman/kardon DVD 16 and 18 /230V Service Manual 7-10 7-10 Power Board Print-layout (Bottom side): Switch Board Print-layout (Bottom side): Page 28 of 39...
  • Page 29 harman/kardon DVD 16 and 18 /230V Service Manual 7-11 7-11 Main Board Print-layout (Top side): Page 29 of 39...
  • Page 30 harman/kardon DVD 16 and 18 /230V Service Manual 7-12 7-12 Main Board Print-layout (Bottom side): Page 30 of 39...

  • Page 31: Wiring Diagram

    harman/kardon DVD 16 and 18 /230V Service Manual DVD16/DVD18 WIRING DIAGRAM HDMI COAX CN11 POWER SUPPLY M+5V M+5V +P12V SPHE8203R XS201 -24V 6PIN*2.5 HOMESW FLASH MX25L1636D LOAD- LOAD+ OUTSW 5PIN*2.0 INSW MAIN BOARD 12PIN*2.0 XP12 XS301 12PIN*2.0 POWER_K XS601 LEDP LEDB VFD DISPLAY+PT6312 4PIN*2.0...

  • Page 32: Schematic Diagrams

    harman/kardon DVD 16 and 18 /230V Service Manual Front Control Board Circuit Diagram: +12V R320 R320 VFD520 VFD520 R341 R341 R317 R317 R321 R321 Q301 Q301 3DG3904M 3DG3904M R322 R322 Q306 Q306 REM301 REM301 R324 330 R324 330 R325 R325 C309 0.1uF C309 0.1uF CE302...
  • Page 33 harman/kardon DVD 16 and 18 /230V Service Manual Switch Board Circuit Diagram: SWITCH BOARD SW301 TAC020 SW301 TAC020 4PIN/2.0mm 4PIN/2.0mm LED_1 LED_1 C319 C319 C317 C317 C318 C318 100pF/50V/NP0 100pF/50V/NP0 100pF/50V/NP0 100pF/50V/NP0 100pF/50V/NP0 100pF/50V/NP0 Page 33 of 39...
  • Page 34 harman/kardon DVD 16 and 18 /230V Service Manual Power Board Circuit Diagram: T2AL/250ac T2AL/250ac NTC 10&20 NTC 10&20 1N4007 1N4007 1N4007 1N4007 CON1 CON1 AC INPUT AC INPUT 680uH 680uH AC INPUT AC INPUT 10K471 10K471 + C1 + C1 + C2 + C2 1N4007...
  • Page 35 harman/kardon DVD 16 and 18 /230V Service Manual Main Board Circuit Diagram: POWER TO FRONT PANEL VCC3 R1 0R/NC R1 0R/NC TO POWER BOARD C124 C124 C125 C125 C126 C126 R142 R142 6pin/2.5mm 6pin/2.5mm L16 FB AXIAL L16 FB AXIAL 0.1uF 0.1uF 0.1uF...
  • Page 36 harman/kardon DVD 16 and 18 /230V Service Manual Main Board Circuit Diagram: SPHE8203R PIN67---SR PIN68---SL PIN70---SUB PIN71---C 2008.10.22 RFGND A+5V A+5V RF3.3V place components near to 8203R DVCC3 VCC1.2 DAC_VREF A+5V EC15 EC15 C109 C109 EC14 EC14 FOC- FOC+ 100uF/16V 100uF/16V 0.1uF 0.1uF...
  • Page 37 harman/kardon DVD 16 and 18 /230V Service Manual Main Board Circuit Diagram: VIDEO P+5V R112 R112 10pF/NC 10pF/NC R111 R111 2.4K 2.4K SCART/AV OUT SCART/AV OUT 0.22uH/0R 0.22uH/0R 0.22uH/0R 0.22uH/0R 0.22uH/0R 0.22uH/0R SCART_R CVB1 1uH/0R 1uH/0R CVBS_BU EC29 EC29 220uF/16v 220uF/16v CVBS_IND CVBS_OUT...
  • Page 38 harman/kardon DVD 16 and 18 /230V Service Manual Main Board Circuit Diagram: AUDIO mute circuit Power on mute 3906 3906 VCC3 82pF 82pF R164 R164 4.7K 4.7K 4.7K/NC 4.7K/NC AOUT_FR 1.2K 1.2K EC23 EC23 10uF/16V 10uF/16V MUTE AUDIO_MUTE 7.5K 7.5K V_REF BT3904 BT3904...
  • Page 39 harman/kardon DVD 16 and 18 /230V Service Manual Main Board Circuit Diagram: HDMI&USB VCC3 VCC5 Differential signals (TXC+/-, TX1+/-, TX2+/- and TX3+/-): 50ohm single_ended, and 100ohm differential R104 R104 R105 R105 4.7K 4.7K 1.8K 1.8K TX2+ DDC_SCL DSCL TX2- ACM2012 ACM2012 TX1+ ACM2012...
