Merlin Gerin itm 4c 6e User Manual

cat. no 15270
ITM 4C 6E
ITM basic principles
b 4 x 230V, 10A output channels
v 1 programmable function per channel
v the same function can be repeated on several channels.
b 6 x 230V inputs used to:
v control the functions for close delay, open delay, timer
and counter resetting,
v count hours or impulses for the time counter and
impulse meter functions,
v condition the weekly time, yearly time programming
functions and the flash device.
b The same input can be associated with one or more
functions.
2

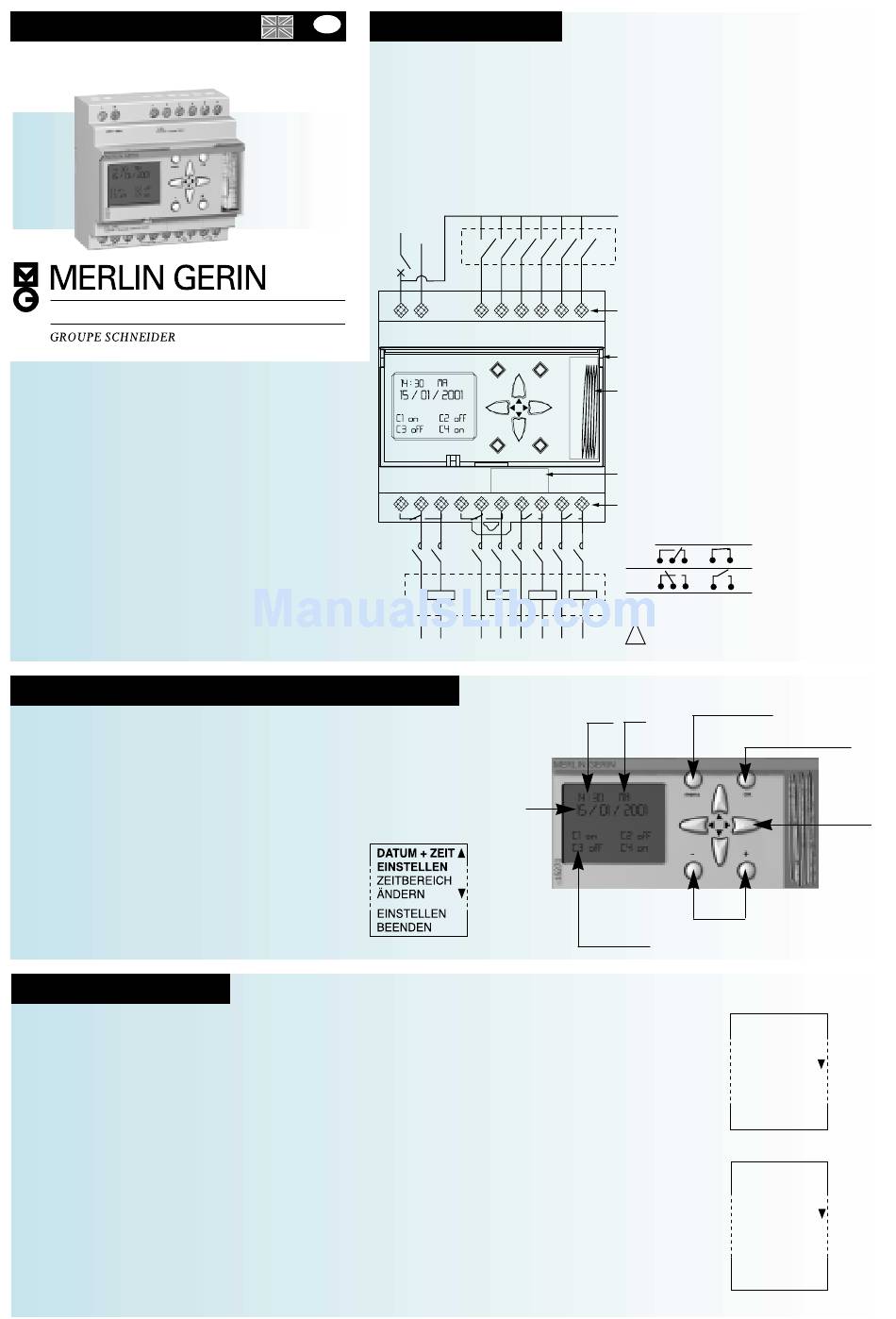

Discover the display and the keys of your ITM
First energisation
b select the language
b adjust date and time
Press the "Menu" key to select:
b b b b "ADJUST DATE AND TIME"
b "MODIFY TIME RANGE" , to modify the operating time
ranges,
b "PROGRAM" to program the functions,
b "EXIT" to return to the permanent display of time and
channel status.
Access programming
3
b The programming menu is accessed by selecting "PROGRAM" in the main menu.
It is protected by a fixed code: 111.
b The programming menu lets you:
v "NEW PRO/ADD" to program functions or add parameters to an already programmed function (time range, condition),
v "MODIFY" to change the parameters of a programmed function. You cannot add a parameter that has not been created
(see "NEW PRO/ADD" ),
v "CLEAR" to completely delete the programmed function or to clear some parameters
(date, time and language are kept),
v "DUPLICATE" to copy the entire memory cartridge program (optional) to the product or the product to the memory
cartridge,
v "MEM SPACE" to view the remaining memory space for weekly, yearly programming and for impulse programming.
This memory is consulted function by function,
v "SUM/WIN TIME" to select your summer/winter time changeover,
v "LANGUAGES" to select the programming language,
v "EXIT" to return to the main menu.
b If you activate no key for 5 minutes, the ITM will return to permanent display of time and channel status.
1
en Discover your ITM
9 possible functions
b Weekly time programming
b Yearly time programming
b Impulse programming
b Close delay
b Open delay
b Timer
b Flash device
b Time counter
b Impulse meter
230V ±5%
N
L
L N 1
230V~ 50Hz 1...6 =
Entrées / Inputs 230V~
C1......C4
Canaux / Channels 10A10A / 230V~
C 1 C 2
L N L
Main menu
(switch, pushbutton, light sensitive switch, thermostat,
movement detection control switch, etc.)
2 3 4 5 6
6 x 230V inputs
menu OK
Manual holder slot
Sealed swivel cover
-
+
Removable memory cartridge (cat. no. 15280, optional)
4 x 230V, 10A output channels
C 3 C 4
C1-C2
ON
OFF
It is recommended that larger
!
loads are switched using a
N L N L N
contactor.
Day
Time
Date
Output channel
status
(ON and OFF)
C3-C4
Loads
(lamp, small motor,
bell, luminous sign,
etc.).
Main menu access
Validating flashing data
Browsing
Modifying flashing data
NEW PRO/ADD
MODIFY
CLEAR
DUPLICATE
MEM SPACE
SUM/WIN TIME
LANGUAGE
EXIT
Programming menu
WEEKL. PROG.
YEARL. PROG.
IMPULS PROG
CLOSE DELAY
OPEN DELAY
TIMER
FLASH DEVICE
TIME COUNT
IMPUL. METER
Function menu
