HOB GTS23

Cooking with your microwave

Instruction booklet
10
1
10
1
MIN gx100
/
MIN gx100
/
SEC g /
SEC g /
GRILL
EXPRESS
/
POWER
COMBI
DEFROST
.
WEIGHT
PRE SET
MEMORY
-
DEFROST
Beverage
Dinner Plate
Reheat
Potato
Pizza
Fish
/
Chicken
Vegetable
Beef Mutton
Sausage
Clock
Pork
STOP
QUICK
START
CANCEL
START

Advertisement

Table of Contents
loading

Related Manuals for Russell Hobbs HOB GTS23

Summary of Contents for Russell Hobbs HOB GTS23

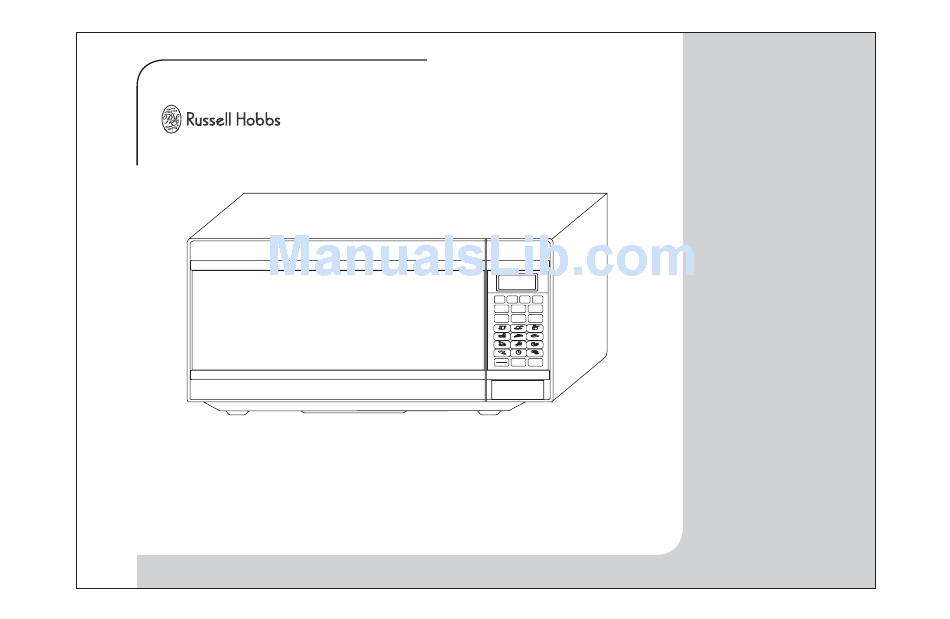

  • Page 1: Cooking With Your Microwave

    HOB GTS23 MIN gx100 MIN gx100 SEC g / SEC g / GRILL EXPRESS POWER COMBI DEFROST WEIGHT PRE SET MEMORY DEFROST Beverage Dinner Plate Reheat Potato Pizza Fish Chicken Vegetable Beef Mutton Sausage Clock Pork STOP QUICK START CANCEL...

  • Page 2: Important Safety Instructions

    Important Safety Instructions Safety Please Read Carefully and NOTE: refer to the section in this book on Containers the correct utensils to use in this appliance. Pressure will build up in sealed containers Keep for Future Reference and can cause them to explode. Therefore These include : do not use the following in your First aid...

  • Page 3: Table Of Contents

    Contents Contents Unpacking and getting ready page 4 Getting to know your microwave page 5 Introducing microwave cooking page 6 Setting the child lock page 11 Using the microwave page 12 Speedy Cooking page 14 page 15 Program Cooking page 16 Grilling Combination cooking page 17...

  • Page 4: Unpacking And Getting Ready

    Unpacking and getting ready Unpacking This microwave oven is After unpacking your oven, check that it hasn't been damaged whilst in designed for home use. It the box. Make sure there are no dents, that the door closes properly, should not be used for commercial catering.

  • Page 5: Getting To Know Your Microwave

    PART NAMES Getting to know your microwave Door Safety Lock System Oven Window Wave guide cover Turntable ring Glass Tray Grill Heater MIN gx100 MIN gx100 SEC g / SEC g / GRILL EXPRESS POWER COMBI DEFROST WEIGHT PRE SET MEMORY DEFROST Beverage...

  • Page 6: Introducing Microwave Cooking

    Introducing microwave cooking Introducing microwave cooking Always remember the basic safeguards you would follow when using any cooking equipment or handling hot food. This page gives some of the basic guidelines for microwave cooking. If you're unfamiliar with using a microwave, there's more information at the back of this instruction booklet.
  • Page 7 Introducing microwave cooking Microwave ovens cook food using microwave energy that is Safety similar to naturally occurring radio waves. Normally, these "waves" would fade as they disappeared into the atmosphere Never use equipment but in a microwave oven they are concentrated onto food made of metal, except causing it to heat up.

  • Page 8: Microwave Heating Categories

    More about getting the most from microwave cooking Introducing microwave cooking Microwave heating categories Your oven has been tested and labelled to meet the government's voluntary agreement on the reheating of pre-cooked food. 900W Remember W is the output power of Always check that the food is the oven.
  • Page 9 Steam Introducing microwave cooking When you microwave food, steam is created as water in the food heats up and evaporates. The steam formed during microwave cooking is entirely safe. It has to escape from the microwave to prevent pressure from building up inside the oven.
  • Page 10 Checking your microwave Introducing microwave cooking Check your unit after unpacking and whenever you think it might not be working properly. sh button to open door Safety Put the turntable ring inside the oven and place the glass turntable on For your safety, the top of the ring.

  • Page 11: Setting The Child Lock

    Setting the Child Lock Setting the child lock cooking The child lock is a safety feature which when set will lock all of the buttons on your microwave oven. This prevents your microwave oven being used accidentally. Y our microwave door will still open. To set the Child LOCK.

  • Page 12: Using The Microwave

    Using the microwave Using the microwave Basic microwave cooking Hint: Make sure the glass turntable and the turntable ring Starting and stopping are inside the oven. cooking It is possible to check cooking progress at any time, by opening the door to check the MIN gx100 MIN gx100 SEC g /...
  • Page 13 Suppose you want to cook for 5 minute at 60% of microwave power. Using the microwave step : 1.Touch POWER button 3 times. POWER 2.Touch 1-MIN/ gx100 . button five times. 3.Touch START pad. NOTE: during cooking, press POWER to show the cooking power level for 3 sec. START MIN gx100 Microwave Power Chart...

  • Page 14: Speedy Cooking

    Speedy cooking Microwave cooking This function is useful when heating small amounts of food or drink, r adding extra time during cooking in the speed cook mode. Put the turntable ring inside the oven and place the glass turntable on top of the ring.

  • Page 15: Program Cooking

    PROGRAM COOKING Microwave cooking The oven has the ability to be programmed to do several consecutive functions. Suppose you want set the following cooking program: EXPRESS EXPRESS DEFROST; DEFROST 2.Microwave and power level cooking; 3.Grill cooking. Step: 1. Touch STOP/ CANCEL pad.

  • Page 16: Grilling

    Grilling Microwave cooking Press the " GRILL/ COMBI " button once to choose the grill function. Safety GRILL Caution The roof of your COMBI microwave will become hot when operating in grill mode Do not place any objects on the microwave while in use Set the cooking time, the maximum cooking time is 99 minutes and 99 seconds.

  • Page 17: Combination Cooking

    Combination cooking Microwave cooking (microwave + grilling) Press the " GRILL/ COMBI " button twice to choose"Combination 1" (3 %microwave+ %grill) or 3 times to choose "Combination 2" ( 55% microwave + 45% grill) GRILL COMBI Set the cooking time. GRILL Example:Suppose you want to set the oven to COMBINATION 2 for 25 minutes.

  • Page 18: Defrosting

    Defrosting Defrosting Be sure to remove any metalic ties or wraps. Make sure the glass turntable and turntable ring are inside the oven. MIN gx100 MIN gx100 SEC g / SEC g / POWER GRILL EXPRESS COMBI DEFROST PRE SET MEMORY WEIGHT DEFROST...

  • Page 19: Auto Cook

    AUTO COOK Microwave cooking Fish START plate plate the progress...
  • Page 20 Auto Menu chart Microwave cooking Cooking time Cooking time Food type Weight g ( ) Food type Weight g ( ) total total serving 1:30 3 00 Beverage servings 3 00 4 00 servings 4 30 5 00 Fish serving 4 35 5 50 Dinner plate...

  • Page 21: Pre-Set

    PRE-SET PRE-SET Select cooking function Microwave Grill Defrost Enter cooking time . Press PRE SET button and enter the time you wish the function to begin then press START button PRE SET START Pre will flash on the display...

  • Page 22: Setting The Clock

    SETTING THE CLOCK Setting the Clock Press the CLOCK button to select between 12 and 24 mode . CLOCK Enter the time using the number buttons . MIN gx100 MIN gx100 SEC g / SEC g / Press the CLOCK button to confirm CLOCK To cancel or re set the time press the STOP CANCEL button...

  • Page 23: Cleaning Your Microwave

    Cleaning your microwave Cleaning Cleaning your oven each time you use it will help to prevent stubborn marks that can be difficult to clean. Keep the front of the Be careful not to spill Unplug the oven before oven clean so that the water into the vents.

  • Page 24: Using Aluminium Foil In Your Microwave

    Using aluminium foil in your Using aluminium foil microwave It's safe to use aluminium foil in your microwave oven as long as you follow these safety guidelines. As with all metal, microwave energy Follow these guidelines when using can't pass through foil, but provided foil in your microwave: that you keep the foil away from the side of the oven it won't cause sparks...

  • Page 25: Questions And Answers

    Questions and answers Questions and answers Why is it so important that I allow Why doesn't food seem to cook? standing time after cooking? Check that: With microwave cooking, many foods build up enough heat inside them to continue cooking even the cooking time has been set after they've been taken out of the oven.
  • Page 26 Questions and answers Does the microwave energy get through Why won't the oven light come on? the window on the door? Open the door. If the light doesn't come on, the No. The door has a special metal screen with holes in that lets you see inside but stops microwave bulb has probably blown.

  • Page 27: Specification

    Specif icat io n Specification Input 230-240V 50H z Output 850-900 Watts Microwave frequency 2450MHz Outside dimensions 483 mm wide x 281mm high x 360mm deep Power consumption Microwave 1400-1500 Watts Grill 900-1000 Watts Complies with EECdirectives 89/ 336/ EECand 92/ 31/ EEC. Dimensions shown are approximate.
