LuxHome LHC100SK Instruction Manual

6 zone wire free intruder alarm system
Table of Contents

Advertisement

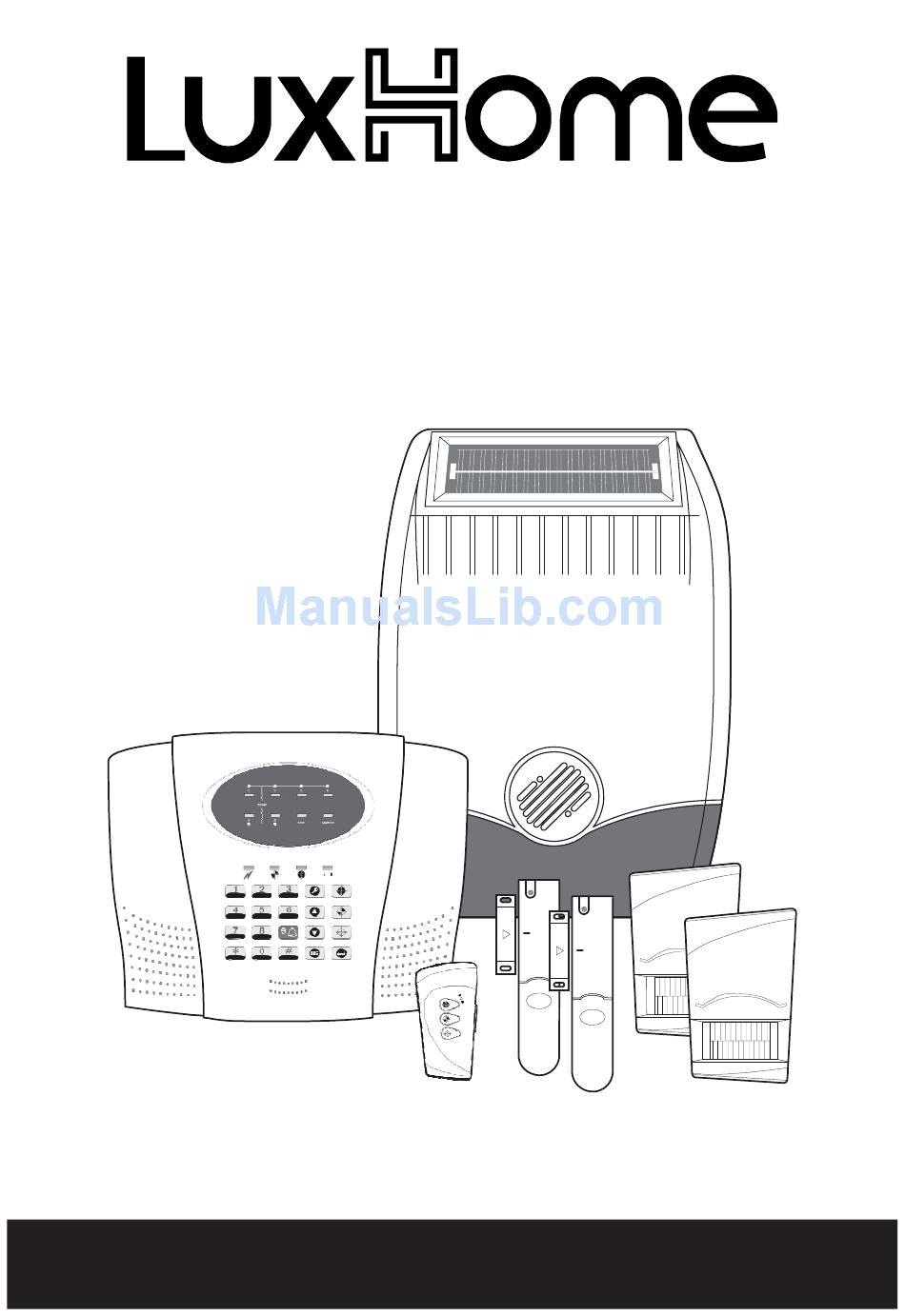

6 Zone Wire Free
Intruder Alarm System
LHC100SK / LHK101SK
Instruction Guide
For system installations incorporating the 6 Zone Control Panel
refer to this Manual and disregard any other instructions supplied

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LHC100SK and is the answer not in the manual?

Questions and answers

Summary of Contents for LuxHome LHC100SK

  • Page 1 6 Zone Wire Free Intruder Alarm System LHC100SK / LHK101SK Instruction Guide For system installations incorporating the 6 Zone Control Panel refer to this Manual and disregard any other instructions supplied...
  • Page 2: Table Of Contents

    Table of Contents Kit Contents Control Panel LED Test Voice Dialler Test Introduction and Overview Factory Defaults System Arming Reset Factory Default Conditions Zones Entry / Exit Delay Programming Instructions Zone Lockout Tamper Protection User Access Code Voice Dialler System House Code Jamming Detection Instant Delay Zones Entry / Exit Delay...
  • Page 3: Kit Contents

    Kit Contents Alarm Components: Batteries included: 1 x 6 Zone LED Control Panel with Voice Dialler 6V/1.Ahr Sealed lead acid battery (for Control Panel  x PIR Movement Detectors and External Solar Siren)  x Magnetic Contact Detectors 1 x Remote Control 1 x External Solar Siren 9V PP3 Alkaline battery Also included:...
  • Page 4: Introduction And Overview

    Introduction and Overview System Arming The system has a ‘Full Arm’ and a ‘Part-Arm’ mode. ‘Full Arm’ will arm all zones while the ‘Part-Arm’ mode will only arm the zones that are enabled for ‘Part-Arm’. For example: The system could be set such that during night time, ‘Part-Arm’ would arm only zones protecting the lower floor and outbuildings, leaving the upper floor free for movement without triggering the alarm.
  • Page 5: Tamper Protection

    reset in the armed mode. Subsequent Detectors triggered will again initiate an alarm condition. If a single zone initiates an alarm condition three times then that zone will be ‘Locked Out’ and any further alarm signals from that zone will be ignored until the system is disarmed. Note: The ‘Zone Lockout’...
  • Page 6: System House Code

    Contact Detector on the System. Batteries on any device indicating a low battery status must be replaced immediately. System House Code In order to prevent any unauthorized attempt to operate or disarm your system, you must set your system to accept radio signals only from your own devices. This is done by setting a series of eight miniature (DIP) switches in all devices (except the Control Panel) to the same ON / OFF combination (the House Code) selected by the user/installer.
  • Page 7: Planning And Extending Your Wire Free Alarm System

    Planning and Extending your Wire Free Alarm System The example below shows a typical property incorporating the suggested positions for the Control Panel, PIR and Magnetic Detectors for optimum security. Use this as a guide for your installation in conjunction with the recommendations contained in this manual for planning your intruder alarm system.
  • Page 8: Control Panel

    Control Panel Zone LEDs Status LEDs Keypad Positioning the Control Panel When choosing a suitable location for the Control Panel, the following points should be considered. 1. The Control Panel should be located in a position out of sight of potential intruders and in a safe location, but easily accessible for system operation.
  • Page 9 3. Hold the Control Panel in position on the wall and mark the positions of the four fixing holes. Remove the Panel and drill four 5mm holes and fit the 5mm Wall Plugs. Note: The wall plugs supplied with the product are not suitable for plasterboard walls, if mounting the Control Panel onto plasterboard use proprietary wall plugs.
  • Page 10: Setting The Control Panel House Code

    8. Connect battery leads to both back-up batteries and refit batteries. Battery 1 (left): Red lead to + battery terminal Blue lead to – battery terminal Battery  (right): Blue lead to + battery terminal Black lead to – battery terminal Important: Take care when connecting battery leads to the batteries as connecting incorrectly could damage the batteries or the Control Panel.
  • Page 11: Remote Control Unit

    LED ON = 1, (House Code DIP Switch On) LED OFF = 0, (House Code DIP Switch Off) b) Press to save the new setting and return to programming mode. c) Press to return to programming mode without saving. Using a Remote Control Unit: a) With the required House Code already set on the remote control, press the button on the Remote Control.
  • Page 12: Setting The Remote Control

    Setting the Remote Control 1. Remove the front cover by undoing the small screw on the rear of the Remote Control. . Located above the battery is a row of 8 DIP switches. House Code Select and record a random combination of ‘ON’ and Dip Switches ‘OFF’...
  • Page 13: Installing And Configuring The Pir Movement Detectors

    The Position of the PCB inside the PIR Detector can be set to 5 different positions to adjust the range of the detection pattern created by the PIR Detector. Setting the PCB in position 3 will reduce the range to approximately 9m, with position 1 providing a range of approximately 6m. The recommended position setting for the PCB is in position 5.
  • Page 14 Note: The wall plugs supplied with the product are not suitable for plasterboard walls, if mounting the PIR Detector onto plasterboard use proprietary wall plugs. 5. Set the House Code for the PIR Detector by setting DIP switches 1-8 of SW to the same ON/ OFF combination as the House Code DIP switches in all other system devices.
  • Page 15: Testing The Pir Detectors

    To adjust the PCB position, simply slide it up or down ensuring that the location legs are aligned PCB Positions with the required position number marked on the Indicator (positions 1-5) board. 11. Refit the PIR Detector to the rear cover by offering PCB Position Range the PIR Detector up to the rear cover and locate...
  • Page 16: Magnetic Contact Detectors

    Magnetic Contact Detectors Installing and setting the Magnetic Contact Detectors Ensure that the system is in Test mode. 1. Remove the battery cover by sliding and lifting it off. (DO NOT use a screwdriver to lever off). . Remove the battery holder by carefully tilting up the end and pulling the connector off the printed circuit board.
  • Page 17: Testing The Magnetic Contact Detectors

    6. Set the House Code for the Magnetic Contact Detector by setting DIP switches 1-8 to the same ON/OFF combination as the House Code DIP switches in all other system devices. 7. Set the alarm zone which the Detector will operate on with DIP switches 9-11 as follows: DIP 9 DIP 10 DIP 11...
  • Page 18: External Solar Siren

    3. Open the door/window to remove the magnet from the Detector. As the magnet is moved away from the Detector the LED will illuminate for approximately 1 second to indicate that the Detector has been triggered. In addition, the Control Panel will beep twice to indicate that the alarm signal has been received and the appropriate zone LED, which the Detector is set for, will illuminate.
  • Page 19: Installing The Solar Siren

    The Solar Siren contains a sophisticated radio receiver. However, reception of radio signals can be affected by the presence of metallic objects within the vicinity of the Solar Siren. It is therefore important to mount the Solar Siren a minimum distance of 1m away from any external or internal metalwork, (i.e.
  • Page 20: Setting The Solar Siren 0

    Setting the Solar Siren Ensure that the Solar Siren main configuration switch if fitted on the LED strobe board is set to “SIREN” for use with this alarm system. Undo the 3 screws holding the DIP Switch cover in place and remove the cover. House Code Alarm Duration DIP switch 9 Under the corner cover you will find a series of 9 DIP...
  • Page 21: Siren Service Mode 1

    . Press the anti-tamper switch, the LEDs will flash together to indicate that the unit is operational. 3. Hinge the front cover locating tabs over the top edge of the back plate and carefully push the base of the siren cover into place. Secure the siren cover in place by refitting the fixing screw in the bottom edge of the cover.
  • Page 22: Testing The System

    Switched 12Vdc output for Hardwired external Siren Siren (300mA max.) Permanent 12Vdc power supply output (100mA max.) N.O. Switching relay contacts (Volt-free) Terminal N.C. Block Detail Not used Tamper circuit connections for wired Siren TAMP Normally closed tamper contact Note: Jumper link P51 should be fitted into the ON position only if the tamper circuit for a hardwired siren is used, otherwise it must be in the OFF position.
  • Page 23: Detector Test 3

    Detector Test Before commencing testing please ensure that there is no movement in any PIR protected area for at least  minutes, all doors/windows protected by Magnetic Contact Detectors are closed and that all battery covers are correctly fitted. Press and Zone LED 1 will illuminate.
  • Page 24: Factory Defaults 4

    The voice dialler will call each active number in the dialling sequence in turn. When a call is answered the pre-recorded alarm message will be replayed. If the call is unanswered or an acknowledgement signal is not received from the number called, (i.e. by pressing the button on the telephone keypad) the next number in the sequence will be called.
  • Page 25: Programming Instructions

    Programming Instructions Press User Access Code The Arm and Part-Arm LEDs will illuminate and all Zone, Fire and tamper LEDs will flash. The system is now in Programme Mode Note: After programming all required functions press to leave Programme mode and return to Standby.
  • Page 26: Instant Delay Zones 6

    b) Using a Remote Control: With the required House Code already set in the remote, press the DISARM button on the Remote Control. The Control Panel will beep twice to acknowledge the signal. The Zone, Fire and Tamper LED status will be updated to correspond with the House Code set on the Remote Control and now programmed into the Control Panel.
  • Page 27: Alarm Duration 7

    Alarm Duration Default setting: 3 minutes Press The zone LED corresponding to the current setting will illuminate. no alarm 1 minute  minutes 3 minutes 5 minutes 10 minutes Press the key corresponding to the required alarm period, the corresponding zone LED will illuminate as the setting is changed.
  • Page 28: Zone Lockout 8

    Zone Lockout This feature, if enabled, prevents a single zone from triggering an alarm condition more than three times before the system is disarmed. However, if disabled there is no limit on the number of times a zone can trigger an alarm condition. Default setting: ON Press The zone 1 LED will illuminate to indicate the current Zone Lockout status.
  • Page 29: Hard-Wired Siren 9

    LED ON Jamming Detection enabled LED OFF Jamming Detection disabled Press to change the setting to the opposite state. Press to save the new setting and return to programming mode. Press to return to programming mode without saving. Note: The jamming detection program setting will only control the jamming detection feature in the Control Panel.
  • Page 30: Telephone Numbers

    Test when the system is armed, any Detector on the zone will cause the appropriate zone LED on the Control Panel to flash without initiating a Full Alarm condition. Note: Panic switch, 4 Hour Intruder and Fire modes all operate on a 4 hour basis, (i.e. they are able to initiate a Full Alarm condition at any time irrespective of whether the system is Armed or Disarmed).
  • Page 31: Alarm Message Play Time

    Note: Press to insert a 3.6 seconds pause in the number when dialled. Press to save the new setting and return to programming mode. Press to return to programming mode without saving. Alarm Message Play Time This is the total time for which the alarm messages will be played & repeated when a call made by the voice dialler is answered.
  • Page 32: Replay Alarm Message

    Replay Alarm Message The recorded alarm message may be replayed and listened to using the telephone handset of a phone connected to another extension socket on the same phone line. Press The zone 1 LED will illuminate. Pick up the telephone handset and press to stop the dialling tone.
  • Page 33: Dial Method

    Zone 1 LED 1 attempt Zone  LED  attempts Zone 3 LED 3 attempts Zone 4 LED 4 attempts Zone 5 LED 5 attempts Press the key corresponding to the required number of dialling attempts, the corresponding zone LED will illuminate as the setting is changed. Press to save the new setting and return to programming mode.
  • Page 34: Arming The System

    If while the system is armed a Detector on an INSTANT zone is triggered then this will immediately initiate a Full Alarm condition with both Control Panel and Siren sounding. However, if a Detector on a DELAY zone is triggered, if enabled, the Entry Delay will start and the Control Panel will start beeping with the beep rate increasing in steps as the delay expires.
  • Page 35: Disarming The System

    Disarming the System The system can be disarmed using either the Remote Control or the Control Panel as follows: Remote Control: Press the button. The Control Panel will acknowledge the signal by beeping. The Siren will also acknowledge the Disarm signal beeping twice unless beep disable has been set.
  • Page 36: Battery Monitoring

    Battery Monitoring All system devices continuously monitor their battery condition. The Control Panel also monitors the battery condition of all PIR and Magnetic Detectors. If the battery level of any device drops below acceptable levels then its low battery indication will be activated. In addition if any PIR or Magnetic Contact Detector has a low battery status it will be indicated on the ‘LOW BAT’...
  • Page 37: Control Panel

    and disconnecting the power supply and back-up batteries. To power-down the Solar Siren, undo the fixing screw on the bottom edge and remove the front cover. As the cover is removed the Siren’s Tamper switch will activate, immediately cancel the alarm using the Remote Control. Disconnect both the rechargeable battery and initial power-up battery and ensure that the Solar panel is covered with a light proof material to prevent it being energized.
  • Page 38: Alarm Record

    Alarm Record Complete the following information during installation for future reference when adding to your system and to assist Trouble Shooting Zone Settings. Zone Settings Zone Instant / Zone Detector(s) Location Operating Part-Arm Delay Mode You may make a note of your User Access Code and System House Code below. e.g.
  • Page 39: Troubleshooting

    Troubleshooting Symptom / Recommendation Symptom / Recommendation Control Unit not working – Power LED OFF Detection Zone triggered (LED flashing) but no alarm is sounding 1. Mains power failure – check if other electrical circuits are operable. 1. Entry/Exit delay still running and not yet expired. 2.
  • Page 40 Symptom / Recommendation Symptom / Recommendation PIR Movement Detector not detecting a Note: If an additional contact is used then the person’s movement doors / windows protected by both the main wire free Detector and the additional wired Detector 1. Check battery connections are good. must be closed when either is opened.
  • Page 41: Extending Your Alarm System

    Extending your Alarm System Your system may be extended to provide additional protection by adding further PIR Movement Detectors, Magnetic Contact Detectors, Remote Control Units and wire free Remote Keypads. Accessories 433MHz 433MHz 433MHz 433MHz Wire Free Passive Infra- Wire Free Magnetic Wire Free Wire Free Remote Keypad Red Movement Detector...
  • Page 42 Notes:...
  • Page 43: Component Specification

    Note: Product images are for illustration purposes only. Actual design/appearance Typical Battery life > 1 year may vary however the Technical Specification will be as stated. Low battery indicator LuxHome Alarm Systems Manufactured by Everspring Copyright © 013. All Rights Reserved. Everspring Industry Co., Ltd.
