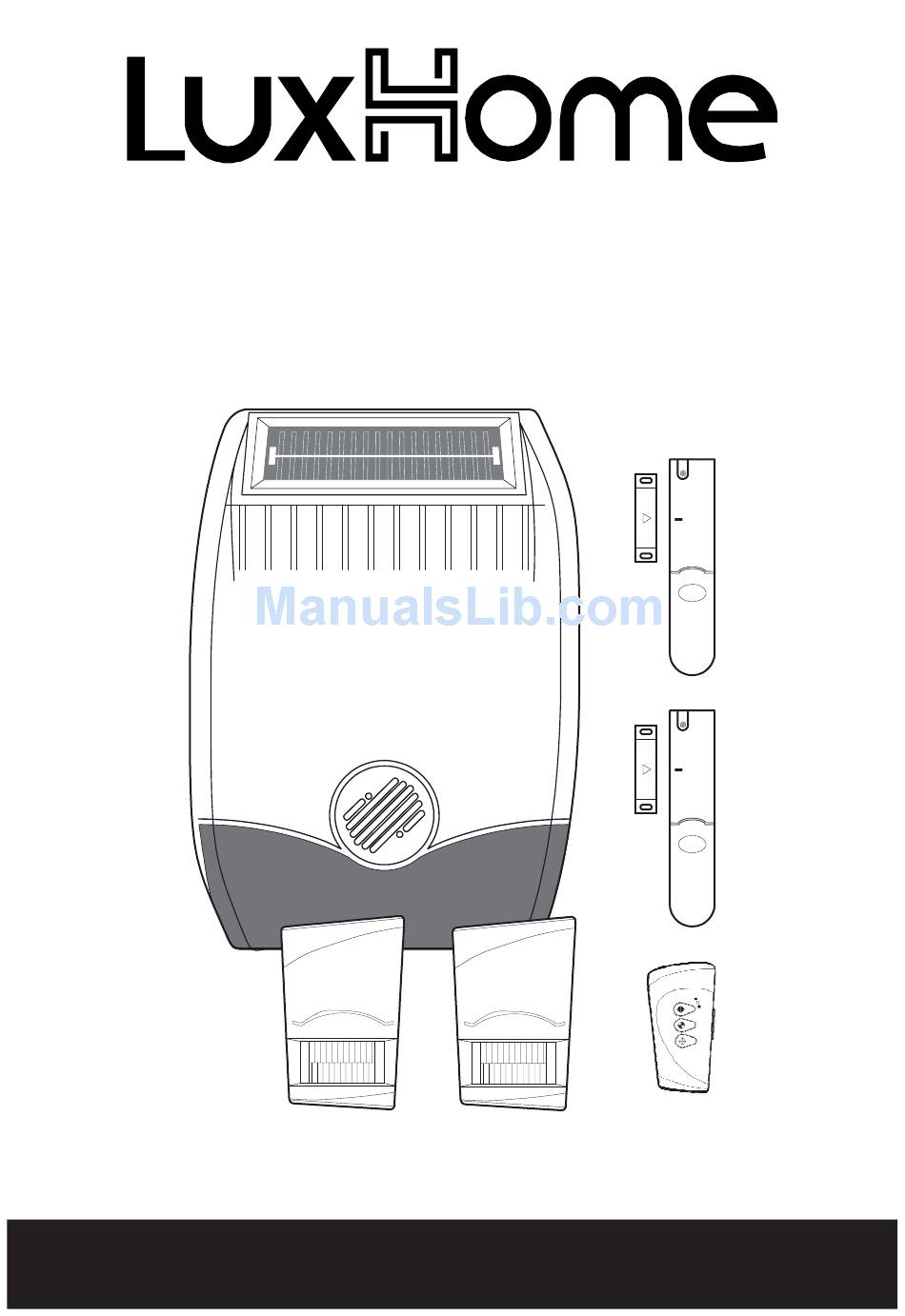

Page 1: Alarm System
Wire Free Alarm System LHK100SU Instruction Guide For a Control Panel operated system please refer to the Operating and Installation Instructions supplied with the Control Panel... -
Page 2: Table Of Contents
Table of Contents Kit Contents Testing the System Testing an Installed System Introduction and Overview Operating Instructions System Arming Arming the System Entry / Exit Delay Disarming the System Alarm Lockout Personal Attack (PA) Alarm Tamper Protection Device Tamper Jamming Detection Battery Monitoring Battery Monitoring System House Code... -
Page 3: Kit Contents

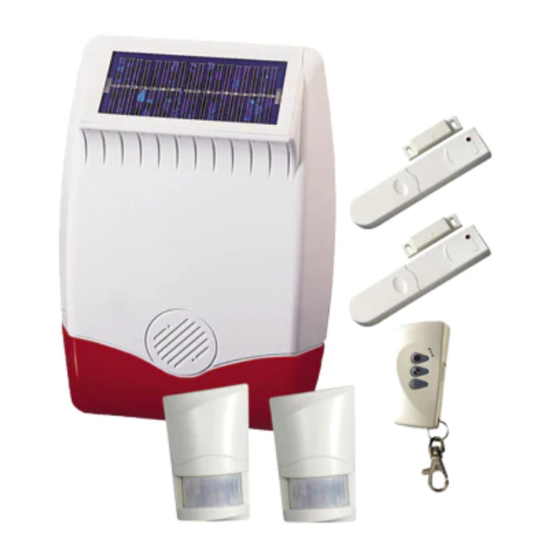

Kit Contents Alarm Components: Batteries included: 1 x External Solar Siren 1 x 6V/1.Ah sealed lead x PIR Movement Detectors acid battery (for the Solar x Magnetic Contact Detectors Siren) 1 x Remote Control Also included: 3 x 9V PP3 Alkaline battery (for PIR Movement Detectors Instruction Guide and Solar Siren) -
Page 4: Introduction And Overview
Introduction and Overview System Arming The system has an Instant-Arm and Delay-Arm mode. If the system is armed in Instant-Arm mode then all detectors will immediately become fully armed. Any detector triggered while the system is armed will immediately sound an alarm. Entry / Exit Delay If the system is armed in Delay-Arm mode this will activate the system with a 15 second entry/exit delay period. -
Page 5: Battery Monitoring
is monitored for false jamming alarms for at least weeks prior to leaving the jamming detection function permanently enabled. Battery Monitoring All devices powered by non-rechargeable batteries incorporate a battery level monitoring feature which will warn of a low battery status. The batteries on any device indicating a low battery status should be replaced immediately. -
Page 6: Planning And Extending Your Wire Free Alarm System
Planning and Extending your Wire Free Alarm System The example below shows a typical property incorporating the suggested positions for the Remote Keypad (optional accessory), PIR and Magnetic Detectors for optimum security. Use this as a guide for your installation in conjunction with the recommendations contained in this manual for planning your intruder alarm system. -
Page 7: Remote Control Unit
Remote Control Unit The Remote Control Unit is used to Arm and Disarm the system. The Remote will activate the Instant-Arm, Delay- Arm or Disarm functions. Transmit LED The Remote Control also incorporates a Personal Attack Switch (PAS). Activating the PAS will immediately initiate a Full Alarm condition whether Slide up Delay-Arm... -
Page 8: Passive Infrared (Pir) Movement Detectors
Passive Infrared (PIR) Movement Detectors PIR Detectors are designed to detect movement in a protected area by detecting changes in infra- red radiation levels caused, for example, when a person moves within or across the devices field of vision. If movement is detected an alarm signal will be triggered, (if the system is armed). Note: PIR Detectors will also detect animals, so ensure that pets are not in areas fitted with PIR Detectors when the system is armed. -
Page 9: Installing And Configuring The Pir Movement Detector
When deciding upon the mounting position for the PIR Detector the following points should be considered to ensure trouble free operation: 1. Do not position the PIR Detector facing a window or where it is exposed to or facing direct sunlight. -
Page 10: Setting The Pir Detector
Note: The wall plugs supplied with the product are not suitable for plasterboard walls, if mounting the PIR Detector onto plasterboard use appropriate wall plugs. 5. Configure the PIR Detector as described in ‘Setting the PIR Detectors’. Remember that on initial installation the device needs to be tested and should therefore be set in Walk Test Mode. -
Page 11: Testing The Pir Detector
Note: On initial installation the PIR Detector should be set to Walk-Test mode ready for testing. 3. The PIR Detector incorporates a sensitivity feature designed to compensate for situations where the Detector may be affected by environmental changes, (e.g. insects, air temperature, etc). This feature is called “Detection Sensitivity”... -
Page 12: Magnetic Contact Detectors
Magnetic Contact Detectors The Magnetic contact comprises two parts; a Detector and a Magnet. They are designed to be fitted to doors or windows with the Magnet mounted on the opening part and the Detector mounted on the fixed frame. Opening the protected door/window will remove the magnetic field, trigger the Detector and generate an alarm condition, (if the system is armed). -
Page 13: Setting The Magnetic Contact Detector
3. Mount the Detector to the fixed part of the frame along the opening edge using either the double sided adhesive tape or screws provided. If fixing the Detector with screws; fit the Keyhole slot in the top of the Detector over the head of the smaller pan head screw. -
Page 14: Magnetic Contact Detector
3. DIP switches 9 -11 must be set as follows. DIP 9 DIP 10 DIP 11 4. If additional external contacts are wired to the Detector, remove the jumper link S on the PCB. IMPORTANT: If external contacts are not connected then jumper link SW must be fitted for the Detector to operate correctly. -
Page 15: External Solar Siren
External Solar Siren Siren Housing The Siren, Strobe Light and Solar Panel are all encapsulated within a tough polycarbonate housing. This housing provides full protection against adverse weather conditions. All electronic components are specially treated to ensure long, reliable, trouble free operation and an integral tamper switch gives maximum security protection to the unit. -
Page 16: Installing The Solar Siren
The Siren & Strobe contains a sophisticated radio receiver. However, reception of radio signals can be affected by the presence of metallic objects within the vicinity of the Siren & Strobe. It is therefore important to mount the Siren & Strobe a minimum distance of 1 metre radius away from any external or internal metalwork, ie external drainpipes, gutters and internal radiators, pipe work etc. -
Page 17: Initial Power-Up Of The Solar Siren
House Code Alarm Duration DIP switch 9 Under the corner cover you will find a series of 9 DIP switches. DIP switches 1- 8 are used to set the House Code for the siren and must be set to the same ON/OFF combination as all other system devices. -
Page 18: Siren Service Mode
Important: Ensure that the rear tamper switch is closed when you fit the siren cover to the back plate (i.e. listen for the switch to click). If the switch does not close this will prevent the Solar Siren from operating correctly. 4. -
Page 19: Testing The System
Testing the System Testing an Installed System The system should be tested at regular intervals (at least every 3 months) to ensure that it is operating correctly. 1. Before commencing testing please ensure the following: – The Siren is in Operating Mode and Disarmed –... - Page 20 Magnetic Contact Detectors: 9. Arm the system in Instant-Arm mode by pressing the button on the Remote Control. 10. Open a door/window protected by a Magnetic Contact Detector and ensure that the alarm sounds. 11. Disarm the system and stop the Siren by pressing the button on the Remote Control.
-
Page 21: Operating Instructions
Operating Instructions When leaving the premises, the system must be Armed. However, before doing so, check that all windows are closed and locked, all protected doors are closed and PIR Detectors are not obstructed. Ensure that pets are restricted to areas not protected by PIR Detectors. The system has armed modes, Instant-Arm and Delay-Arm. -
Page 22: Disarming The System
Disarming the System The system can be disarmed using the Remote Control as follows: Remote Control: Press the button. The Siren will acknowledge the Disarm signal by beeping twice unless beep disable has been set. Personal Attack (PA) Alarm A full Alarm condition can be immediately initiated at any time (whether the system is Armed or Disarmed) in the event of threat or danger by activating the Panic Button on the Remote Control. -
Page 23: Maintenance
Maintenance Your alarm system requires very little maintenance. However, a few simple tasks will ensure its continued reliability and operation. IMPORTANT: If, for any reason you have to completely power-down the Solar Siren (e.g. to move the system to new premises), first put the system into Service Mode before removing the Siren cover and disconnecting the main rechargeable and initial power- up batteries. -
Page 24: Disposal And Recycling
Disposal and Recycling Disposal of this product is covered by the Waste Electrical or Electronic Equipment (WEEE) Directive. It should not be disposed of with other household or commercial waste. At the end of its useful life the packaging and product should be disposed of via a suitable recycling centre. -
Page 25: Alarm Record
Alarm Record You may make a note of your User Access Code and System House Code below. e.g. = ON Use the above diagram to record your House Code This information is confidential and should be kept in a safe location. Notes:... -
Page 26: Troubleshooting
Troubleshooting Symptom / Recommendation Symptom / Recommendation Siren immediately sounds when system armed c. Fit new initial power-up battery and re-power up Siren 1. Siren tamper switch activated - adjust tamper plunger and ensure that switch fully closes when 5. System locked - Reset system: Siren is mounted. - Page 27 Symptom / Recommendation Symptom / Recommendation PIR Movement Detector not detecting a 6. If there is no additional wired Magnetic Contact person’s movement connected ensure the jumper link is fitted. 1. Ensure the battery clip is securely connected. 7. If an additional wired Magnetic Contact is connected: 2.
-
Page 28: Extending Your Alarm System
Extending your Alarm System Your system may be extended to provide additional protection by adding further PIR Movement Detectors, Magnetic Contact Detectors, Remote Control Units, and wire free Remote Keypads. Accessories 433MHz 433MHz 433MHz 433MHz Wire Free Passive Infra- Wire Free Magnetic Wire Free Wire Free Remote Keypad Red Movement Detector... -
Page 29: Component Specification
Low Battery Indicator Low Battery Indicator Note: Product images are for illustration purposes only. Actual design/appearance may vary however the Technical Specification will be as stated. LuxHome Alarm Systems Manufactured by Everspring Copyright © 013. All Rights Reserved. Everspring Industry Co., Ltd.
