3. Waspmote Plug & Sense!'s Hardware Setup
For the advanced hardware setup, please consult the Waspmote Plug & Sense! Technical Guide. Here we show the most basic
points about the hardware configuration:

3.1. ON/OFF Button

This button is used to turn ON or OFF Waspmote. It is a latch type button with two static positions as shown below. In ON
position, the button remains a bit lower than LED ring.

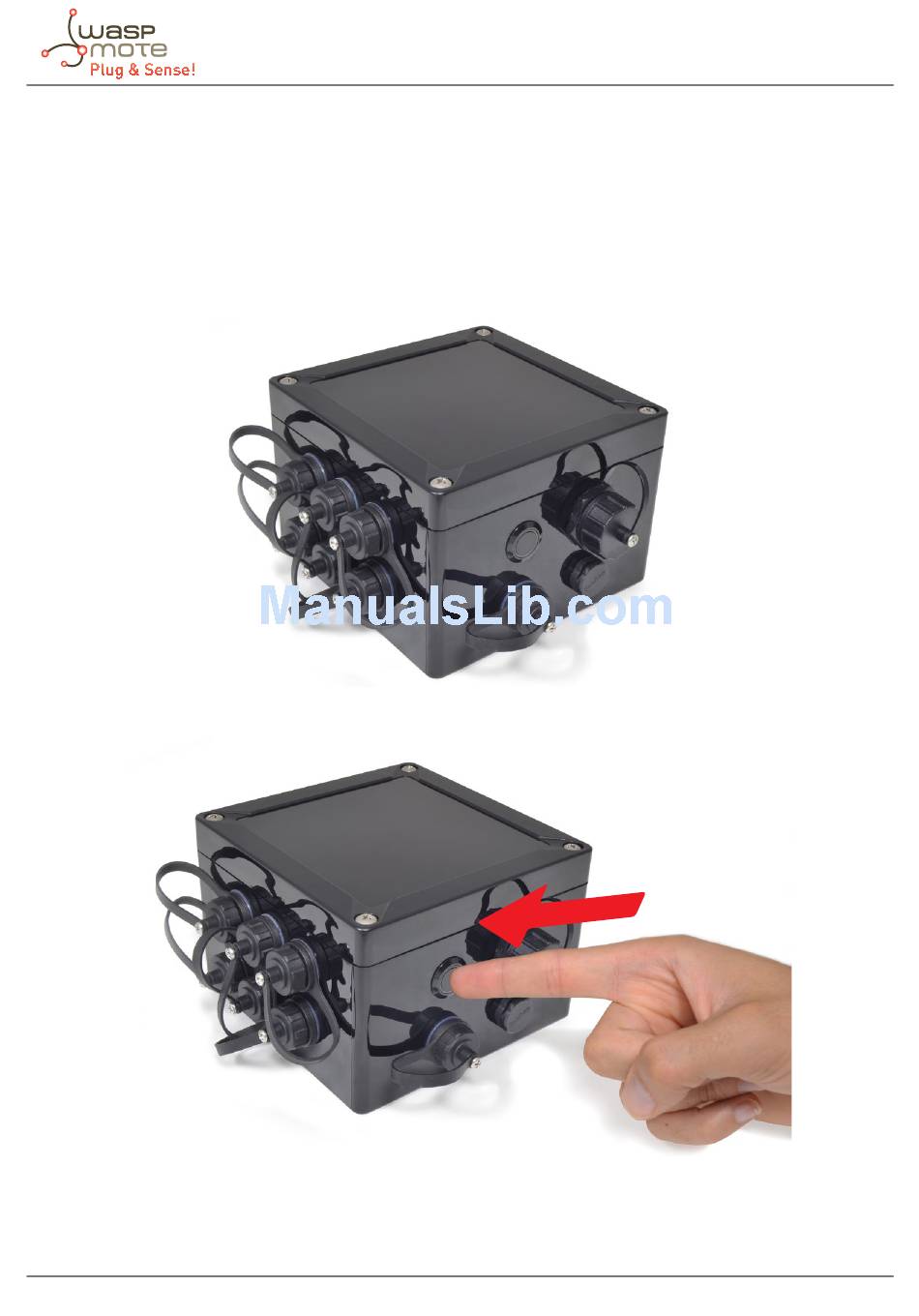

Figure : On / Off button at off position
Figure : Turning On Waspmote
