1.2.5 Outdoor PCB: ARXN/RXN50/60L

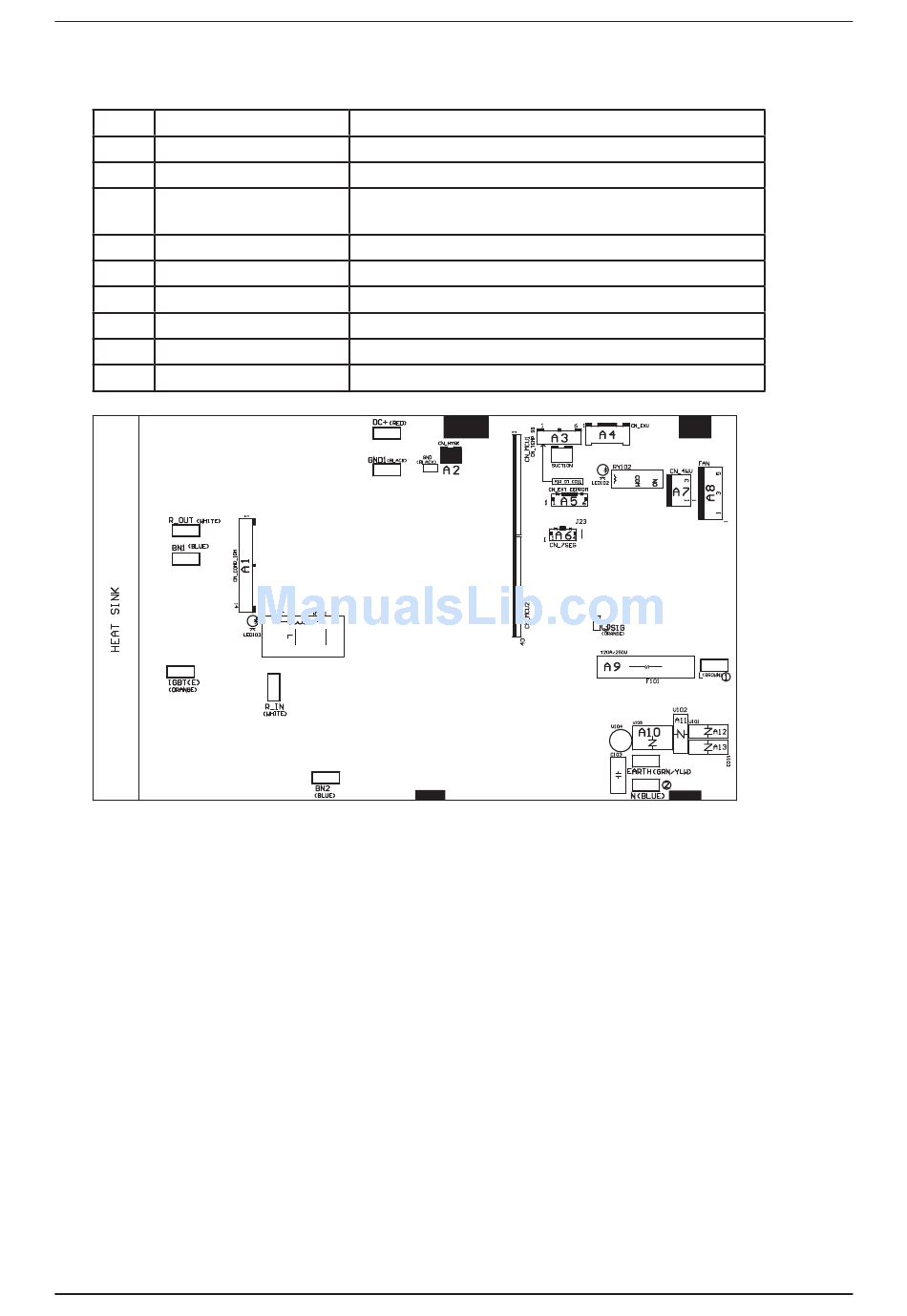

1.2.5.1 Main PCB
Item Indication on PCB
1
2
3
4
5
6
7
8
9 A10, A11, A12, A13
Description
A1 Connector for IPM PCB
A2 Connector for heat sink thermistor
Connector for thermistors (outdoor air, heat
A3
exchanger, discharge pipe)
A4 Connector for electronic expansion valve coil
A5, A6 Connector for display PCB
A7 Connector for four way valve coil
A8 Connector for fan motor
A9 Fuse
Varistor
Inverter Single Split
