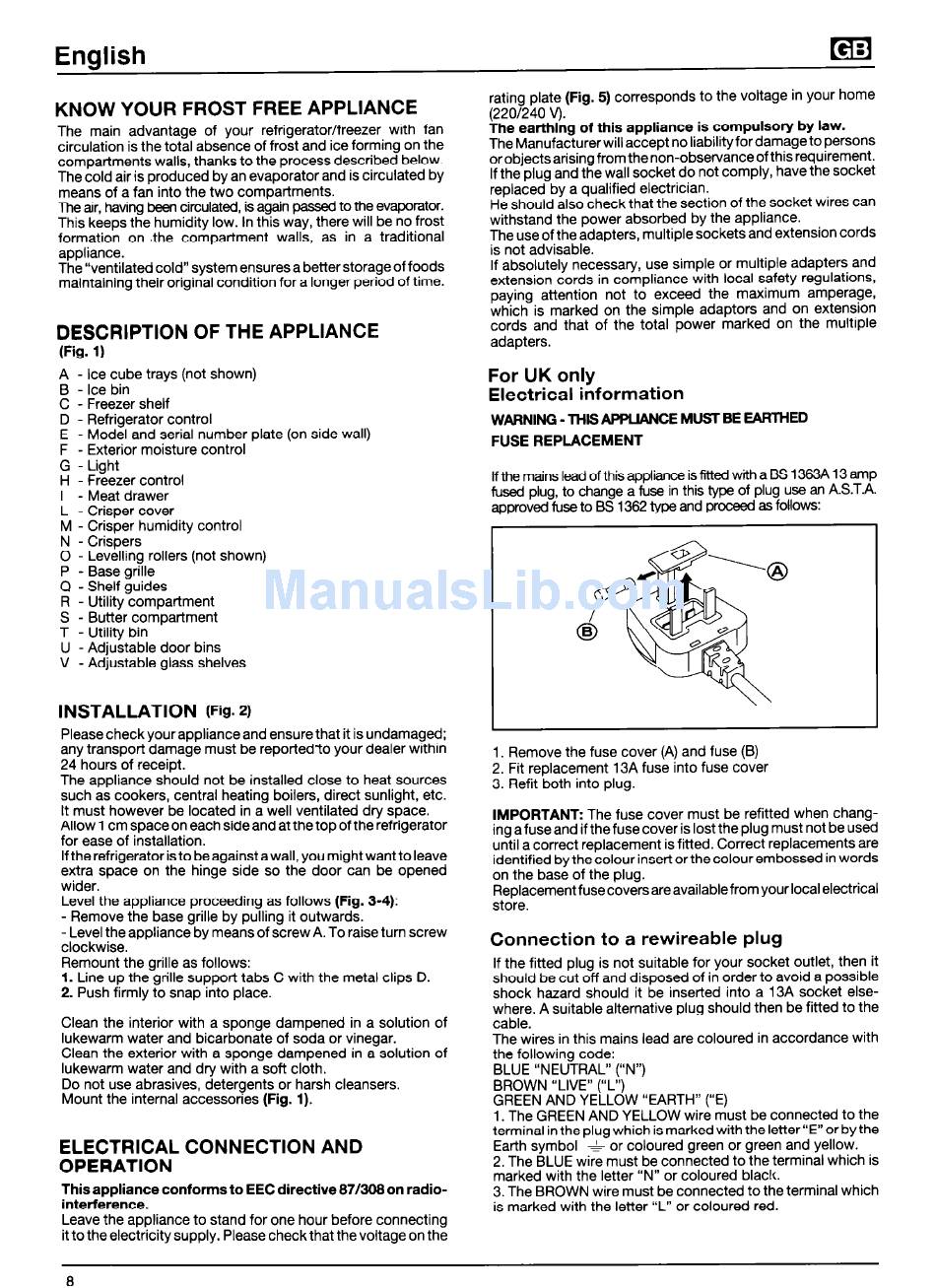

English
Eu :
KNOW YOUR FROST FREE APPLIANCE
The main advantage
of your refrigerator/freezer
with fan
circulation is the total absence of frost and ice forming on the
compartments
walls, thanks to the process described below.
The cold air is produced by an evaporator
and is circulated by
means of a fan into the two compartments.
The air, having been circulated, is again passed to the evaporator.
This keeps the humidity low. In this way, there will be no frost
formation
on <the compartment
walls, as in a traditional
appliance.
The "ventilated cold" system ensures a better storage of foods
maintaining their original condition for a longer period of time.
DESCRIPTION
OF THE APPLIANCE
(Fig. 1)
A - Ice cube trays (not shown)
6 - Ice bin
C - Freezer shelf
D - Refrigerator control
E - Model and serial number plate (on side wall)
F - Exterior moisture control
G - Light
H - Freezer control
I - Meat drawer
L - Crisper cover
M - Crisper humidity control
N - Crispers
0 - Levelling rollers (not shown)
P - Base grille
Q - Shelf guides
R - Utility compartment
S - Butter compartment
T - Utility bin
U - Adjustable
door bins
V - Adjustable
glass shelves
INSTALLATION
(Fig. 2)
Please check your appliance and ensure that it is undamaged;
any transport damage must be reportedto
your dealer within
24 hours of receipt.
The appliance
should not be installed close to heat sources
such as cookers, central heating boilers, direct sunlight, etc.
It must however be located in a well ventilated dry space.
Allow 1 cm space on each side and at the top of the refrigerator
for ease of installation.
If the refrigerator is to be against a wall, you might want to leave
extra space on the hinge side so the door can be opened
wider.
Level the appliance
proceeding
as follows (Fig. 3-4):
- Remove the base grille by pulling it outwards.
- Level the appliance by means of screw A. To raise turn screw
clockwise.
Remount the grille as follows:
1. Line up the grille support tabs C with the metal clips D.
2. Push firmly to snap into place.
Clean the interior with a sponge dampened
in a solution of
lukewarm water and bicarbonate
of soda or vinegar.
Clean the exterior with a sponge dampened
in a solution of
lukewarm water and dry with a soft cloth.
Do not use abrasives, detergents
or harsh cleansers.
Mount the internal accessories
(Fig. 1).
ELECTRICAL
CONNECTION
AND
OPERATION
This appliance
conforms
to EEC directive
87/308 on radio-
interference.
Leave the appliance to stand for one hour before connecting
it to the electricity supply. Please check that the voltage on the
rating plate (Fig. 5) corresponds
to the voltage in your home
(220/240 v).
The earthing
of this appliance
is compulsory
by law.
The Manufacturer will accept no liabilityfordamage
to persons
or objects arising from the non-observance
of this requirement.
If the plug and the wall socket do not comply, have the socket
replaced by a qualified electrician.
He should also check that the section of the socket wires can
withstand the power absorbed
by the appliance.
The use of the adapters, multiple sockets and extension cords
is not advisable.
If absolutely
necessary, use simple or multiple adapters and
extension
cords in compliance
with local safety regulations,
paying
attention
not to exceed
the maximum
amperage,
which is marked on the simple adaptors
and on extension
cords and that of the total power marked on the multiple
adapters.
For UK only
Electrical
information
WARNING -THIS APPLIANCE MUST BE EAFITHED
FUSE REPLACEMENT
If the mains lead of this appliance is fitted with a BS 1363A 13 amp
fused plug, to change a fuse in this type of plug use an A.S.T.A.
approved fuse to BS 1362 type and proceed as follows:
1. Remove the fuse cover (A) and fuse (B)
2. Fit replacement
13A fuse into fuse cover
3. Refit both into plug.
IMPORTANT:
The fuse cover must be refitted when chang-
ing a fuse and if the fuse cover is lost the plug must not be used
until a correct replacement
is fitted. Correct replacements
are
identified by the colour insert or the colour embossed in words
on the base of the plug.
Replacement fuse covers are available from your local electrical
store.
Connection
to a rewireable
plug
If the fitted plug is not suitable for your socket outlet, then it
should be cut off and disposed of in order to avoid a possible
shock hazard should it be inserted into a 13A socket else-
where. A suitable alternative plug should then be fitted to the
cable.
The wires in this mains lead are coloured in accordance
with
the following code:
BLUE "NEUTRAL"
('IN")
BROWN "LIVE" ("L")
GREEN AND YELLOW "EARTH" ("E)
1. The GREEN AND YELLOW wire must be connected
to the
terminal in the plug which is marked with the letter "E" or by the
Earth symbol
& or coloured green or green and yellow.
2. The BLUE wire must be connected to the terminal which is
marked with the letter "N" or coloured black.
3. The BROWN wire must be connected to the terminal which
is marked with the letter "L" or coloured red.
8
