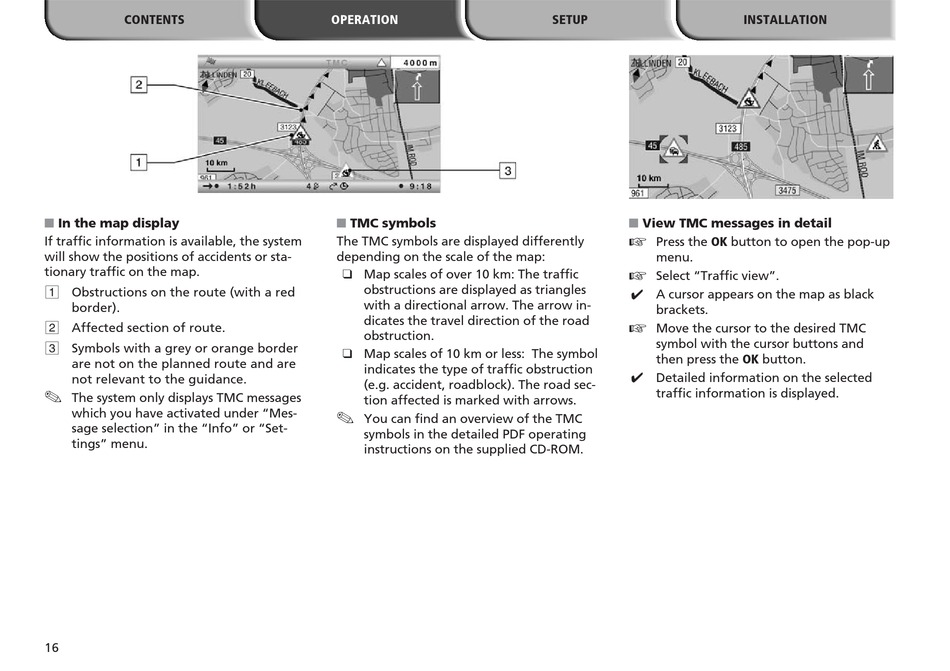

In the map display
If traffic information is available, the system
will show the positions of accidents or sta-
tionary traffic on the map.
1 Obstructions on the route (with a red
border).
2 Affected section of route.
3 Symbols with a grey or orange border
are not on the planned route and are
not relevant to the guidance.
✎
The system only displays TMC messages
which you have activated under "Mes-
sage selection" in the "Info" or "Set-
tings" menu.
16
OPERATION
■
TMC symbols
The TMC symbols are displayed differently
depending on the scale of the map:
❑ Map scales of over 10 km: The traffic
obstructions are displayed as triangles
with a directional arrow. The arrow in-
dicates the travel direction of the road
obstruction.
❑ Map scales of 10 km or less: The symbol
indicates the type of traffic obstruction
(e.g. accident, roadblock). The road sec-
tion affected is marked with arrows.
✎
You can find an overview of the TMC
symbols in the detailed PDF operating
instructions on the supplied CD-ROM.
SETUP
■
View TMC messages in detail
☞
Press the OK button to open the pop-up
menu.
☞
Select "Traffic view".
✔
A cursor appears on the map as black
brackets.
☞
Move the cursor to the desired TMC
symbol with the cursor buttons and
then press the OK button.
✔
Detailed information on the selected
traffic information is displayed.
