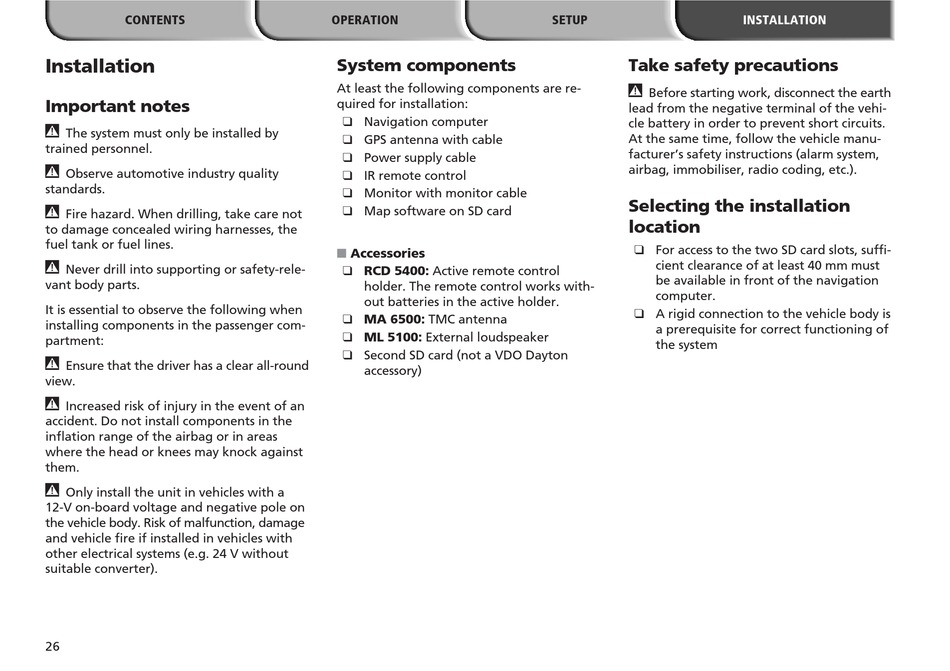

Installation

Important notes
A
The system must only be installed by
trained personnel.
A
Observe automotive industry quality
standards.
A
Fire hazard. When drilling, take care not
to damage concealed wiring harnesses, the
fuel tank or fuel lines.
A
Never drill into supporting or safety-rele-
vant body parts.
It is essential to observe the following when
installing components in the passenger com-
partment:
A
Ensure that the driver has a clear all-round
view.
A
Increased risk of injury in the event of an
accident. Do not install components in the
inflation range of the airbag or in areas
where the head or knees may knock against
them.
A
Only install the unit in vehicles with a
12-V on-board voltage and negative pole on
the vehicle body. Risk of malfunction, damage
and vehicle fire if installed in vehicles with
other electrical systems (e.g. 24 V without
suitable converter).
26
OPERATION
System components
At least the following components are re-
quired for installation:
❑ Navigation computer
❑ GPS antenna with cable
❑ Power supply cable
❑ IR remote control
❑ Monitor with monitor cable
❑ Map software on SD card
■
Accessories
❑ RCD 5400: Active remote control
holder. The remote control works with-
out batteries in the active holder.
❑ MA 6500: TMC antenna
❑ ML 5100: External loudspeaker
❑ Second SD card (not a VDO Dayton
accessory)
SETUP
Take safety precautions
A
Before starting work, disconnect the earth
lead from the negative terminal of the vehi-
cle battery in order to prevent short circuits.
At the same time, follow the vehicle manu-
facturer's safety instructions (alarm system,
airbag, immobiliser, radio coding, etc.).
Selecting the installation
location
❑ For access to the two SD card slots, suffi-
cient clearance of at least 40 mm must
be available in front of the navigation
computer.
❑ A rigid connection to the vehicle body is
a prerequisite for correct functioning of
the system
