Wellsaw 1316S Operating & Maintenance Manual

Wellsaw 1316S Operating & Maintenance Manual

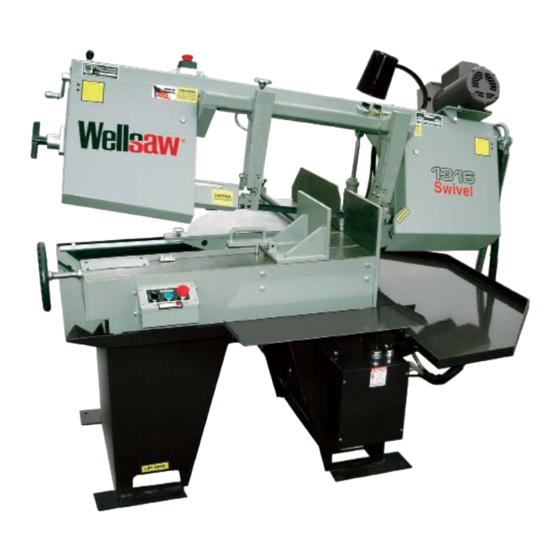

Miter head bandsaw

Advertisement

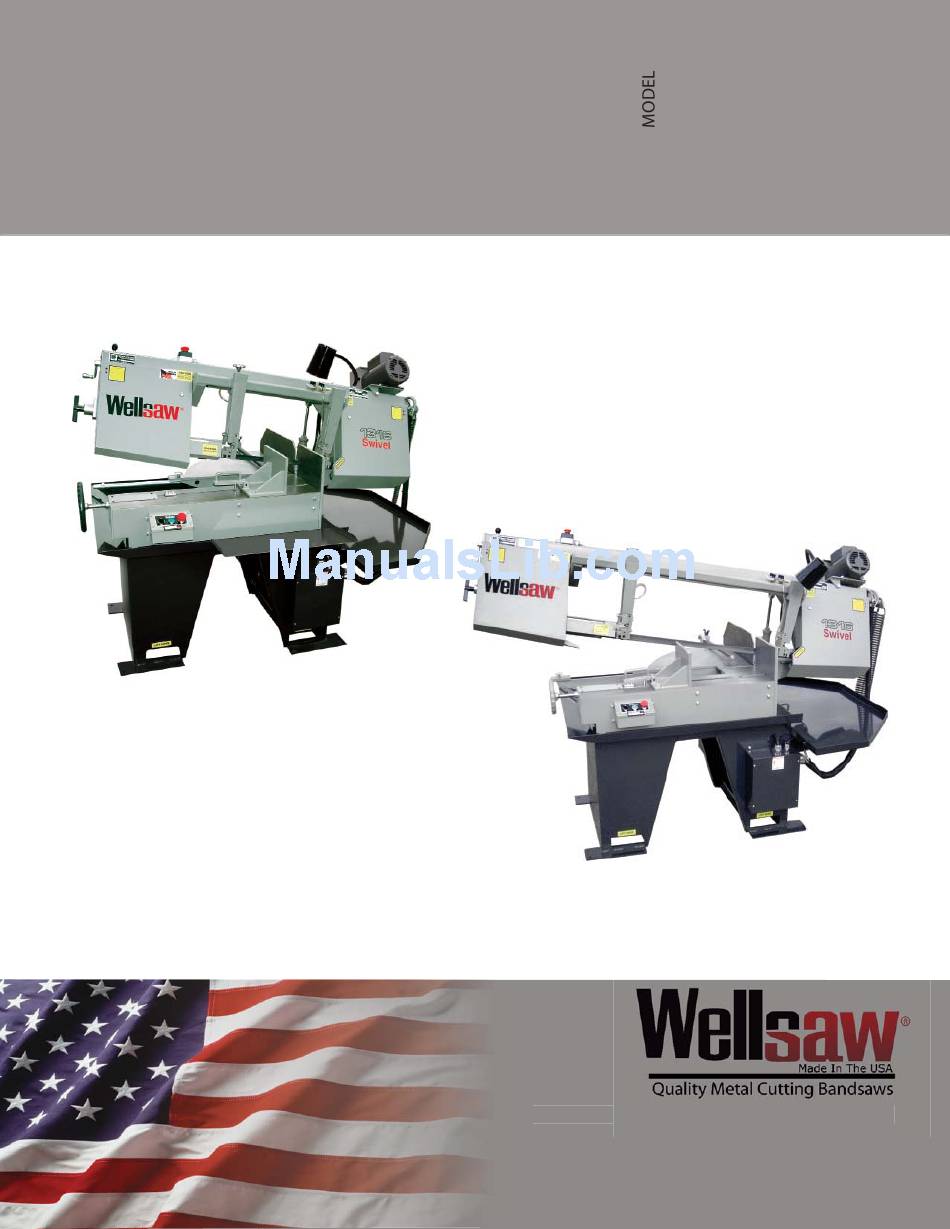

1 316S

Parts List

Miter Head Bandsaw
and
Built better to work stronger and last longer
Operating & Maintenance Manual
1316S
1316S-EXT
Extended Capacity
REV 160520
2829 N. Burdick St. Kalamazoo, MI 49004
Burdick St. Kalamazoo, MI 49004
Phone: 269-345-1132 Fax: 269-345-0095
269-345-1132 Fax: 269-345-0095
www.wellsaw.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1316S and is the answer not in the manual?

Questions and answers

Summary of Contents for Wellsaw 1316S

  • Page 1: Parts List

    1 316S Parts List Miter Head Bandsaw Built better to work stronger and last longer Operating & Maintenance Manual 1316S 1316S-EXT Extended Capacity REV 160520 2829 N. Burdick St. Kalamazoo, MI 49004 Burdick St. Kalamazoo, MI 49004 Phone: 269-345-1132 Fax: 269-345-0095 269-345-1132 Fax: 269-345-0095 www.wellsaw.com...
  • Page 3: Receiving & Installation

    Electrical codes differ from area to area and it is the customer’s responsibility to ensure that their saw complies with applicable codes. Your Wellsaw is pre-wired at the factory for a specified voltage. Always check the motor and electrical panel to ensure that they are both...
  • Page 4: Machinery General Safety Warnings

    - Always keep machine guards in place. full benefits from your machine. Used properly, - Always put start switch in “OFF” position before Wellsaw’s machinery is among the best in design and plugging in machine. safety. However, any machine used improperly can be rendered inefficient and unsafe.
  • Page 5: Safety Instructions

    General Electrical Cautions 19. Some dust created by power sanding, sawing, grinding, This saw should be grounded in accordance with the National drilling and other construction activities contains chemicals Electrical Code and local codes and ordinances. This work known to cause cancer, birth defects or other reproductive should be done by a qualified electrician.
  • Page 6: Table Of Contents

    Service Kits 115/208-230/60/1 Servicing Blade Guides Drive V-Belt Sliding Vise Jaw Specifications Blade Size standard 1316S 1" x .035 x 12'6" Trouble Shooting Blade Size for 1316S-EXT 1” x .035 x 15’6” Variable Speed Drive Warranty Height to top of Bed 35"...
  • Page 7: Notes On Sawing

    Notes on Sawing Trouble Shooting It is widely recognized that a proficient operator is a Premature Dulling of Blade Teeth key to optimum bandsawing. He makes certain the machine is properly maintained and adjusted for 1. Feed rate too high or low. Check pages 36 and 37. dependable operation.
  • Page 8: Automatic Stop

    6. Blade guides loose, worn or out of alignment. Premature Blade Breakage 7. Too many teeth-per-inch. Blade not cutting freely. 8. Chip brush not cleaning teeth properly. 1. Poor weld in the blade. 2. Feed rate set too high. Reduce it. 9.
  • Page 9: Gear Box Repair

    Variable Speed Drive protect your hands and eye protection. Make certain blade teeth point in the direction of blade travel Model 1316S is equipped with variable speed which is toward the motor. pulleys providing infinite speed selection between Place new blade on the band wheels and fit it 70 and 375 feet-per-minute.
  • Page 10: Blade Brushes

    Fixed Vise Jaw Blade Guide Adjustment The two pins in the fixed vise jaw should be kept in To properly align the saw blade for a straight place in order to ensure square cuts. For cutting and accurate cut, do the following: angles, the pins must be removed and the turned to the desired position and tightened with clamp bolts.
  • Page 11: Service Kits

    Operation of the Swivel Feature for Recommended Service Kits for Insurance Miter Cutting Against Downtime The angle of the cut is adjustable from 0° (90°) to 60°. The angle is indicated by a pointer at the back 1 year of the chip pan and a large scale on the edge of the cutoff turntable.
  • Page 12: Lubrication

    Parts Ordering For your convenience: When contacting your Wellsaw supplier or the Company for parts or service, it is essential that you have your saw Model, Serial Number and Purchase Date available. Jot them down here for handy reference.
  • Page 13: Warranty

    This warranty does not apply if the Wellsaw has been subject to accident, alteration, abuse, misuse or which fails due to lack of care or as the result of inadequate power supply and specifically does not apply to normal wear of moving parts such as bearings, gears, pinion or blade.
  • Page 14: Frame Assembly

    Frame Assembly...
  • Page 15: Frame Assembly

    (includes 41,54,55,58-64, & 66) 18 100004-016 Capscrew, HH 5/16-18 x 7/8 57 150088 Idle Wheel Ass'y for 1" Blades 19 150280 Guide Beam Ass'y (standard 1316S (includes 41,58-62 & 65) 150318 Guide Beam Assy (1316S-EXT) 58 100019-016 Hex Jam Nut, 5/8-18 20 150124...
  • Page 16: Bed Assembly

    BED ASSEMBLY...
  • Page 17: 100013-005 Machine Screw

    Bed Assembly B-093 Hand Wheel 100019-028 Hex Jam Nut, 3/4-10 102886 Set Collar 153011 Saw Bed 100402 Thrust Collar 150286 Vise Screw 153026 Vise Push Channel M-061B Vise Nut M-041 Guide Washer 100025-002 Lock Washer, 5/16" 100004-015 Cap Screw, 5/16-18 x 3/4" 150098 Slide Block 153082-001...
  • Page 18: Table Assembly

    Table Assembly 57 58 45 46 14 29 M1316TableAsm...
  • Page 19: Table Assembly

    Table Assembly 1 153051 Lower Cylinder Mount 46 210335 Pointer 2 100004-052 Cap Screw, 3/8-16 x 3-1/2" 47 153080 Pointer Rod Cylinder Assembly (See Page 20) 48 100029-004 Flat Washer, 3/8 4 100009-016 Cap Screw, FH, 3/8-16 x 1-1/2" 49 100004-076 Cap Screw, HH, 3/8-16 x 3/4" 5 100069-019 Snap Ring 50 153055 Post Frame Support...
  • Page 20: Base Assembly

    BASE ASSEMBLY...
  • Page 21: Wing Nut

    BASE ASSEMBLY 1 153023 CHIP PAN 2 100013-015 CAP SCREW, BH, 3/8/16 x 1" 3 155205-002 WING NUT 4 100030-005 FLAT WASHER , 3/8 SAE 5 155190 WEDGE 155203 WEDGE & BOLT ASSEMBLY 155201 HANDLE & SCREW ASSEMBLY 153060 BAR & STOCK STOP 153076 STOCK STOP ROD 100004-018 CAP SCREW, HH 5/16-18 X 1"...
  • Page 22: Down Feed Assembly

    Down Feed Assembly M1316DownFeedAsm...
  • Page 23: Cap Screw, Sh, 10-32 X 3/8

    Down Feed Assembly 1 100139-001 Oval Knob 2 153047 Handle 3 153077 Rod Support 4 100013-005 Cap Screw, BH, 10-32 x 3/8" 5 153069 Feed Rod 6 100034-039 Cap Screw, SH, 10-32 x 3/8" 7 150278 Pointer 8 100034-023 Cap Screw, SH, 1/4-20 x 5/16" 9 100238-005 Feed Control Valve does not include # 10 or #11 10 153064...
  • Page 24 Blade Guides for 1" Blade...
  • Page 25: Blade Guard Support

    Coolant Hose, D.E. 1/4" x 18" 33 100350-040 Cooant Hose, I.E. 1/4" x 40" 100350-068 Coolant Hose, I.E. for 1316S-EXTEND 1/4" x 68" 34 100013-005 Machine Screw, BH 10-32 x 3/8 35 100417-001 Bearing only used between 6090 and 6272...
  • Page 26 BLADE GUIDES for 1" BLADES Blade Guides for 1” blades (BEFORE SN 6090 AND AFTER 6272) FOR SERIAL NUMBERS BEFORE 6090 AND AFTER 6272...
  • Page 27 BLADE GUIDES for 1" BLADE Blade Guides for 1” blade (BEFORE SN 6090 AND AFTER 627 FOR SERIAL NUMBERS BEFORE 6090 AND AFTER 6272...
  • Page 28 Rite Tensioning Device® Calibrating the WELLSAW RITE-TENSION ® Blade Tensioning Device The Rite-Tension® device is a simple turn counter that is activated by blade tension and can be easily adjusted in the field. Please review the operation instructions before making any adjustment: 1.
  • Page 29 Rite Tensioning Device® Caution: The Rite Tension ® blade tensiong device has been factory calibrated for your saw. When re-tightening or replacing a blade, the 'T' handle must be turned counter-clockwise at least six turns to reset the Rite Tension ® mechenism. 1 150075 Blade Tensioning Ass'y (includes items 2 thru 17 and 27)
  • Page 30: Motor

    Motor & Gear Box 44 32 M1316MotorGearBox-2...
  • Page 31: Spacer

    Motor & Gear Box 1 100835-037 Motor, 3 HP TEFC, 3/4" shaft 3 phase - for s/n before 6559, need new pulley -021 too. 100836-031 Motor, 2 HP, 115-220/60/1 2 100056-037 3 150250 Belt Guard, Bottom Plate 4 105451-008 VS Motor Pulley, 7/8" bore, 3 Ph old style (before s/n 6559) 105451-021 VS Motor Pulley, 3/4"...
  • Page 32: Coolant System

    2 100220-049 Coolant Hose from Pan 3/8” x 154” 3 150066 Coolant Tank w/ fi lter 4 100350-040 Coolant Hose, I.E. 1/4” x 40” for 1316S 100350-068 Coolant Hose, I.E. 1/4” x 68” for 1316S-EXT 5 100324-003 Hose Barb, 1/4”...
  • Page 33: Blade Brush Assembly

    Blade Brush Assembly Note: adjust thumb screw (12) so that the brush makes light contact with the blade. This avoids dulling the blade and prevents premature brush wear. 150272 Blade Brush Ass'y (Includes items 2-8) 100019-005 Hex Jam Nut, 1/2 x 18 100030-007 Flat Washer, SAE 1/2, 2 req'd.
  • Page 34: Electrical Controls

    Electrical Controls 3 21 M1316ElecControls-2...
  • Page 35: Motor

    Electrical Controls 100612-004 Connector, TB-2534 100612-001 Connector, TB-2521 100240-001 Conduit Lock Nut 100871-013 Push Button Stop 100612-002 Connector, TB-2523 100871-004 Switch Block, Coolant & Start 100870 Electrical Enclosure 100871-005 Switch Block, Stop 100869 Transformer, 230/460 Volts 100893 Back Panel 100869-001 Transformer, 208 Volts 100892 Enclosure Cover...
  • Page 36: Motor

    Electrical Schematic 1 MTR 1DISC (OPTION) 208/230V 460V H3 H2 DOOR INTERLOCK (OPTION) 1> MOTION DETECTOR 2-1/2 - 5 AMP (OPTION) DI 1 DI 2 GROUND 2> FRAME STOP STOP DOWN START JUMP IF MOTION BLADE MOTOR 4 DETECTOR IS NOT USED 3>...
  • Page 37 (101164)
  • Page 38 Stock Dimensions 0 - 1" 1" - 3" 3" - 6" 6"+ Tooth Pitch 10/14, 8/12 8/12, 6/10, 5/8 5/8, 4/6, 3/4, 3 Sabre 3/4, 2/3, 2 Sabre, 1 Tooth, 3/4" T.S. Material (Annealed) Blade Cutting Blade Cutting Blade Cutting Blade Cutting Speed...
  • Page 39 Stock Dimensions 0 - 1" 1" - 3" 3" - 6" 6"+ Tooth Pitch 10/14, 8/12 8/12, 6/10, 5/8 5/8, 4/6, 3/4, 3 Sabre 3/4, 2/3, 2 Sabre, 1 Tooth, 3/4" T.S. Material (Annealed) Blade Cutting Blade Cutting Blade Cutting Blade Cutting Speed...
  • Page 40 The Original..Since 1926 2829 N. Burdick St. Kalamazoo, MI 49004 Phone: 269-345-1132 Fax: 269-345-0095 website: www.wellsaw.com email: parts@wellsaw.com...

This manual is also suitable for:

1316s-ext
