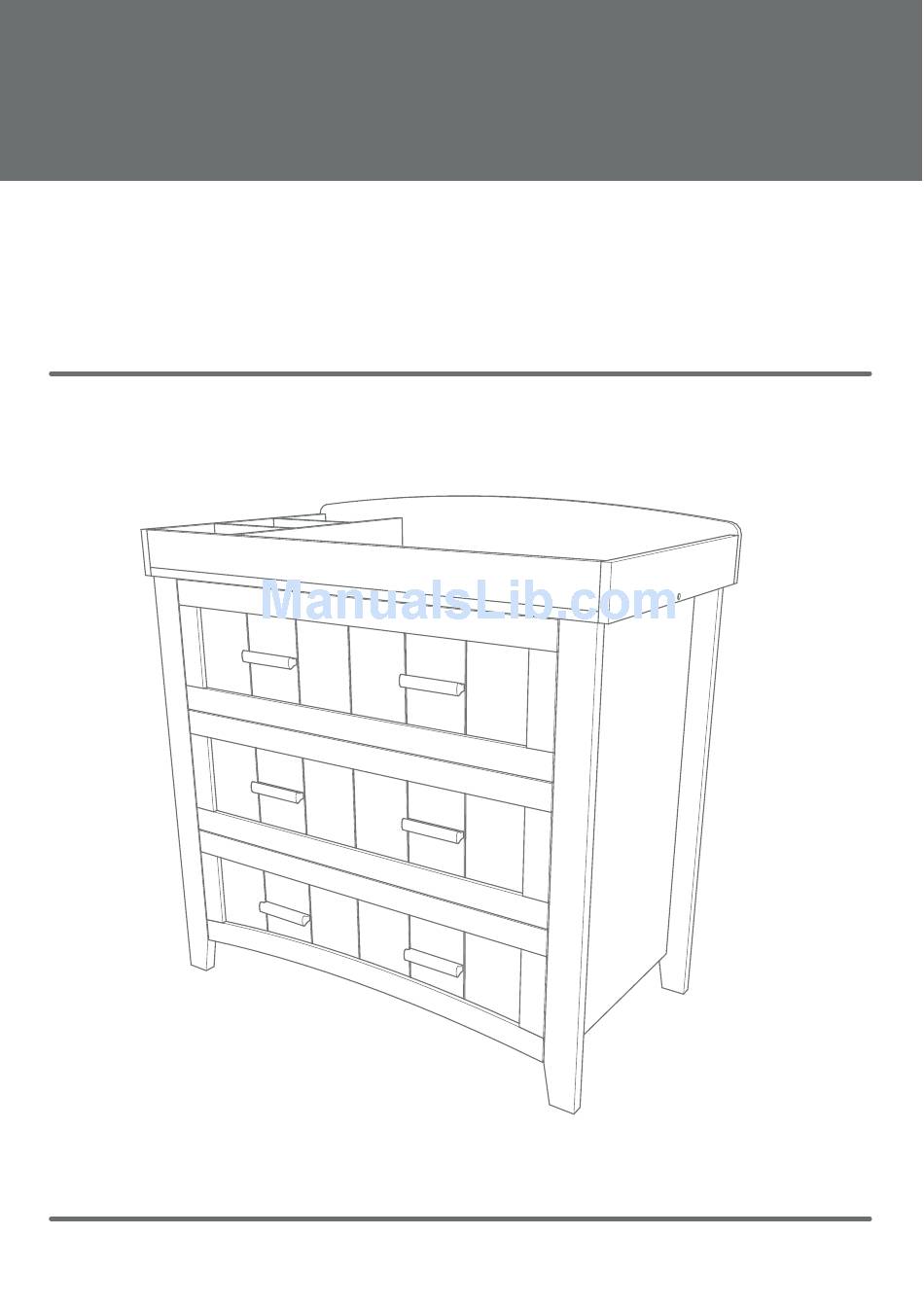

- Page 1 Important: Keep for future reference. Read carefully Instruction Manual...
- Page 2 parts x 2 (L & R) x 2 (L & R) x 2 (L & R)
- Page 3 hardware 45mm x 4 12mm x 18 x 34 15mm x 20 25mm x 24 x 26 30mm x 20 x 26 3 pairs 3 pairs x 12 695mm x 1 Tools required flat-bladed cross-point hexagon key screwdriver screwdriver Measure (millimeters)
- Page 4 assembly B (L & R) C (L & R) A (L & R) x 22 x 14 A (L & R)
- Page 5 assembly x 3 each A (L & R)
- Page 6 assembly A (L & R) C (L & R) B (L & R) Insert fittings 8 with arrowed slot pointing toward the hole in the nearest edge. Once assembled, use a large screwdriver to give 1/2 turn clockwise to lock. x 6 each...
- Page 7 assembly A, B & C...
- Page 8 assembly x 10 each part E K / L each side Repeat with remaining 2 drawers.
- Page 9 assembly Drawer underside Repeat for remaining drawers each part Repeat for remaining drawers...
- Page 10 assembly CLICK! Repeat for remaining drawers (2 x part 3 each end) (each end) x 12...
- Page 11 assembly Do not tighten fully until stage 15 is complete...
- Page 12 assembly To adjust the drawer alignment, rotate the small plastic tab under the drawer to raise or lower that side of the drawer. Repeat for other drawers as required.
- Page 13 assembly The dresser is supplied with a fixing kit which will secure it and help to guard against accidental tipping. WARNING : Installation only to be carried out by a competent person. Check the suitability of the wall before fitting. Washer x 2 Screw (15mm) Screw (25mm)
- Page 14 safety WARNING: Do not leave your child unattended. ! All assembly fixings should always be tightened properly. Care should be taken that no screws are loose because a child could trap parts of their body, or clothing (e.g. strings, necklaces, ribbons, dummies, etc.) which could pose a risk of strangulation. ! Be aware of the risks of open fires and other such sources of strong heat, such as electric bar fires, gas fires, etc.
