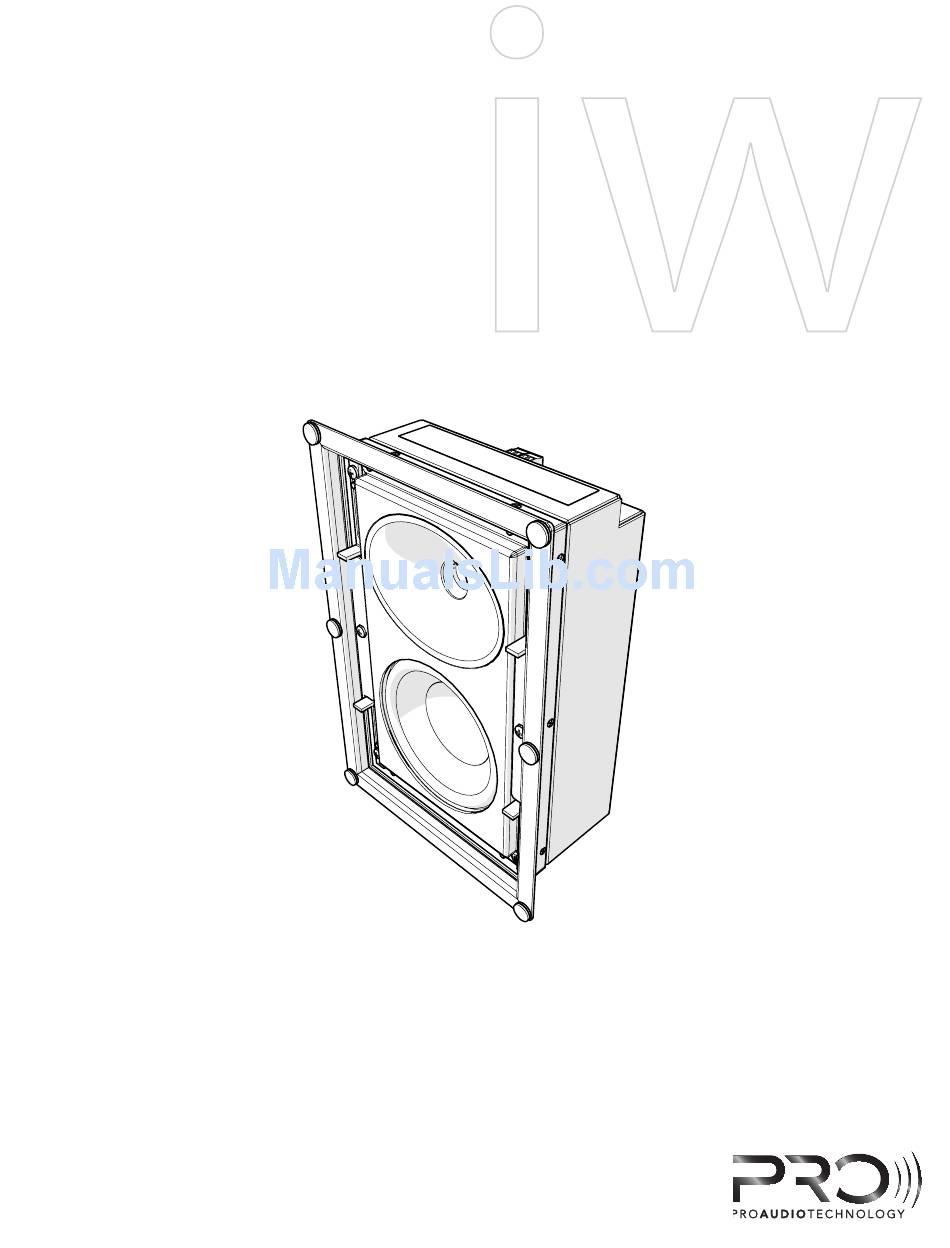

Page 1: Installation Guide
Installation Guide SCRS-5iw SCR-5iw Installation Guide Rev A 121016... - Page 2 Cut hole in wall material to the dimensions shown. 6.5” STEP 2 - RETRACT ALL CLAMP DOGS Loosen the dog screws and retract all four dogs fully as shown below. Re-tighten the screws to hold them in this position. Dog Screw (4x) Dog (4x) SCRS-5iw...
- Page 3 Phoenix Connector (1x) Note: The SCRS-5iw is shipped from the factory wired for passive operation. These instructions are for hookup in that mode.
- Page 4 Position perforated metal grille over clamp plate frame. Powerful neodymium magnets will snap it into and hold it in place. DONE! Professional Home Cinema, LLC dba Pro Audio Technology 5445 Oceanus Drive, Suite 110 Huntington Beach, CA 92649 Tel: 714-890-0418 Tel: 800-272-6085...
