Pro Audio HT16 Manual

High/midrange loudspeaker
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Manual
HT16
High/Midrange Loudspeaker

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HT16 and is the answer not in the manual?

Questions and answers

Related Manuals for Pro Audio HT16

Summary of Contents for Pro Audio HT16

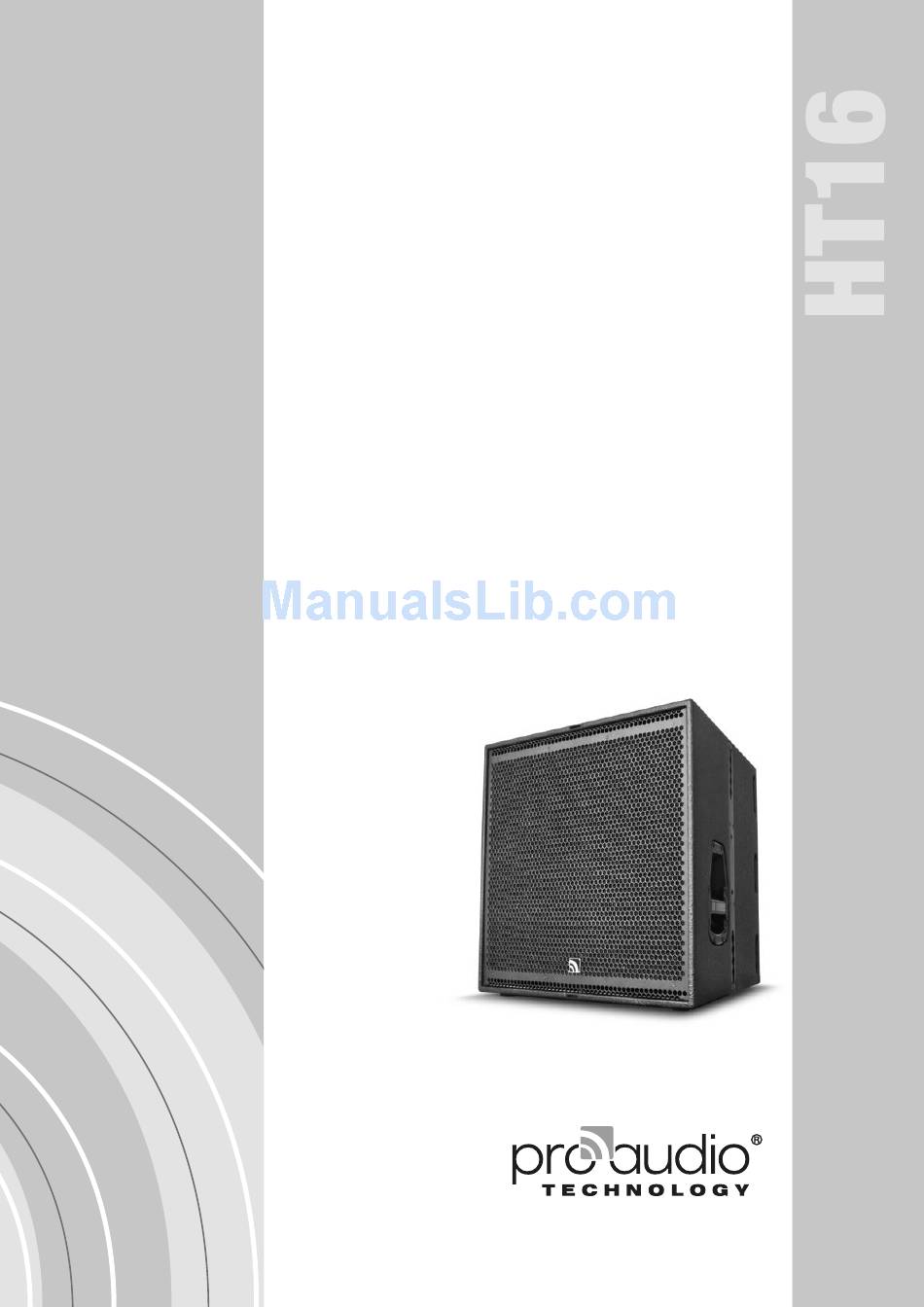

  • Page 1 Manual HT16 High/Midrange Loudspeaker...

  • Page 2: Table Of Contents

    +49 (0) 76 65 / 94 23 23 - 9 info@proaudio-technology.de www.proaudio-technology.de Information on the manual: Symbols: Items delivered: Manual • High/Midrange Loudspeaker HT16 High/Midrange Loudspeaker Version 1.2 ENG • Manual ProAudio Technology Last update January 2015 Caution Hazardous Strictly Copyright © ProAudio Technology GmbH danger...

  • Page 3: General Safety And Care Instructions

    General Safety Instructions: Professional loudspeakers can produce harmful sound pressure levels. SPLs above 95 dB can permanently damage your hearing. Observe the relevant guidelines regarding working safety and health protection. To avoid physical and personal damages due to loudspeakers dropping or tumbling over, please make sure that the speakers stand safely on a firm ground.

  • Page 4: Description And Use

    8“ cone chassis work on a large low/mid horn. The high/ mid unit has been integrated coaxially into the low/mid horn. Use the HT16 loudspeaker only The directivity characteristic is 60° x 40° with the HT16-6 and on system amplifiers with the 90° x 40° with the HT16-9.

  • Page 5: Operating Modes

    Operation modes DELTA 8.4-DSP DELTA 8.4-DSP The two subwoofers and the top on either side are wired using 4-pole speaker cables. Each amplifier channel will drive two subwoofers and one top in stereo mode. Four amplifier channels will be assigned. DELTA 8.4-DSP DELTA 8.4-DSP The two subwoofers and the two tops on either side are wired using 4-pole...
  • Page 6 DELTA 8.4-DSP DELTA 8.4-DSP Two tops are wired using a 4-pole speaker cable. Each amplifier channel will drive two tops in stereo mode. Four amplifier channels will be assigned.
  • Page 7 DELTA 14.4-DSP DELTA 14.4-DSP The two subwoofers and the top on either side are wired using 4-pole speaker cables. Each amplifier channel will drive two subwoofers and one top in stereo mode. Four amplifier channels will be assigned. DELTA 14.4-DSP DELTA 14.4-DSP The four subwoofers and the two tops on either side are wired using 4-pole speaker cables.
  • Page 8 Rear Rear DELTA 14.4-DSP DELTA 14.4-DSP The three subwoofers on either side are wired using 4-pole speaker cables. The top on each side is wired using a 4-pole speaker cable. The six subwoofers are driven by two amplifier channels in mono cardioid mode.
  • Page 9 Rear Rear Rear Rear DELTA 14.4-DSP DELTA 14.4-DSP DELTA 14.4-DSP The six subwoofers on either side are wired using 4-pole speaker cables. The nearfield speakers are connected to the amplifier with 4-pole speaker cables. The two tops are each connected to the pin-reversed socket of the nearfield speaker using 4-pole speaker cables.

  • Page 10: Drawings / Dimensions

    Drawings / Dimensions:...

  • Page 11: Technical Specifications

    The relevant regulations must be observed and adhered to. EU Conformity Declaration: This declaration is valid for the HT16 loudspeaker of the manufacturing company ProAudio Technology GmbH. Included herein are all production items of the same type, as long as they have not been modified subsequently in structural or electromechanical respect.
  • Page 12 Manual HT16 High/Midrange Loudspeaker – 2015-01 ENG ProAudio Technology GmbH Gruenstrasse 13 79232 Hugstetten Germany Phone: +49 (0) 76 65 / 94 23 23 - 0 Fax: +49 (0) 76 65 / 94 23 23 - 9 info@proaudio-technology.de www.proaudio-technology.de...
