Summary of Contents for Baumr-AG FUJI-MICRO F5200Ri

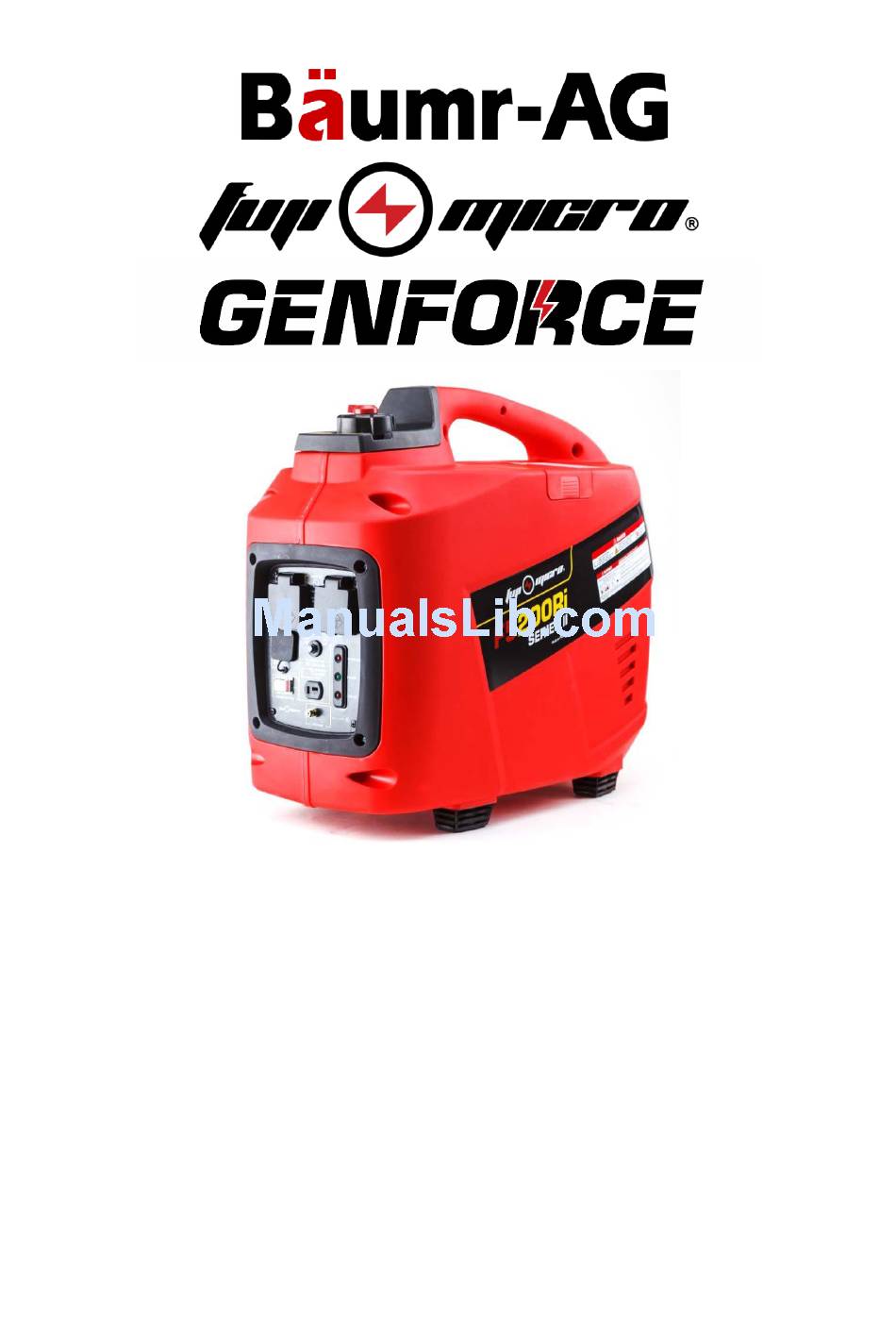

- Page 1 Fuel-Injected Petrol Powered Inverter Generators User Manual [Revision 1.0 October 2016] RETAIN THIS MANUAL FOR FUTURE REFERENCE PLEASE READ THIS MANUAL CAREFULLY BEFORE USE...
-
Page 2: Safety
Fuel-Injected Petrol Powered Inverter Generators Safety Safety messages are designed to alert you to possible dangers or hazards that could cause death, injury or equipment or property damage if not understood or followed. Safety messages have the following symbols: You WILL be KILLED or You CAN be KILLED or You CAN be INJURED if you do SERIOUSLY INJURED if you do... - Page 3 Fuel-Injected Petrol Powered Inverter Generators General Fuel Safety General Service Information • Petrol/fuel/gasoline is extremely Have the equipment serviced or flammable – keep clear of repaired at authorized service centers naked flames or other ignition by qualified personnel only. sources. •...
-
Page 4: Table Of Contents
Fuel-Injected Petrol Powered Inverter Generators Table of Contents Safety ..............................2 Applicable Models ..........................5 Parts Identification ..........................6 Accessories ..............................7 Before Use Checklist ......................... 8 4-Stroke Engine Oil ............................ 8 Air Filter ..............................8 Fuel ................................8 Engine Starting and Generator Operation ..................9 Starting and Stopping the Engine ...................... -
Page 5: Applicable Models
Fuel-Injected Petrol Powered Inverter Generators Applicable Models This manual applies to the following generators: Fuji Micro F5200Ri 150cc 3.2kW Fuji Micro F4200Ri 105cc 2.5kW Genforce GT6000 124cc 3.2kW Genforce GT4000 105cc 2.5kW Genforce GT3000 53cc 1.7kW Bäumr-AG... -
Page 6: Parts Identification
Fuel-Injected Petrol Powered Inverter Generators Parts Identification Products detailed in this manual may vary in appearance, inclusions, description and packaging from those shown or described. This section shows typical major components common to most fuel- injected petrol powered generators. Name Name Control Panel USB Device Connector(s) (under cover) -
Page 7: Accessories
Fuel-Injected Petrol Powered Inverter Generators Accessories The accessories listed below are provided as a guide only. Not all models may include all or any accessories.. Name Name Oil Fill Bottle Screw Driver Oil Drain Tube Screw Driver Handle 12VDC Battery Charging Cable Spark Plug (spare) Spark Plug Socket... -
Page 8: Before Use Checklist
Fuel-Injected Petrol Powered Inverter Generators Before Use Checklist Ensure that you carry out all procedures below before starting the engine or operating the water pump. Failure to follow the checklist and carry out the procedures correctly may result in making the product warranty void. -
Page 9: Engine Starting And Generator Operation
Fuel-Injected Petrol Powered Inverter Generators Engine Starting and Generator Operation Before starting the engine, ensure that you have followed all procedures described in the Before Checklist. • Before starting the generator, disconnect all output sockets so that no load is immediately placed on the generator as it starts up. -
Page 10: Operating The Generator
Fuel-Injected Petrol Powered Inverter Generators Operating the Generator • Ensure that the generator is grounded (earthed) before using it. • Allowing the generator to run when being overloaded may permanently damage the unit and/or shorten its service life and may void product warranty. •... -
Page 11: Calculating Generator Load
Fuel-Injected Petrol Powered Inverter Generators • At an approximate altitude of 3000m and 40°C ambient temperature, the power output coefficient is 0.58. So, a rated output of 2.0kW becomes 2.0 x 0.58, which equates to an actual power output of 1.16kW. Calculating Generator Load Most electrical devices clearly state the required power, usually in Watts (W). -
Page 12: Grounding The Generator
Fuel-Injected Petrol Powered Inverter Generators NOTE: Many generators have a “maximum” output above that of the rated output, which is allowable for a short period. This is to allow (up to a point) for increased start-up loads that reduce once connected devices are running. -
Page 13: Dc Applications
Fuel-Injected Petrol Powered Inverter Generators DC Applications Observe the following safety precautions when connecting/disconnecting and charging batteries: • When connecting to the DC output ALWAYS ENSURE that the polarity (+ to + and – to –) of connections is correct. Failure to do so may represent an explosion hazard and/or damage the generator and/or connected battery. -
Page 14: Maintenance
Fuel-Injected Petrol Powered Inverter Generators Maintenance Running petrol engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a petrol engine in confined areas EVEN IF windows and doors are open. ONLY run petrol engines OUTDOORS and away from doors, windows and vents. -
Page 15: Checking And Changing Engine Oil
Fuel-Injected Petrol Powered Inverter Generators Checking and Changing Engine Oil Always check engine oil level when the machine is in an upright position on a flat and level surface. • Do not use used or contaminated engine oils. • Use only engine oils of the correct type (see Specifications). - Page 16 Fuel-Injected Petrol Powered Inverter Generators To change the engine oil: 1. Place the machine on a suitable work surface that is flat and level and have a container ready to catch drained oil. 2. Remove the 2 screws (rotate left) securing the engine access cover, and remove the cover.
-
Page 17: Checking, Cleaning Or Replacing The Air Filter
Fuel-Injected Petrol Powered Inverter Generators Checking, Cleaning or Replacing the Air Filter Operating the machine without a functional air filter may cause severe engine damage and will void any warranty. • A dirty or oil saturated air filter will restrict air flow, which can be mistaken as fuel system problems. -
Page 18: Maintaining The Spark Plug
Fuel-Injected Petrol Powered Inverter Generators Maintaining the Spark Plug If the spark plug is damaged (cracked insulator, broken or eroded electrodes etc), replace it. • Always use spark plugs of the correct “heat range” - see Technical Specifications. The spark plug is used to ignite the air/fuel mixture inside the engine. The spark plug has electrodes on one end and an electrical terminal on the other. -
Page 19: Transportation And Storage
Fuel-Injected Petrol Powered Inverter Generators Transportation and Storage Always ensure that the machine is cool enough to touch before transporting or storing. • Petrol/fuel/gasoline is extremely flammable – keep clear of naked flames or other ignition sources. • Always transport the machine with the fuel tap and engine ON/OFF switch in the “OFF”... -
Page 20: Troubleshooting
Fuel-Injected Petrol Powered Inverter Generators Troubleshooting Running petrol engines in confined areas CAN KILL IN MINUTES. Engine exhaust fumes contain carbon-monoxide – a deadly gas that you cannot smell or see. NEVER run a petrol engine in confined areas EVEN IF windows and doors are open. ONLY run petrol engines OUTDOORS and away from doors, windows and vents. - Page 21 Fuel-Injected Petrol Powered Inverter Generators Difficulty restarting the engine after use or engine stops suddenly during use. Possible Fault Action No fuel or engine oil Check fuel level and ensure adequate fuel is available. For some engines, an engine oil sensor will automatically switch off the engine or prevent starting if a low engine oil level is detected.
-
Page 22: Specifications
Fuel-Injected Petrol Powered Inverter Generators Specifications 150cc Engines Engine Type 4-stroke, fuel-injected single cylinder Engine Capacity 150cc Fuel Type Unleaded non-ethanol 91 RON or better Fuel Tank Capacity 6.5l Engine Power Output Approximately 3.5HP @ 5000RPM Spark Plug Type A7RTC Spark Plug Gap 0.7 to 0.8mm (0.028 to 0.032”) Valve Clearance... -
Page 23: Generator Specifications
Fuel-Injected Petrol Powered Inverter Generators Generator Specifications Model Rated Maximum AC Output DC Output Continuous Output* Output* Output Operation Bäumr-AG 3.2kW 3.7kW 2 x 240V/50Hz 12V 8A 5 hours Fuji Micro F5200Ri 3.2kW 3.7kW 2 x 240V/50Hz 12V 8A 5 hours Fuji Micro F4200Ri 2.5kW 2.7kW... -
Page 24: Service And Maintenance Record
Fuel-Injected Petrol Powered Inverter Generators Service and Maintenance Record Use the following tables as a record of machine servicing and maintenance. Keeping accurate records will help ensure better machine service life and may simplify fault diagnosis and any possible warranty claims. Place a tick in the required box for either clean or replace with the date, as required. - Page 25 Some experts believe the incorrect or prolonged use of almost any product could cause serious injury or death. For information that may reduce your risk of serious injury or death, consult the points below and additionally, the information available at www.datastreamserver.com/safety •...
