Black Horse BEDE BD-5J Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATION
     Wingspan :
     Length
     Weight
     Radio
     Servo
     EDF: 90mm 6 BLADE with OUTRUNER MOTOR 3553- 1750 KV 1500W
     Battery: 6S-LIPO-22.2V-5500mAh
     Speed control: 70A
Including nose gears mechanic retracts with oleo struts.
Instruction Manual book
1,450mm
:
1,140 mm
:
3.3kg
: 05 channels.
: 07 mini servos+ 3servos Retracts (FUTABA S3170G)
57.09 in.
44.88 in.
7.26 Lbs.
ITEM CODE:BH 139
Made in Vietnam.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BEDE BD-5J and is the answer not in the manual?

Questions and answers

Related Manuals for Black Horse BEDE BD-5J

Summary of Contents for Black Horse BEDE BD-5J

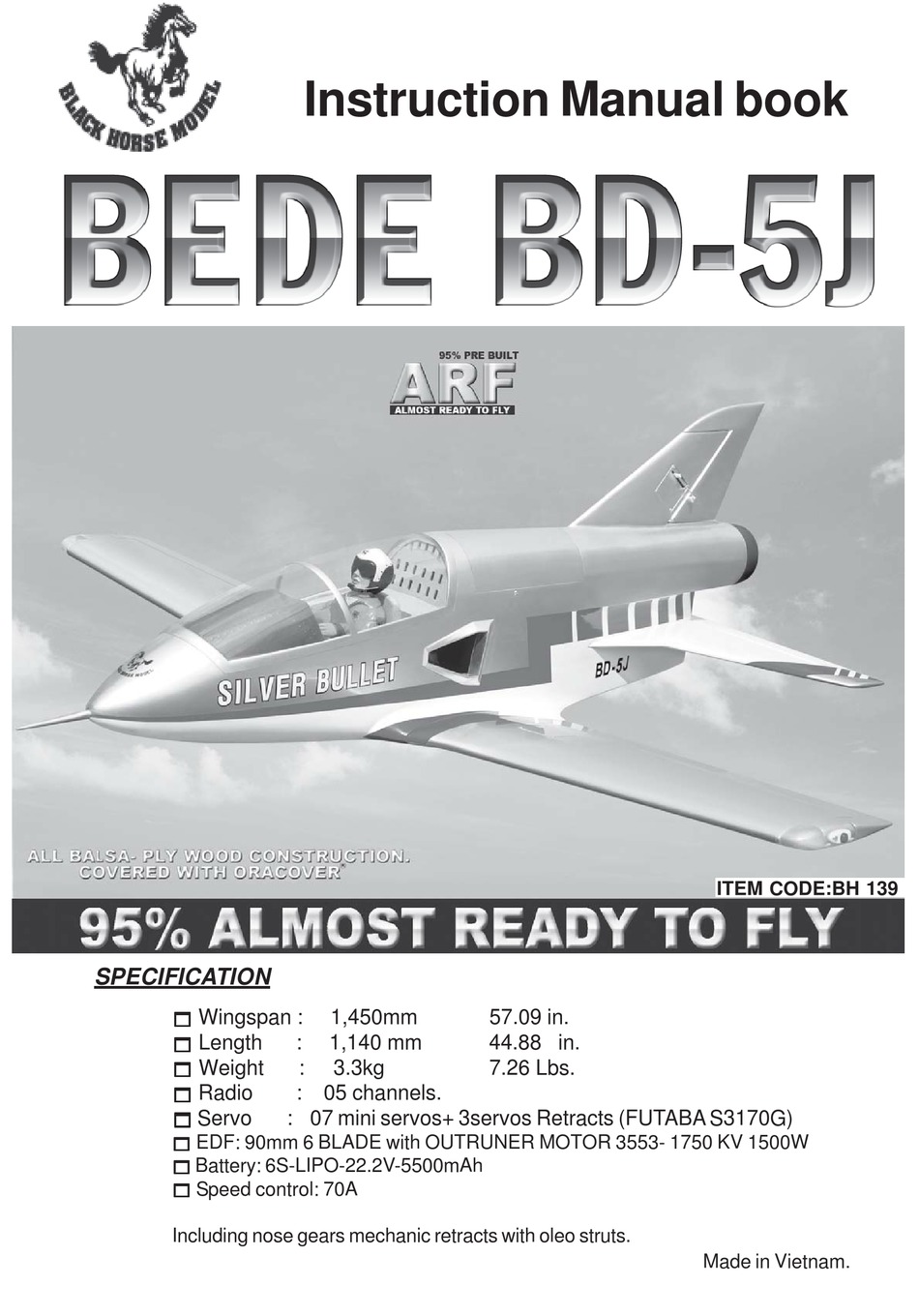

  • Page 1 Instruction Manual book ITEM CODE:BH 139 SPECIFICATION      Wingspan : 1,450mm 57.09 in.      Length 1,140 mm 44.88 in.      Weight 3.3kg 7.26 Lbs.      Radio : 05 channels.
  • Page 2 BEDE BD-5J Instruction Manual Item code: BH139 This instruction manual is designed to help you build a great flying aeroplane. Please read this BEDE BD-5J. manual thoroughly before starting assembly of your Use the parts listing below to identify all parts.

  • Page 3: Safety Precaution

    BEDE BD-5J Instruction Manual Item code: BH139 Caution: this model is not a toy! If you are a beginner to this type of powered model, please ask an experienced model flyer for help and support. If you attempt to operate the model without knowing what you are doing you could easily injure yourself or somebody else.
  • Page 4 BEDE BD-5J Instruction Manual Item code: BH139 REPLACEMENT LARGE PARTS D. Rudder. A . Fuselage. E. Carbon tube wing dihedral brace. B. Wing panel(B1,B2). F. Carbon tube Horizontal stabilizer. C.Horizontal stabilizer(C1,C2). K.Pilot G.Decal sheet C3.Elevator REPLACEMENT SMALL PARTS 1.Retract main gear.

  • Page 5: Installing The Aileron Servos

    BEDE BD-5J Instruction Manual Item code: BH139 I. AILERON. Assemble then apply drops of thin C/A to center of hinge,on both sides. 1.INSTALLING THE AILERON SERVOS.   1) Install the rubber grommets and brass eyelets onto the aileron servos.
  • Page 6 BEDE BD-5J Instruction Manual Item code: BH139 2x10mm. Secure. Secure.  3) Using the thread as a guide and using masking tape, tape the servo lead to the end of the thread: carefully pull the thread out. When you have pulled the servo lead out, re-...

  • Page 7: Installing The Aileron Linkages

    BEDE BD-5J Instruction Manual Item code: BH139 II. FLAP 1.INSTALLING THE FLAP SERVO Aileron control horn Repeat the procedure for the other wing half. INSTALLING THE AILERON LINKAGES. Installing the aileron linkages as pictures below. Flap. Bottom side 35mm. 2x10mm.
  • Page 8 BEDE BD-5J Instruction Manual Item code: BH139 2.INSTALLING THE FLAP CONTROL HORN. Install flap control horn as same as picture below. Control horn Flap. Bottom side. A+B Epoxy PLUS glue Repeat the procedure for the other wing half. Top side.
  • Page 9 BEDE BD-5J Instruction Manual Item code: BH139 INSTALLING RETRACTABLE LANDING GEAR. PARTS REQUIRED 3x15mm. 5x30mm. Retract servo Retract servo. Retract servo. Bottom side.
  • Page 10 BEDE BD-5J Instruction Manual Item code: BH139 3x15mm. Secure. Secure. Secure. 5x30mm.
  • Page 11 BEDE BD-5J Instruction Manual Item code: BH139 Plastic parts for Retract servos. Top side. INSTALLING THE RETRACT PUSHROD. See pictures below: C/A glue. secure. Bottom side. Flap Bottom side...
  • Page 12 BEDE BD-5J Instruction Manual Item code: BH139 R e t r a c t pushrod. Open 2x10mm. Secure. Top side Bottom side Repeat the procedure for the other gear. INSTALLING ELECTRIC EDF-90MM. See pictures below: (Not included) Mark line.
  • Page 13 BEDE BD-5J Instruction Manual Item code: BH139 3x15mm. Secure. Left side. Right side.

  • Page 14: Installing The Elevator Servos

    BEDE BD-5J Instruction Manual Item code: BH139 Plastic part of tail fuselage. INSTALLING THE ELEVATOR SERVOS.  1. Install the rubber grommets and brass collets into the elevator servo. Test fit the servo into the servo tray.  2. Mount the servo to the tray using the mounting screws provided with your radio system.

  • Page 15: Horizontal Stabilizer

    BEDE BD-5J Instruction Manual Item code: BH139 HORIZONTAL STABILIZER. Horizontal stabilizer installation  See picture below. Right horizontal stabilizer Right side Epoxy glue. Bottom side 8 mm C/A glue. 148 mm Left horizontal stabilizer...

  • Page 16: Elevator Control Horn Installation

    BEDE BD-5J Instruction Manual Item code: BH139 Temporary pin to keep hinge centered. E p o x y glue. Assemble then apply drops of thin C/A to center of hinge,on both sides. C/A glue. Bottom side Bottom side Installing elevator.

  • Page 17: Elevator Pushrod Installation

    BEDE BD-5J Instruction Manual Item code: BH139 Elevator pushrod A+B Epoxy PLus glue Plastic parts top side of pushrod. Cut. Elevator control horn ELEVATOR PUSHROD INSTALLATION.  Elevator pushrod install as same as the way of aileron pushrod. C/A glue.

  • Page 18: Rudder Installation

    BEDE BD-5J Instruction Manual Item code: BH139 E l e v a t o r pushrod RUDDER INSTALLATION. See picture below: bend 90 degree. Cut the covering away from the slot. Temporary pin to keep hinge centered. Cut. Assemble then apply drops of thin...

  • Page 19: Rudder Control Horn Installa- Tion

    BEDE BD-5J Instruction Manual Item code: BH139 Top side. Rudder servo install as same as method of elevator servo. 2x10mm. Rudder servo servo tray S e c u r e . RUDDER CONTROL HORN INSTALLA- TION. Rudder control horn install as same as the way of aileron control horn.

  • Page 20: Rudder Pushrod Installation

    BEDE BD-5J Instruction Manual Item code: BH139 A+B Epoxy PLUS glue INSTALLING RETRACT SERVO NOSE Control horn GEAR. Rudder. See picture below: RUDDER PUSHROD INSTALLATION.  Rudder pushrod install as same as the way Retract servo of aileron pushrod. nose gear...
  • Page 21 BEDE BD-5J Instruction Manual Item code: BH139 Secure. Retract servo nose gear INSTALLING RETRACT NOSE GEAR. See picture below: 5x30mm Secure. 3x 15mm...
  • Page 22 BEDE BD-5J Instruction Manual Item code: BH139 wire cable. wire cable. INSTALLING SERVO NOSE GEAR. See picture below: Servo nose gear Secure. Servo nose gear...

  • Page 23: Wing Attachment

    BEDE BD-5J Instruction Manual Item code: BH139 Ply wood of nose gear. C/A glue. Battery INSTALLING THE RECEIVER AND BATTERY-ESC.       1. Plug the servo leads and the switch lead into the receiver. You may want to plug...
  • Page 24 BEDE BD-5J Instruction Manual Item code: BH139  2. Attach the carbon tube into the Right wing. fuselage.  3.Insert two wing panels as pictures below. Left wing.

  • Page 25: Installing Cockpit Fuselage

    BEDE BD-5J Instruction Manual Item code: BH139 Bottom side. INSTALLING COCKPIT FUSELAGE . See picture below: Top side. A +B Epoxy Installing antenna PLUS glue See picture below:...

  • Page 26: Control Throws

    BEDE BD-5J Instruction Manual Item code: BH139  With the wing attached to the fuselage, all parts of the model installed ( ready to fly), and empty fuel tanks, hold the model at the C/A glue. marked balance point with the stabilizer level.

  • Page 27: Pre-Flight Check

    BEDE BD-5J Instruction Manual Item code: BH139 10mm 10mm 30mm 15mm 15mm 15mm 15mm PRE-FLIGHT CHECK.       1) Completely charge your transmitter and receiver batteries before your first day of fly- ing.      ...
