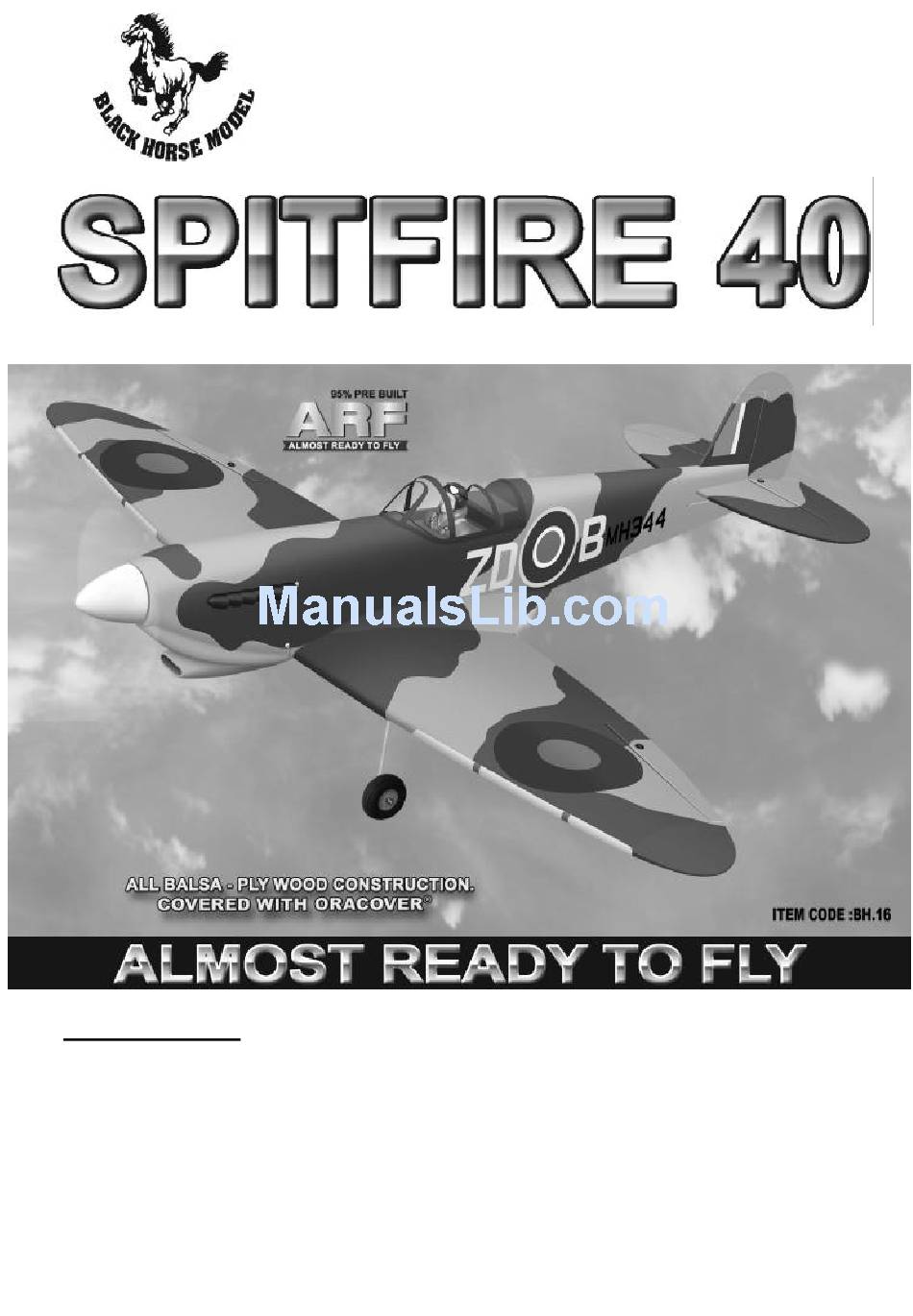

Black Horse SPITFIRE 40 Instruction Manual Book

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SPECIFICATION
1 Wingspan: 1,390mm
1 Length:
1,220 mm
1 Weight:
2.4 kg
Parts Listing required (not included):
1 Glow Engine: 40-46 cu.in. 2 stroke;
52 cu.in.
Instruction Manual Book
1 Electric Motor: AXI 2826/10.
54.75 in.
1 Battery: 4-5S-LiPo-14.8-18.5v-5,000 mAh-20 c .
48 in.
1 Speed Control: 60A.
5.28 lbs.
1 Propeller: 13 x 6.
1 Recommended R.C: 4 channels with 4-5 servos.
4 stroke.
Made in Vietnam.
