Gamry Reference 3000 Operator's Manual

Gamry Reference 3000 Operator's Manual

Potentiostat/galvanostat/zra
Hide thumbs Also See for Reference 3000:
Table of Contents

Advertisement

Quick Links

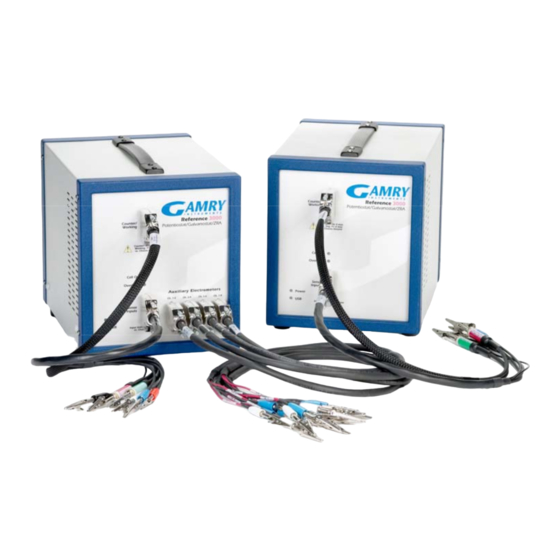

Reference 3000™
Potentiostat/Galvanostat/ZRA
Operator's Manual
Copyright © 2012–2015 Gamry Instruments, Inc.
Revision 6.1
December 2, 2015
988-00014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Reference 3000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Gamry Reference 3000

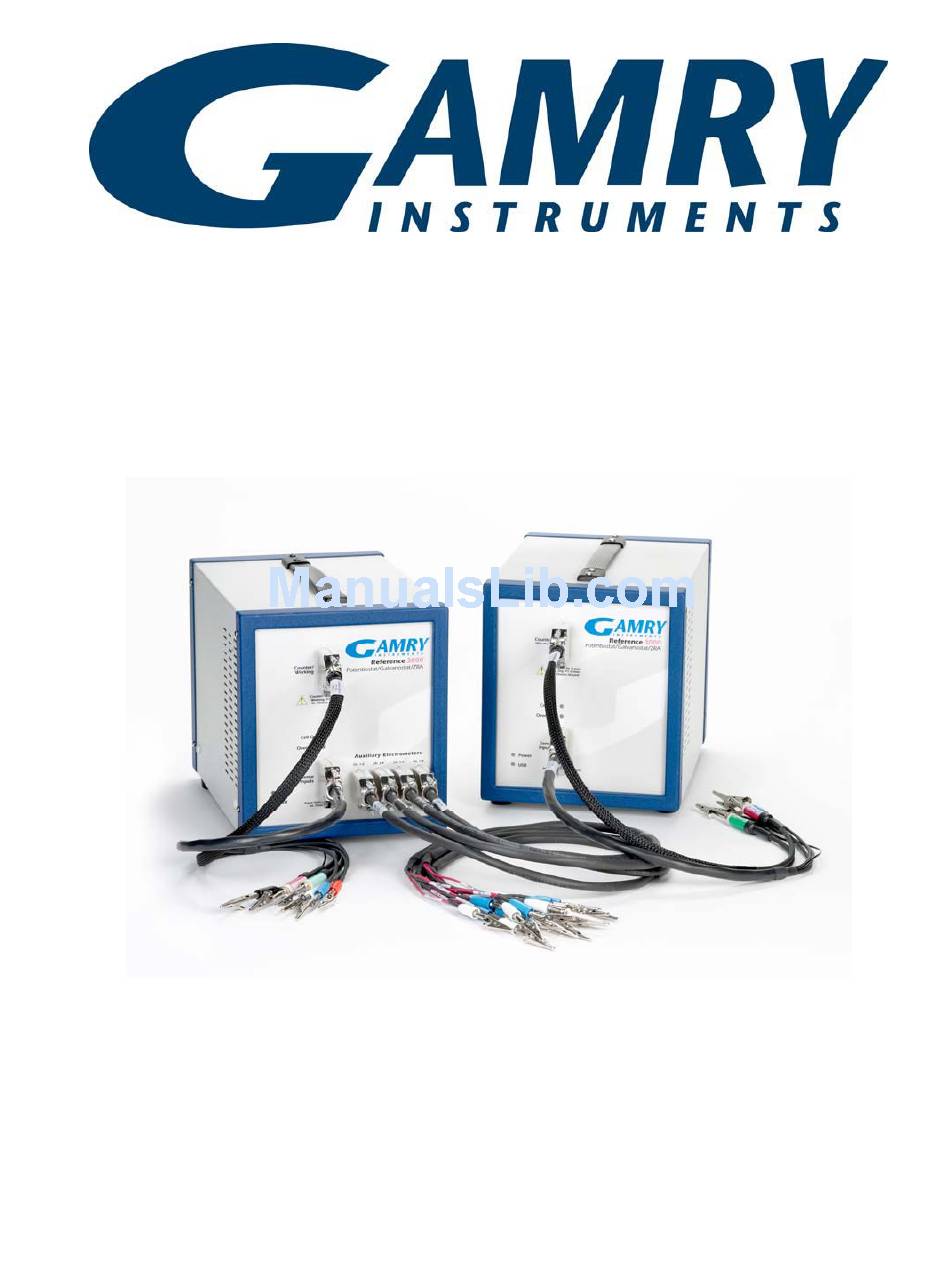

  • Page 1 Reference 3000™ Potentiostat/Galvanostat/ZRA Operator’s Manual Copyright © 2012–2015 Gamry Instruments, Inc. Revision 6.1 December 2, 2015 988-00014...
  • Page 3 If you have problems in installation or use of a system containing a Reference 3000, it would be helpful if you called from a phone next to your computer, where you can type and read the screen while talking to us.
  • Page 4: Limited Warranty

    Limited Warranty Gamry Instruments, Inc. warrants to the original user of this product that it shall be free of defects resulting from faulty manufacture of the product or its components for a period of two years from the original shipment date of your purchase.
  • Page 5: Disclaimers

    Reference 3000, Reference 600, Interface 1000™, PC4, PCI4, ECM8, Series G, Gamry Framework, DC105, EIS300, and Gamry are trademarks of Gamry Instruments, Inc. No part of this document may be copied or reproduced in any form without the prior written consent of Gamry Instruments, Inc.
  • Page 7: Table Of Contents

    Authorization Codes and Label ..................4-11 Firmware Update ......................4-13 Calibration ........................4-15 Separate Calibration for Each Reference 3000 Cable Type........4-15 DC and AC Calibration ..................4-15 Low I Range DC Calibration................. 4-16 Chapter 5 -- Cell Connections......................5-1...
  • Page 8 Ancillary Apparatus....................5-1 AE Connections ....................5-1 Fuses in the Cell Cable...................... 5-1 Normal Cell Connections ....................5-1 ZRA Mode Cell Connections..................... 5-3 Stack Mode Cell Connections ................... 5-4 Membrane Cell Connections..................... 5-5 Fuses in the Cell Cable...................... 5-5 In-line Fuse-Holders and Fuses ................5-5 Fuses Located in the Cable Hood .................
  • Page 9 Separate the pairs ....................10-4 Twist the Sense Wires..................10-4 How Should You Hook Up Your Cell?................10-4 Appendix A -- Reference 3000 Specifications ................. 11-1 Appendix B -- Reference 3000 Cell Connectors................12-1 Appendix C -- Misc I/O Connector....................13-1 Appendix D -- Auxiliary A/D Input Characteristics ................
  • Page 11: Chapter 1 -- Safety Considerations

    The “AC Adapter” supplied with the Reference 3000 is certified under EN 60950. The AC Adapter converts the AC mains voltage to 24 volts DC, which is used to power the Reference 3000. You should always use the AC adapter (power brick) supplied with your Reference 3000 to supply DC power to the instrument.
  • Page 12: Ac Mains Connection To The Power Brick

    Grounding in the Reference 3000 The circuitry and the metal case of the Reference 3000 are not connected to an earth ground. If they were connected to earth ground, it would compromise the Reference 3000’s ability to make measurements in electrochemical cells that contain earth grounded conductors.
  • Page 13: Operation With Earth Grounded Cells And Auxiliary Apparatus

    An earth ground connection can cause problems when testing batteries, fuel cells, or capacitors. Many of these devices can source huge currents, often 10’s or 100’s of amps. If the Reference 3000 chassis is earth grounded and another location in the stack is accidentally (or intentionally) connected to earth ground, a portion of the stack is shorted through the Reference 3000’s cell cable.
  • Page 14: Defects And Abnormal Stresses

    • it has been subjected to environmental stress (corrosive atmosphere, fire, etc.). • Do not use your Reference 3000 or any other apparatus if you think it could be hazardous. Have it checked by qualified service personnel. Environmental Limits Note that there are environmental limit conditions on the storage, shipping and operation of this equipment.
  • Page 15: Cleaning

    Use a cloth lightly dampened with either clean water or water containing a mild detergent to clean the outside of the Reference 3000 enclosure. Alternatively, you can use isopropyl alcohol. Do not use a wet rag or allow fluid to enter the Reference 3000 enclosure. Do not immerse the Reference 3000 in any type of cleaning fluid (including water).
  • Page 16: Ce Compliance

    Gamry Instruments, Inc. has designed and tested the Reference 3000 to comply with these standards. The relevant CE regulations include EN 61010 and EN 61326. RoHS Compliance The Reference 3000 has been built using lead free components and lead free solder. It is in compliance with the European RoHS initiative. 1 - 6...
  • Page 17: Chapter 2 -- Introduction

    The Reference 3000 offers two different compliance voltage and compliance current settings. A user can choose to operate the Reference 3000 set for compliance of ± 1.5 Amperes and voltages up to ± 30 Volts or he/she can chose to operate at ± 3 Amperes and voltages up to ± 15 Volts. This setting cannot be changed in the middle of an experimental run.
  • Page 18: About The Auxiliary Electrometer Option

    • A sine wave generator on the Reference 3000 allows its use for impedance measurements at frequencies up to 1 MHz. Data can be acquired at frequencies up to 300,000 points per second, allowing Cyclic Voltammetry at scan rates of 1500 V/sec with 5 mV per point resolution.
  • Page 19 Chapter 2 -- Introduction--Notational Conventions 2 - 3...
  • Page 21: Chapter 3 -- Instrument Circuitry

    If you are not familiar with electronic schematics or potentiostats, you probably want to skip this chapter. This information is for expert use only and is not required for routine use of the Reference 3000. The following figures are partly schematic diagrams and partly block diagrams. They are intended to show the basic principles of the Reference 3000 circuitry without the confusion of the full circuitry details.
  • Page 22 Chapter 3 -- Instrument Circuitry--Reference 3000 Schematic/Block Diagrams Figure 3-1 Reference 3000 Potentiostat Board in Potentiostat Mode Simplified Schematic/Block Diagram 3 - 2...
  • Page 23 Switches are either reed relays or MOS switches as appropriate. All switches are under computer • control (obviously, since the Reference 3000 does not have a knob and dial front panel). The variable current measurement resistor, Rm, is one of eleven fixed value resistors selected using •...
  • Page 24 The DDS can generate fixed amplitude sine waves with frequencies between 1 MHz and 1 mHz. In • practice, Gamry’s EIS300 software uses the Scan DAC to generate sine signals if frequency is below 1 The low pass filter removes high frequency distortion in the “raw” DDS output.
  • Page 25 Chapter 3 -- Instrument Circuitry--Reference 3000 Schematic/Block Diagrams Figure 3-3 One A/D Signal Chain in the Reference 3000 Notes for Figure 3-3: This diagram shows one of three identical ADC channels. One channel is dedicated to measurement • of the potentiostat’s current signal, another is used to measure the cell or stack voltage, and the third is switched between a wide selection of possible signals.
  • Page 26 The Aux ADC BNC input is a differential input. Some of this input’s characteristics can be changed by • either jumpers or CMOS switches. Early Reference 3000’s use jumpers to change the characteristics, while later units (shipped after the middle of 2009) will use CMOS switches under software control to change the characteristics.
  • Page 27 Unlike previous Gamry Instruments Potentiostats, the Reference 3000 calibration data is stored in the instrument, not in a data file. When a Reference 3000 is moved from one computer to another, its calibration remains valid.
  • Page 28 Additional circuitry that is not shown protects the Reference 3000 against ESD (electrostatic discharge) • and electrical surges. Note that the Reference 3000 is also protected against damage if an incorrect polarity power input is connected to the unit. WARNING Do not use a DC power source other than the AC adapter model provided with your Reference 3000.
  • Page 29 The inputs will not be damaged by connection to voltages as large as ± 36 volts versus the Reference • 3000’s ground, regardless of the compliance voltage setting. This is true even when the Reference 3000 is not powered up. They cannot measure voltages larger than the compliance voltage.
  • Page 30 Chapter 3 -- Instrument Circuitry--Reference 3000 Schematic/Block Diagrams 3 - 10...
  • Page 31: Chapter 4 -- Installation

    Chapter 4 -- Installation--Reference 3000 Schematic/Block Diagrams Chapter 4 -- Installation This chapter of the Gamry Instruments Inc. Reference 3000 Operator's Manual covers normal installation of the Reference 3000. We assume the Reference 3000 is installed as part of a Gamry Framework based electrochemical measurement system containing a Microsoft Windows...
  • Page 32: Initial Visual Inspection

    Reference 3000 to indicate that it could be a safety hazard. Physical Location You normally locate your Reference 3000 on a flat workbench surface. You will want to have access to the rear of the instrument because some cable connections are made from the rear. The Reference 3000 is generally operated in an up-right position (see Figure 4-1).
  • Page 33: Computer Requirements

    Gamry Software Setup program will normally start automatically when you place the Gamry Instrument’s Software CD (or Gamry Instrument Software Flash Drive) into your computer. If you have inserted the Gamry CD or Flash Drive into your computer and the Gamry Setup program does not start automatically: 1) Navigate to the root folder of the device containing the Gamry Software (CD or Flash Drive) or to a Windows folder containing the Gamry Software.
  • Page 34: Power Cord And Power Connection

    Reference 600 power adapter are below 11 cm. The Reference 3000 external power supply is delivered with a line cord suitable for use in the United States. In other countries, you may have to replace the line cord with one suitable for your electrical outlet type. You must always use a line cord with a CEE 22 Standard V female connector on the apparatus end of the cable.
  • Page 35: Power Up Test

    One quick test is to power up the Reference 3000 and watch the blue power LED indicator on the front panel of the Reference 3000 (see Figure 4 - 1). After connecting DC power to the Reference 3000, turn on its rear panel Power switch (see Figure 4 - 2).
  • Page 36: Time Device Installation In Windows Xp

    As shown in this Figure, do not choose to let Windows Update find the device driver that you need. The Windows Update web site has no knowledge of the Gamry Instruments Reference 3000. Make sure you select No, not this time. After you select, Next, you should see a screen that looks like this:...
  • Page 37: Running The Framework

    Select Install the software automatically, then select Next. These messages will also be seen when an Reference 3000 instrument is moved to a new USB port. In this case, you can still select Install the software automatically, even if you do not have the Gamry Instruments CD.
  • Page 38: Framework Device Status Bar

    Framework Device Status Bar By default, the Gamry Framework shows a Device Status Bar under its main menu: see Figure 4-5. If you don't see the Device Status Bar when you run the Gamry Framework, it has been disabled in the Framework Options menu.
  • Page 39: Gamry Instrument Manager

    Chapter 4 -- Installation--Gamry Instrument Manager Gamry Instrument Manager You can use Gamry's new Instrument Manager dialog box to make changes to the configuration of your Reference 3000 system. This dialog box is accessed through the Options menu in the Gamry Framework.
  • Page 40: Authorization Codes And Label

    Authorization Codes and Label If you purchase additional Gamry application software or you need to make a correction to your authorization codes, you can do so using the Windows Device Manager or the Framework Instrument Manager. The dialog box used to enter authorization codes also allows you to change the Label for your device. The Gamry Framework Application Software must be closed before you can use the Device Manager to make changes.
  • Page 41 Chapter 4 -- Installation--Authorization Codes and Label Figure 4-7 Device Settings Tab This was the Device Settings dialog box for the second potentiostat in the system described above. You can enter or edit any of the authorization codes or Label for the device by clicking on the appropriate edit box and entering the in formation.
  • Page 42: Firmware Update

    Press OK when you are finished. On occasion you may have to change the USB port used to connect your Reference 3000 to your computer. The Windows Device manager will interpret a Reference 3000 on a new USB port as a new Reference 3000.
  • Page 43: Firmware Update

    Gamry software CD or on your computer’s hard drive) and then press Open. The update procedure will begin. A status bar shows the progress of the update. The USB indicator on the Reference 3000 should also turn red during the procedure. Once the update is successful, press OK and your Reference 3000 will be ready for use.
  • Page 44: Calibration

    Separate Calibration for Each Reference 3000 Cable Type The Reference 3000 recognizes the type of cable connected to its cell connectors. It maintains a separate AC calibration table for each type of cable. The Gamry Framework will not let you use AC calibration data recorded using a 60 cm shielded cable for experiments run using a longer cable.
  • Page 45: Low I Range Dc Calibration

    DC current range offsets are recorded with the cell switch turned off. A DC current measurement is made on each of the 11 current ranges in the Reference 3000. The measured current on each range is the sum of current contributions from: The input current of the I/E Converter input amplifier, •...
  • Page 46 The Low I DC Calibration is not a full calibration. You must run a full DC Calibration on your Reference 3000 before you first run the “Low I DC calibration”. Remember that the Reference 3000 must have a full DC calibration on the same type of cable you are using for the Low I DC Calibration.
  • Page 47: Chapter 5 -- Cell Connections

    Fuses in the Cell Cable The Reference 3000 could be damaged if currents much larger than 3 amps were to flow into or out of the Counter electrode or Working electrode leads. Improper connection to a battery, fuel cell, or super capacitor could cause this type of damaging current to flow.
  • Page 48 Autoclaves, stress apparatus, and field measurements may involve earth grounded electrodes. A binding post on the rear panel of the Reference 3000 is provided for this purpose. A water pipe can be suitable sources of earth ground.
  • Page 49: Zra Mode Cell Connections

    ZRA Mode Cell Connections The Reference 3000 can function as a precision Zero Resistance Ammeter (ZRA). It maintains two metal samples at the same potential and measures the current flow between the samples. It can also measure the potential of the samples versus a reference electrode.
  • Page 50: Stack Mode Cell Connections

    Sense leads are connected to opposite ends of a Stack. The white pin jack on the cell cable can be connected to a low voltage point in the stack. Some Gamry scripts allow the voltage difference between the white and blue leads to be read, even though the Reference 3000 is in Stack Mode.
  • Page 51: Fuses In The Cell Cable

    Chapter 5 -- Cell Connections--Fuses in the Cell Cable contains a counter electrode. The Reference 3000 controls the potential across the membrane. Table 5-4 shows the cell connections used with a membrane type cell. Table 5-4 Cell Cable Connections for a Membrane Cell...
  • Page 52: Fuses Located In The Cable Hood

    Figure 5-1 Open Fuse-holder Showing Fuse Four replacement fuses should accompany every cell cable shipped by Gamry Instruments. The Gamry Instruments Part Number for the in-line fuses is 630-00019. If you need to source replacement fuses locally, we currently only recommend Fast Acting (FF), 3.15 amp, 5x20mm cylindrical fuses from the Bussman Corporation.
  • Page 53 Four replacement fuses should accompany every Counter/Working cell cable shipped by Gamry Instruments. The Gamry Part Number for the small rectangular fuses is 630-00021. If you need to source replacement fuses locally, we currently only recommend Very Fast Acting, 3.15 amp, Nano Fuses from the Littelfuse corporation.
  • Page 54: Testing For Open Fuses

    A Gamry Framework test checks for blown fuses without having you remove the fuses. A simple Potentiostatic test is run on the Calibration Cell on the Gamry UDC4 Dummy Cell. The test is run using the “Set a Voltage.exp” script in the Framework’s Utilities Package. Utility Package scripts do not require a Authorization Code, so every Framework installation can run this test.
  • Page 55 If the fuse test indicates an open fuse, and the fuses both check out a good with an ohmmeter, some other problem has occurred in the cables or the instrument. Contact Technical Support at Gamry Instruments at your earliest convenience.
  • Page 57: Chapter 6 -- Panel Indicators And Connectors

    The Reference 3000 front panel includes two connectors and four backlighted LED indicators. Each of these will be discussed in turn. A picture of the Reference 3000 front panel can be seen in Figure 4 - 1. The cell connections are discussed at great length in Chapter 5. A pin-out of the two cell cable connectors can be found in Appendix B.
  • Page 58: The Usb Led

    The computer has disabled the USB port going to the Reference 3000. • The USB LED will glow a steady green if a valid USB connection has been made and the Reference 3000’s communication processor is receiving power down the USB cable.
  • Page 59: Overload Led

    Figure 4 - 2. Power In Jack The Reference 3000 derives all its power from a +24 volts DC supply connected to the Power In jack on the lower right side of the rear panel. The input current is less than 5 amps.
  • Page 60: Power Switch

    USB Port The USB port on the rear panel of the Reference 3000 is a Type B connector as defined in Revision 1.1 and 2.0 of the USB Specification. You use a standard, shielded, Type A/B cable to connect this port to a computer’s USB port or a USB hub (preferably an externally powered hub).
  • Page 61: Thermocouple Input

    The more-rectangular end plugs into the computer and the more-square end plugs into the Reference 3000. A suitable USB cable was included with your Reference 3000 shipment. If this cable is lost, you can replace it with a cable from your local computer retailer.
  • Page 62: I Monitor Bnc

    BNC. Its output impedance is approximately 200 Ohms in parallel with 220 pF. E Monitor BNC The E Monitor BNC connector is the output of the Reference 3000’s differential electrometer circuit. With the exception of the filtering described below, it is a buffered representation of the voltage difference between the white and blue cell cable leads.
  • Page 63: Ext. Sig. In Bnc

    The Aux In BNC connector allows you to measure a voltage from outside the Reference 3000 using the Reference 3000’s internal A/D. The scaling is: ±3 volts in equals ±30000 A/D counts. This is a resolution of 100 µV per bit. The results will be reported in volts. The input is differential (see Appendix D).
  • Page 64: Expansion Interface

    Chapter 6 -- Panel Indicators and Connectors--Rear Panel Expansion Interface The expansion interface is a D-connector on the Reference 3000 reserved for use with the Gamry Reference 30k Booster to provide additional cell current up to 30Amps. A specially designed digital cable connects the Expansion Interface port to the booster.
  • Page 65: Chapter 7 -- Auxiliary Electrometer Option

    The AE is a factory-installed option for the Reference 3000. The AE acronym stands for Auxiliary Electrometer. The AE allows eight independent, high voltage differential electrometer channels available to be read by the Reference 3000’s A/D converter. Difference voltages (between the two inputs of each channel) of up to ± 5 V can be measured.
  • Page 66: Experiments

    Experiments The AE option is supported only by the Galvanostatic EIS, Galvanostatic Single Frequency EIS, and Hybrid EIS Framework scripts, as well as the experiments performed through Gamry PWR800 Software. Connections Using Standard Cables The AE connects to an electrochemical cell using one, two, three or four cables. Other than labeling, all four cables are identical.
  • Page 67: Connections Using Custom Cables

    Chapter 7 -- Auxiliary Electrometer Option--Connections Using Custom Cables Table 7-1 AE Cable Connections Type Name Wire Color Connector Normal Connection Color Analog Input Odd Ch - Black Yellow Low side of odd channel reference side Analog Input Odd Ch + Black Purple High side of odd channel...
  • Page 69: Chapter 8 -- Stability In Potentiostat Mode

    Whenever you see sharp breaks in the current recorded on the system, you should suspect oscillation. The Reference 3000 has been tested for stability with cell capacitors between 10 pF and 0.1 F. In all but its fastest control amp speed setting, it is stable on any capacitor in this range -- as long as the impedance in the reference electrode lead does not exceed 20 kΩ.
  • Page 70: Improving Potentiostat Stability

    Improving Potentiostat Stability There are a number of things that you can do to improve an unstable or marginally stable Reference 3000 potentiostat/cell system. This list is not in any particular order. Any or all of these steps may help.
  • Page 71 Chapter 8 -- Stability in Potentiostat Mode--Improving Potentiostat Stability Provide a high frequency shunt around the cell. A small capacitor between the red and white cell • leads allows high frequency feedback to bypass the cell. See Figure 8-2. The capacitor value is generally determined by trial and error.
  • Page 72 Chapter 8 -- Stability in Potentiostat Mode--Improving Potentiostat Stability Add resistance to the counter electrode lead. See Figure 8-3. This change lowers the effective • bandwidth of the control amplifier. As a rule of thumb, the resistor should be selected to give one volt of drop at the highest current expected in the test being run.
  • Page 73: Chapter 9 -- Measurement Of Small Current Signals

    To place this current in perspective, 100 fA represents the flow of about 600,000 electrons per second! The small currents measured by the Reference 3000 place demands on the instrument, the cell, the cables and the experimenter. Many of the techniques used in higher current electrochemistry must be modified when used to measure pA currents.
  • Page 74 Chapter 9 -- Measurement of Small Current Signals--Measurement System Model and Physical Limitations In Figure 9-1: Is an ideal signal source Is the unknown cell impedance cell Is the “real” cell current cell Is the current measurement circuit's current measurement resistance Is an unwanted resistance across the cell shunt Is an unwanted capacitance across the cell...
  • Page 75: Johnson Noise In Z Cell

    Chapter 9 -- Measurement of Small Current Signals--Measurement System Model and Physical Limitations Unfortunately technology limits high impedance measurements because: Current measurement circuits always have non-zero input capacitance, i.e. C > 0. • Infinite R cannot be achieved with real circuits and materials. •...
  • Page 76: Leakage Currents And Input Impedance

    AC signal by more than a factor of 10. The Reference 3000 uses an input amplifier with an input current of around 5 pA. Other circuit components may also contribute leakage currents. You therefore cannot make absolute current measurements of very low pA currents with the Reference 3000.
  • Page 77: Shunt Resistance And Capacitance

    You will need an opening in the shield large enough to allow a cell cable to enter the shield. The shield must be electrically connected to the Reference 3000's floating ground terminal. An additional connection of both the shield and the Reference 3000 floating ground to an earth ground may also prove helpful.
  • Page 78: Avoid External Noise Sources

    Try to avoid AC powered or computerized apparatus within your Faraday shield. Cell Cable Length and Construction The Reference 3000 is shipped with 60 cm shielded cell cables. We also offer extended length cables and unshielded cables as extra cost options.
  • Page 79: Cell Construction

    Reference 3000 cell leads. Floating Operation The Reference 3000 is capable of operation with cells where one of the electrodes or a cell surface is at earth ground. Examples of earth grounded cells include: autoclaves, stress apparatus, pipelines, storage tanks and battleships.
  • Page 80 The instrument specifications only apply on isolated cells with the Reference 3000 earth ground referenced (not floating). Special precautions must be taken with the cell connections when the Reference 3000 must float. Make sure that all the cell connections are isolated from earth ground. In this case, you must disconnect the chassis ground terminal of the Reference 3000 from earth ground.
  • Page 81: Chapter 10 - Eis Measurement Of Small Impedances

    Chapter 10 – EIS Measurement of Small Impedances Overview The Gamry Instruments Reference 3000 is a high performance measurement instrument used for all types of electrochemical testing. Unlike many other electrochemical instruments, it offers outstanding performance for both tests with small current signals and high impedances and for tests involving large currents and very small impedances.
  • Page 82: Dc Errors And Four-Terminal Measurements

    Chapter 10 – EIS Measurement of Small Impedances--DC Errors and Four-terminal Measurements DC Errors and Four-terminal Measurements Four-terminal measurements are a common technique used in precision measurement of small impedances. In a four-terminal measurement, a nominally two-terminal device, such as a resistor or a battery, is connected using four leads.
  • Page 83: What Is Mutual Inductance

    Fortunately, passing the same current in opposite directions through adjacent wires tends to cancel the external field. This also minimizes the net inductance in the wires. In all Gamry Instruments Reference 3000 Counter/Working cable, the current carrying leads are bound together.
  • Page 84: Separate The Pairs

    EIS measurement. The Reference 3000 has two cell cables, so that we can separate the current carrying wires from the sense wires. The current carrying pair is in the Counter/Working Cable and the sense pair is in the Sense Cable.
  • Page 85 Chapter 10 – EIS Measurement of Small Impedances--How Should You Hook Up Your Cell? Figure 10-2 Wiring Recommendations Current Carrying Leads System Cell Minimize Sense Leads 10 - 5...
  • Page 87: Appendix A -- Reference 3000 Specifications

    Appendix A -- Reference 3000 Specifications All specifications are at an ambient temperature of 25 °C, with the Reference 3000 powered using the power adapter shipped with the unit, standard shielded 60 cm cell cables, and the cell enclosed in a Faraday shield.
  • Page 88 Appendix A -- Reference 3000 Specifications-- Offset Range Volts ± 10 Current to Voltage Converter Maximum Full Scale Range 3000 Note 12 Minimum Full Scale Range Note 12 3 (after x100 gain) Voltage across Rm mV at Note 13 full scale...
  • Page 89 Appendix A -- Reference 3000 Specifications-- Potentiostatic Mode Applied Voltage Range volts Note 5 ± 11 Accuracy Note 17 DC zero offset Gain % setting DC Bias volts ± 8 Scan DAC ranges volts ± 6.4, ± 1.6, ± 0.4 Drift <...
  • Page 90 Appendix A -- Reference 3000 Specifications-- General Power Input Voltage Range 22 to 26 volts Power Leakage Current Note 21 ± 1 nA (floating, earthed Working Electrode) Dimensions (approximate) (whd) 20 x 23 x 30 Note 22 Weight (approximate) Note 22 Dimensions of External Power Adapter 7.5 x 5 x 22...
  • Page 91 20. See Appendix D. 21. Isolation quality has both DC factors and AC factors (predominately at the 300 kHz power supply frequency). Only the DC leakage current is shown here. Consult Gamry’s technical support for additional information. 22. Excluding external power adapter and any cables supplied with unit.
  • Page 93: Appendix B -- Reference 3000 Cell Connectors

    Multiple pins assigned to the same signal are connected together on the Reference 3000’s Potentiostat board. If you need to connect this signal outside the Reference 3000, you need a wire connected to any one of the D connector pins.
  • Page 94 Appendix B -- Reference 3000 Cell Connectors-- Table B-2 Sense Inputs Connector Pin(s) Signal Name CBL_ID2 One of 4 cable ID bits. Used to identify the type of cell cable attached to the unit. Pull to a logic High through a resistor. Ground to set the bit low.
  • Page 95: Appendix C -- Misc I/O Connector

    This connector contains a number of signals, used to interface the Reference 3000 to external apparatus. It is the miniature 15 pin female D shaped connector on the rear panel of the Reference 3000. Be careful, the ground pins on this connector are not the Reference 3000 floating ground.
  • Page 97: Appendix D -- Auxiliary A/D Input Characteristics

    CMOS switches set using software. The changeover occurred in 2009. We usually ask that you return your Reference 3000 to Gamry Instruments if you need to change the hardware jumpers. This information is provided so a qualified service technician can change the Aux A/D input jumpers in the field.
  • Page 98: Input Impedance Selection

    Appendix D -- Auxiliary A/D Input Characteristics-- Figure D-1 Auxiliary A/D Input Configuration Jumpers View of Reference Family Controller Board Filter Jumper Input Z Jumpers Input Impedance Selection Two jumpers are associated with the input impedance – J902 and J903. With J902 and J903 installed, the Aux A/D input has a 100 kΩ...
  • Page 99: Bandwidth Selection

    Appendix D -- Auxiliary A/D Input Characteristics--Bandwidth Selection Bandwidth Selection J900 (or on some boards J901) controls the bandwidth of the Aux A/D input. With J900 (or J901) removed, there is no filtering on this input and the –3 dB bandwidth is greater than 300 kHz. With J900 (or J901) in place (the default setting), a single pole RC filter is used to limit noise into the A/D.
  • Page 101: Appendix E - Auxiliary Electrometer Specifications

    Appendix E – Auxiliary Electrometer Specifications--DC Voltage Measurement Appendix E – Auxiliary Electrometer Specifications Unless otherwise mentioned, all specifications apply at 22° C, zero common mode voltage versus Ground FA, input voltages with Z < 10 Ohms, and all channel inputs (other than those of the channel under test) at zero volts versus Ground FA.
  • Page 102: Other Ac Specifications

    Appendix E – Auxiliary Electrometer Specifications--Other AC Specifications Other AC Specifications Bandwidth > 2 MHz - 3 dB Phase Shift < 1° DC to 20 kHz < 3° 20 kHz to 100 kHz Noise < 4 µV 0.1 Hz to 10 Hz <...
  • Page 103: Appendix F - Ce Certificate

    Manufacturer's Name and Location: Gamry Instruments 734 Louis Drive Warminster, PA 18974 This declaration is for the Gamry Instruments product models: Reference 3000 Potentiostat/Galvanostat/ZRA. The declaration is based upon compliance with the following directives: EMC Directive 89/336/EEC as amended by 92/31/EEC and 93/68/EEC...
  • Page 104: Certificate Of Conformance

    Appendix F – CE Certificate--Certificate of Conformance Certificate of Conformance 16 - 2...
  • Page 105: Comprehensive Index

    1-2 blue cell lead, 5-2 floating operation, 9-9 calibration, 4-16 fluorescent lights, 9-7 calibration data, 3-8 Gamry Framework, 2-1 capacitive cells, 8-1 CE Compliance, 1-6 green cell lead, 5-2 cell cable ground, 12-1, 12-2 replacements and specials, 5-3...
  • Page 106 Problems, i radio frequency, 1-6 radio transmitters, 9-7 red cell lead, 5-2 Reference 3000 - about, 2-1 Reference 3000 – manual overview, 2-1 reference electrode, 5-2 Reference Electrode, 12-2 reference electrode impedance, 9-8 reference electrodes, 9-8 RFI, 1-6...
