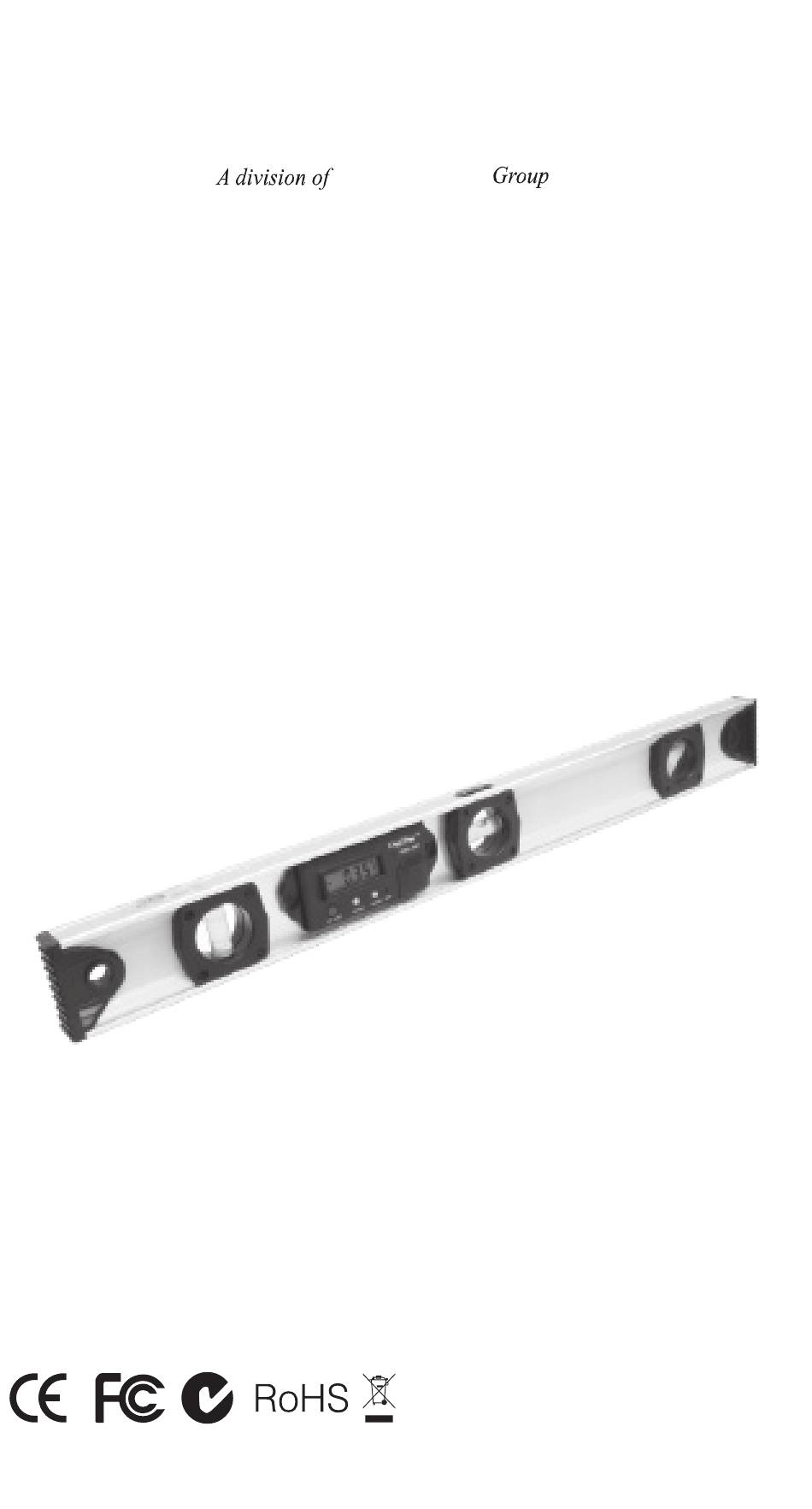

Digi-Pas
®
DIGIPAS
USER MANUAL
Screw-On (Module)
DIGITAL LEVEL
DWL-180 (0.05° Resolution)
This user manual is printed in small reading scale for paper saving
purpose to protect the environment.
For a better view of this user manual, please visit
http://www.digipas.com/catalog-manual to download the softcopy.
Product of Singapore
Advertisement
Table of Contents
Related Manuals for Digi-Pas DWL-180
Summary of Contents for Digi-Pas DWL-180
- Page 1 DIGIPAS USER MANUAL Screw-On (Module) DIGITAL LEVEL DWL-180 (0.05° Resolution) This user manual is printed in small reading scale for paper saving purpose to protect the environment. For a better view of this user manual, please visit http://www.digipas.com/catalog-manual to download the softcopy.
- Page 2 Device Overview : LCD Display Opening for screw Sound Buzzer ON/OFF: Power on/o device Alt.Zero : CAL: Activate Calibration Mode - Set any angle to 0° as reference - Press & Hold to turn on/o buzzer sound MODE SELECT : - Press to change display unit : °(Degree), %slope, mm/M, In/Ft - Press &...
- Page 3 Technical Specification Dimension : 117 x 48.5 x 16mm Weight : 100 Grams Operating Temp : 0° ~ +50°(Celsius) Storage Temp : -10° ~ +60°(Celsius) Battery : 2 x CR2032 (3V) Cleaning • Keep the level dry and clean. Remove any moisture or dirt with a soft, dry cloth.
- Page 4 Battery Compartment Push down the battery cover to slide open. For the rst time usage, remove the plastic strip to connect the battery...
- Page 5 Calibration Done. Note: Ensure the device is kept still during calibration Caution ® Digi-Pas device is calibrated in the factory for maximum accuracy. User can re-calibrate when necessary. Please refer to www.digipas.com for video demonstration on how to calibrate the device.
- Page 6 Calibration Illustration...
- Page 7 Warranty Digi-Pas® Digital level is warranted to the original purchaser to be free from defects in workmanship and material. JSB Tech will, at its option, repair or replace any detective part which may malfunction under normal and proper use within a warranty period of 1 (one) year from the date of shipment.
- Page 8 Distributed by : Manufactured by JSB TECH Pte Ltd Email: info@digipas.com www.digipas.com...
