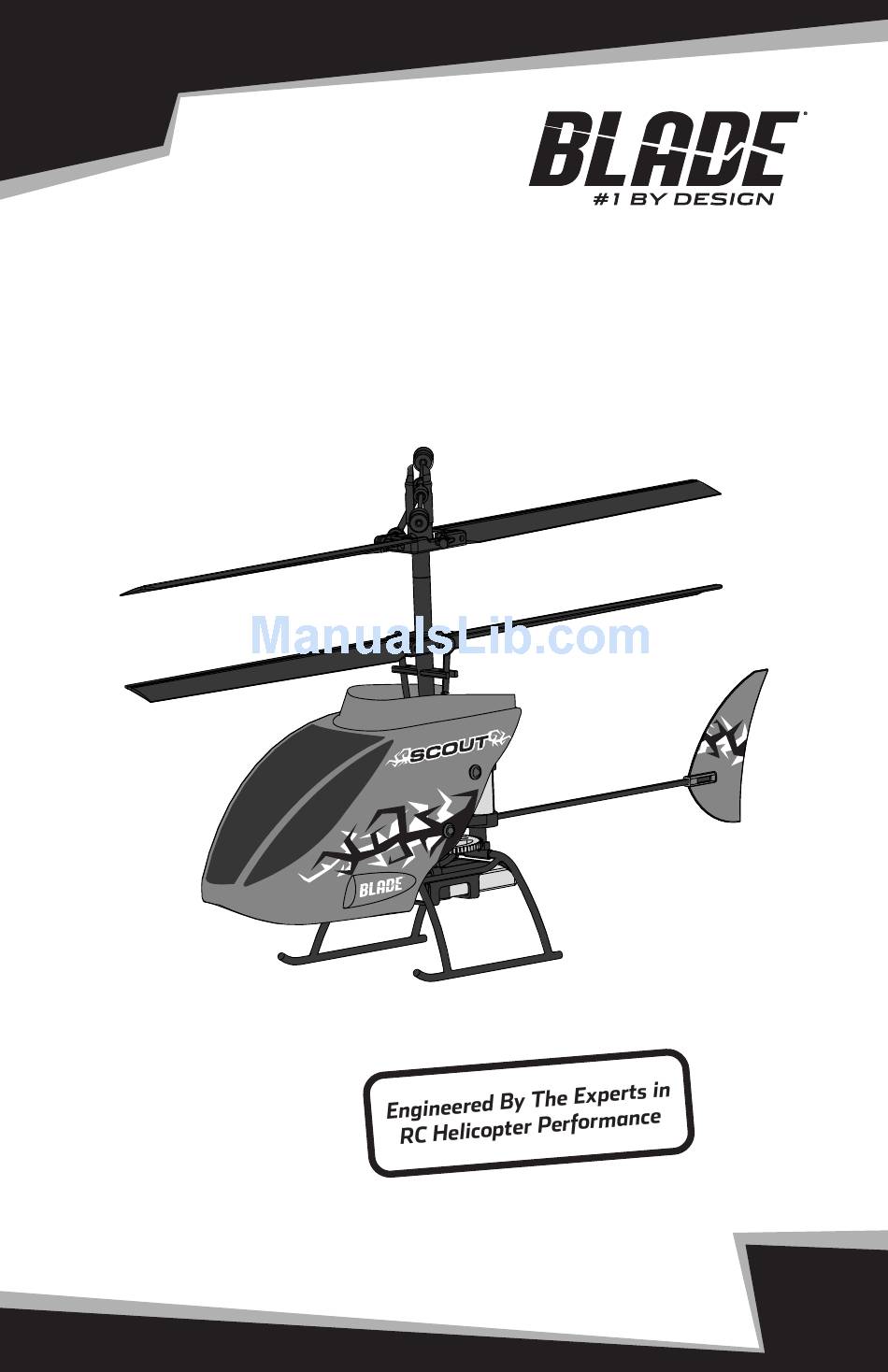

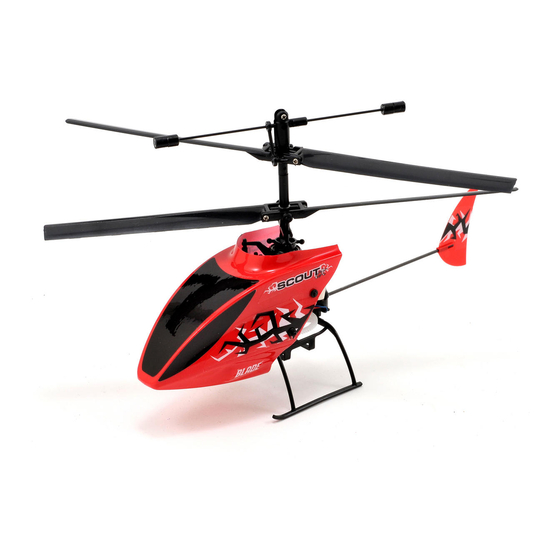

- Page 1 Scout CX ™ READY-TO-FLY...
-
Page 2: Safety Precautions And Warnings
NOTICE All instructions, warranties and other collateral documents are subject to change at the sole discretion of Horizon Hobby, Inc. For up-to-date product literature, visit horizonhobby.com and click on the support tab for this product. Meaning of Special Language The following terms are used throughout the product literature to indicate various levels of potential harm when operating this product: NOTICE: Procedures, which if not properly followed, create a possibility of physical property damage AND a little or no possibility of injury. -
Page 3: Specifications
Superb Directional Control 2.4GHz CX Helis Fly Together at the and Stability Same Time Replacement Parts Available Proportional Rotor Head To Keep Your Scout CX Flying Servo for Smooth, Precise Like New Control Response Specifications Log on to www.bladescoutcx.com and follow Length 160mm (6.30 in) -
Page 4: Protecting Your Flight Battery
Battery and Charger Warnings and Guidelines The transmitter included with the Scout CX has been • Always transport or temporarily store the battery in designed to safely charge the included Li-Po battery. a temperature range of 40–120º F. Do not store bat- tery or model in a car or direct sunlight. If stored in CAUTION: All instructions and warnings must be a hot car, the battery can be damaged or even catch followed exactly. Mishandling of Li-Po batteries fire. -
Page 5: Before Flying
Before Flying Lower the throttle to off, then power on the Hold the bottom of the Scout CX as shown to transmitter. keep from damaging the circuit board. Insert and connect the Li-Po battery into the Put the helicopter on a flat, level surface. helicopter battery holder. Make sure to align the The helicopter gyro stabilizes at this time. Do not red dots on both the battery and the landing gear. -
Page 6: Flight Control
Flight Control For smooth control of the Scout CX, always make small control movements. All directions are described as if you were sitting in the helicopter. For example -- when the helicopter nose is pointing toward you, left rudder (turn) will move the nose of the helicopter in the left direction (your right). •Flying up and down: When your Scout CX is stable in the air, gently push/pull the throttle stick up/down to make it fly climb/descend. •Turning left and right: When you are comfortable contolling the flying height of your Scout CX, try turning left/right by moving the rudder (steering stick) in the direction you want the helicopter to turn. •Flying forward and backward: Gently move the elevator (steering stick) up and down to move the helicopter forward and backward. Throttle Down Elevator Forward Backward Rudder Turn Left Turn Right... -
Page 7: Making Flight Adjustments
Lifting Off for the First Flight: 1. Pull the throttle stick down to the bottom of its travel and then turn ON the transmitter. 2. Place the Scout CX on the ground with the tail pointing toward you. 3. Gently move the throttle stick to 1/3 throttle. The rotor blades will spin and the Scout CX will climb. Climb to 1.0–1.5 meters (3–5 feet) high. Reduce and add throttle as needed to hover and descend. Use smooth control stick movement when you are flying the helicopter. Always use small control stick movements and keep your fingers on the control sticks. If you notice that the Scout CX wants to wander/turn to the left or right, some steering adjustments may be necessary. Making Flight Adjustments Left or Right The steering trim makes small adjustments to the helicopter’s direction. If the nose (front) turns right, press the left trim button until the rotation stops and the nose stays in place. A long tone will be heard when the trim is at center. If the heli turns left, then trim right. -
Page 8: How To Be A Successful Pilot
How to be a Successful Pilot • Read the instruction manual carefully (especially the Troubleshooting section if you’re having problems). • Small, smooth control inputs are best. Quickly moving the stick just produces instability and no real flight control. • Make sure the flight battery is fully charged before each flight. It’s better to run the flight battery down to 50% or lower before recharging. A good, fully charged battery should be good for approximately 6 minutes of flight time. If your flight time falls below 4 minutes, your battery may need replaced. • Keep the unit dry and clean. Carpet lint, pet hair, dirt, etc, can restrict the motor and controls, giving reduced power and control response times. • Failure to Bind—Hold the Transmitter a few feet away from the helicopter while binding. Binding while too close can sometimes cause problems. • Make sure that the tail boom is pushed fully into the frame. A loose tail will cause the helicopter to shake. • Make sure the canopy is connected to all four mounting posts. A loose canopy will cause the helicopter to shake. • The heli must be sitting perfectly still to initialize when you plug in the battery. If you are holding it in your hand or, moving it around, it may not initialize properly. There should be no reason to unplug it and start again. Just put it down on the landing skids and it will initialize in a few seconds. -
Page 9: Transmitter And Receiver Binding
Transmitter and Receiver Binding The Scout CX uses 2.4GHz radio frequency band and requires a “binding” procedure. Binding teaches the receiver the specific code of the transmitter, so it will only communicate to this transmitter. There should be no need to bind the transmitter and receiver prior to use. If you ever need to re-bind the transmitter and receiver, please follow the steps below. - Page 10 Exploded View and Parts Listing Part # Description Part # Description BLH2722 Landing Skid and BLH2724 Main frame flight module Battery Mount BLH2721 Upper Main Blade Set (1 Pair) BLH2723 Tail Boom and Fin Assembly BLH2720 Lower Main Blade Set (1 Pair) BLH2727 Canopy with Grommets EFLR3240 Blade 3-Channel 2.4GHz BLH2719 Stabilizer Flybar Set Transmitter with Built-In Charger EFLB0701S E-flite 3.7V 70mAh LiPo Battery...
-
Page 11: Limited Warranty
Limited Warranty What this Warranty Covers WARRANTY SERVICES Horizon Hobby, Inc. (“Horizon”) warrants to the original Questions, Assistance, and Services purchaser that the product purchased (the “Product”) will Your local hobby store and/or place of purchase cannot be free from defects in materials and workmanship at the provide warranty support or service. Once assembly, set- date of purchase. up or use of the Product has been started, you must con- What is Not Covered tact your local distributor or Horizon directly. -
Page 12: Warranty And Service Contact Information
Warranty and Service Contact Information Country of Horizon Hobby Address Phone Number/Email Address Purchase 4105 Fieldstone Rd 877-504-0233 Horizon Service Center Champaign, Illinois Online Repair Request: (Electronics and engines) 61822 USA visit www.horizonhobby.com/service United States of America 4105 Fieldstone Rd Horizon Product Support 877-504-0233 Champaign, Illinois (All other products) productsupport@horizonhobby.com 61822 USA Units 1-4 Ployters Rd Staple Tye +44 (0) 1279 641 097 United Kingdom Horizon Hobby Limited Harlow, Essex sales@horizonhobby.co.uk CM18 7NS... -
Page 13: Fcc Information
Compliance Information for the European Union Declaration of Conformity (in accordance with ISO/IEC 17050-1) No. HH2011062001 Product(s): Blade Scout CX RTF Item Number(s): BLH2700 Equipment class: The object of declaration described above is in conformity with the requirements of the specifications listed below, following the provisions of the European R&TTE directive 1999/5/EC and EMC Directive 2004/108/EC EN 300-328 V1.7.1 EN 301 489-1 V1.7.1: 2006... - Page 14 ©2011 Horizon Hobby, Inc Blade, E-flite and Scout CX are trademarks or registered trademarks of Horizon Hobby, Inc. US patent number US D578,146. US 7,898, 130. PRC ZL 200720069025.2 Other patents pending Created 7/11 30946.I BLH2700...
