Summary of Contents for GreenWorks BL60L00

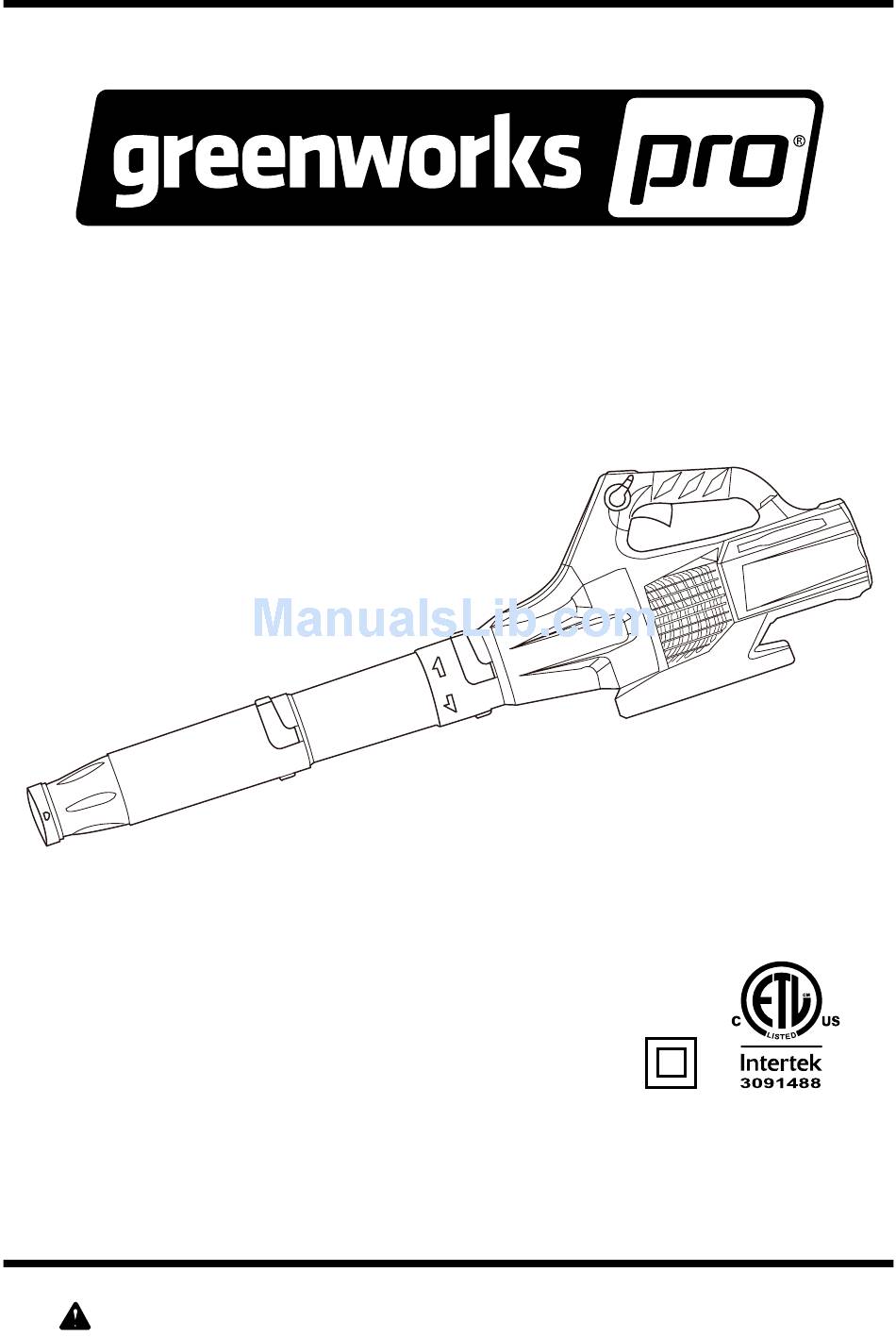

- Page 1 60V BRUSHLESS AXIAL BLOWER BL60L00 Owner’s Manual TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tool.
-
Page 2: Table Of Contents
CONTENTS Contents ..........................2 Product Specifications ......................2 General Safety Rules ......................3 Symbols ..........................6 Know Your Blower ........................ 8 Assembly Instruction ......................9 Operation ..........................12 Battery & Charger Maintenance....................14 Environmentally Safe Battery Disposal...................16 Troubleshooting........................17 Warranty........................18 Exploded View ........................19 Parts List..........................19 PRODUCT SPECIFICATIONS 60V CORDLESS BRUSHLESS AXIAL BLOWER... -
Page 3: General Safety Rules
• Never run the unit without the proper equipment attached. Always ensure the blower tube is installed. • Use only Greenworks Batteries: LB60A03 (2.5Ah) • Use only Greenworks Charger: CH60A00 • Do not operate this unit when you are tired, ill, or under the influence of alcohol, drugs, or medication. - Page 4 GENERAL SAFETY RULES • Maintain tool with care. Keep fan area clean for best and safest performance. Follow instructions for proper maintenance. • Keep all parts of your body away from any moving parts and all hot surfaces of the unit. •...
- Page 5 GENERAL SAFETY RULES • Under extreme usage or temperature conditions, battery leakage may occur. If liquid comes in contact with your skin, wash immediately with soap and water, then neutralize with lemon juice or vinegar. If liquid gets into your eyes, flush them with clean water for at least 10 minutes, then seek immediate medical attention.
-
Page 6: Symbols
SYMBOLS Some of the following symbols may be used on this product. Please study them and learn their meaning. Proper interpretation of these symbols will allow you to operate the product better and safer. SYMBOL NAME DESIGNATION/EXPLANATION Volts Voltage Amperes Current Hertz Frequency (cycles per second) - Page 7 SYMBOLS The following signal words and meanings are intended to explain the levels of risk associated with this product. SYMBOL SIGNAL MEANING DANGER Indicates an imminently hazardous situation, which, if not avoided, will result in death or serious injury. WARNING Indicates a potentially hazardous situation, which, if not avoided, could result in death or serious injury.
-
Page 8: Know Your Blower
KNOW YOUR BLOWER Battery Release Button Cruise Control Lever Turbo Button Variable Speed Trigger Blower Tube Fig. 1 KNOW YOUR BLOWER ( See Figure 1. The safe use of this product requires an understanding of the information on the product and in this operator’s manual as well as a knowledge of the project you are attempting. -
Page 9: Assembly Instruction
ASSEMBLY INSTRUCTION UNPACKING This product requires assembly. • Carefully remove the product and any accessories from the box. Make sure that all items listed in the package contents section are included. • Inspect the product carefully to make sure no breakage or damage occurred during shipping. •... - Page 10 ASSEMBLY INSTRUCTION BATTERY IMPORTANT! The battery pack is not charged when it is purchased. Before using the blower for the first time, place the battery pack in the battery charger and charge. Make sure to read all safety precautions, and follow the instructions in the Battery Charger section. To Remove (See Figure 2.) 1.
- Page 11 ASSEMBLY INSTRUCTION BLOWER TUBE ASSEMBLY W A R N I N G To prevent accidental starting that could cause serious personal injury, always remove the battery pack from the tool when assembling parts. Tube Groove Fig. 3 1. Align either of the grooves in the tube with the tabs on the blower housing. Push the tube into the blower housing until the tab engages the grooves (See Figure 3).
-
Page 12: Operation
OPERATION W A R N I N G Do not allow familiarity with this product to make you careless. Remember that a careless fraction of a second is sufficient to inflict serious injury. W A R N I N G Always wear eye protection with side shields marked to comply with ANSI Z87.1, along with hearing protection. - Page 13 OPERATION STARTING/STOPPING THE BLOWER (See Figure 5) • Ensure that the battery is installed in the blower. • Squeeze the trigger to start the blower. • Release the trigger to stop. USING CRUISE CONTROL LEVER (See Figure 5) This blower is equipped with a cruise control function. Please read and understand the function of the Cruise Control lever.
-
Page 14: Battery & Charger Maintenance
BATTERY & CHARGER MAINTENANCE CHARGING PROCEDURE NOTE: The battery is not shipped fully charged. It is recommended to fully charge before first use to ensure that maximum run time can be achieved. This lithium-ion battery will not develop a memory and may be charged at any time. - Page 15 BATTERY & CHARGER MAINTENANCE CHARGER MOUNTING This charger can be installed hanging on a wall using two #8 screws (not included). Locate the placement for the charger to be wall mounted. If fastening to wood studs use 2 wood screws (not included). Drill two holes 4.5 in.
-
Page 16: Environmentally Safe Battery Disposal
ENVIRONMENTALLY SAFE BATTERY DISPOSAL W A R N I N G The following toxic and corrosive materials are in the batteries used in this blower battery pack: Lithium-Ion, a toxic material. All toxic materials must be disposed of in a specified manner to prevent contamination of the environment. -
Page 17: Troubleshooting
TROUBLESHOOTING PROBLEM POSSIBLE CAUSE SOLUTION Motor fails to start Battery is not secure. Check to ensure the battery is fully when switch is connected to the blower. Press down on depressed. the battery until the latches click together. Battery is not Charge the battery pack according to the charged. -
Page 18: Warranty
(4) years against defects in materials, parts or workmanship. GREENWORKS™, at its own discretion will repair or replace any and all parts found to be defective, through normal use, free of charge to the customer. This warranty is valid only for... -
Page 19: Exploded View
EXPLODED VIEW PARTS LIST Item No. Part No. Description 3110111952 Motor Assembly 3110121952 Switch Assembly 3110141952 Housing Assembly 341061816 Upper Blower Tube 341071816 Lower Blower Tube... - Page 20 Greenworks Tools PO Box 1238 Mooresville, NC 28115 TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) Printed in China on 100% Recycled Paper Rev: 00 (06-29-16)
