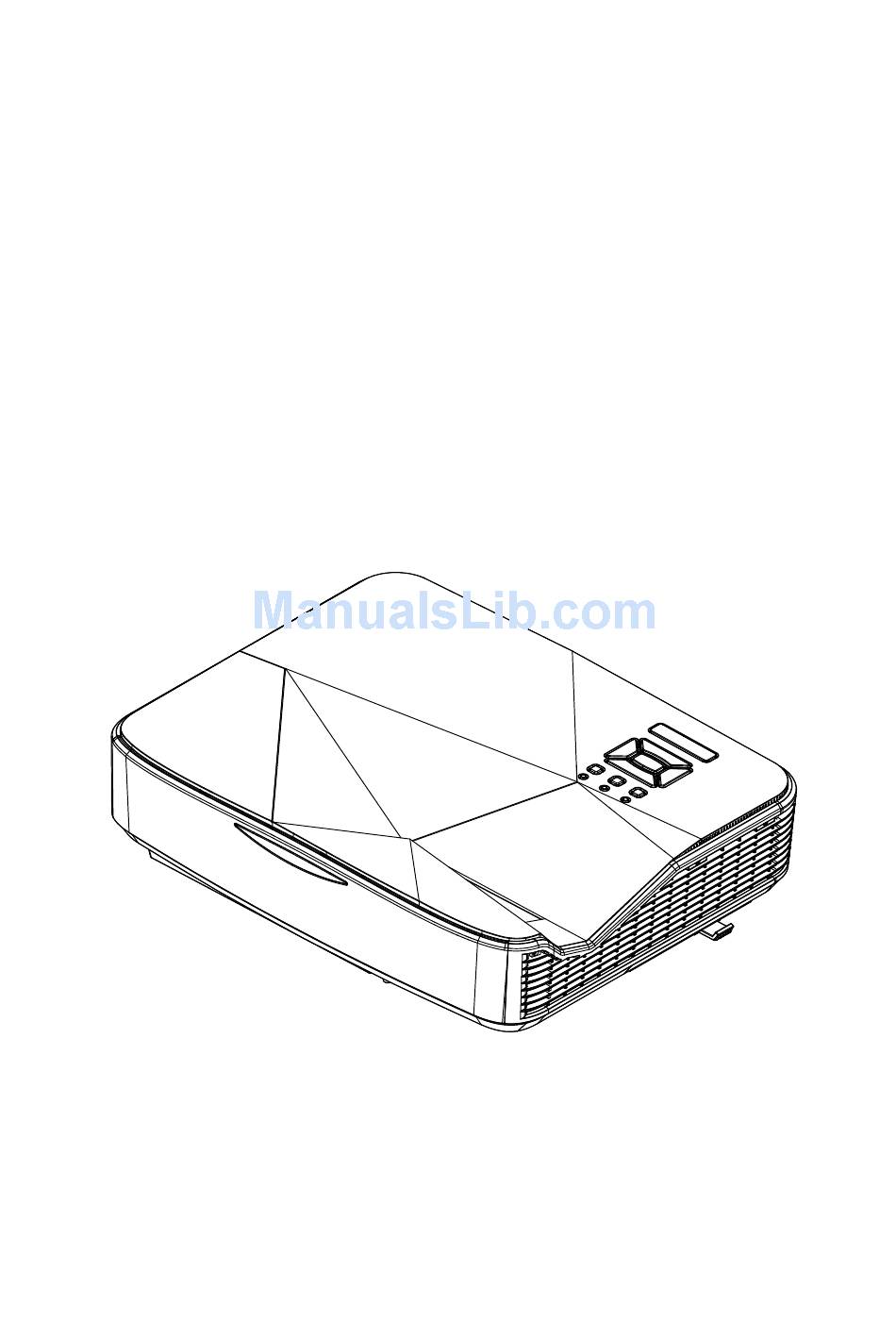

- Page 1 Laser Ultra Short-Throw Projector User’s Manual Z850V/RL40/DU-800/Z850/RL30/DU-600...
-
Page 2: Table Of Contents
Table of Contents Multimedia ........49 Table of Contents ......2 Usage Notice ........3 Accessing Multimedia Files ....49 How to access Multimedia mode ..49 Safety Information .......3 Appendices ........56 Precautions .........4 Installing and Cleaning the Optional Introduction ........6 Dust Filter .........56 Package Overview ......6 Compatibility Modes ......57 Product Overview .......7... -
Page 3: Usage Notice
Usage Notice Safety Information The lightning flash with arrow head within an equilateral triangle is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. -
Page 4: Precautions
Usage Notice Precautions Please follow all warnings, precautions and maintenance as recommended in this user�s guide. ▀■ Warning- Do not look into the projector’s lens when the lamp is on. The bright light may hurt and damage your eyes. ▀■ Warning- To reduce the risk of fire or electric shock, do not expose this projector to rain or moisture. - Page 5 Usage Notice Turn off and unplug the power plug from the AC outlet before cleaning the product. Use a soft dry cloth with mild detergent to clean the display housing. Disconnect the power plug from AC outlet if the product is ...
-
Page 6: Introduction
Introduction Package Overview Unpack and inspect the box contents to ensure all parts listed below are in the box. If something is missing, please contact your nearest customer service center. VGA Cable Projector Power Cord Due to different applications in each country, some regions may have... -
Page 7: Product Overview
Introduction Product Overview Main Unit The interface is subject to model’s specifications. 1. Control Panel 6. Speaker 2. Focus Switch 7. Power Socket 3. Ventilation (inlet) 8. Input / Output 4. IR Receiver Connections 5. Ventilation (outlet) 9. Lens English... -
Page 8: Control Panel
Introduction Control Panel 1. Power LED 2. Enter 3. Temp LED 4. Lamp LED 5. Menu 6. Input 7. Four Directional Select Keys 8. Power button 9. IR Receiver English... -
Page 9: Input/Output Connections
Introduction Input/Output Connections VGA1-In/YPbPr Connector (PC Analog Signal/Component Video Input/HDTV/YPbPr) HDMI2 Input Connector HDMI1 Input Connector USB Connector (Connect to PC for Remote Mouse The interface function) is subject to RJ45 connector (Optional) model’s USB Type A Connector (Optional) specifications. Power Socket VGA-Out/VGA2-In Connector RS-232 Connector (9-pin DIN Type) -
Page 10: Remote Control
Introduction Remote Control 1. Infrared transmitter 2. LED Indicator 3. Power On/Off 4. Enter 5. Four Directional Select Keys 6. Menu 7. Exit 8. Zoom in 9. Reset 10. Auto 11. Input 12. Zoom out 13. Volume +/- 14. Keystone +/- 15. -
Page 11: Installation
Installation Connecting the Projector Connect to Computer/Notebook MOLEX Router / Network Switch Due to the Microphone difference in applications for External Display each country, some regions may have different Audio Output accessories. (*) Optional accessory 1....................*RS232 Cable 2.....................VGA Cable 3....................*HDMI Cable 4....................*USB Cable 5.................. -
Page 12: Connect To Video Sources
Installation Connect to Video Sources DVD Player, Set-top Box, HDTV receiver Composite Video Output Due to the difference in Microphone applications for each country, some regions may have different accessories. (*) Optional accessory Audio Output 1..........*15-Pin to 3 RCA Component/HDTV Adaptor 2....................*HDMI Cable 3....................*Audio Cable 4.................. -
Page 13: Powering The Projector On / Off
Installation Powering the Projector On / Off Powering On the Projector 1. Securely connect the power cord and signal cable. When connected, the POWER LED will turn Orange. 2. Turn on the lamp by pressing “ ” button either on the projec- tor or on the remote. -
Page 14: Powering Off The Projector
Installation Powering Off the Projector 1. Press the “ ” button on the remote control or on the control panel to turn off the projector. The following message will be displayed on the screen. Press the “ ” button again to confirm otherwise the message will disappear after 10 seconds. -
Page 15: Adjusting The Projected Image
Installation Adjusting the Projected Image Adjusting the Projector’s Height The projector is equipped with elevator feet for adjusting the image height. 1. Locate the adjustable foot you wish to modify on the underside of the projector. 2. Rotate the adjustable ring clockwise to raise the projector or counter clockwise to lower it. -
Page 16: Adjusting The Projector's Focus
Installation Adjusting the Projector’s Focus To focus the image, slide the focus switch to left/right until the image is clear. 1080p series: The projector will focus at distances (lens to wall) from 1.59~1.87 feet (0.49~0.57 meters) Ultra Wide series: The projector will focus at distances (lens to wall) from 2.36~2.75 feet (0.72~0.84 meters) Focus switch English... -
Page 17: Adjusting Projection Image Size (Diagonal)
Installation Adjusting Projection Image Size (Diagonal) 1080p series: Projection Image Size from 87” to 102” (2.21 to 2.59 meters). Ultra Wide series: Projection Image Size from 120” to 140” (3.05 to 3.56 meters). Top View Screen Screen (W) Projection Distance (D) Width Screen (H) - Page 18 Installation Ultra Wide Screen Size W x H Projection Distance (D) Diagonal length Offset (Hd) (inch) size of (cm) (inch) (cm) (inch) 16:6 Screen Width Height Width Height wide tele wide tele (cm) (inch) 285.4 107.0 112.4 42.1 46.7 18.4 36.9 14.5 297.3...
-
Page 19: User Controls
User Controls Control Panel & Remote Control Control Panel Using the Control Panel Refer to the “Power On/Off the Projector” POWER section on pages 13-14. Enter Press “Enter” to confirm your item selection. INPUT Press “INPUT” to select an input signal. Press “MENU”... -
Page 20: Remote Control
User Controls Remote Control Using the Remote Control Infrared transmitter Sends signals to the projector. LED Indicator. Refer to the “Power On/Off the Power Projector” section on pages 13-14. Exit Press “Exit” to close the OSD menu. Zoom in Zoom in the projector display. Return the adjustments and settings to Reset the factory default values. -
Page 21: Using The Remote Control
User Controls Using the Remote Control Press “VGA1” to choose VGA IN 1 VGA1 connector. Momentarily turns off/on the audio and Blank video. Press “HDMI1” to choose HDMI IN 1 HDMI1 connector. Press “HDMI2” to choose HDMI IN 2 HDMI2 connector. -
Page 22: On-Screen Display Menus
User Controls On-screen Display Menus The Projector has multilingual On-screen Display menus that allow you to make image adjustments and change a variety of settings. How to operate To open the OSD menu, press “Menu” on the Remote Control or Projector Keypad. -
Page 23: Picture
User Controls Picture Color Mode There are many factory presets optimized for various types of im- ages. Use the ◄ or ► button to select the item. Bright: For brightness optimization. Standard: For meeting presentation. Movie: For playing video content. ... -
Page 24: Color Settings
User Controls Sharpness Adjust the sharpness of the image. Press the ◄ button to decrease the sharpness. “Sharpness”, “Sat- uration” and “Hue” Press the ► button to increase the sharpness. functions are only supported under Saturation video mode. Adjust a video image from black and white to fully saturated color. -
Page 25: Screen
User Controls Screen Aspect Ratio Auto: Keep the image with original width-height ratio and maxi- mize the image to fit native horizontal or vertical pixels. 4:3: The image will be scaled to fit the screen and displayed using a 4:3 ratio. 16:9: The image will be scaled to fit the width of the screen and ... - Page 26 User Controls V. Position Press the ◄ button to move the image down. Press the ► button to move the image up. Digital Zoom Press the ◄ button to reduce the size of an image. Press the ► button to magnify an image on the projection ...
-
Page 27: Setting
User Controls Setting Language Choose the multilingual OSD menu. Press the ◄ or ► button into the sub menu and then use the ▲ or ▼ button to select your preferred language. Press ► on the remote control to finalize the selection. - Page 28 User Controls LAN (Standby) Choose “On” to enable LAN connection. Choose “Off” to disable LAN connection. VGA-2 (Function) Input: Choose “Input” to let the VGA port works as a VGA input function. Output: Choose “Output” to enable the VGA Out function once ...
-
Page 29: Volume
User Controls Volume Speaker Choose “On” to enable the speaker. Choose “Off” to disable the speaker. Line Out Choose “On” to enable the line out function. Choose “Off” to disable the line out function. Microphone Choose “On” to enable the microphone. ... -
Page 30: Options
User Controls Options Logo Use this function to set the desired startup screen. If changes are made they will take effect the next time the projector is powered Default: The default startup screen. User: Use stored picture from “Screen Capture” function. ... - Page 31 User Controls Auto Power Off (Min) Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the projector. The projector will automatically power off when the countdown has finished (in minutes). Laser Settings Refer to page 32.
-
Page 32: Options | Laser Settings
User Controls Options | Laser Settings Laser Hours Used (Normal) Display the projection time of normal mode. Laser Hours Used (ECO) Display the projection time of ECO mode. Laser Power Mode Normal: Normal mode. ECO: Use this function to dim the projector lamp which will ... - Page 33 User Controls “Frame Sequen- Auto: When a HDMI 1.4a 3D timing identification signal is de- tial” is supported tected, the 3D image is selected automatically. the DLP Link 3D input signals from Choose “On” to enable 3D function. VGA / HDMI con- Choose “Off”...
-
Page 34: Blending Mode
User Controls Blending mode Brightness For user to manually adjust the brightness of projectors used in blending mode. Color Temp For user to manually map the color temperature of projectors used in blending mode. Blending application System Architecture Network Switch Calibration Camera Laptop Laptop Source... -
Page 35: Lan
User Controls Status Display the network connection status. DHCP Configure the DHCP settings. On: Choose “On” to let the projector to obtain an IP address automatically from your network. Off: Choose “Off” to assign IP, Subnet Mask, Gateway, and DNS ... - Page 36 User Controls Group Name Display the group name. Projector Name Display the projector name. Location Display the projector location. Contact Display the contact information. English...
- Page 37 User Controls How to use web browser to control your projector 1. Turn on DHCP to allow a DHCP 4. Based on network web-page for the server to automatically assign an IP, or input-string in [tools] tab, the limitation manually enter the required network for Input-Length is in the below list information.
- Page 38 User Controls 1. When making a direct connection from your computer to the projector Step 1: Find an IP Address (192.168.0.100) from LAN function of projector. Step 2: Select apply and press “Enter” button to submit function or press “menu” key to exit.
- Page 39 User Controls 2. When making Wi-Fi connection between your computer and the projector Step 1: AP Configuration to AP mode or Client mode as below, Step 2: Select Laptop to connect with projector via Wi-Fi Step 3: Find the IP Address configured in multimedia page. 3.
- Page 40 User Controls LAN Setting User can configure LAN parameters and edit the projector information in this page. English...
- Page 41 User Controls Wi-Fi User can install EZView according to the requirement of different devices. Projector Status and Control User can control the projector in this page. Orientation Bright English...
- Page 42 User Controls E-mail Alert User can assign the email address and categorize alert notice. Password Setting User can set the password to get access to web management. English...
- Page 43 User Controls Crestron User can control projector via Crestron flash UI. EZView EZView is an APP and software that can wirelessly display the content from a smart phone to the dedicated Projector. User can display the photos, video, document. Furthermore, it can also display the web browser content. Features: ►...
- Page 44 User Controls Step 2: Execute EZView on device as below icon. on PC or Laptop, on tablet or smart phone. EZView on PC or Laptop Step 1: Enter the IP address. (choose either from Wi-Fi or LAN connection) English...
- Page 45 User Controls Step 2: For screen display function, select mirror mode or extension mode to project image from the device. The selection of image position Mirror Mode Display Extension Mode Display Link to Web management page Exit Display Mode : Video or Graphic Compatible Mode On/Off Audio Media Streaming mode for playing video application...
- Page 46 User Controls EZView on Tablet or Smart phone Step 1: Execute EZView APP Step 2: Enter connection password shown on the screen. Step 3: Select the way to stream out the screen to projector via EZView. English...
-
Page 47: Crestron Roomview Control Tool
User Controls Crestron RoomView Control Tool Crestron RoomView™ provides a central monitoring station for 250+ control systems on a single Ethernet network (more are possible, the number depends on the combination of IP ID and IP address). Crestron RoomView monitors each projector, including projector’s online status, system power, lamp life, network setting and hardware faults, plus any custom attribute as defined by the Administrator. - Page 48 User Controls 3. Edit Attribute 4. Edit Event For further information, please visit: http://www.crestron.com & www.crestron.com/getroomview. English...
-
Page 49: Multimedia
Multimedia Accessing Multimedia Files This projector supports two methods to project the media files (photos, videos, music, documents) stored on following devices: a. via Wireless dongle (optional) - wirelessly access the media files stored on your mobile phone, tablet PC, notebook, or desktop. b. - Page 50 Multimedia Mobile Display To access the media files stored on your mobile device or tablet PC, do the folllowing: 1. On Multimedia menu, select Mobile/Tablet. 2. On your mobile device or tablet PC, download “EZview” application App Store (iOS) or Play Store (Android). 3.
- Page 51 Multimedia Laptop Display To access the media files stored on your laptop/notebook, do the folllowing: 1. On Multimedia menu, select Laptop. 2. Enable your laptop/notebook WiFi function, and search the AP name listed in the Wi-Fi network list. 3. On the initial connection, you will be prompted to enter a password.
- Page 52 Multimedia 6. Wait until the connection is established. The media files on your laptop/notebook can be accessed using the projector. Desktop Display To access the media files stored on your desktop, do the folllowing: 1. On Multimedia menu, select Desktop. 2.
- Page 53 Multimedia 3. Launch “EZview” application and enter the control code shown on the right-bottom side of the screen. 4. Wait until the connection is established. The media files on your desktop can be accessed using the projector. USB Storage Display To access the media files stored on your USB flash drive, do the folllowing: Supported File Format...
- Page 54 Multimedia 3. Use the keys to select the file to view/play and press the “Enter” key to confirm. Configuring Multimedia Settings To change the settings, do the folllowing: 1. On Multimedia menu, select Settings. English...
- Page 55 Multimedia 2. Use the keys to select the desired menu option and press the “Enter” key to enter the submenu. System: Select this option to view the firmware version and update firmware. Video: Select this option to change the display ratio and set ...
-
Page 56: Appendices
Appendices Installing and Cleaning the Optional Dust Filter We recommend you clean the dust filter every 500 hours of operation, or more often if you are using the projector in a dusty environment. When the warning message appears on the screen, do the following to clean the air filter: The optional dust ... -
Page 57: Compatibility Modes
Appendices Compatibility Modes VGA Analog a. PC signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 720x400 31.5 800x600 35.1 800x600 37.9 SVGA 800x600 48.1 800x600 46.9 800x600 53.7 Apple, MAC II 832x624 49.1... - Page 58 Appendices b. Extended wide timing Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 c. Component signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 720x480 480i 59.94(29.97) 15.7 (1440x480) 720x576 576i...
-
Page 59: Hdmi Digital
Appendices HDMI Digital a. PC signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 640x480 31.5 640x480 35.0 640x480 37.9 640x480 37.5 640x480 43.3 720x400 31.5 800x600 35.1 800x600 37.9 SVGA 800x600 48.1 800x600 46.9 800x600 53.7 Apple, MAC II 832x624 49.1 1024x768... - Page 60 Appendices b. Extended wide timing Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 1280x720 44.8 1280x800 49.6 WXGA 1366x768 47.7 1440x900 59.9 WSXGA+ 1680x1050 65.3 c. Video signal Modes Resolution V. Frequency [Hz] H. Frequency [Hz] 480p 640x480 59.94/60 31.5 720x480 480i 59.94(29.97)
-
Page 61: Regulation & Safety Notices
Appendices Regulation & Safety Notices This appendix lists the general notices of your projector. FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. -
Page 62: Operation Conditions
Appendices Operation conditions This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference and 2. This device must accept any interference received, including interference that may cause undesired operation. - Page 63 Appendices otice CLASS 1 LASER PRODUCT IEC 60825-1:2014. - This projector is a Class 2 laser device that conforms with IEC 60825-1:2007 and CFR 1040.10 and 1040.11. - Class 2 laser product, Do Not Stare Into Beam. - This projector has built-in Class 4 laser module. Disassembly or modification is very dangerous and should never be attempted.
-
Page 64: Ceiling Mount Installation
Appendices Ceiling Mount Installation 1. To prevent damage to your projector, please use the Coretronic ceiling mount. 2. If you wish to use a third party ceiling mount kit, please ensure the screws used to attach a mount to the projector meet the following specifications: Screw type: M4*4 ...
