P1183/M403/PE-S42/X1183A/D603P/
EV-S62T/X114/X1183/D603/EV-S62/
X113/D600/EV-S60/V10S/AS201/
P1283/M413/PE-X42/V12X/AX316/
P1283n/M413T/PE-X42G/X1283/
X1280/D613/EV-X62/P1383W/
X1383WH/M423/PE-W42/V12W/
AW316/P1380W/X1380WH/M420/
PE-W40/V11W/AW216/H5380BD/
E230/HE-720/P1510/M450/PE-840

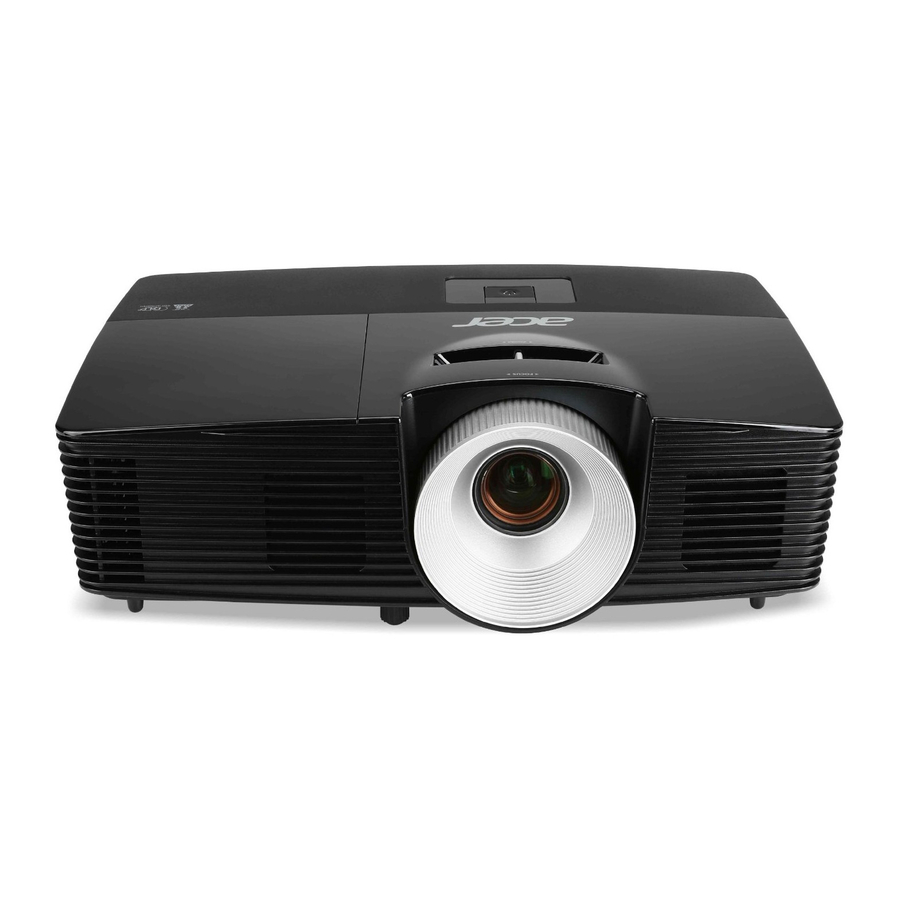

Acer Projector
Series
User's Guide

Advertisement

Table of Contents

   Also See for Acer P1183

   Related Manuals for Acer P1183

   Summary of Contents for Acer P1183

  • Page 1 Acer Projector P1183/M403/PE-S42/X1183A/D603P/ EV-S62T/X114/X1183/D603/EV-S62/ X113/D600/EV-S60/V10S/AS201/ P1283/M413/PE-X42/V12X/AX316/ P1283n/M413T/PE-X42G/X1283/ X1280/D613/EV-X62/P1383W/ X1383WH/M423/PE-W42/V12W/ AW316/P1380W/X1380WH/M420/ PE-W40/V11W/AW216/H5380BD/ E230/HE-720/P1510/M450/PE-840 Series User's Guide...
  • Page 2 Serial number: ___________________________________ Date of purchase: ________________________________ Place of purchase: ________________________________ Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies' product names or trademarks are used herein for identification purposes only and belong to their respective companies.
  • Page 3 Information for your safety and comfort Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product. Turning the product off before cleaning Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners.
  • Page 4 • To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating surface. • Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected short current or damage rotor devices, lamp.
  • Page 5 Product servicing Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage points or other risks. Refer all servicing to qualified service personnel. Unplug this product from the wall outlet and refer servicing to qualified service personnel when: •...
  • Page 6 Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage. • This product is capable of displaying inverted images for ceiling mount installation. Only use acer ceiling mount kit for mounting the projector and ensure it is securely installed.
  • Page 7 Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.acer-group.com/public/ Sustainability/sustainability01.htm Mercury advisory For projectors or electronic products containing an LCD/CRT monitor or display: “Lamp(s) contain Mercury,...
  • Page 8: Precautions

    viii First things first Usage Notes • Turn off the product before cleaning. • Use a soft cloth moistened with mild detergent to clean the display housing. • Disconnect the power plug from AC outlet if the product is not being used for a long period of time.
  • Page 9: Table Of Contents

    Adjusting the Height of Projected Image How to optimize image size and distance How to get a preferred image size by adjusting distance and zoom User Controls Installation menu Onscreen Display (OSD) Menus Color Image Setting Management Audio Language Acer LAN webpage management...
  • Page 10 How to login in Home Control Panel Network Setting Alert Setting Logout Appendices Troubleshooting LED & Alarm Definition Listing Cleaning and replacing the dust filters Replacing the Lamp Ceiling Mount Installation Specifications Compatibility modes Regulations and safety notices...
  • Page 11: Introduction

    P1510/M450/PE-840 series: 1920x1080 1080p resolution Full/4:3/16:9/L.Box aspect ratio supported • Enables projecting 3D content via DLP Link Technology • Acer ColorBoost technology delivers nature’s true colors for vivid, life-like images • High brightness and contrast ratio • Versatile display modes (Bright, Presentation, Standard, Video, Game,...
  • Page 12: Package Overview

    Package Overview This projector comes with all the items shown below. Check to make sure your unit is complete. Contact your dealer immediately if any thing is missing. Projector Power cord VGA cable 2 x Batteries Security card User’s guide (option) Quick start guide Carrying case...
  • Page 13: Projector Overview

    Projector Overview Projector Outlook Front / upper side Description Description Remote control receiver Zoom lever Power button Focus ring Control panel Projection lens Lamp cover Tilt adjusting wheels Right / Rear side <Right side> <Rear side> VGA OUT VGA IN 2 VGA IN 1 S-VIDEO VIDEO...
  • Page 14: Control Panel

    Description Description Audio in connector (VGA IN 1, VGA IN Composite video input connector S-Video input connector LAN (RJ45 Port for 10/100M Ethernet) Monitor loop-through output RS232 connector connector (for VGA IN 2 only) PC analog signal/HDTV/component video input connector (VGA IN/VGA IN Mini USB connector 1/VGA IN 2) Security bar...
  • Page 15: Remote Control Layout

    Remote Control Layout SOURCE SOURCE MEDIA MEDIA SETUP MODE HIDE SETUP MODE HIDE ZOOM RATIO FREEZE ZOOM FREEZE Model No:E-26171 E-26110 LASER MODULE : M-5.2-6.5x10-5.5x5.5 BONTECH ELECTRONICS(K.S) CO ., LTD . No. 2018, Zhonghuayuan west road, Yushan town,Kunshan city, China MC.JG811.009 MC.JG811.008 Icon...
  • Page 16 Icon Function Description Four Use up, down, left, right buttons to select items or make directional adjustments to your selection. select keys Pre./Rewind No function. Enter/ Play/ No function. Pause Back/Stop No function. Next/Fast No function. forward KeyPad 0~9 Press "0~9" to input a password in the "Security" OSD. PgUp/PgDn For computer mode only.
  • Page 17: Mhl (mobile High-definition Link) Control

    MHL (Mobile High-Definition Link) Control SOURCE MEDIA SETUP MODE HIDE ZOOM FREEZE Icon Component Description • MODE Press "MODE" button for one second to activate the MHL Control Mode. • To exit, press the "MODE" button again. SOURCE Press the "SOURCE" button to toggle between Navigation or Numeric mode.
  • Page 18: Getting Started

    Getting Started Connecting the Projector <Type 1> DVD player, S-Video output Set-top Box, HDTV receiever D-Sub D-Sub DVD player R B G Video output HDTV adapter D-Sub HDMI HDMI D-Sub VGA IN 2 VGA OUT VGA IN 1 S-VIDEO VIDEO / MHL AUDIO IN AUDIO OUT...
  • Page 19 <Type 2> Video output DVD player, Set-top Box, HDTV receiever D-Sub S-Video output R B G HDTV adapter D-Sub VGA IN VIDEO S-VIDEO USB CTRL Description Description Power cord Audio cable jack/RCA VGA cable RS232 cable Audio cable jack/jack USB cable VGA to component/HDTV adapter HDMI cable 3 RCA component cable...
  • Page 20: Turning The Projector On/off

    Turning the Projector On/Off Turning on the Projector Ensure that the power cord and signal cable are securely connected. The Power indicator LED will flash red. Turn on the projector by pressing "Power" button on the control panel or remote control, and the Power indicator LED will turn blue. Turn on your source (computer, notebook, video player ,etc.).
  • Page 21: Turning The Projector Off

    Turning the projector off To turn the projector off, press and hold the power button. This message appears: "Please press the power button again to complete the shutdown process." Press the power button again. The LED power indicator will turn RED and blink rapidly after the projector is turned off, and the fan(s) will continue to operate for about 2 minutes to ensure that the system cools properly.
  • Page 22: Adjusting The Projected Image

    Adjusting the Projected Image Adjusting the Height of Projected Image The projector is equipped with elevator feet for adjusting the height of image. To raise/lower the image: Use Tilt adjusting wheel to fine-tune the display angle. Tilt adjusting wheel...
  • Page 23: How To Optimize Image Size And Distance

    How to optimize image size and distance Consult the table below to find the optimal image sizes achievable when the projector is positioned at a desired distance from the screen. • SVGA/XGA series If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 46"...
  • Page 24 • WXGA series If the projector is 2.0 m from the screen, good image quality is possible for image sizes between 55" and 60". Note: Remind as below figure, the space of 91 cm height is required when located at 2.0 m distance. Height: 91 cm from base to Height:...
  • Page 25 • 720p series If the projector is 3 m from the screen, good image quality is possible for image sizes between 80" and 87". Note: Remind as below figure, the space of 130 cm height is required when located at 3 m distance. Height: 130 cm from base to top of image...
  • Page 26 • 1080p series If the projector is 3 m from the screen, good image quality is possible for image sizes between 74" and 90". Note: Remind as below figure, the space of 130 cm height is required when located at 3 m distance. Height: 130 cm from base to top of image...
  • Page 27: How To Get A Preferred Image Size By Adjusting Distance And Zoom

    How to get a preferred image size by adjusting distance and zoom The table below shows how to achieve a desired image size by adjusting either the position or the zoom ring. • SVGA/XGA series To obtain an image size of 50" set the projector at a distance 2.0 m and 2.2 m from the screen.
  • Page 28 • WXGA series To obtain an image size of 60" set the projector at a distance 2.0 m and 2.2 m from the screen. 60" Desired image size Height: 91 cm from base to top of image 2.0 m 2.2 m Desired Distance Desired Image Size Distance (m)
  • Page 29 • 720p series To obtain an image size of 60" set the projector at a distance 2.06 m and 2.26 m from the screen. 60" Desired image size Height: 89 cm from base to top of image 2.06 m 2.26 m Desired Distance Desired Image Size Distance (m)
  • Page 30 • 1080p series To obtain an image size of 50" set the projector at a distance 1.7 m and 2.0 m from the screen. 50" Desired image size Height: 72 cm from base to top of image 1.7 m 2.0 m Desired Distance Desired Image Size Distance (m)
  • Page 31: User Controls

    The new settings will be saved automatically upon exiting the menu. Push the menu button anytime to exit the menu and return to the Acer welcome screen. Note: Functions vary depending on model definition.
  • Page 32: Onscreen Display (osd) Menus

    Onscreen Display (OSD) Menus The projector has multilingual OSD that allow you to make image adjustments and change a variety of settings. Using the OSD menus • To open the OSD menu, press "MENU" on the remote control or control panel.
  • Page 33: Color

    Color Display Mode There are many factory presets optimized for various types of images. • Bright: For brightness optimization. • Presentation: For meeting presentation. • Standard: For common environment. • Video: For playing video in a bright environment. • Game: For game content. •...
  • Page 34: Color Mode

    Color Mode Use this function to choose CT1, CT2 (Native), CT3, User mode. Temperature R Gain Adjusts the red gain for color temperature optimization. G Gain Adjusts the green gain for color temperature optimization. B Gain Adjusts the blue gain for color temperature optimization. R Bias Adjusts the red bias for color temperature optimization.
  • Page 35: Image

    Image Projection • Front-Desktop: The factory default setting. • Rear-Desktop: When you select this function, the projector reverses the image so you can project from behind a translucent screen. • Rear-Ceiling: When you select this function, the projector reverses and inverts the image at same time. You can project from behind a translucent screen with ceiling mounted projection.
  • Page 36 V. Keystone Press the button to adjust image distortion vertically and makes a squarer image. H. Position • Press to move the image left. (Horizontal • position) Press to move the image right. V. Position • Press to move the image down. (Vertical position) •...
  • Page 37: Setting

    OSD menu. • Acer: The default startup screen of your Acer projector. • User: Use memorize picture from "Screen Capture" function. Use this function to customize the startup screen. To capture the...
  • Page 38 Password is. • If losing this security card and number, please contact with an Acer service center. Lock to user startup screen Default Lock User Startup Screen is "Off". If lock user startup screen is "On", users cannot change startup screen anymore and avoid other users change that arbitrarily.
  • Page 39 Default is "Off". Choose "On" to enable LAN connection. <Note> If users want to do LAN control under standby mode, change VGA OUT (Standby) from Off to On. LAN IP/Mask Identify IP and Mask address. LAN Reset Reset LAN function. Note: Functions vary depending on model definition.
  • Page 40: Management

    Management ECO Mode Choose "On" to dim the projector lamp which will lower power consumption, extend the lamp life and reduce noise. Choose "Off" to return normal mode. High Altitude Choose "On" to turn on High Altitude mode. Operate the fans at full speed continuously to allow for proper high altitude cooling of the projector.
  • Page 41: Audio

    Audio Volume • Press to decrease the volume. • Press to increase the volume. • Mute Choose "On" to mute the volume. • Choose "Off" to restore the volume. Power On/Off Volume Select this function to adjust the notification volume when turning the projector on/off.
  • Page 42: Language

    Choose "On" to enable DLP 3D function. • On: Choose this item while using DLP 3D glasses, 120Hz 3D capable graphics cards and HQFS format file or DVD with corresponding SW player. • Off: Turn off 3D mode. 3D Format If the 3D content is not displayed correctly, you can select a 3D format that suits the 3D content you are viewing and obtain the best result.
  • Page 43: Acer Lan Webpage Management

    How to login in Open browser and enter the Server IP address by 192.168.100.10 to find below homepage of acer LAN webpage management. A password is needed to login in before using. Select a user. Administrator is with high authority that can process more operations such as network setting and alert setting.
  • Page 44: Home

    Home Home page shows connection status and you can find three main functions listed, Control Panel, Networking Setting and Alert Setting. Note: Control Panel and Network Setting are only for Administrator account. Control Panel Enduser can control and adjust projector setting value via this page.
  • Page 45: Network Setting

    Network Setting Enduser can set IP address, group name and password as wish. After change network configurations or password, projector will reboot automatically after press "Apply". Note: Group Name and projector Name must be less then 32 characters. Alert Setting Enduser can send mail with error message right away if projector has problem.
  • Page 46: Logout

    Logout After tap Logout, you will return to login page within 5 seconds. Note: Functions vary depending on model definition.
  • Page 47: Appendices

    Appendices Troubleshooting If you experience a problem with your Acer projector, refer to the following troubleshooting guide. If the problem persists, please contact your local reseller or service center. Image Problems and Solutions Problem Solution No image appears • Connected as described in the "Getting Started"...
  • Page 48 Partial, scrolling • Press "RESYNC" on the remote control or control or incorrectly panel. displayed image • For an incorrectly displayed image: (For notebooks) • Follow the steps for item 2 (above) to adjust the resolution of your computer. • Press the toggle output settings.
  • Page 49 Image is stretched When you play a DVD encoded in anamorphic or 16:9 when displaying a aspect ratio you may need to adjust the following "widescreen" settings: DVD title • If you play a 4:3 format DVD title, please change the format to 4:3 in the projector OSD.
  • Page 50: Osd Messages

    OSD Messages Condition Message Reminder Message Fan Fail - the system fan is not working. Projector Overheated - the projector has exceeded its recommended operating temperature and must be allowed to cool down before it may be used. Replace the lamp - the lamp is about to reach its maximum lifetime.
  • Page 51: Led & Alarm Definition Listing

    LED & Alarm Definition Listing LED Messages Lamp_LED Temp_LED Power LED Message Blue Input power plug Flash ON to Flash ON to Flash ON to OFF 100ms OFF 100ms OFF 100ms Standby Power button ON Lamp retry Quick Flashing Power off (Cooling state) Quick Flashing Power button OFF...
  • Page 52: Cleaning And Replacing The Dust Filters

    Cleaning and replacing the dust filters Cleaning the dust filters Clean the dust filters after every 1000 hours of use. If they are note cleaned periodically, they can become clogged with dust, preventing proper ventilation. This can cause overheating and damage the projector. Follow these steps: Turn the projector off.
  • Page 53: Replacing The Lamp

    Replacing the Lamp Use a screwdriver to remove the screw(s) from the cover, and then pull out the lamp. The projector will detect the lamp life. You will be shown a warning message "Lamp is approaching the end of its useful life in full power operation. Replacement suggested!"...
  • Page 54: Ceiling Mount Installation

    Ceiling Mount Installation If you wish to install the projector using a ceiling mount, please refer to the steps below: Drill four holes into a solid, structurally sound part of the ceiling, and secure the mount base. Note: Screws are not included. Please obtain the appropriate screws for your type of ceiling.
  • Page 55 Use the appropriate number of screws for the projector size to attach the projector to the ceiling mount bracket. Screw Type B Smaller Washer Large Washer Projector Bracket Supports projector and allows for adjustments Spacer - For heat dissipation Note: It is recommended that you keep a reasonable space between the bracket and the projector to allow for proper heat distribution.
  • Page 56 Adjust the angle and positioning as necessary. Tightening Screw Allen Key Allen Key Tightening Screw Note: The appropriate type of screw and washer for each model is listed in the table below. 4 mm diameter screws are enclosed in the screw pack. Screw Type B Washer Type Diameter (mm)
  • Page 57: Specifications

    Specifications The specifications listed below are subject to change without notice. For final specs, please refer to Acer's published marketing specifications. Projection system ® Resolution • P1183/M403/PE-S42/X1183A/D603P/EV-S62T/X114/ X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201 series: Native 800 x 600 SVGA resolution • P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/ PE-X42G/X1283/X1280/D613/EV-X62 series: Native 1024 x 768 XGA resolution •...
  • Page 58 Projection screen size (diagonal) • P1183/M403 PE-S42/X1183A/D603P/EV-S62T/X114/ X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/ P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/ PE-X42G/X1283/X1280/D613/EV-X62 series: 27" (70 cm) ~ 300" (762 cm) • P1383W/X1383WH/M423/PE-W42/V12W/AW316/ P1380W/X1380WH/M420/PE-W40/V11W/AW216 series: 27" (69 cm) ~ 300" (762 cm) • H5380BD/E230/HE-720 series: 27" (67 cm) ~ 300" (762 cm) •...
  • Page 59 Power consumption • P1183/M403/PE-S42/X1183A/D603P/EV-S62T/X114/ X1183/D603/EV-S62/X113/D600/EV-S60/V10S/AS201/ P1283/M413/PE-X42/V12X/AX316/P1283n/M413T/ PE-X42G/X1283/X1280/D613/EV-X62/P1383W/ X1383WH/M423/PE-W42/V12W/AW316/P1380W/ X1380WH/M420/PE-W40/V11W/AW216/H5380BD/ E230/HE-720: Normal mode: 235W ± 10% @ 110VAC ECO mode: 197W ± 10% @ 110VAC Standby mode < 0.5W • P1510/M450/PE-840 series: Normal mode: 320W ± 10% @ 110VAC ECO mode: 270W ± 10% @ 110VAC Standby mode <...
  • Page 60 X113/ P1183/M403/PE-S42/ D600/ X1183A/ P1283/M413/PE-X42/ EV-S60/ X1280/ V12X/AX316/P1383W/ V10S/ D603P/ P1283n/ P1510/ X1383WH/M423/PE-W42/ I/O connectors AS201/ EV-S62T/ M413T/ M450/ V12W/AW316/P1380W/ X114/ X1283/ PE-X42G PE-840 X1380WH/M420/PE-W40/ X1183/ D613/ V11W/AW216/H5380BD/ D603/ EV-X62 E230/HE-720 EV-S62 RJ45 LAN input RS232 HDMI /MHL HDMI Mini USB x1 (for...
  • Page 61: Compatibility Modes

    Compatibility modes A. VGA Analog VGA Analog - PC Signal Modes Resolution V.Frequency [Hz] H.Frequency [KHz] 640x480 31.5 640x480 37.9 640x480 37.5 640x480 43.3 640x480 61.9 SVGA 800x600 35.1 800x600 37.9 800x600 48.1 800x600 46.9 800x600 53.7 800x600 77.4 1024x768 48.4 1024x768 56.5...
  • Page 62 VGA Analog - Extended Wide timing Modes Resolution V.Frequency [Hz] H.Frequency [KHz] WXGA 1280x768 47.8 1280x768 60.3 1280x768 68.6 1280x720 44.8 1280x720 92.9 1280x800 49.6 *1280x800-RB 119.909 101.6 1440x900 59.9 WSXGA+ 1680x1050 65.3 1920x1080 67.5 (1080P) 1366x768 47.7 WUXGA 1920x1200-RB 59.94 74.04 VGA Analog -Component Signal...
  • Page 63 SVGA 800x600 35.1 800x600 37.9 800x600 48.1 800x600 46.9 800x600 53.7 800x600 77.4 1024x768 48.4 1024x768 56.5 1024x768 60.0 1024x768 68.7 1024x768 99.0 SXGA 1152x864 63.8 1152x864 67.5 1152x864 77.1 1280X1024 64.0 1280X1024 77.0 1280X1024 80.0 1280X1024 91.1 QuadVGA 1280x960 60.0 1280x960 75.2...
  • Page 64 1920x1080 67.5 (1080P) 1366x768 47.7 WUXGA 1920x1200-RB 59.94 74.04 HDMI - Video Signal Modes Resolution V.Frequency [Hz] H.Frequency [KHz] 480i 720x480(1440x480) 59.94 (29.97) 15.7 576i 720x576(1440x576) 50(25) 15.6 480p 720x480 59.94 31.5 576p 720x576 31.6 720p 1280x720 45.0 720p 1280x720 37.5 1080i 1920x1080...
  • Page 65 C. MHL Digital V.Frequency H.Frequency Modes Resolution [Hz] [KHz] 640x480 59.94/60 31.5 480i 720x480 (1440x480) 59.94/60 15.7 576i 720x576 (1440x576) 50(25) 15.6 480p 720x480 59.94/60 31.5 480p_2x 1440x480 59.94/60 31.5 576p 720x576 31.3 576p_2x 1440x576 31.3 720p 1280x720 59.94/60 45.0 720p 1280x720 37.5...
  • Page 66: Regulations And Safety Notices

    Regulations and safety notices FCC notice This device has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
  • Page 67: Declaration Of Conformity For Eu Countries

    Cet appareil numérique de la classe B est conforme a la norme NMB-003 du Canada. Declaration of Conformity for EU countries Acer hereby declares that this projector series is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. Compliant with Russian regulatory certification...
  • Page 68: Declaration Of Conformity

    New Taipei City 221, Taiwan Declaration of Conformity Acer Incorporated 8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan Contact Person: Mr. RU Jan, e-mail: ru.jan@acer.com And, Acer Italy s.r.l Via Lepetit, 40, 20020 Lainate (MI) Italy Tel: +39-02-939-921 ,Fax: +39-02 9399-2913 www.acer.it...
  • Page 69 Acer America Corporation 333 West San Carlos St., Suite 1500 San Jose, CA 95110 U. S. A. Tel: 254-298-4000 Fax: 254-298-4147 www.acer.com Federal Communications Commission Declaration of Conformity This device complies with Part 15 of the FCC Rules. Operation is subject to the...
