Summary of Contents for Clas Ohlson M841-UK

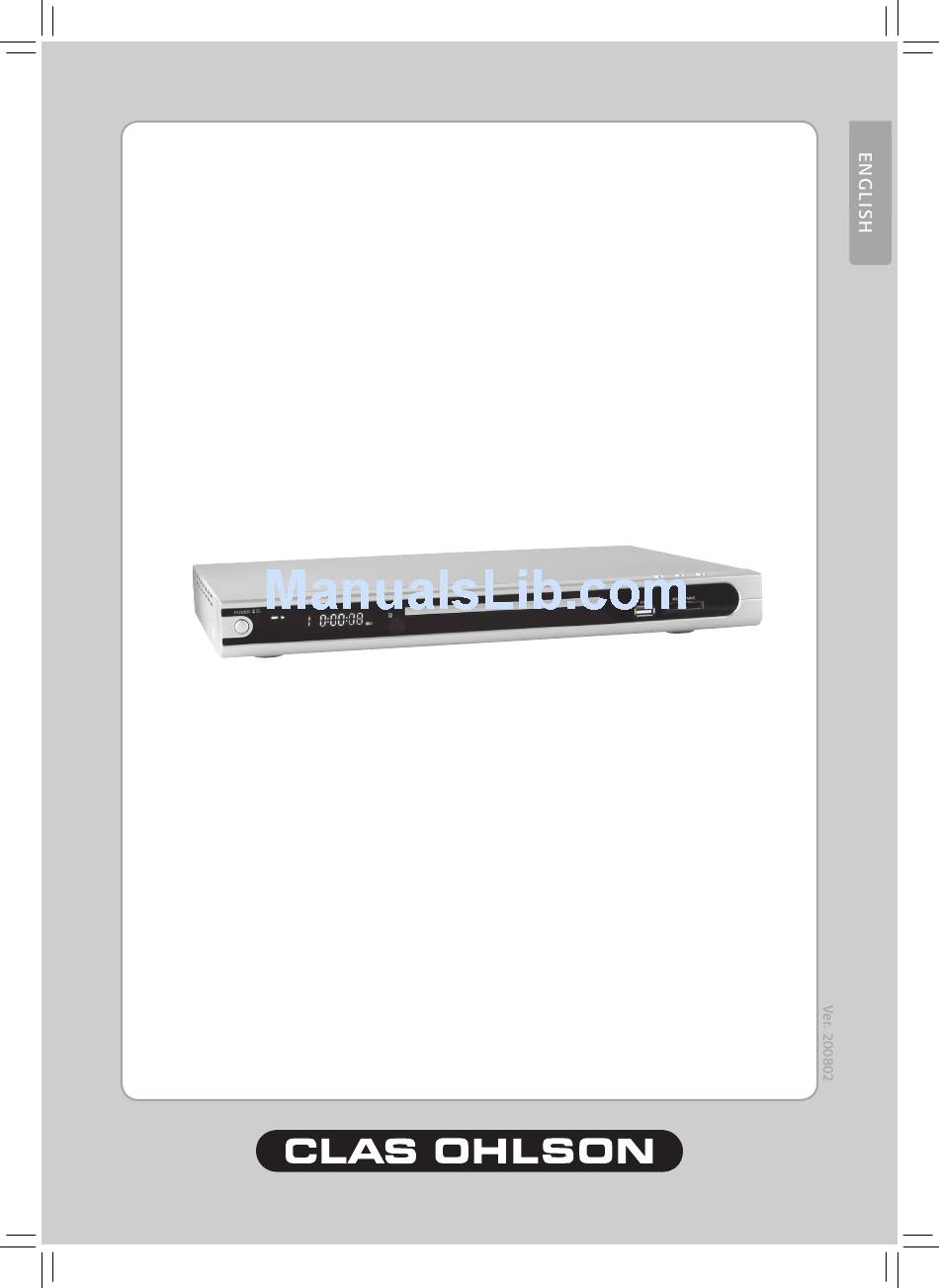

- Page 1 DVD/MPEG4 Player Article no. 18-8008 Model M841-UK 38-2445 M841 www.clasohlson.com...
- Page 3 WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
- Page 4 8.Clear the panel and case with soft dry cloth only, do not apply any kind of thinner, alcohol or sprays. 9. The apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus 10.
-
Page 5: Table Of Contents
Contents Precautions-----------------------------------------------------------------------------------------4 Front Panel and Rear Panel Illustration ------------------------------------------------------------5 Remote Control------------------------------------------------------------------------6 Connections------------------------------------------------------------------------------------8 Function Operation-------------------------------------------------------------------------------------11 MP3/MPEG4 Playing --------------------------------------------------------------------------------15 Picture CD Playback ----------------------------------------------------------------------------------17 USB/CARD READER Operation--------------------------------------------------------------------17 System Setup--------------------------------------------------------------------------------------------18 Troubleshooting-----------------------------------------------------------------------------------------24 10. Technical Specification--------------------------------------------------------------------------------26 11 . ---------------------------------------------------------------------------------27 Recycling GB-3... -
Page 6: Precautions
1. PRECAUTIONS Before using this unit, be sure to read the applicable items of the operating instructions and these safety suggestions carefully. Afterwards keep them handy for future reference. Take special care to follow the warnings indicated on the unit itself as well as in the operating instructions. -
Page 7: Front Panel And Rear Panel Illustration
2. FRONT PANEL AND REAR PANEL ILLUSTRATION Front panel Power Sensor Disc Tray ② Display Screen ① ③ ④ Open/Close Play /Pause ⑦ STOP ⑧ USB ⑨3 in 1 Card Reader ⑤ ⑥ Rear panel Component Video Output Composite Video Output ③Downmix Left/Right ①... -
Page 8: Remote Control
3. REMOTE CONTROL 1. Power 2. Repeat 3. N/P 4. Subtitle 5. Angle 6. Language 7. Setup 8. Up button 9. Left button 10.Enter button 11.PBC 12.Volume - 13.Zoom 14.Return 14.USB/CARD 16.Program 17.Clear 18.PREV 19.Next 20.V-Mode 21.Stop 22.Open/Close 23.A-B 24.Numeric Button 25.Time 26.Title 27.Right Button... - Page 9 Using the Remote Control Unless stated other wise, the remote control can operate all the features of the DVD Player, Always point the remote control directly at the remote sensor on the front of the DVD Player, not the TV. Battery Installation Remove the battery compartment lid on the rear of the remote control by sliding the lid down, then off.
-
Page 10: Connections
4.CONNECTIONS Turn off the power before connection. ● Turn on the power after finishing connection. ● Wires must be firmly connected; especially the plug shall be fully inserted. DVD+TV Notes : There are the following ways of connecting the player AV output to the TV set: S-video cable and left/right audio cable (set the video type to S-VIDEO) Composite video cable and left/right audio cable Component video cable and left/right audio cable (set the video type to component, if... - Page 11 DVD+ AV Amplifier: Notes : There are the following ways of connecting the player with amplifier: left/right audio output 5.1 channel audio output coaxial audio output GB-9...
- Page 12 Warning: Do not connect any amplifier with coaxial connector that does not contain Dolby digital decoder. Any attempt to do so and play of DVD will result in damaging your speakers and causing possible hearing injury. Other than DVDs and CDs can be operated normally without conforming to the above restriction.
-
Page 13: Function Operation
5. FUNCTION OPERATION 5.1 Function Buttons On the Front Panel These button’s function is the same as the corresponding buttons on the remote control. For the detail information, please see the following texts. 5.2 Function Buttons On the Remote Control POWER Press the button to switch the power between ON and OFF. - Page 14 DISPLAY Press the button to show the information of the current playing disc. TITLE Press the button to enter the appointed title. (Requires disc support) Direction key(UP/DOWN/RIGHT/LEFT) Press the keys to move the highlighted bar or cursor on any menu to your selection. ENTER Press the button to confirm your choice on screen.
- Page 15 VOLUME +/- Press + to increase volume and press – to decrease volume. REPEAT Each press of the REPEAT button will change the repeat mode. During CD playback, there are three modes: repeat Single, repeat All and Off. During DVD playback, there are three modes: Repeat Chapter, Repeat Title and Off. During playback, press A-B to select point A, press it again to select point B.
- Page 16 PROGRAM The Program Playback option allows entering the order in which the chapters or tracks will be played, up a maximum to 16. Press Program button to display the Program Menu. According to the highlight, move the cursor to the chapters / tracks you want to play, then press ENTER to confirm . Then press Play or use arrow buttons to highlight the “PLAY”...
-
Page 17: Mp3/Mpeg4 Playing
6. MP3/WMA/MPEG4 PLAYING The MP3/MPEG4 disc has such a directory structure as shown in the right picture. Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key to choose the desired track and then press ENTER or PLAY to enjoy the music or movie. - Page 18 Mode: Select different playing mode. Normal: Shuffle mode is cancelled Shuffle: Shuffle mode enabled. When playback reaches the end of the current chapter/track, playback jumps to a random chapter/track. As the end of each chapter/track is reached, another random chapter/track will be played until all tracks/chapters have been played or the Shuffle mode is cancelled by toggling to a different "Mode"...
-
Page 19: Picture Cd Playback
PICTURE CD PLAYBACK The KODAK PICTURE CD disc has such a directory structure as shown in the right picture. Press Direction key to choose the root directory and then press ENTER button to enter into the sub directory. Press Direction key to choose the desired picture and then press ENTER or PLAY to enjoy the picture. -
Page 20: System Setup
9. SYTSTEM SETUP DVD menu setup Press the SETUP button on the remote control, the SETUP MENU (main) will be displayed. After accessing the setup menu, press the direction buttons for up and down movement to select an item desired, then press the ENTER button to confirm .Press LEFT direction button return to the menu of upper level. - Page 21 9.2 VIDEO SETUP Select in the setup menu, and display the Video submenu: Video 9.2.1 Aspect Ratio 4:3 : Choosing this setting if your DVD player is connected to a normal ratio TV. You can fill the movie to the entire screen of your TV. This might mean that parts of the picture (the left and right edges) won’t be seen.
- Page 22 RGB: Set the video output to SCART output. If you select SCART connection, you should set up the play mode as RGB state, then it will output normally. 9.3 Audio setup Select Audio in the setup menu, and display the Audio submenu. 9.3.1 Bass Management To enable or disable the Bass Management during operation of the player.
- Page 23 bass from the center channel is redirected to the left and right channels. If the content contains a discrete subwoofer channel, it is discarded. 9.3.4 Surround Speaker Selection of Large or Small is same with that of front speaker. The speaker will have no signal output if set to None.
- Page 24 PCM Select this option when you are going to use stereo signals (2 channels). You should combine this option with the option "Lower sampling rate," which we explain further on. All If you select this option the player will use the DVD's original audio track. Use this option when you want to use the Dolby Digital signals through the optical or coaxial audio output.
- Page 25 9.5 MISC SETUP Select MISC in the setup menu, and display the submenu: * Use Default Settings Reset setup data to factory default and re-load disc GB-23...
-
Page 26: Troubleshooting
10. Troubleshooting Please read the user s manual carefully before using the DVD player. If you have any troubles in using this player, try to solve the problems by the suggestions mentioned below. If you can not remove the trouble after using all the suggestions, please contact the company or the technical service center authorized by us. - Page 27 DISPLAY BAD DISC Check whether the disc has had bad quality. Ensure that the disc is not stained or damaged badly. Ensure that the disc format is compatible to the player. Ensure that the disc is not deformed. REMOTE CONTROL IS INSENSITIVE OR DOES NOT WORK Check the batteries of remote control and make sure that they are to be powerful and good conductivity.
-
Page 28: Technical Specification
Technical specifications Signal system PAL/AUTO/NTSC Frequency Response 20Hz-20KHz (at 1KHz 0 dB) Signal-to–Noisy ≥90 dB (at 1KHz 0 dB) Ratio(Audio) Audio Distortion + Noise ≤-60dB (at 1KHz0dB) Audio Output (Analog Vrms -1..0 audio) Video Output Composite: 1.0±0.2Vp-p Load impedance: 75Ω, imbalance, negative polarity Power Supply ~110-242V 50/60Hz... -
Page 29: Recycling
12 . Recycling This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE). This means that this product must be handled pursuant to European Directive 2002/96/EC in order to be recycled or dismantled to minimize its impact on the environment. For further information, please contact your local or regional authorities. - Page 30 GB-29...
- Page 31 GB-30...
- Page 32 NORGE KUNDESENTEr Tlf.: 23 21 40 00 Faks: 23 21 40 80 E-post: kundesenter@clasohlson.no INTErNETT www.clasohlson.no POST Clas Ohlson AS, Postboks 485 Sentrum, 0105 OSLO SUOMI ASIAKASPALVELU Puh: 020 111 2222 Faksi: 020 111 2221 Sähköposti: info@clasohlson.fi INTErNET www.clasohlson.fi OSOITE Clas Ohlson Oy, Yrjönkatu 23 A, 00100 HELSINKI...
