Gemalto Prox-DU Reference Manual
  1. Manuals
  2. Brands
  3. Gemalto Manuals
  4. Card Reader
  5. Prox-DU
  6. Reference manual

Gemalto Prox-DU Reference Manual

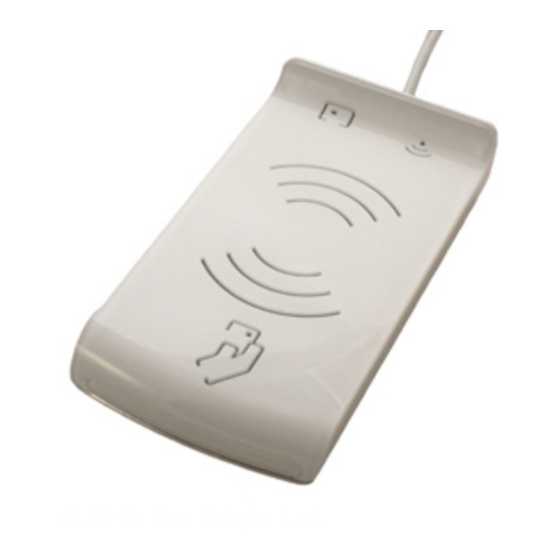

Dual interface usb smart card reader
Hide thumbs Also See for Prox-DU:
Table of Contents

Advertisement

Quick Links

See also: Reference Manual , Installation Manual

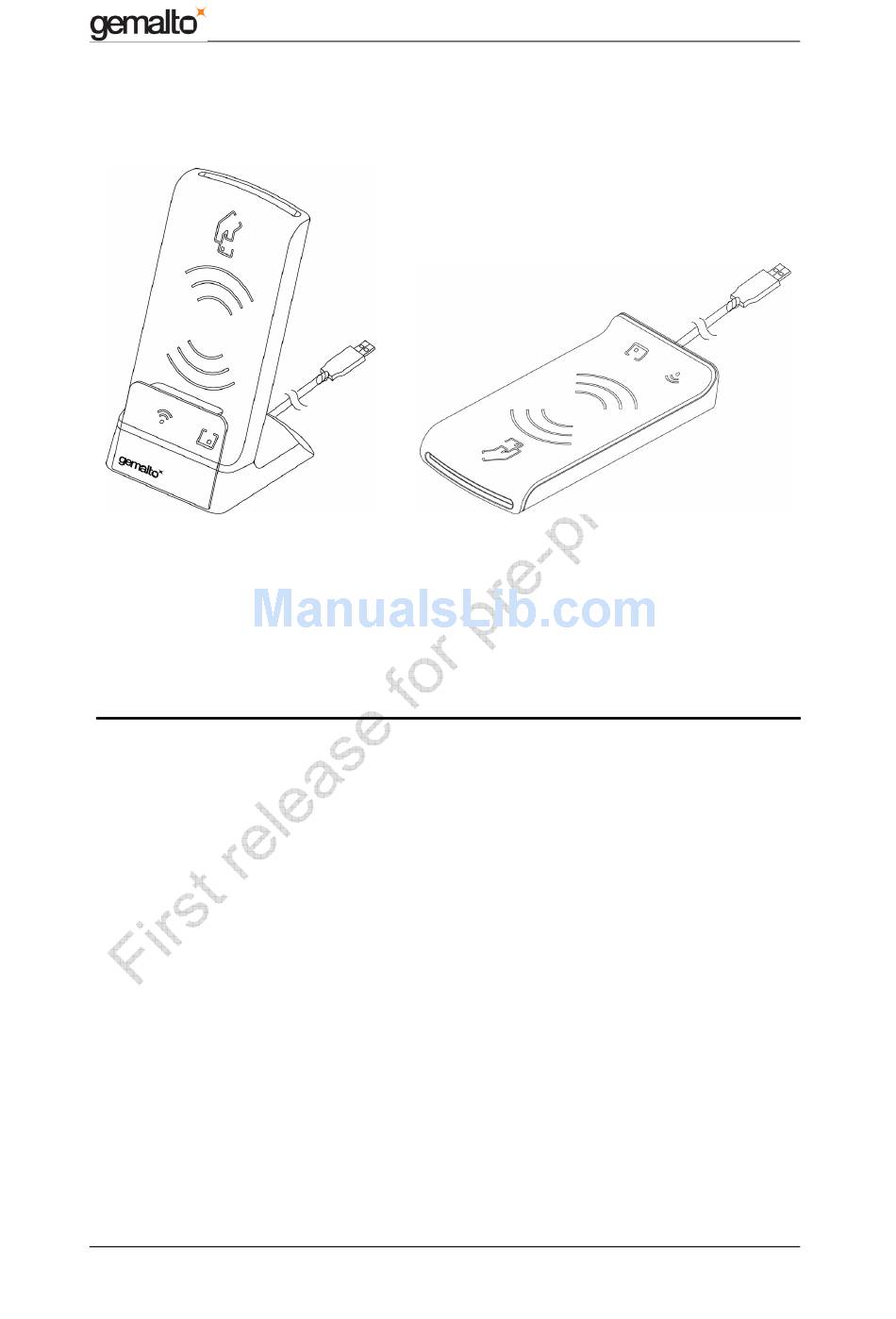

Reference Manual
Preliminary
Prox–DU & Prox–SU
Prox–DU & Prox–SU
Dual interface USB smart card reader
Reference Manual (preliminary)
Release for first samples
Do not use for final design
www.gemalto.com
DOC118569A
Public Use
Page 1/134
