Sharp CD-RW5000 Service Manual page 57

IC2 VHiTC9490F/-1: Servo/Signal Control (TC9490F) (2/2)
Terminal Name
Pin No.
39 AVDD3
40 FMO
41 DMO
42 VSS3
43 VDD3
44 TESIN
45 XVSS3
46 XI
47 XO
48 XVDD3
49 DVSS3
50 RO
51 DVDD3
52 DVR
53 LO
54 DVSS3
55* ZDET
56 VSS5
57-60 BUS0-BUS3
61 BUCK
62 /CCE
63 /RST
64 VDD5
In this unit, the terminal with asterisk mark (*) is (open) terminal which is not connected to the outside.
Note: AI/F: Analog input/output terminal
3-5I/F: Terminal with a built-in 3-5 interface (5V system input/output terminal)
3I/F: 3V system input/output terminal
Input/Output
— Analog 3.3V power supply terminal.
Output Feed equalizer output terminal.
Output Disc equalizer output terminal.
— Digital GND terminal.
— Digital 3.3V power supply terminal.
Input Test input terminal. Usually "L" fixed.
— GND terminal for system clock oscillation circuit.
Input System clock oscillation circuit input terminal.
Output System clock oscillation circuit output terminal.
— 3.3V power supply terminal for system clock oscillation circuit.
— GND terminal for D/A converter.
Output R channel data normal rotation output terminal.
— 3.3V power supply terminal for D/A converter.
— Reference voltage terminal.
Output L channel data normal rotation output terminal.
— D/A converter section GND terminal.
Output 1-bit D/A converter 0 detection flag output terminal.
— GND terminal for microcomputer interface.
Input/Output Data input/output terminal for microcomputer interface.
Input Clock input terminal for microcomputer interface.
Input Chip enable signal input terminal for microcomputer interface.
In case of "L", BUS3-0 are active.
Input Reset signal input terminal. Reset: "L".
— 5V power supply terminal for microcomputer interface.
48 47 46 45 44
DVSS3
49
Clock
RO
50
generator
DVDD3
51
LPF
DVR
52
1-bit
DAC
LO
53
DVSS3
54
ZDET
55
VSS5
56
BUS0
57
Correction
BUS1
58
circuit
BUS2
59
BUS3
60
Audio output
BUCK
61
circuit
/CCE 62
/RST
63
VDD5
64
4
1 2 3 5

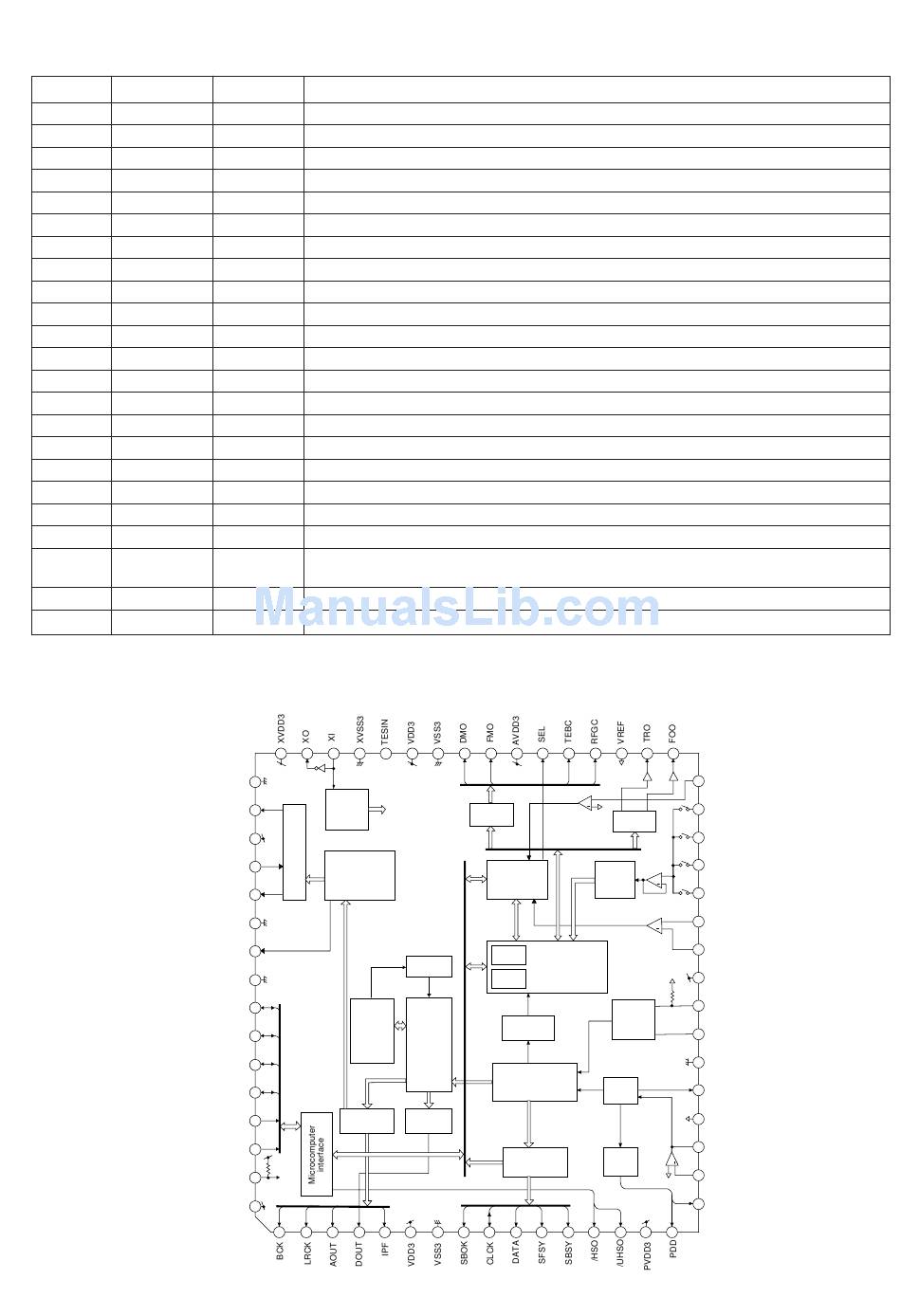

Figure 57 BLOCK DIAGRAM OF IC
Function
43 42 41 40 39 38 37
PWM
Servo control
ROM
Digital equalizer
Address
adjustment circuit
circuit
RAM
CLV
servo
16K RAM
Synchronizing
signal guarantee
EFM demodulation
Digital
out
Sub-code
demodulation
circuit
6 8 9 10 11 12
7
– 57 –
36 35 34 33
32 TEZI
+
31 TEI
D/A
30 SBAD
29
FEI
+
A/D
28 RFRP
RFZI
27
+
26 RFCT
25 AVDD3
24 RFI
Data
slicer
SLCO
23
22 AVSS3
VCO
21 VCOF
PVREF
20
19 LPFO
PLL
+
TMAX
LPFN
18
17 TMAX
13 14 15 16
CD-RW5000
