MT IDLER GEAR F
LIFT GEAR A
145
153
146
110
147
111
Scale: 2 magnifications
(A)
128
142
137
138
134
136
MODE BIG GEAR
LIFT GEAR A/B/C
ASSEMBLING POSITION

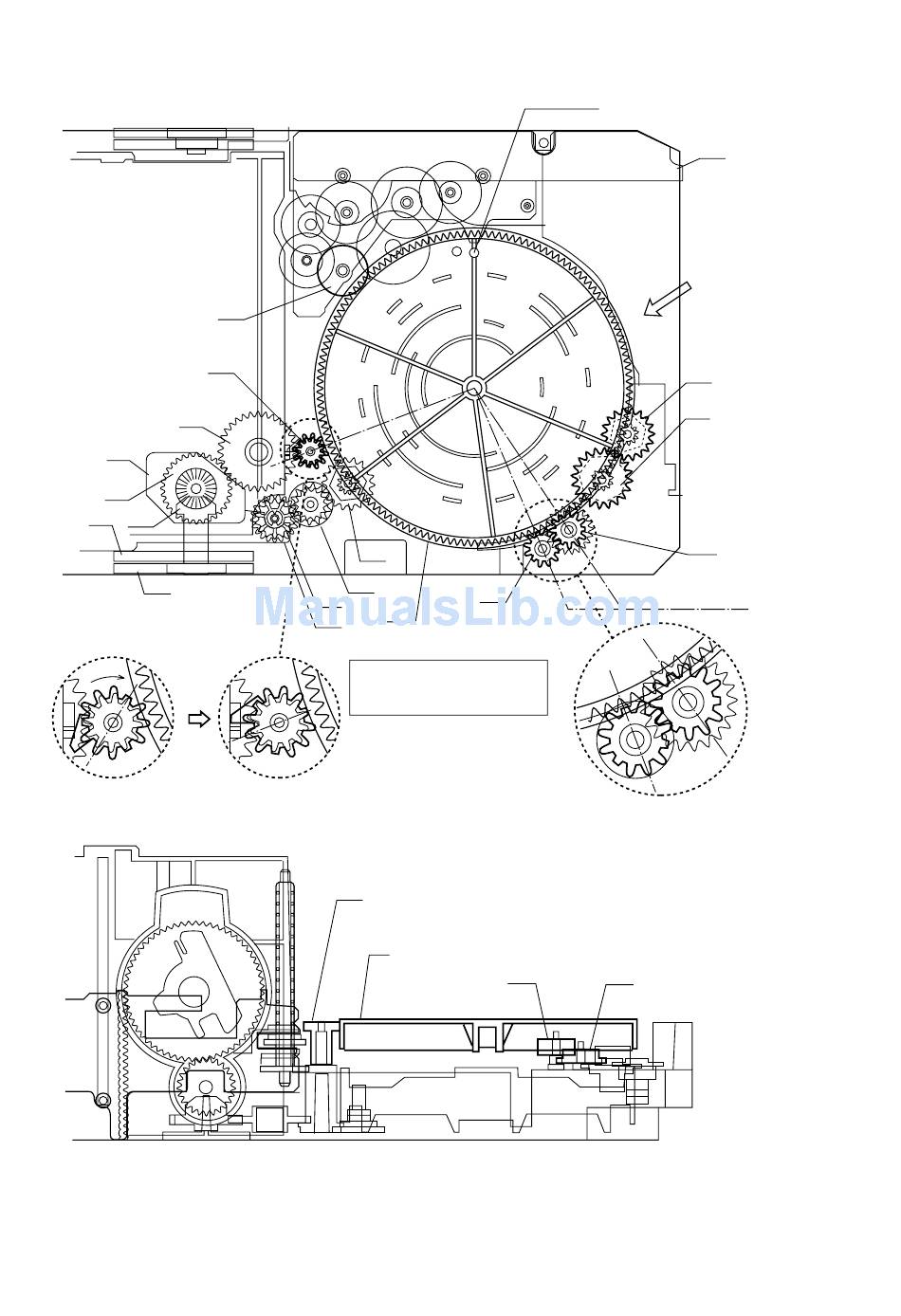

<Assembling method of lift gear>
After setting up the mode big gear in the
shown position, engage it with the STB gear A
(B)
(gear on the lower side) at the position (A),
and assemble them, turning it in the arrow direction
into the position (B). (The short tooth directs toward the
center of the mode big gear.)
142
LIFT GEAR A
141
MODE BIG GEAR
Mark position
(Assemble the mode big gear in this position.)
143
LIFT GEAR B
141
MODE BIG GEAR
143
LIFT GEAR B
Figure 16
– 16 –
104
CHANGE BOX R
Note
To assemble the mode
big gear, incline it,
bring it into contact with
the circumference and
put the center hole into
position since the
hatched part of the main
base is overlapped with
the circumference.
132
133
144
LIFT GEAR C
Direct the short tooth
toward the center.
Scale: 2 magnifications
144
LIFT GEAR C
