USER GUIDE

BioLite Net
English
Version 2.00
EN 102.00.BLN V2.00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BioLite Net and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for suprema BioLite Net

  • Page 1: User Guide

    USER GUIDE BioLite Net English Version 2.00 EN 102.00.BLN V2.00...
  • Page 2: Table Of Contents

    Contents Safety Instructions ..................4 Getting Started ....................6 Components ..............................6 Part names and features ..........................7 How to Scan a Fingerprint.......................... 8 Choosing a finger for registration ....................... 8 How to register a fingerprint ....................... 8 User Management ................... 9 Registering User Information ........................
  • Page 3 Reset Without Net ............................17 Reboot ................................17 Troubleshooting .................... 18 Checklist before Requesting Service ......................18 Product Specifications ................. 19 Product Specifications ..........................19 Dimensions ..............................20 FCC Compliance Information ..............21 Appendix ......................22 Disclaimers ..............................22 Copyright Notice ............................22...
  • Page 4: Safety Instructions

    Safety Instructions Please read the following instructions carefully before using the product. This information is important for ensuring the safety of the user and for preventing damage to the user's property. Warning Violation of the instructions may cause serious injury or death. Installation Instructions Do not install the product in direct sunlight or in a location that is damp or dusty.
  • Page 5: Operating Instructions

    Safety Instructions Operating Instructions Do not drop the product or subject it to shock or impact during use. • This can cause a failure. Keep the password secret from others and change it periodically. • Failure to do so may lead to an illegal intrusion. Do not press the buttons on the product with excessive force or with a sharp tool.
  • Page 6: Getting Started

    Getting Started Getting Started Components BioLite Net Main bracket Extension bracket Mounting screws Screw anchors Heat shrink tubes Ethernet connector (2 pcs) (2 pcs) Hex wrench Diode Adapter (for mounting bracket) (1 pc) Note • The components may differ depending on where the product is installed.
  • Page 7: Part Names And Features

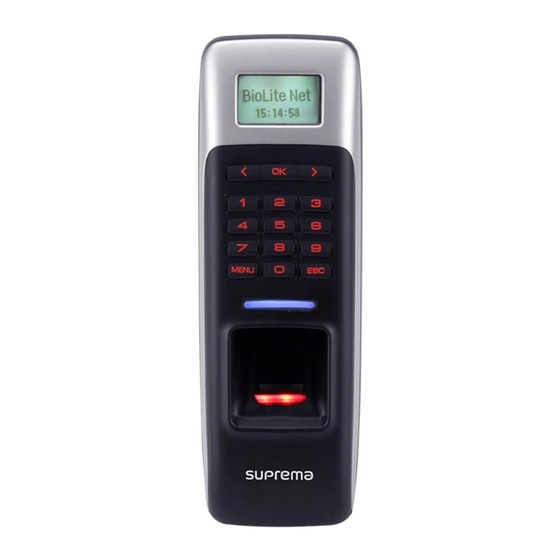

    Getting Started Part names and features LCD screen Keypad LED lamp Fingerprint reader RF card touch area Name Feature LCD screen Displays various information or settings. • 0–9 buttons: For entering an ID or password. • < > direction button: Navigates to an item. When entering numbers or an IP address, the < button can be used to delete the value entered.
  • Page 8: How To Scan A Fingerprint

    How to Scan a Fingerprint Register a fingerprint correctly to improve the recognition rate of the fingerprint. BioLite Net can read a fingerprint even when the angle or position of the finger has changed. If you register a fingerprint with the following instructions, the recognition rate can be improved.
  • Page 9: User Management

    User Management User Management Registering User Information User information including fingerprints can be registered. Note • RS-485 Mode is set to Slave. Refer to RS-485 Mode configuration in order to change the User information cannot be registered if communication mode. Press the MENU button, and then authenticate with the administrator authentication method.
  • Page 10: Changing User Information

    User Management Changing User Information User administrator or Super administrator can change the information of a registered user. They can add the fingerprints or card of the user, and also change PIN or authority. Note • User information cannot be changed if RS-485 Mode is set to Slave.
  • Page 11: Changing Authority

    User Management Changing authority Press the MENU button, and then authenticate with the administrator authentication method. Select User > Edit User, and then press OK button. Enter the ID of the user to be changed, and then press OK button. User Level, and then press OK button.
  • Page 12: Authentication Configuration

    Authentication Configuration Authentication Configuration Fingerprint Authentication configuration A schedule can be configured for each authentication method using fingerprints. Note • RS-485 Mode is set to Slave. Refer to RS-485 Mode configuration in order to change Fingerprint authentication mode cannot be configured if the communication mode.
  • Page 13: Matching Timeout Configuration

    Authentication Configuration • ID+Finger: After entering an ID, a fingerprint should be recognized. • ID+PIN: After entering an ID, a PIN should be entered. • ID+Finger/PIN: After entering an ID, either a fingerprint should be recognized or a PIN should be entered. •...
  • Page 14: Display/Sound Configuration

    Display/Sound Configuration Display/Sound Configuration Backlight Timeout configuration The time to turn off the light of LCD screen can be configured. Press the MENU button, and then authenticate with the administrator authentication method. Select Display/Sound > Backlight Timeout, and then press OK button. Select the time that you want, and then press OK button.
  • Page 15: Device Configuration

    Select Select the fingerprint template type that you want, and then press OK button. • SUPREMA / ISO 19794-2 / ANSI-378 Note • After deleting all the user fingerprint information, change the template type. If there is any user fingerprint information, the template type cannot be changed.
  • Page 16: Authentication Speed (Fast Mode) Configuration

    Communication Configuration Authentication Speed (Fast Mode) configuration Press the MENU button, and then authenticate with the administrator authentication method. Select Device > Fingerprint > FastMode, and then press OK button. Select the authentication speed that you want, and then press OK button. •...
  • Page 17: Baud Rate Configuration

    Device Reset Baud Rate configuration Press the MENU button, and then authenticate with the administrator authentication method. Select Communication > RS485 > Baud Rate, and then press OK button. Select the baud rate that you want, and then press OK button. Termination configuration Press MENU button, and then get authenticated with the administrator authority authentication method.
  • Page 18: Troubleshooting

    Refer to Date/Time configuration in order to adjust the time. • Since in BioLite Net administrators are in charge of permitting the right of The administrator mode cannot entrance, only the administrators can access the menu.
  • Page 19: Product Specifications

    Product Specifications Product Specifications Product Specifications Category Feature Specification Biometric Fingerprint IP Rating IP 65 Main RF Card 125KHz EM, 13.56MHz Mifare/DESFire Multi-Controller Max. User (1:1) 5,000 Max. User (1:N) 5,000 Capacity Max. Template (1:1) 10,000 Max. Template (1:N) 10,000 Max.
  • Page 20: Dimensions

    Product Specifications Dimensions Diameter 3.5 Diameter 4.5 Diameter 4.5 Extension bracket Main bracket...
  • Page 21: Fcc Compliance Information

    FCC Compliance Information FCC Compliance Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received, including interference that may cause undesired operation. Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules.
  • Page 22: Appendix

    This document provides the information pertaining to Suprema's products. • The right of use is granted only to the products that are covered by the sales agreement and conditions guaranteed by Suprema. Any license of intellectual property that is not dealt within this document is not granted.
