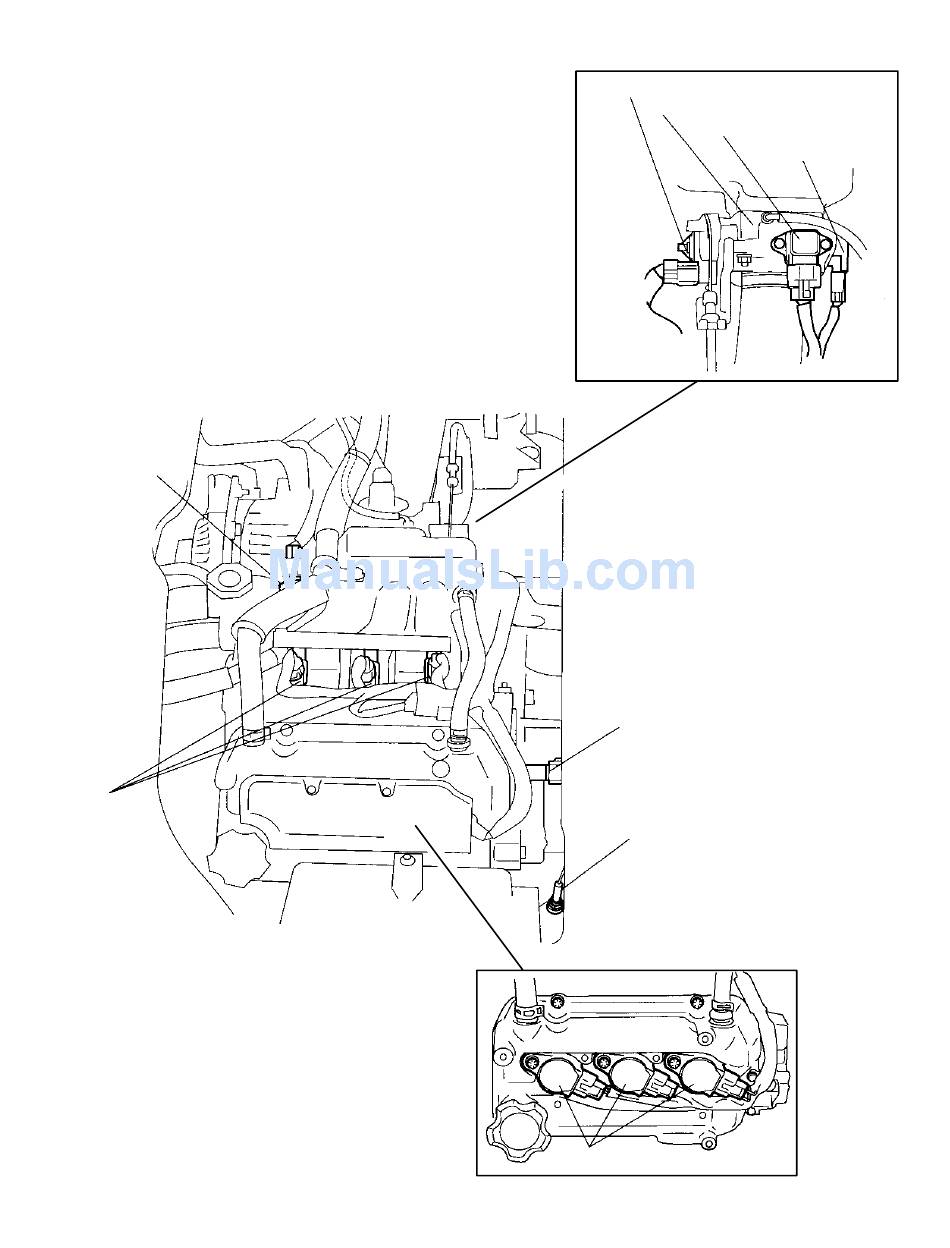

CONTROL SYSTEM PARTS LAYOUT DIAGRAM

The control system is composed of sensors, which send data con-
cerning the engine and driving status to the ECM, the ECM, which
controls actuators according to the signals from sensors, and the
actuators.
WATER
TEMPERATURE
SENSOR
INJECTORS
ISC VALVE
THROTTLE BODY
PRESSURE SENSOR
CRANK ANGLE SENSOR
O SENSOR
2
IGNITION COIL
THROTTLE SENSOR
95
