Air intake system

The main components of the air intake system are air cleaner, air flow meter, air intake pipe, throttle body, air valve, ISC
solenoid valve and intake manifold.
The air (by the amount corresponding to the throttle valve opening and engine speed) is filtered by the air cleaner,
passes through the throttle body, is distributed by the intake manifold and finally drawn into each combustion chamber.
When the engine is idling, when it is cold or when the ISC solenoid valve is opened according to the signal from ECM, the
air bypasses the throttle valve through bypass passage which varies in each case and is finally drawn into the intake
manifold.

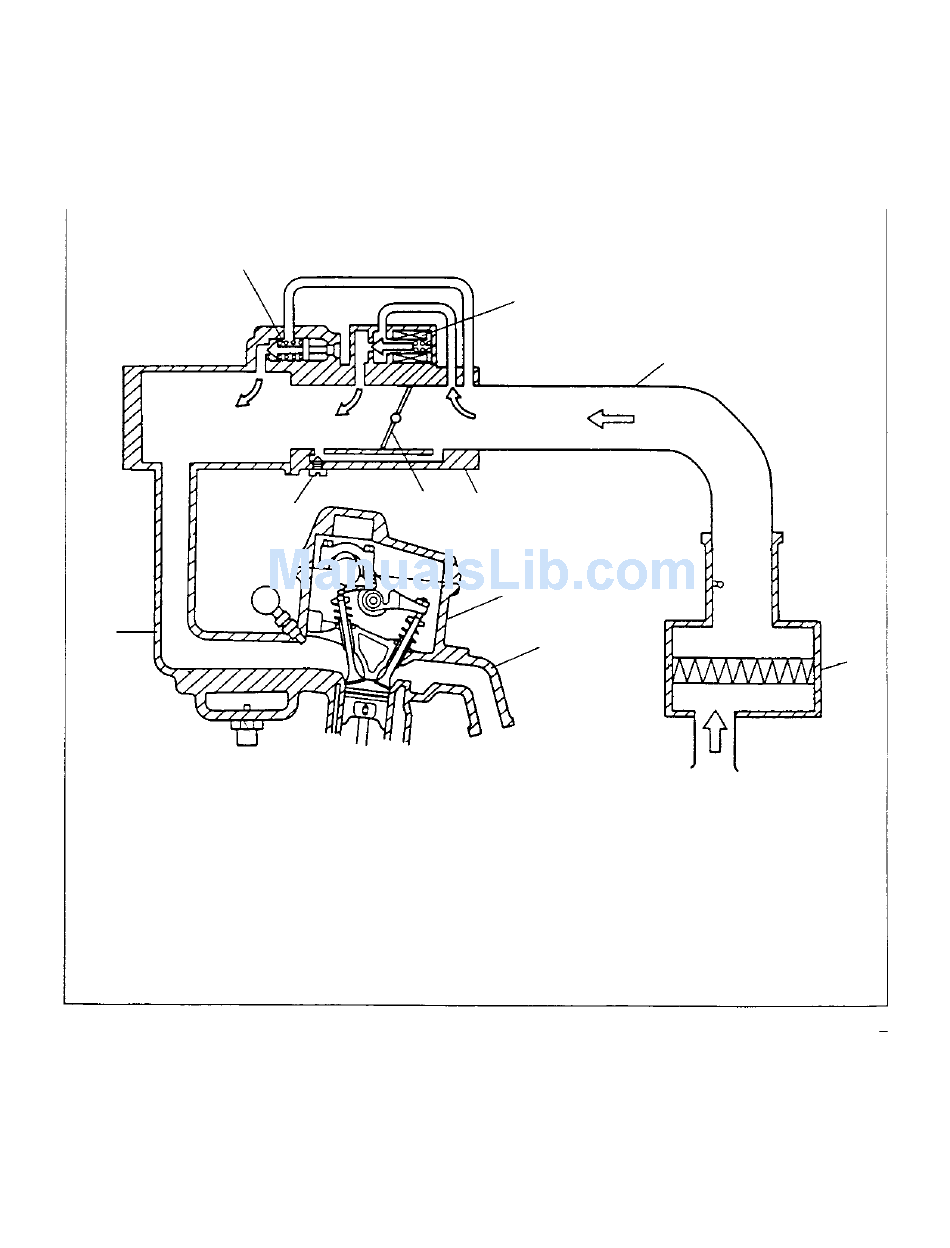

11
8
1. AIR CLEANER
2. AIR INTAKE PIPE
3. THROTTLE BODY
4. THROTTLE VALVE
5. IDLE SPEED ADJUSTING SCREW
8
6
12
5
6. AIR VALVE
7. ISC SOLENDOID VALVE
8. INTAKE MANIFOLD
9. CYLINDER HEAD
10. EXHAUST MANIFOLD
7
4
3
9
10
2
13
11. AIR FLOW WHEN ENGINE COLD
12. AIR FLOW WHEN ISC SOLENOID
VALVE OPEN
13. FRESH AIR
1
